Product Overview

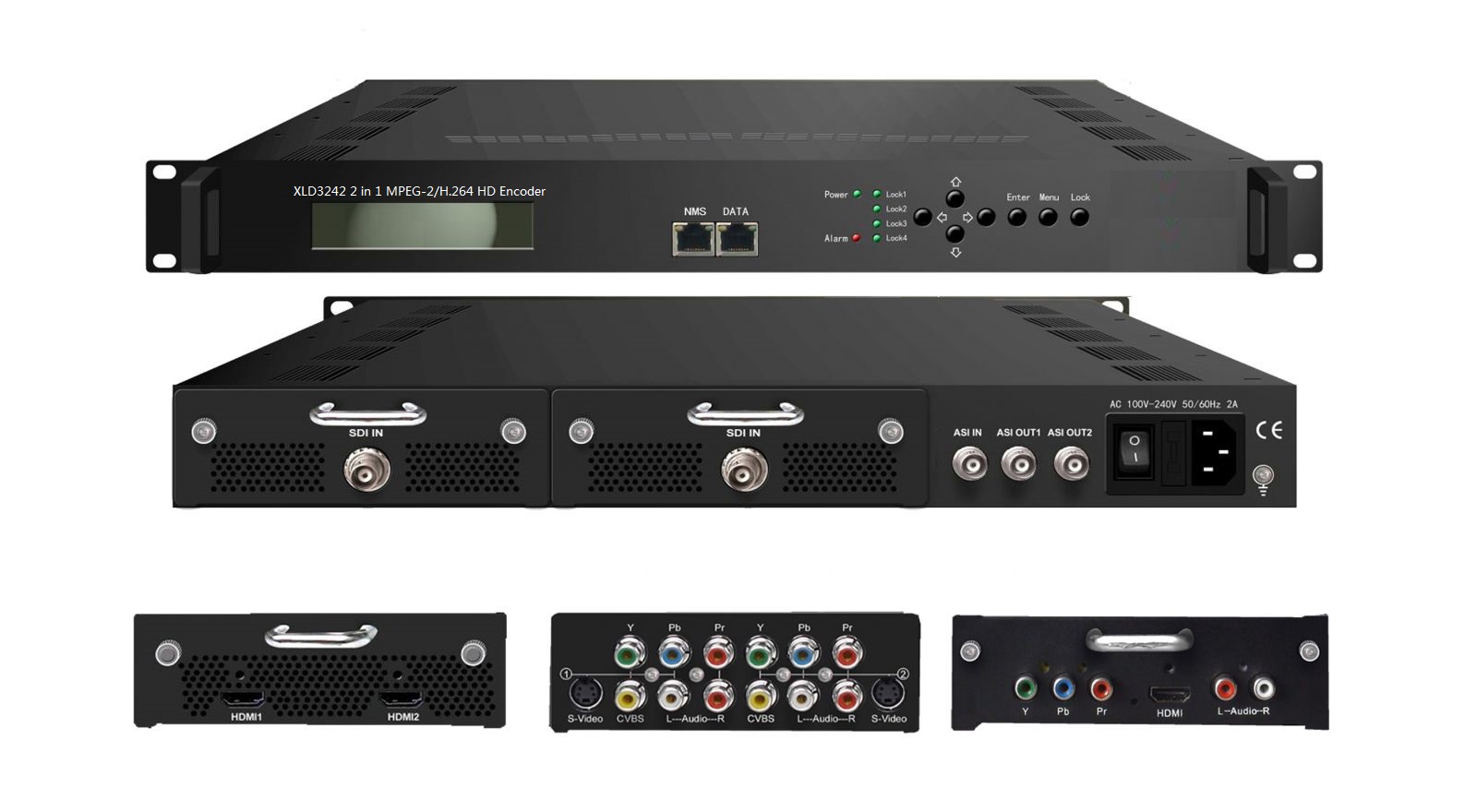

XLD3242 is Xielide’s professional HD audio & video encoding device which has 2 channels of HDMI (SDI/YPbPr+HDMI+ CVBS/YPbPr+S-Video+CVBS Optional) input for MPEG-2 and MPEG-4 AVC/H.264 video encoding and MPEG-1 Audio layer 2, LC-AAC, HE-AAC and AC3 audio encoding. It is also equipped with 1 channel ASI input for re-mux. The 2 encoded programs will output through 2 ASI or IP ports in MPTS or 4 SPTS.
It adopts pluggable design makes it convenient to change encoding module (SDI/YPbPr+HDMI+ CVBS/YPbPr+S-Video+CVBS) as needed
Key Features
* MPEG2 & MPEG4 AVC/H.264 HD video encoding
* MPEG1 Audio Layer 2, MPEG2-AAC, MPEG4-AAC and Dolby Digital AC3(2.0 optional) audio encoding
* Dolby Digital AC3 passthrough(for HDMI of HDMI/YPbPr/CVBS 3-in-1 Board)
* Support CC (closed caption ), EIA 608 and EIA 708 for SDI interface
* HDMI/SDI/YPbPr+HDMI+CVBS/YPbPr+S-Video+CVBS signals in optional, pluggable and changeable encoding modules
* Support CBR/VBR rate control mode
* Support Low Latency function
* Support PSI/SI editing and inserting
* Supports IP null packet filter
* ASI output, IP (MPTS & 4 SPTS) output over UDP, RTP/RTSP
* SPTS output biterate settable
* LCD display, Remote control and firmware
* Web-based NMS management; Updates via web
Technical Specifications
Encoding Section
Video
|
Encoding |
MPEG2 & MPEG4 AVC/H.264 |
|
Input |
HDMI*2 (SDI*2/(YPbPr+HDMI+CVBS)*2/(YPbPr+S-Video+CVBS)*4 Optional) |
|
Resolution |
1920*1080_60P, 1920*1080_50P, (-for MPEG4 AVC/H.264 only, except YPbPr+S-Video+CVBS) 1920*1080_60i, 1920*1080_50i,(except YPbPr+S-Video+CVBS) 1280*720_60p, 1280*720_50P(except YPbPr+S-Video+CVBS) 720*480_60i, 720*576_50i |
|
Bit Rate |
1~19.5Mbps |
|
Rate Control Mode |
CBR/VBR |
|
GOP Structure |
B frame(0~3), P frame(0~6)(for HDMI &HDMI/YPbPr/CVBS 3-in-1 module) |
Audio
|
encoding |
MPEG1 Layer II, MPEG2-AAC, MPEG4-AAC, Dolby Digital AC3(2.0 optional) Dolby Digital AC3 passthrough(for HDMI of HDMI/YPbPr/CVBS 3-in-1) |
|
Sample rate |
48KHz |
|
Bit rate |
64kbps, 96kbps,128kbps, 192kbps, 256kbps, 320kbps |
System
|
Local interface |
LCD + control buttons |
|
Remote management |
Web NMS |
|
output |
2ASI out (BNC type) IP (1 MPTS & 4 SPTS) over UDP, RTP/RTSP (RJ45, 100M) |
|
NMS interface |
RJ45, 100M |
|
Language |
English |
General
|
Power |
AC 100V~240V |
|
|
Dimensions |
482*300*44mm |
|
|
Weight |
3.5 kgs |
|
|
Operation temperature |
0~45℃ |
|
