Product Overview

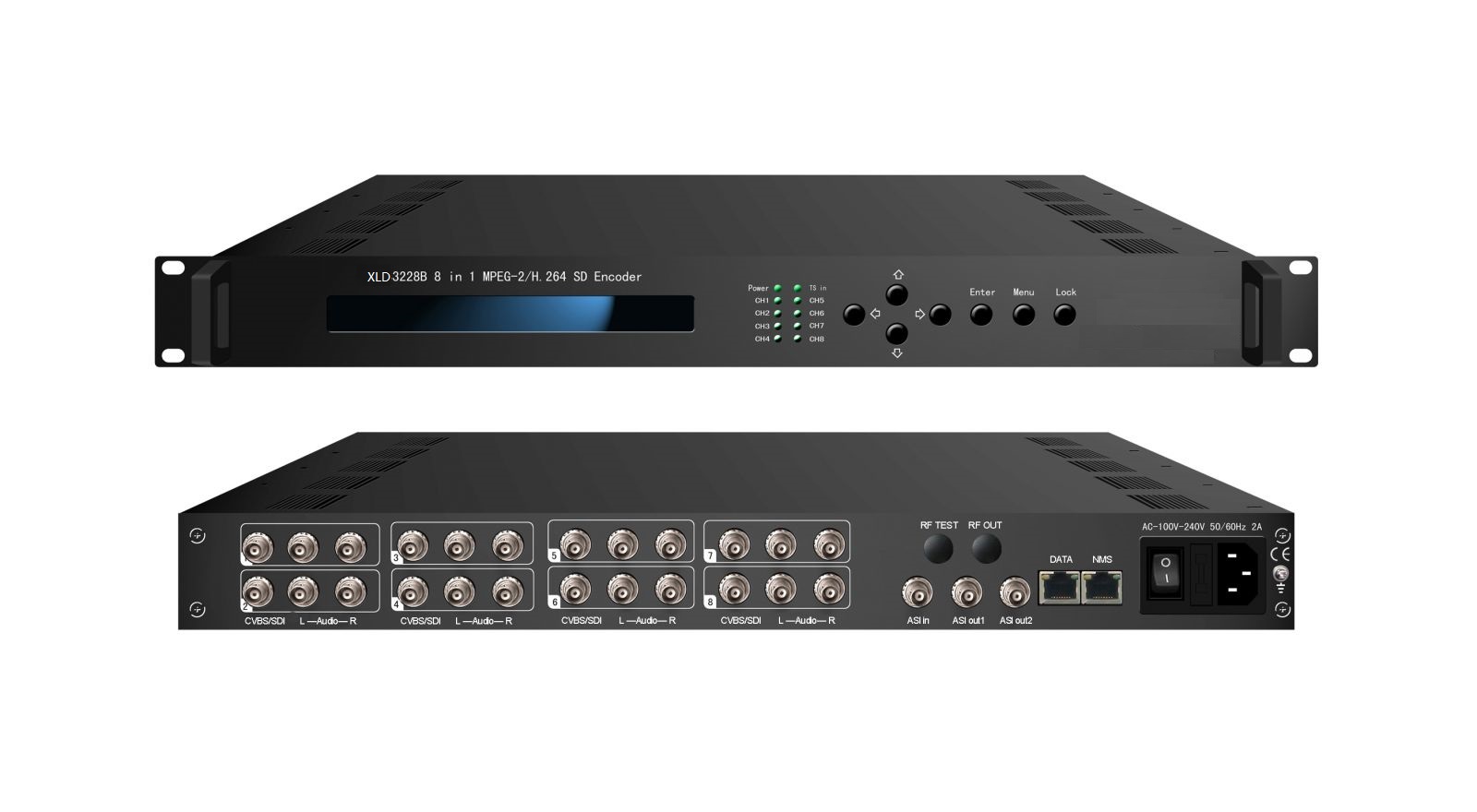

The Xielide XLD3228B 8 in 1 (XLD3224B 4 in 1) MPEG-2/H.264 SD Encoder is our professional SD audio & video encoding and multiplexing device with powerful functionality. It has 8/4 independent channels of unbalanced audio & CVBS video input interfaces or SD-SDI input interfaces. The device supports MPEG-2 and H.264 video encoding and MPEG-1 Audio layer 2, LC-AAC, HE-AAC and DD AC3 (optional) audio encoding. In addition, it has an ASI input and can multiplex the input TS with the 8/4 encoded SPTS to generate a MPTS output.
Key Features
* Support 8/4 CVBS/SD-SDI inputs and 1 ASI Input for re-mux
* Support H.264 & Mpeg2 video encoding
* MPEG1 Audio Layer 2, LC-AAC, HE-AAC and AC3 2.0 (Optional)audio encoding
* Support CC (closed caption ) for CVBS interface
* Support Dialog Normalization(Optional)
* Support VBR/CBR video encoding
* Support Low Latency function
* Support PSI/SI editing and inserting
* Supports MPTS or 8/4 SPTS IP (UDP, RTP/RTSP) Output
* Supports IP null packet filter
* LCD / keyboard and web NMS operation
* Update device through NMS port
Technical Specifications
|
Input |
XLD3224B 4 CVBS/SDI inputs, BNC interface XLD3228B 8 CVBS/SDI in inputs, BNC interface |
|||
|
8/4 pairs unbalanced stereo audio input, BNC interface |
||||
|
1 ASI input, BNC interface |
||||
|
Video |
Resolution |
720*576i; 720*480i |
||
|
Encoding |
MPEG-2; H.264 |
|||
|
Bit-rate |
0.5~15Mbps for H.264 encoding 1~15Mbps for MPEG-2 encoding |
|||
|
Rate Control |
CBR/VBR |
|||
|
Aspect Ratio |
4:3, 16:9 |
|||
|
Advanced Pretreatment |
De-interlacing, Noise Reduction, Sharpening |
|||
|
Audio |
Encoding |
MPEG1 Audio Layer 2; LC-AAC; HE-AAC AC3 2.0 (Optional) |
||
|
Sampling rate |
48KHz |
|||
|
Bit-rate |
32Kb/s~384Kb/s |
|||
|
Multiplexing |
1 ASI input multiplexed with local 8 channels of TS |
|||
|
Stream output |
2*ASI output, BNC interface |
|||
|
MPTS/8 *SPTS (4*SPTS) over UDP or RTP/RTSP, 100Base-T Ethernet interface (UDP/RTP/RTSP unicast / multicast) |
||||
|
System function |
Low Latency achieved (Normal, mode 1 and mode 2 optional) |
|||
|
LCD/keyboard and Web-based NMS operating |
||||
|
Chinese-English control interface |
||||
|
Ethernet software & hardware upgrade |
||||
|
Miscellaneous |
Dimension (W× L× H) |
482mm×455mm×44mm |
||
|
Approx weight |
4kg |
|||
|
Temperature |
0~45℃(work), -20~80℃（Storage） |
|||
|
Power |
AC 100V-220V±10%, 50/60Hz |
|||
|
Consumption |
25W |
|||
