Product Overview

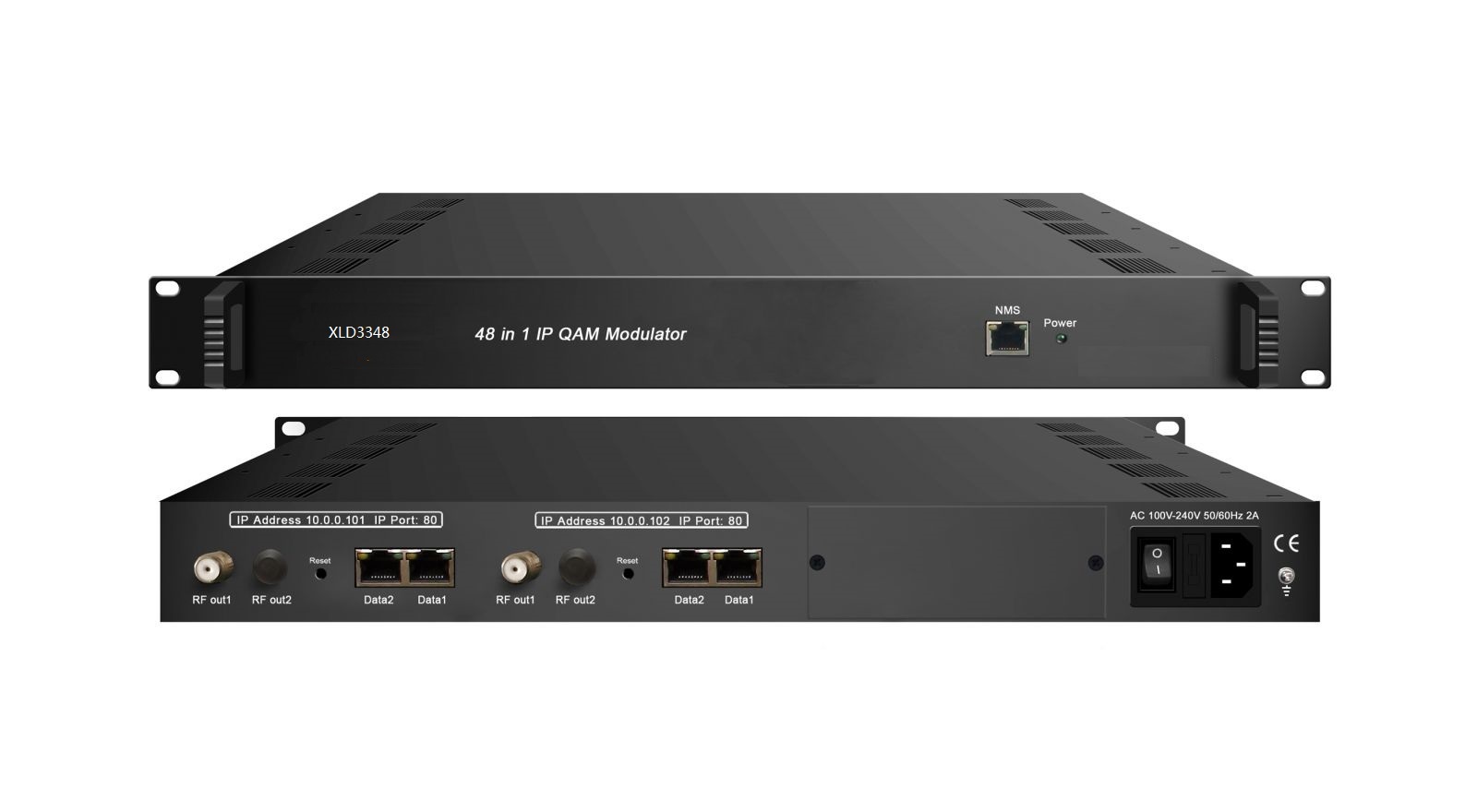

XLD3348 48 in 1 IP QAM modulator is Xielide Mux-scrambling-modulating all-in-one device. It supports maximum 1536 IP input through the GE port and 48 multiplexing scrambling QAM (DVB-C) modulating channels with non-adjacent carriers (50MHz~960MHz) output through the RF output interface. Its pay-as-you-grow modular design and flexible configuration are making it extremely scalable, very reliable with high performance, all of which are adaptable to newly generation CATV broadcasting system.
Key Feature
* 2* 2 GE input, Data1 and Data2 (SFP interface optional)
* Supports up to 1024+512 channels TS input over UDP/RTP, unicast and multicast, IGMP v2v3
* Max 840Mbps for each GE input
* Supports accurate PCR adjusting/CA filtering, PID remapping and PSI/SI editing
* Supports up to 256 PIDS remapping per channel
* Support 32+16 multiplexed or scrambled TS over UDP/RTP/RTSP output
* 32+16 non-adjacent QAM carriers output
* Supports RS (204,188) encoding
* Support Web-based Network management
Inner Principle Chart
Carrier Setting Illustration
Specifications
|
Input |
Input |
1024+512 IP input, 2*100/1000M Ethernet Port (SFP interface optional) per module |
||
|
Transport Protocol |
TS over UDP/RTP, unicast and multicast, IGMP V2/V3 |
|||
|
Transmission Rate |
Max 840Mbps for each GE input |
|||
|
Mux |
Input Channel |
1024+512 |
||
|
Output Channel |
48 |
|||
|
Max PIDs |
256 per channel |
|||
|
Functions |
PID remapping(auto/manually optional) |
|||
|
PCR accurate adjusting |
||||
|
PSI/SI table automatically generating |
||||
|
Scrambling Parameters |
Max simulscrypt CA |
4 |
||
|
Scramble Standard |
ETR289, ETSI 101 197, ETSI 103 197 |
|||
|
Connection |
Local/remote connection |
|||
|
Modulation Parameters |
DVB-C Modulator Sectioon |
J.83A |
Constellation : 16/32/64/128/256QAM |
|
|
Bandwidth :8M |
||||
|
J.83B |
Constellation : 64QAM/ 256QAM |
|||
|
Bandwidth :6M |
||||
|
QAM Channel |
32+16 non-adjacent carrier |
|||
|
Modulation Standard |
EN300 429/ITU-T J.83A/B(DVB-C) |
|||
|
Symbol Rate |
5.0~7.0Msps, 1ksps stepping |
|||
|
Constellation |
16, 32, 64 , 128, 256QAM |
|||
|
FEC |
RS (204, 188) |
|||
|
RF Output |
Interface |
1 F typed output port for 48 carriers, 75Ω |
||
|
RF Range |
50~960MHz, 1kHz stepping |
|||
|
Output Level |
-20dBm~+10dBm(87~117dbµV), 0.1dB stepping |
|||
|
MER |
≥ 40dB |
|||
|
TS output |
32+16 IP output over UDP/RTP/RTSP, unicast/multicast, 2*100/1000M Ethernet Ports (SFP) per module |
|||
|
System |
Network management software (NMS) supporting |
|||
|
General |
Demission |
420mm×440mm×44.5mm (WxLxH) |
||
|
Temperature |
0~45℃(operation), -20~80℃(storage) |
|||
|
Power Supply |
AC 100V±10%, 50/60Hz or AC 220V±10%, 50/60Hz |
|||
