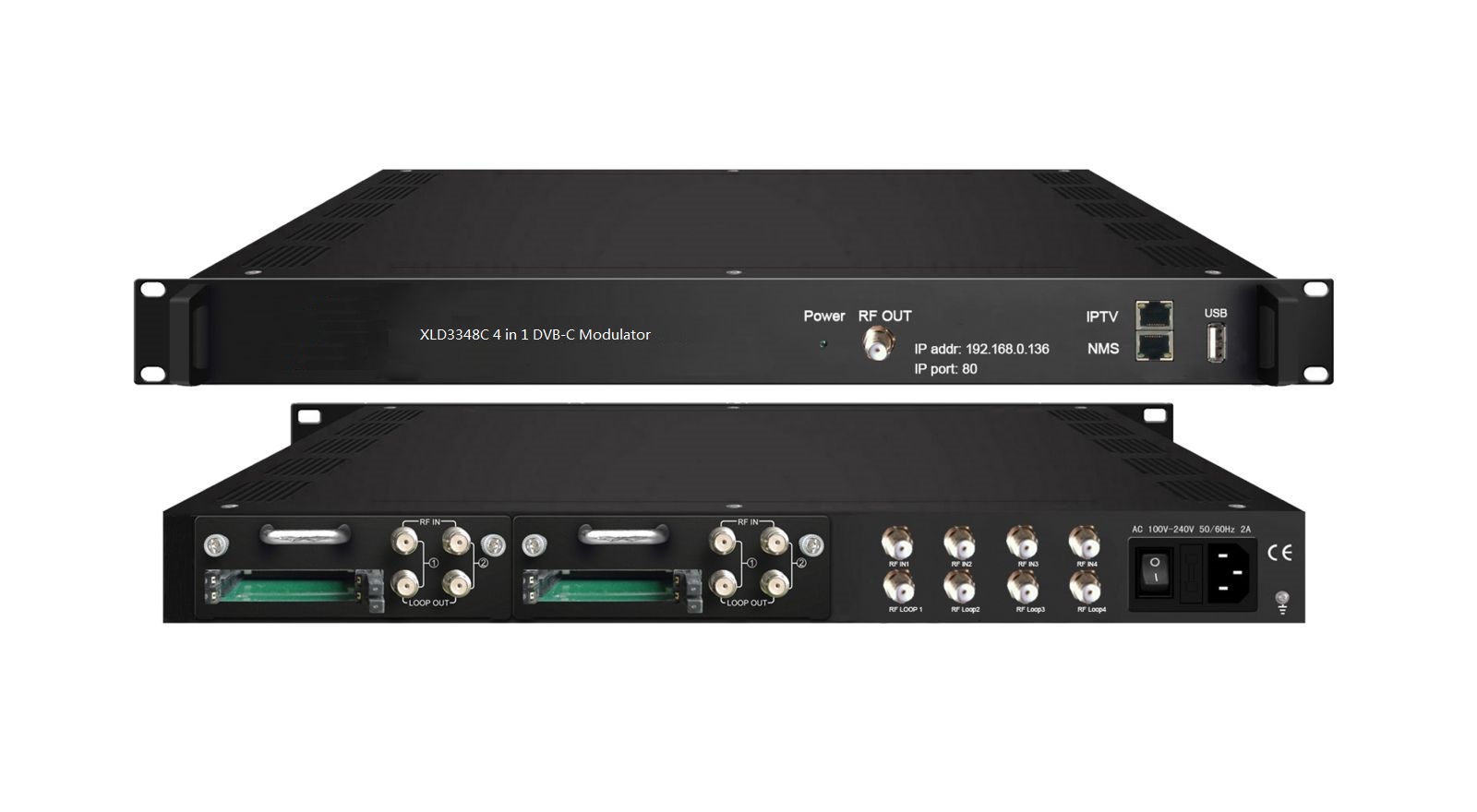

XLD3348C is a high performance and cost-effective DVB-C modulator designed by Xielide. It has 8 tuner inputs, after multiplexing, scrambling and modulating process, then it gives 4 DVB-C non-adjacent carriers output. To meet customers’ various requirements, this device is also equipped with 128 IP input and 4 MPTS output over UDP and RTP. Its pluggable structure design greatly facilitates the change of modules as needed. Moreover, the four CAMs/CIs accompanied and BISS modules can descramble the programs input from 8 Tuner and IP input.
XLD3348C can be upgraded and controlled through network system, which allows it to be widely used in setting up digital broadcasting network and very adaptable to newly generation CATV broadcasting system.
Features
* 4 Tuner (DVB-C/(T)/S/S2 optional) + 4 Tuner with CAM(DVB-C/(T)/S/S2/ATSC optional) input
* Demodulation Module(4*RF/Loop out + 4*CAM + 4*Smartcard)
* One CAM can decrypt multiple programs from Tuners and IP
* maximum 128 IP input(MPTS/SPTS) over UDP and RTP protocol
* 4 groups multiplexing + 4 groups scrambling + 4 groups DVB-C modulating
* 4 IP (MPTS) output over UDP and RTP protocol
* Integrated demodulating and multiplexing functions
* Support BISS descrambling
* Support accurate PCR adjusting, PID Remapping, PSI/SI rebuilding and editing, A/V PID filtering
* Web-based NMS management
Principle Chart
Specifications
|
Input |
4 Tuner (DVB-C/(T)/S/S2 optional)+4 Tuner with CAM (DVB-C/(T)/S/S2/ ATSC optional) 128 IP(SPTS/MPTS) input over UDP and RTP, RJ45, 1000M/100M , Unicast/Multicast |
||||
|
Tuner Section |
DVB-C |
Standard |
J.83A(DVB-C), J.83B, J.83C |
||
|
Input Frequency |
30 MHz~1000 MHz |
||||
|
Constellation |
16/32/64/128/256 QAM |
||||
|
DVB-(T) |
Input Frequency |
30MHz ~999.999 MHz |
|||
|
Bandwidth |
6/7/8 M bandwidth |
||||
|
DVB-S |
Input Frequency |
950-2150MHz |
|||
|
Symbol rate |
2-45Msps |
||||
|
Signal Strength |
-65~-25dBm |
||||
|
FEC Demodulation |
1/2, 2/3, 3/4, 5/6, 7/8 QPSK |
||||
|
DVB-S2(Version 1) |
Input Frequency |
950-2150MHz |
|||
|
Symbol rate |
QPSK 1~45Mbauds; 8PSK 2~30Mbauds |
||||
|
Code rate |
1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 |
||||
|
Constellation |
QPSK, 8PSK |
||||
|
DVB-S2(Version 2) |
Input Frequency |
950-2150MHz |
|||
|
Code rate |
1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 |
||||
|
Constellation |
QPSK, 8PSK, 16APSK, 32APSK |
||||
|
Symbol rate |
QPSK 1~45 Msps; 8PSK 2~30 Msps; 16APSK 1~45 Msps; 32APSK 1-32 Msps |
||||
|
ATSC-T |
Input Frequency |
54MHz~858MHz |
|||
|
Bandwidth |
6M bandwidth |
||||
|
Descrambling |
CAM/CI |
4 sets |
|||
| BISS Descrambling | Mode 1, Mode E (descramble individual program) | ||||
|
Multiplexing |
Maximum PID Remapping |
256 per input channel |
|||
|
Function |
A/V PID filtering |
||||
|
PID Remapping |
|||||
|
Accurate PCR adjusting |
|||||
|
Generate PSI/SI table automatically |
|||||
|
Scrambling |
Maximum simulcrypt CA |
4 |
|||
|
Standard |
ETR289, ETSI 101 197, ETSI 103 197 |
||||
|
Connection |
Local/remote connection |
||||
|
Modulation |
DVB-C |
Standard |
J.83A (DVB-C), J.83B, |
||
|
MER |
≥43dB |
||||
|
RF frequency |
50~960MHz, 1KHz step |
||||
|
RF output level |
-25~ -1dbm(83~107 dbµV), 0.1db step |
||||
|
Symbol rate |
5.000~7.000Msps adjustable |
||||
|
RF Out |
4*DVB-C non-adjacent carriers combined output, 40M total bandwidth limitation |
||||
|
Constellation |
J.83A |
J.83B |
|||
|
16/32/64/128/256QAM |
64/256 QAM |
||||
|
Bandwidth |
8M |
6M |
|||
|
Stream out |
4*MPTS over UDP and RTP out (RJ45, 1000M/100M Unicast/Multicast) |
||||
|
System |
web-based NMS support |
||||
|
Ethernet software upgrading |
|||||
|
General |
Dimension |
482mm×300mm×44.5mm (W*D*H) |
|||
|
Temperature |
0~45℃(Operation) ; -20~80℃(Storage) |
||||
|
Power |
AC 100V±1050/60Hz; AC 220V±10%, 50/60HZ |
||||
