Outline

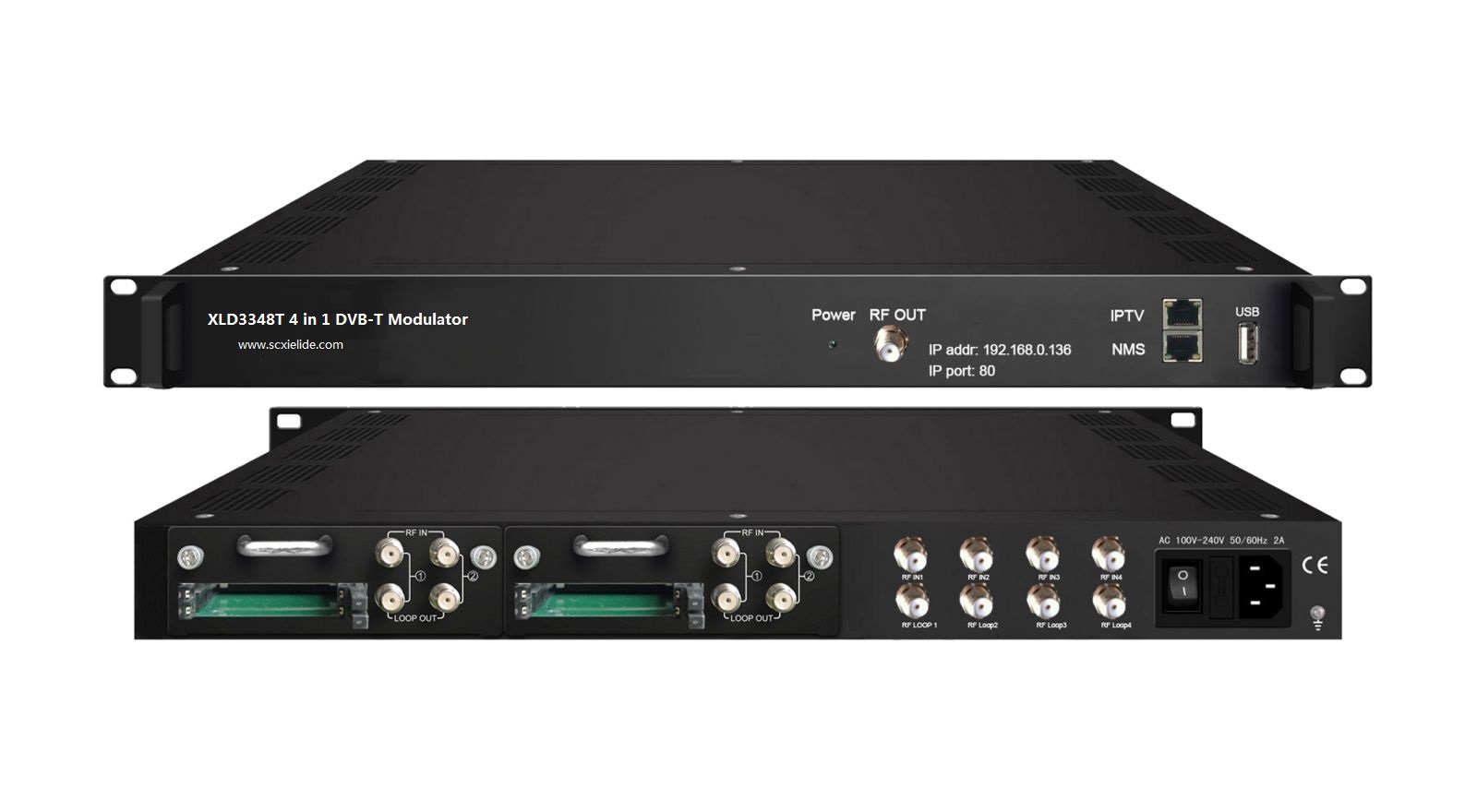

XLD3348T is a high performance and cost-effective DVB-T modulator designed by Xielide. It has 8 tuner inputs. After multiplexing and modulating process, it gives 4 DVB-T non-adjacent carriers output through one RF port. To meet customers’ various requirements, this device is also equipped with data port for 128 IP input and 4 MPTS output over UDP and RTP. Its pluggable structure design greatly facilitates the change of modules as needed. Moreover, the four CAMs/CIs accompanied and BISS modules can descramble the input programs from 8 Tuners and IP.
XLD3348T can be upgraded and controlled through network system, which allows it widely used in digital broadcasting network and provide good signals for scientific laboratory and DVB-T STB.
Features
* 4 Tuner (DVB-C/(T)/S/S2 optional) + 4 Tuner with CAM(DVB-C/(T)/S/S2/ATSC optional) input
* Demodulation Module (4*RF/Loop out + 4*CAM + 4*Smartcard)
* One CAM can decrypt multiple programs from Tuners and IP
* Maximum 128 IP input (MPTS/SPTS) over UDP and RTP protocol
* 4 groups multiplexing +4 groups DVB-T modulating
* 4 IP (MPTS) output over UDP and RTP protocol
* Support BISS descrambling
* Support accurate PCR adjusting, PID Remapping, PSI/SI rebuilding and editing, A/V PID filtering
* Web-based NMS management
Principle Chart
Specifications
|
Input |
4 Tuner(DVB-C/(T)/S/S2 optional)+4 Tuner with CAM(DVB-C/(T)/S/S2/ATSC optional) 128 IP(SPTS/MPTS) input over UDP and RTP, RJ45, 1000M/100M , Unicast/Multicast |
|||
|
Tuner Section |
DVB-C |
Standard |
J.83A(DVB-C), J.83B, J.83C |
|
|
Input Frequency |
30 MHz~1000 MHz |
|||
|
Constellation |
16/32/64/128/256 QAM |
|||
|
DVB-(T) |
Input Frequency |
30MHz ~999.999 MHz |
||
|
Bandwidth |
6/7/8 M bandwidth |
|||
|
DVB-S |
Input Frequency |
950-2150MHz |
||
|
Symbol rate |
2-45Msps |
|||
|
Signal Strength |
-65~-25dBm |
|||
|
FEC Demodulation |
1/2, 2/3, 3/4, 5/6, 7/8 QPSK |
|||
|
DVB-S2(Version 1) |
Input Frequency |
950-2150MHz |
||
|
Symbol rate |
QPSK 1~45Mbauds; 8PSK 2~30Mbauds |
|||
|
Code rate |
1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 |
|||
|
Constellation |
QPSK, 8PSK |
|||
|
DVB-S2(Version 2) |
Input Frequency |
950-2150MHz |
||
|
Code rate |
1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 |
|||
|
Constellation |
QPSK, 8PSK, 16APSK, 32APSK |
|||
|
Symbol rate |
QPSK 1~45 Msps; 8PSK 2~30 Msps; 16APSK 1~45 Msps; 32APSK 1-32 Msps |
|||
|
ATSC-T |
Input Frequency |
54MHz~858MHz |
||
|
Bandwidth |
6M bandwidth |
|||
|
Descrambling |
CAM/CI |
4 sets |
||
| BISS Descrambling | Mode 1, Mode E (descramble individual program) | |||
|
Multiplexing |
Maximum PID Remapping |
256 per input channel |
||
|
Function |
A/V PID filtering |
|||
|
PID Remapping |
||||
|
Accurate PCR adjusting |
||||
|
Generate PSI/SI table automatically |
||||
|
Modulation |
DVB-T |
Standard |
EN300744 |
|
|
FFT mode |
2K |
|||
|
Bandwidth |
6M, 7M, 8M |
|||
|
Constellation |
QPSK, 16QAM, 64QAM |
|||
|
Guard Interval |
1/4, 1/8, 1/16, 1/32 |
|||
|
Code Rate |
1/2, 2/3, 3/4, 5/6, 7/8 |
|||
|
MER |
≥42 dB |
|||
|
RF frequency |
50~960MHz, 1KHz step |
|||
|
RF out |
4*DVB-T non-adjacent carriers combined output, 40M total bandwidth limitation |
|||
|
RF output level |
-28~ -3 dBm (79~104 dbµV), 0.1db step |
|||
|
Stream out |
4*MPTS over UDP and RTP out (RJ45, 1000M/100M Unicast/Multicast) |
|||
|
System |
Web-based NMS support |
|||
|
Ethernet software upgrading |
||||
|
General |
Dimension |
482mm×300mm×44.5mm (W*D*H) |
||
|
Temperature |
0~45℃(Operation) ; -20~80℃(Storage) |
|||
|
Power |
AC 100V±1050/60Hz; AC 220V±10%, 50/60HZ |
|||
