Outline

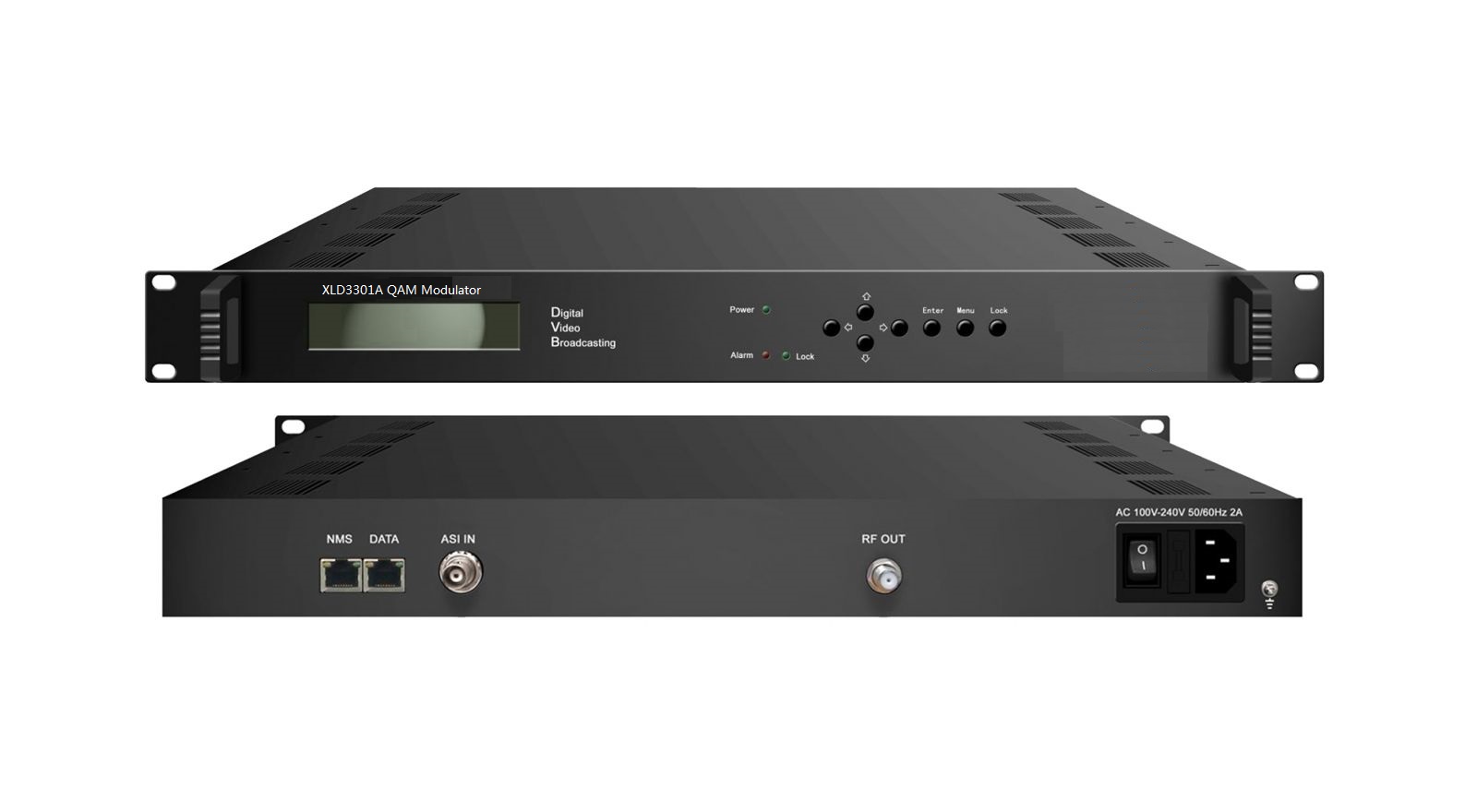

The Xielide XLD3301A QAM modulator is a high performance modulator developed according to DVB-C (EN300429) standard which is the standard of the European broadband satellite telecommunication. It provides a more powerful receiving ability of various TS come from encoder, multiplexer, DVB gateway, scrambler and video server. In addition, the modulator also has the function of outputting RF, and simultaneously disposes the TS by RS encoding, convolution interlacing and QAM modulating. This device supports local and remote control through NMS software. For the field scope, it can be used for Broadcasting, Interactive Services, News Gathering and other Broadband satellite applications.

Features

*  Fully complying with DVB-C(EN300 429), ITU-T J.83A/B/C standard

*  Symbol rate adjusting range: 5.0Msps~9.0Msps

*  Five constellation modes: 16QAM, 32QAM, 64QAM, 128QAM and 256QAM

*  Support ASI input

*  Huge buffer memory for the burst code stream

*  Intelligence null packet deleting, automatically TS filling

*  Support PCR accurate adjusting

*  Support NIT insertion

*  Support PID filtering, re-mapping and PSI/SI update synchronously

*  Output frequency range: 30MHz~1000MHz in 1 kHz step

*  Output frequency attenuation range: -16dBm~+12dBm in 0.5dB step

*  LCD and keyboard operation

*  Web-based NMS operation
