Outline

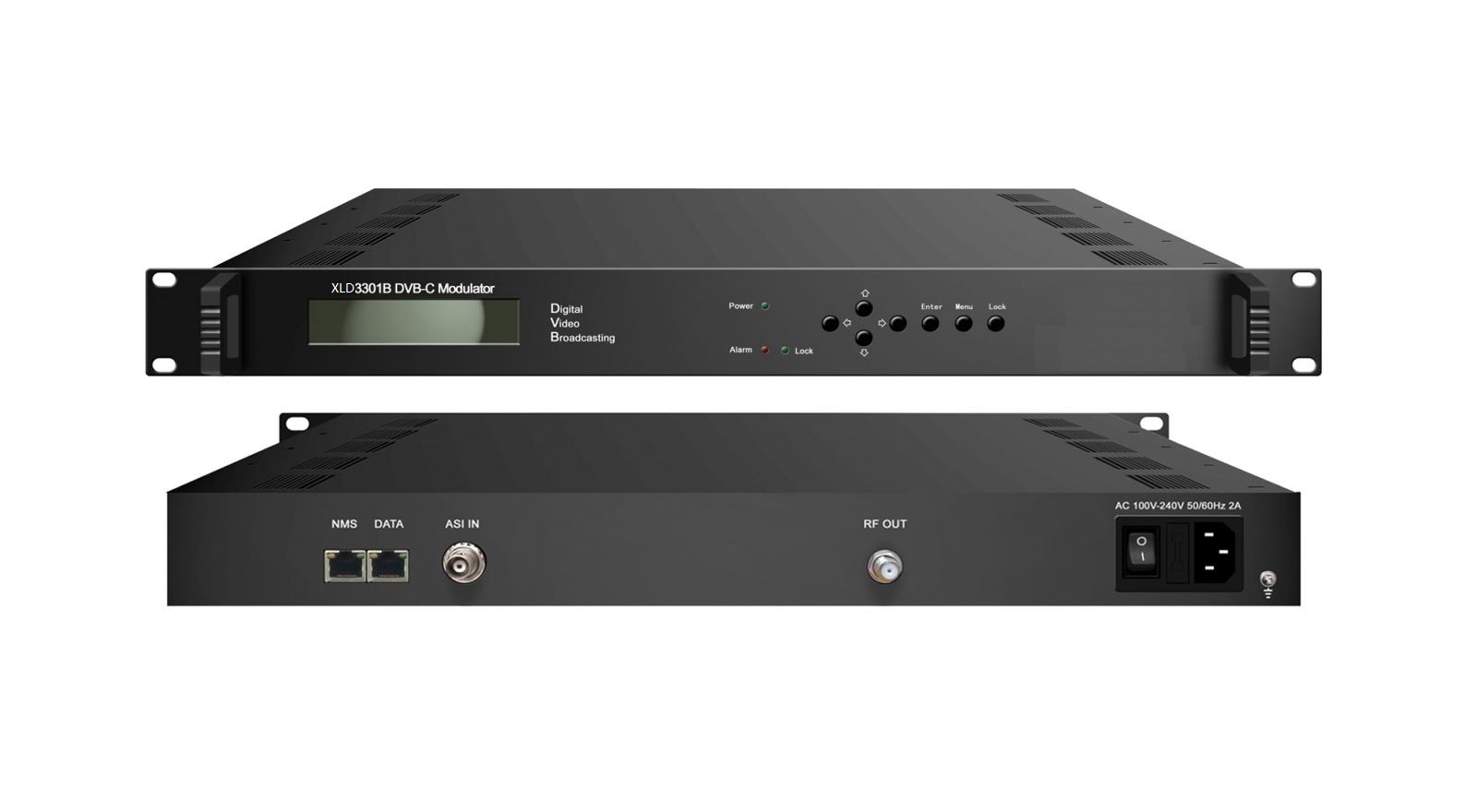

The Xielide XLD3301B DVB-C (QAM) modulator is a high performance modulator developed according to DVB-C (EN300429) standard which is the standard of the European broadband satellite telecommunication. This unit provides a more powerful receiving ability to receive TS coming from encoder, multiplexer, DVB gateway, scrambler and etc. The output content carried by RF can be alternated between ASI input or IP input. Simultaneously, the modulator disposes the TS with RS encoding, convolution interlacing and QAM modulating. For the field scope, it can be used for Broadcasting, Interactive Services, News Gathering and other Broadband satellite applications.

Principle Chart

Features

*  Fully complying with EN300 429/ITU-T J.83A/B/C (DVB-C), GB/T170 standard

*  Symbol rate adjusting range: 5.0Msps~7.0Msps

*  Five constellation modes: 16QAM, 32QAM, 64QAM, 128QAM and 256QAM

*  1*ASI input and 1*IP input, the unit chooses one input to modulate and output through RF

*  Huge buffer memory for the burst code stream

*  Intelligence null packet deleting, automatically TS filling and PCR accurate adjusting

*  NIT insertion

*  Support PID filtering, re-mapping and PSI/SI update synchronously.

*  Effective inputting real-time bit rate monitoring

*  RF Output frequency range: 30MHz~960MHz, 1 kHz stepLCD and keyboard operation, and web NMS operation

Specifications
