Outline

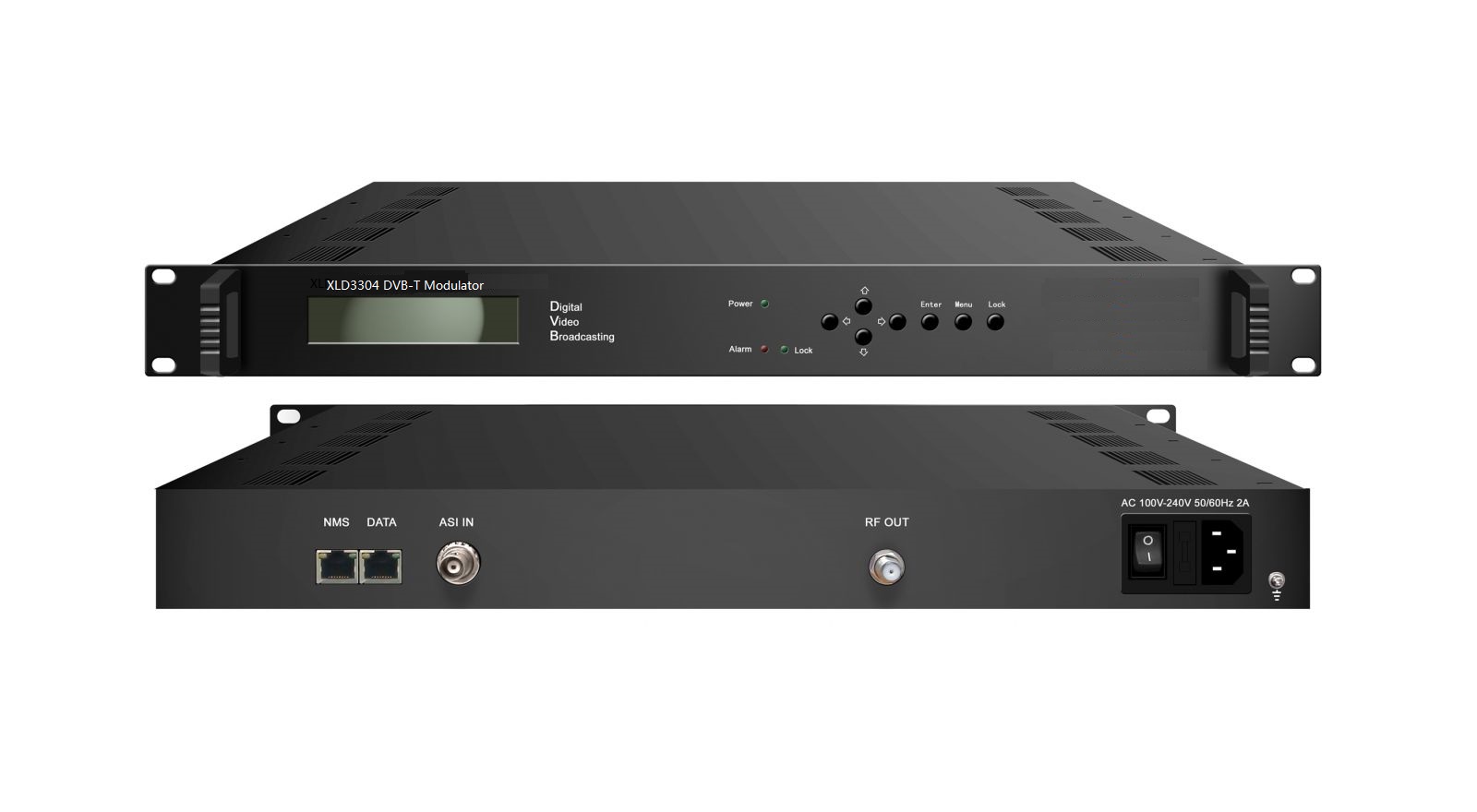

Xielide XLD3304 DVB-T modulator is a high performance modulator developed according to EN300744 standard. It provides a more powerful receiving ability to receive double IP streams from encoder, multiplexer, DVB gateway and etc. After multiplexing and DVB-T modulating, it output via two adjacent carriers.
For management and operation, this device supports local and remote control through a web-based NMS system.
Principle Chart
Features
* Fully complying with EN300744 standard
* Dual IP streams input
* Program output through RF with multiplexing
* Support accurate PCR adjusting
* Support PSI/SI editing and inserting
* Support PID remapping
* Huge buffer memory for the burst code stream
* Dual adjacent carriers output
* RF Output frequency range: 30MHz~1000MHz in 1 kHz step
* LCD and keyboard operation
* Web-based NMS operation
Specifications
|
IP Input |
2 Channels IP input over UDP (Unitcast/Multicast) (100M based Ethernet) |
|
|
Anti-jitter IP Bandwidth: 0-7 |
||
|
Multiplexing |
PID remapping |
|
|
Accurate PCR adjusting |
||
|
Generate PSI/SI table automatically |
||
|
RF Output |
Standard |
EN300 744 |
|
FFT |
2K, 8K |
|
|
Bandwidth |
6M, 7M, 8M |
|
|
Constellation |
QPSK, 16QAM, 64QAM |
|
|
Guard interval |
1/4, 1/8, 1/16, 1/32 |
|
|
FEC |
1/2, 2/3, 3/4, 5/6, 7/8 |
|
|
Interface |
F type, 50Ω impedance |
|
|
RF range |
30~1000MHz，1hz step |
|
|
ATT |
-30dbm~-10dbm, 0.1db step |
|
|
MER |
≥ 34db |
|
|
System |
LCD/keyboard operating and Web-based NMS support |
|
|
Ethernet software upgrading |
||
|
General |
Dimension |
482mm×300mm×44mm (W*D*H) |
|
Weight |
2.3kg |
|
|
Temperature |
0~45℃(Operation) ; -20~80℃(Storage) |
|
|
Power |
AC 110V±10%, 50/60Hz; or AC 220V±10%, 50/60Hz |
|
|
Consumption |
25W |
|
