Outline

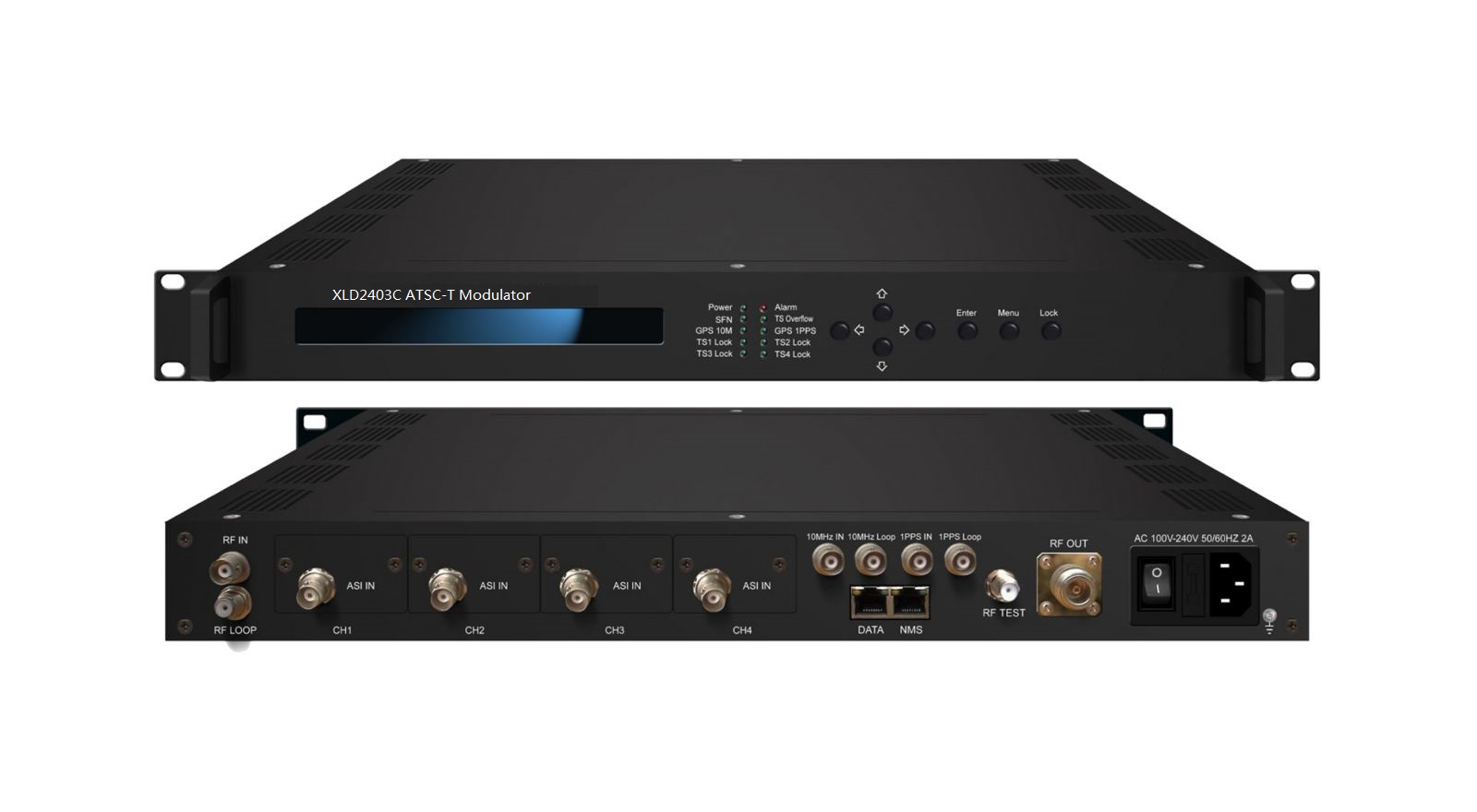

XLD2403C ATSC-T modulator is Xielide’s newly designed product supporting ASI and SMPTE-310 input. After modulating the inputting signals through ATSC 8-VSB, it can output RF signals with the range between 40~960MHz. In other words, XLD2403C ATSC-T modulator supports the coding and modulating mode under ATSC-T A/53 standard. It also supports adaptive non-linear and linear digital pre-distortion (DPD). Additionally, the system of this device can be on line controlled and upgraded through network, which can be widely used in ATSC-T digital broadcasting network setup and the testing for ATSC-T set top box design.
Features
* Full complying with ATSC A/53 standard
* Support ATSC 8VSB modulation
* Support 2ASI, 2 SMPTE 310M, 1 external 10Mhz reference clock and 1 RF input
* RF output frequency range: 40MHz~960MHz,1Hz stepping
* Support RS coding, interleaving and Trellis coding
* Transmission bandwidth: 6MHz
* Supports adaptive linear digital pre-distortion (DPD)
* Supports adaptive non-linear digital pre-distortion (DPD)
* Adopts constant-temperature crystal oscillator, the frequency stability can be up to 0.1 PPM
* Excellent RF output performance: EVM, MER, SNR, shoulder level and etc.
* LCD/Keyboard and net management, support SNMP/NMS
Specifications
Input |
2xASI input, hot backup |
|
2xSMPTE 310M input, hot backup |
||
1 channel 10MHz reference clock input 1 RF input for adaptive digital pre-distortion(DPD) |
||
Modulation |
Standard |
ATSC A/53 |
Constellation |
8VSB |
|
FEC |
RS(208 188)+Trellis |
|
RF output |
Port |
N Type, 50Ω impedance |
RF range |
40~960Mhz,1hz stepping |
|
Output Level |
-26dbm~+3dbm,0.1db stepping |
|
MER |
≥ 42db |
|
Non-linear DPD |
over 10db ACPR improvement (normally) |
|
linear DPD |
over 10db non-flatness adjustment(normally) |
|
System |
LCD/keyboard, NMS/SNMP management Chinese & English operation display |
|
Software upgraded through network |
||
General |
Demission(WxLxH) |
482mm×455mm×44.5mm |
Weight |
6.0kg |
|
Temperature |
0~45℃( operation),-20~80℃( storage) |
|
Power Supply |
AC 110V±10%,50/60Hz AC 220V±10%, 50/60Hz |
|
Consumption |
25W |
