Product Overview

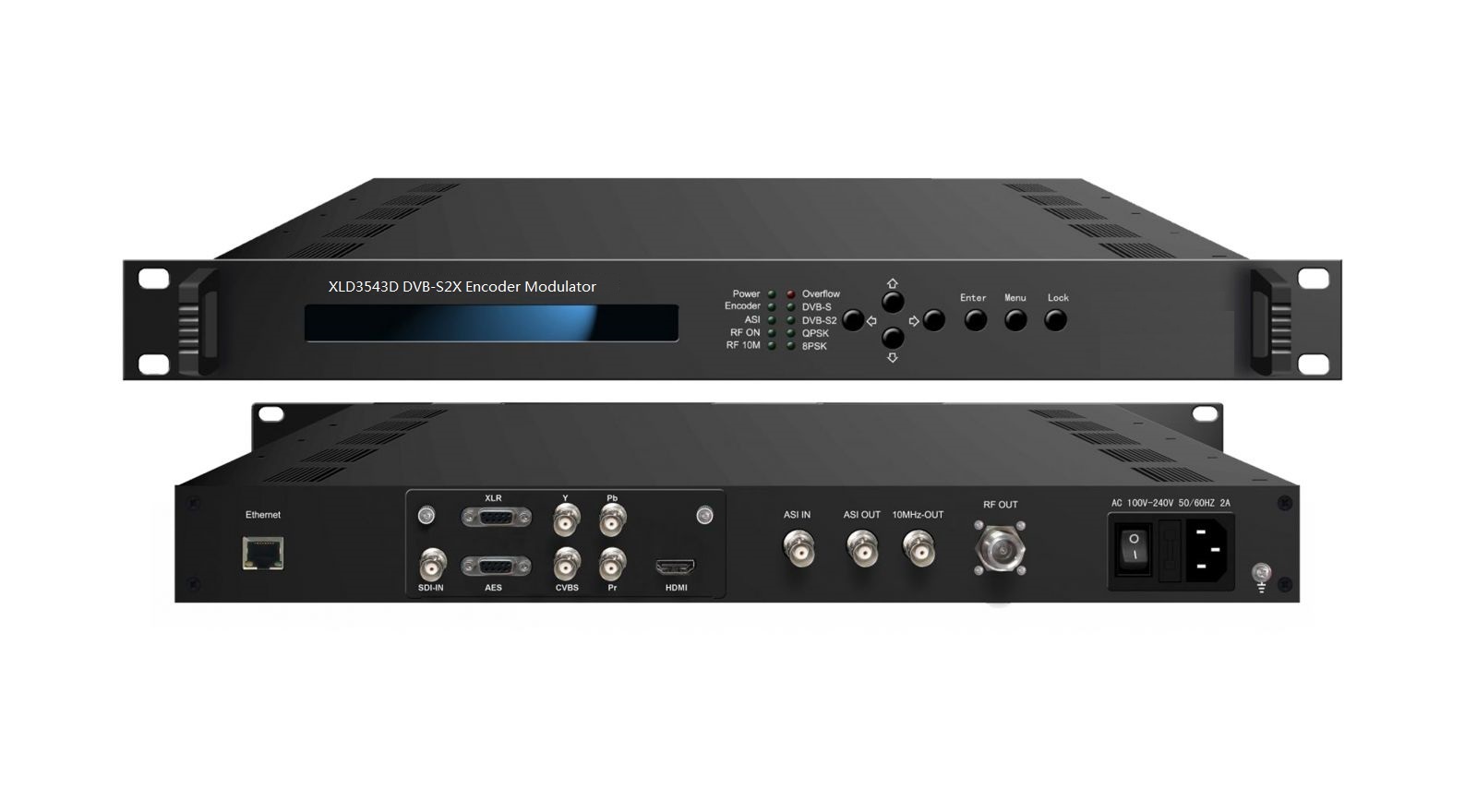

XLD3543D DVB-S/S2X Encoder & Modulator is an integrated device with multifunction. Its pluggable design makes it convenient to change encoding module (CVBS/SDI/HDMI/YPbPr…) as needed. It is also equipped with 1 channel ASI input. The encoded TS/ASI in can pass-through or TS mux. It outputs ASI and DVB-S/S2X RF.
The signal source could be from CCTV cameras, Blue-ray players and etc. It adopts user-friendly web-based operation interface to effectively manage the device and carefully protect your content with its BISS function. Featured with its high performance and low cost, NDS3543D is especially adequate for the TV station or DSNG system to encode SD/HD programs and output to uplink.
Key Features
* MPEG2 SD/HD and MPEG4 SD/HD Encoding Module optional
* CVBS/SDI/HDMI/YPbPr…signals in & 1*ASI in
* Support DVB-S/S2/S2X RF output and ASI output
* Output Frequency: 950-2150MHz
* QPSK, 8PSK, 8APSK, 16APSK, 32APSK Constellations
* Support RF CID setting
* Support RF 24V power output
* Support Low latency
* Support BISS fucntion
* Support 10MHz reference clock output
* Support Web NMS and front panel LCD & Keyboard control
* Upgrade device through web NMS
CID TEST SAMPLE ILLUSTRATION
Principle Chart
Technical Specifications
HDMI/SDI/YPbPr/CVBS/XLR/AES Encoding Input
Video
|
Encoding |
MPEG-2 HD/SD or MPEG-4 AVC/H.264 HD/SD |
||
|
Input |
HDMI/SDI//YPbPr/CVBS/ |
||
|
Resolution |
Input |
Output |
Interface Applicable |
|
1920×1080i@60 |
1920×1080, 1440×1080, 1280×1080i, 960×1080i |
HDMI SDI YPbPr |
|
|
1920×1080i@59.94 |
|||
|
1920×1080i@50 |
|||
|
1280×720p@60 |
1280×720, 960×720p, 640×720p |
HDMI SDI YPbPr |
|
|
1280×720p@59.94 |
|||
|
1280×720p@50 |
|||
|
720×576i@50 |
720×576, 704×576, 640×576, 544×576, 528×576, 480×576, 352×576 |
SDI, CVBS |
|
|
720×480i@59.94 |
720×480, 704×480, 640×480, 544×480, 528×480, 352×480 |
SDI CVBS
|
|
|
Bit rate |
0.52 – 60.00 Mbps |
||
|
Rate Control |
CBR |
||
|
GOP Structure |
Auto, IP, IPB, IPBB, IPBBB |
||
|
Aspect Ratio Chroma |
4:3, 14:9 (for SD video), 16:9 (for HD video) 4:2:0, 4:2:2 |
||
|
Advanced Pretreatment |
De-interlacing, noise reduction, sharpening |
||
Audio
|
encoding |
MPEG-1 Layer II, HE-AAC (v1&v2), LC-AAC, DD AC3 (2.0, 5.1 available); DD AC3 passthrough (for SDI in) |
|
Input |
2×XLR, 4×AES, 1×HDMI, 1×SDI (support maximum 4 stereos synchronous processing or one DD 5.1 CH processing) |
|
Sample rate |
48KHz |
|
Bit rate |
32Kbps~384Kbps |
|
Low delay options |
150ms, 200ms, 350ms, 650ms |
/sdi.jpg)
Single SDI Encoding Input
Video
|
Encoding |
MPEG2; MPEG4 AVC/H.264 |
|
Input |
SDI*1 |
|
Resolution |
1920*1080_60P, 1920*1080_50P, (-for MPEG4 AVC/H.264 only) 1920*1080_60i, 1920*1080_50i, 1280*720_60p, 1280*720_50P 720*480_60i, 720*576_50i |
Audio
|
encoding |
MPEG1 Layer II, MPEG2-AAC, MPEG4-AAC |
|
Sample rate |
48KHz |
|
Bit rate |
64kbps, 96kbps, 128kbps, 192kbps, 256kbps, 320kbps |
Double SDI Encoding Input
Video
|
Encoding |
H.264/AVC High Profile Level 4.0 (HD) |
|
Input |
SDI*2 |
|
Resolution
|
1920*1080_60P, 1920*1080_50P, 1920*1080_60i, 1920*1080_50i, 1280*720_60p, 1280*720_50P 720*480_60i, 720*576_50i |
Audio
|
encoding |
MPEG1 Layer II (1 *Stereo or 2*Mono) |
|
Sample rate |
48KHz |
|
Bit rate |
64kbps, 96kbps,128kbps, 192kbps, 256kbps, 320kbps |
Single HDMI Encoding Input
Video
|
Encoding |
MPEG2; MPEG4 AVC/H.264 |
|
Input |
HDMI*1 |
|
Resolution |
1920*1080_60P, 1920*1080_50P, (-for MPEG4 AVC/H.264 only) 1920*1080_60i, 1920*1080_50i, 1280*720_60p, 1280*720_50P 720*480_60i, 720*576_50i |
Audio
|
encoding |
MPEG1 Layer II, MPEG2-AAC, MPEG4-AAC |
|
Sample rate |
48KHz |
|
Bit rate |
64kbps, 96kbps,128kbps, 192kbps, 256kbps, 320kbps |
HDMI/YPbPr/CVBS 3-in-1 Encoding Input
|
Video (HDMI) |
|
|
Encoding |
MPEG2; MPEG4 AVC/H.264 |
|
Interface |
HDMI*1 |
|
Resolution |
1920*1080_60P, 1920*1080_50P, (-for MPEG4 AVC/H.264 only) 1920*1080_60i, 1920*1080_50i, 1280*720_60p, 1280*720_50P |
|
Audio (HDMI) |
|
|
Encoding |
MPEG1 Layer II; MPEG2-AAC; MPEG4-AAC |
|
Interface |
HDMI*1 |
|
Sample rate |
48KHz |
|
Bit rate |
64/96/128/ 192/256/320kbps |
|
Video (YPbPr/CVBS) |
|
|
Encoding |
MPEG2; MPEG4 AVC/H.264 |
|
Interface |
YPbPr*1/CVBS *1 |
|
Resolution |
CVBS: 720x576_50i (PAL); 720x480_60i (NTSC) YPbPr: 1920*1080_60i, 1920*1080_50i; 1280*720_60p, 1280*720_50P |
|
Audio (L/R) |
|
|
Encoding |
MPEG1 Layer II; MPEG2-AAC; MPEG4-AAC |
|
Interface |
1*Stereo/2*mono |
|
Sample rate |
48KHz |
|
Bit rate |
64/96/128/ 192/256/320kbps |
2*(S-Video + YPbPr + CVBS) Encoding Input
|
Encoding |
Option 1: MPEG-2 MP@ML(4:2:0) Option 2: MPEG-2 & MPEG-4 AVC/H.264 (4:2:0) |
|
Input |
2*S-Video/YPbPr/CVBS (RCA Type) |
|
Resolution |
720*576 (PAL); 720*480 (NTSC) |
|
Bit rate |
Option 1: 1~19.50 Mbps Option 2: 1~10.00 Mbps |
Audio
|
encoding |
Option 1: MPEG1 Layer II Option 2: MPEG1 Layer II; LC-AAC; HE-AAC and Dolby Digital AC3 2.0( Optional) |
|
Input |
2 Stereo/Mono |
|
Sample rate |
48KHz |
|
Bit rate |
64kbps, 96kbps,128kbps, 192kbps, 256kbps, 320kbps |
Generals
|
Input Interface |
1/2*CVBS /1*SDI /1*HDMI/1*(HDMI+YPbPr+CVBS 3-in-1) optional DVB-S/S2/S2X RF output; ASI intput |
|||
|
Output |
DVB-S/S2/S2X RF output ;950-2150MHz ASI output same as RF |
|||
|
Modulation Section |
Standard |
DVB-S |
DVB-S2 |
DVB-S2X |
|
Outer coding |
RS Coding |
BCH Coding |
BCH Coding |
|
|
Inner coding |
Convolution |
LDPC Coding |
LDPC Coding |
|
|
Constellation |
QPSK |
QPSK,8PSK, 16APSK,32APSK |
QPSK,8PSK, 8APSK, 16APSK, 32APSK |
|
|
FEC/ Convolution Rate |
1/2, 2/3, 3/4, 5/6, 7/8 |
QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 32APSK: 3/4, 4/5, 5/6, 8/9, 9/10 |
QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 13/45, 9/20, 11/20 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 , 23/36, 25/36, 13/18 8APSK: 5/9-L, 26/45-L 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 , 1/2-L, 8/15-L, 5/9-L, 26/45, 3/5, 3/5-L, 28/45, 23/36 , 2/3-L, 25/36, 13/18, 7/9, 77/90 32APSK: 3/4, 4/5, 5/6, 8/9, 9/10, 2/3-L, 32/45, 11/15, 7/9 |
|
|
Roll-off Factor |
0.2,0.25,0.35 |
0.2, 0.25, 0.35 |
0.05, 0.10, 0.15, 0.2, 0.25, 0.35 |
|
|
Symbol Rate |
0.5~45Msps |
0.5~40Msps (32APSK); 0.5~45Msps (QPSK/8PSK/16APSK) |
0.5~40Msps(32APSK); 0.5~45 Msps (QPSK/8PSK /8APSK/16APSK) |
|
|
BISS Scramble |
Mode 1, Mode E |
|||
|
Output level |
+3dBm~-28.5dBm |
|||
|
System
|
Local Control |
LCD + control buttons |
||
|
Remote Control |
Web NMS |
|||
|
Low Latency Mode |
Normal, Mode 1, Mode 2 |
|||
|
Language |
English |
|||
|
Physical Specification |
Demission |
410×460×44mm (W*L*H) |
||
|
Temperature |
0~45℃(operation), -20~80℃(storage) |
|||
|
Power Supply |
AC 100-240V 50/60Hz 2A |
|||
