Product Introduction

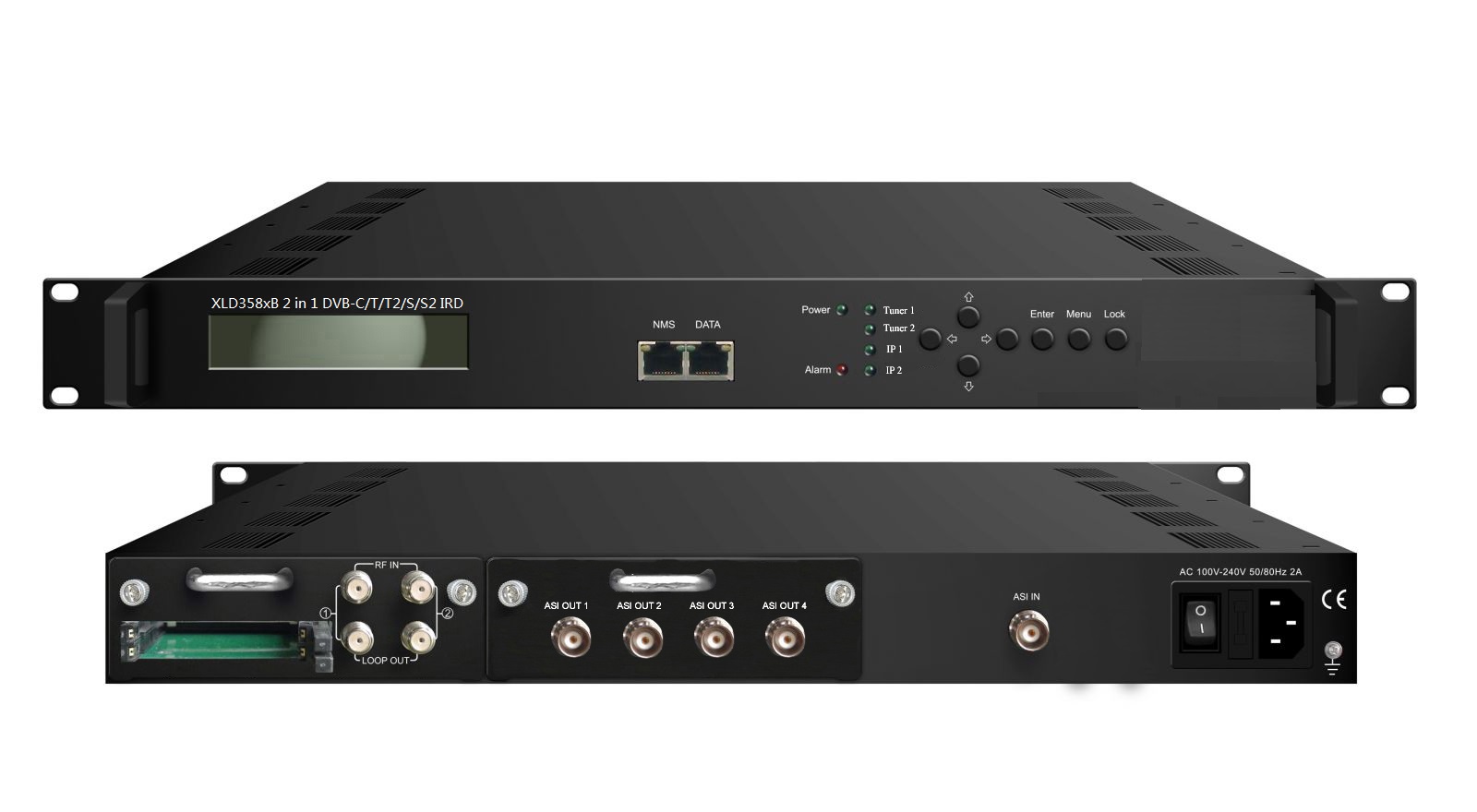

XLD358xB IRD is Xielide’s new design which integrates demodulation (DVB-C, T/T2, S/S2 optional) and de-scrambler in one case to convert RF signals into TS outp ut.
It is a 1-U case which supports 2 tuner inputs, 1 ASI input, 4 ASI out and IP in and out. The 2 CAMs/CIs accompanied can descramble the programs input from encrypted RF, ASI and IP. The CAM requires NO unsightly external power cords, cables, or additional remote control device.
Its pluggable structure design greatly facilitates the change of Tuner modules as needed.
Key Features
* 2 Tuner inputs (DVB-C, T/T2, S/S2 optional), 1 ASI input, 2 IP input
* CAM can decrypt multiple programs from Tuners/ASI/IP
* IP (4 MPTS) over UDP and RTP/RTSP output
* 2 ASI out for descrambled TS from tuner/IP/ASI; 2 ASI out for tuner/IP passthrough (one-to-one)
* LCD display, Remote control and Firmware, web NMS management
* Updates via web
* Best quality and breakthrough price
Principle Chart
Technical Specifications
Input
|
2x RF (DVB-C, T/T2, S/S2 optional), F type 1×ASI input, BNC interface 2xIP input (UDP) |
Tuner Section
|
DVB-C |
|
|
Standard |
J.83A(DVB-C), J.83B, J.83C |
|
Input Frequency |
47 MHz~860 MHz |
|
Constellation |
16/32/64/128/256 QAM |
|
DVB-T/T2 |
|
|
Input Frequency |
44-1002 MHz |
|
Bandwidth |
6M, 7M, 8M |
DVB-S
|
Input Frequency |
950-2150MHz |
|
Symbol rate |
2-45Msps |
|
Signal Strength |
- 65- -25dBm |
|
Constellation |
1/2, 2/3, 3/4, 5/6, 7/8 QPSK |
|
DVB-S2 |
|
|
Input Frequency |
950-2150MHz |
|
Symbol rate |
QPSK 1~45Mbauds; 8PSK 2~30Mbauds |
|
Code rate |
1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 |
|
Constellation |
QPSK, 8PSK |
Output
|
IP |
4*MPTS over UDP, RTP/RTSP. 100M Base-T Ethernet interface (unicast / multicast) |
|
ASI |
4 BNC interface (ASI out 1-2 are for descrambled TS from RF1-2/IP 1-2/ASI input; ASI out 3-4 for RF1-2/IP 1-2 input passthrough) |
System
|
Local interface |
LCD + control buttons |
|
Remote management |
Web NMS Management |
|
Language |
English |
General
|
Power supply |
AC 100V~240V |
|
Dimensions |
482*300*44.5mm |
|
Weight |
2.5 kgs |
|
Operation temperature |
0~45℃ |
System Connection Sample
