Product Introduction

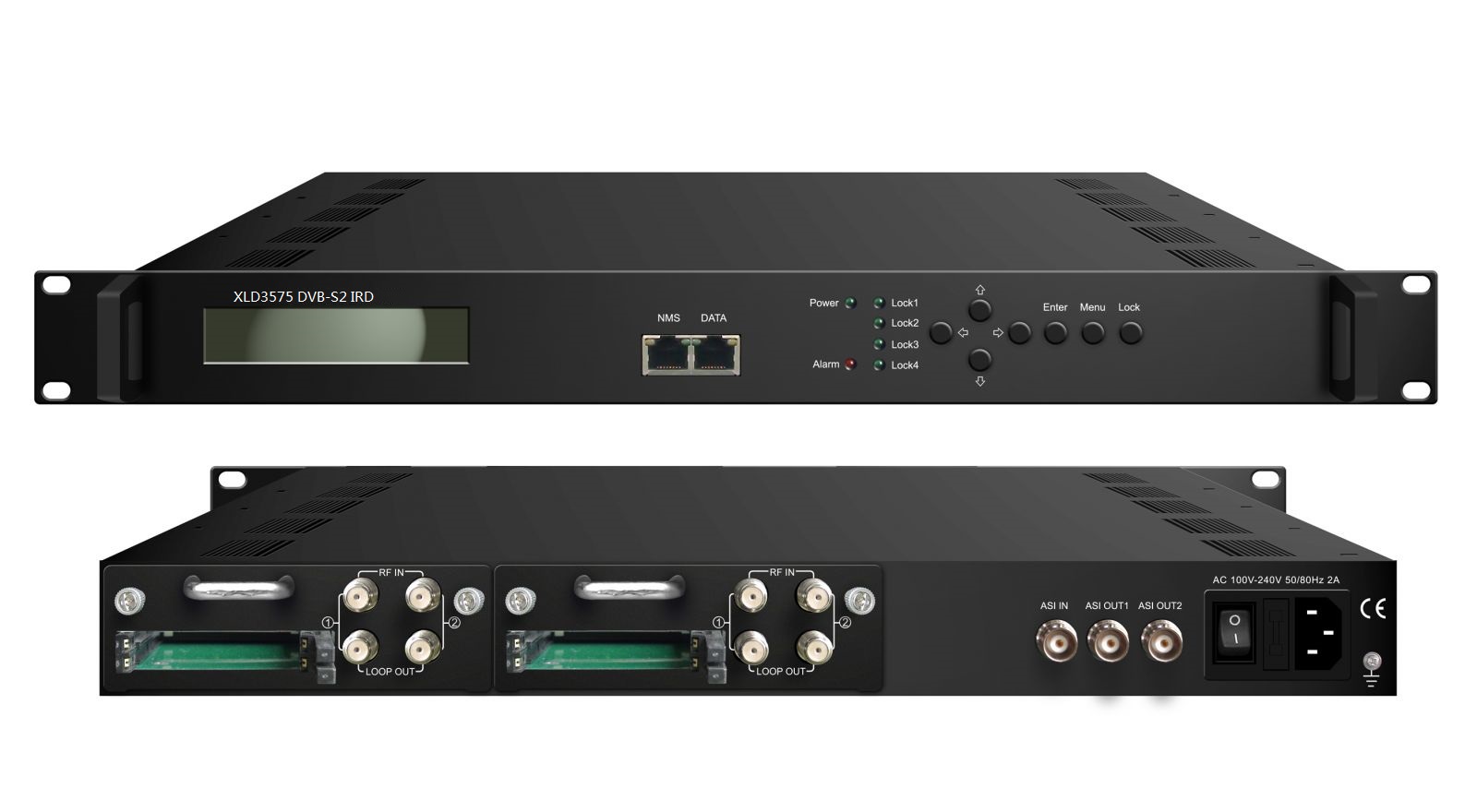

XLD357X IRD is Xielide’s new design which integrates demodulation , de-scrambler in one case to convert RF signals into TS output after re-mux.
It is a 1-U case which supports 4 tuner inputs. The 4 CAMs/CIs accompanied can descramble the programs input from encrypted RF, ASI and IP. The CAM requires NO unsightly external power cords, cables, or additional remote control device.
BISS function is also embedded to descramble programs from any input.
Its pluggable structure design greatly facilitates the change of Tuner modules as needed.
To meet customers’ various requirements, XLD357X is also equipped with 1 ASI and 1 IP input for re-mux, and output with 2 ASI ports and IP port.
Key Features
* 4 Tuner inputs (DVB-C, T/T2, S/S2 Optional)
* 1 ASI & 1 IP (UDP) input for re-mux
* One CAM can decrypt multiple programs from Tuners/ASI/IP
* Support BISS descrambling(Up to 120 Mbps)
* IP (1 MPTS & 8 SPTS) over UDP and RTP/RTSP output; ASI out
* Support maximum 128 PID mapping per input
* Pluggable and changeable demodulator modules
* LCD display, Remote control and Firmware, web NMS management
* Updates via web
Principle Chart
Technical Specifications
Input
|
1 or 2 or 4x RF (DVB-C, T/T2, S/S2 optional), F type |
|
1×ASI input for re-mux, BNC interface |
|
1xIP input for re-mux (UDP) |
Tuner Section
|
DVB-C |
|
|
Standard |
J.83A(DVB-C), J.83B, J.83C |
|
Input Frequency |
47 MHz~860 MHz |
|
Constellation |
16/32/64/128/256 QAM |
|
DVB-T/T2 |
|
|
Input Frequency |
44MHz ~1002 MHz |
|
Bandwidth |
6/7/8 M bandwidth |
DVB-S
|
Input Frequency |
950-2150MHz |
|
|
Symbol rate |
2-45Msps |
|
|
Signal Strength |
- 65- -25dBm |
|
|
Constellation |
1/2, 2/3, 3/4, 5/6, 7/8 QPSK |
|
|
DVB-S2 |
||
|
Input Frequency |
950-2150MHz |
|
|
Symbol rate |
QPSK 1~45Mbauds; 8PSK 2~30Mbauds |
|
|
Code rate |
1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 |
|
|
Constellation |
QPSK, 8PSK |
|
Output
|
IP Output |
1*MPTS & 8*SPTS over UDP, RTP/RTSP. 100Base-T Ethernet interface (unicast / multicast) |
|
2×ASI |
BNC interface |
System
|
Local interface |
LCD + control buttons |
|
Remote management |
Web NMS Management |
|
Language |
English |
General
|
Power supply |
AC 100V~240V |
|
Dimensions |
482*300*44.5mm |
|
Weight |
3 kgs |
|
Operation temperature |
0~45℃ |
