Product Introduction

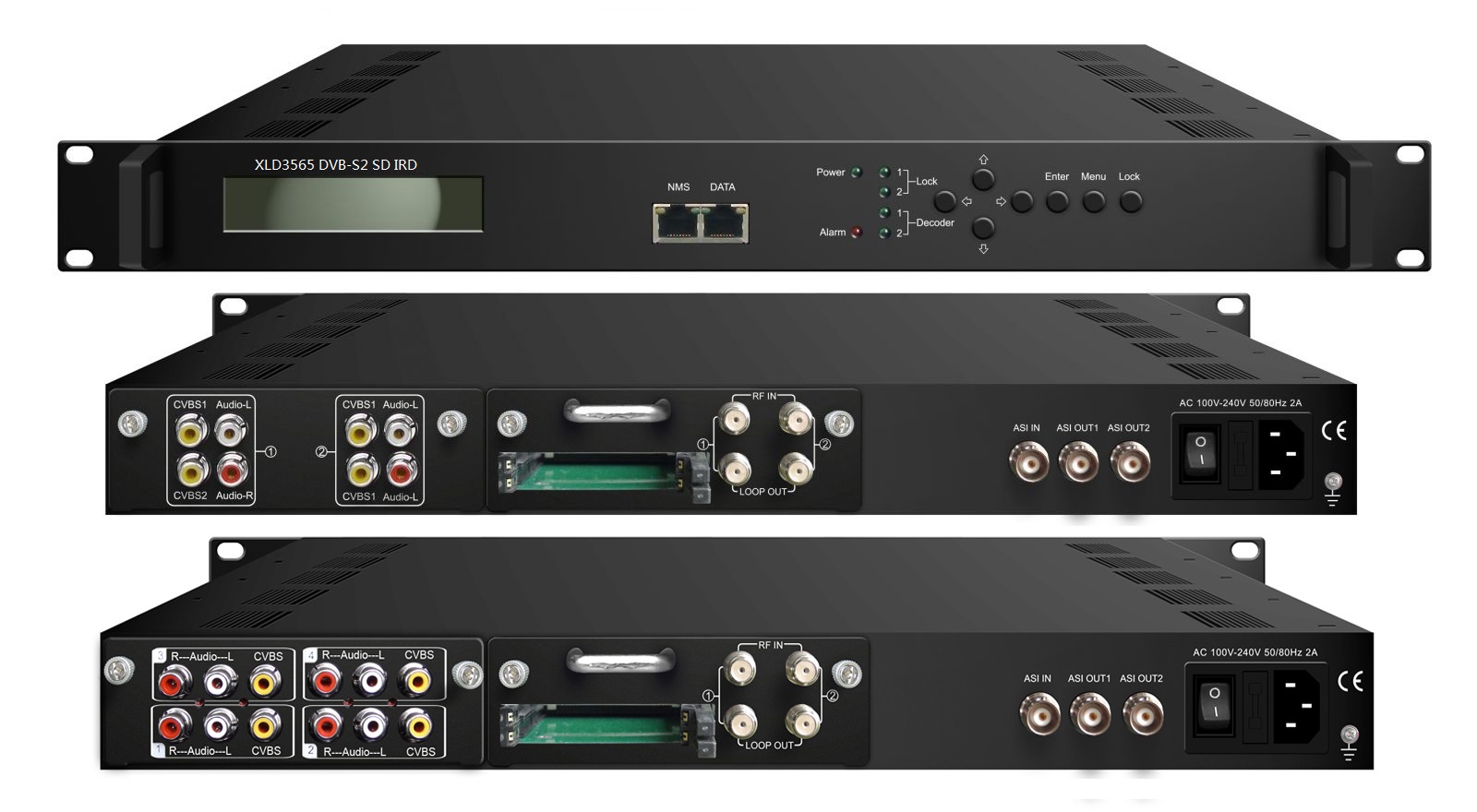

XLD356X Series SD IRD is Xielide’s all-in-one device which integrates demodulation, de-scrambler and decoding (DVB-C, T/T2, S/S2 optional) in one case to convert RF signals into analogue video (CVBS) output.
It is a 1-U case which supports 2 tuner inputs. The two CAMs/CIs accompanied can descramble the programs input from encrypted RF, ASI and IP. The CAM requires NO unsightly external power cords, cables, or additional remote control device.
BISS function is also embedded to descramble programs from any input.
Its pluggable structure design greatly facilitates the change of modules (demodulator or decoder) as needed.
To meet customers’ various requirements, NDS356X Series is also equipped with 1 ASI input, and output with 2 ASI ports and IP port.
Key Features
* Demodulation + descrambler + decoder modules in one box
* 2 Tuner inputs (DVB-C, T/T2, S/S2 Optional)
* 1 ASI & 1 IP (UDP) input for re-mux
* One CAM can decrypt multiple programs from Tuners/ASI/IP
* Separate 2*CVBS(4*CVBS optional) video output
* IP (1 MPTS & 8 SPTS) over UDP and RTP/RTSP output; ASI out
* Support maximum 128 PID mapping per input
* Pluggable and changeable demodulator and decoder modules
* Support BISS descrambling(Up to 120Mbps )
* LCD display, Remote control and Firmware, web NMS management
* Updates via web
* Best quality and breakthrough price
Principle Chart
Technical Specifications
Input
|
2 x RF (DVB-C, T/T2, S/S2 optional), F type |
|
1×ASI input for re-mux, BNC interface |
|
1xIP input for re-mux (UDP) |
Tuner Section
|
DVB-C |
|
|
Standard |
J.83A(DVB-C), J.83B, J.83C |
|
Input Frequency |
30 MHz~1000 MHz |
|
Constellation |
16/32/64/128/256 QAM |
|
DVB-T/T2 |
|
|
Input Frequency |
30MHz ~999.999 MHz |
|
Bandwidth |
6/7/8 M bandwidth |
DVB-S
|
Input Frequency |
950-2150MHz |
|
|
Symbol rate |
2-45Msps |
|
|
Signal Strength |
- 65- -25dBm |
|
|
Constellation |
1/2, 2/3, 3/4, 5/6, 7/8 QPSK |
|
|
DVB-S2 |
||
|
Input Frequency |
950-2150MHz |
|
|
Symbol rate |
QPSK 1~45Mbauds; 8PSK 2~30Mbauds |
|
|
Code rate |
1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 |
|
|
Constellation |
QPSK, 8PSK |
|
Output (2*CVBS optional)
|
|
|
|
IP Output |
1*MPTS & 8*SPTS over UDP, RTP/RTSP. 100Base-T Ethernet interface (unicast / multicast) |
|
2×ASI |
BNC interface |
|
Decode Output |
Video Interface: 2xCVBS (RCA) Audio Interface: 2xStereo/4xMono (RCA) Resolution: PAL 576i, NTSC 480i Video Decode: MPEG-2, MPEG-4 AVC/H.264(optional) Audio Decode: MPEG 1 Layer II |
Output (4*CVBS optional)
|
|
|
|
IP Output |
1*MPTS & 8*SPTS over UDP, RTP/RTSP. 100Base-T Ethernet interface (unicast / multicast) |
|
2×ASI |
BNC interface |
|
Decode Output |
Video Interface: 4xCVBS (RCA) Audio Interface: 4xStereo/8xMono (RCA) Resolution: PAL 576i, NTSC 480i Video Decode: MPEG-2, MPEG-4 AVC/H.264 Audio Decode: MPEG 1 Layer II |
System
|
Local interface |
LCD + control buttons |
|
Remote management |
Web NMS Management |
|
Language |
English |
General
|
Power supply |
AC 100V~240V |
|
Dimensions |
482*300*44.5mm |
|
Weight |
3 kgs |
|
Operation temperature |
0~45℃ |
