Outline

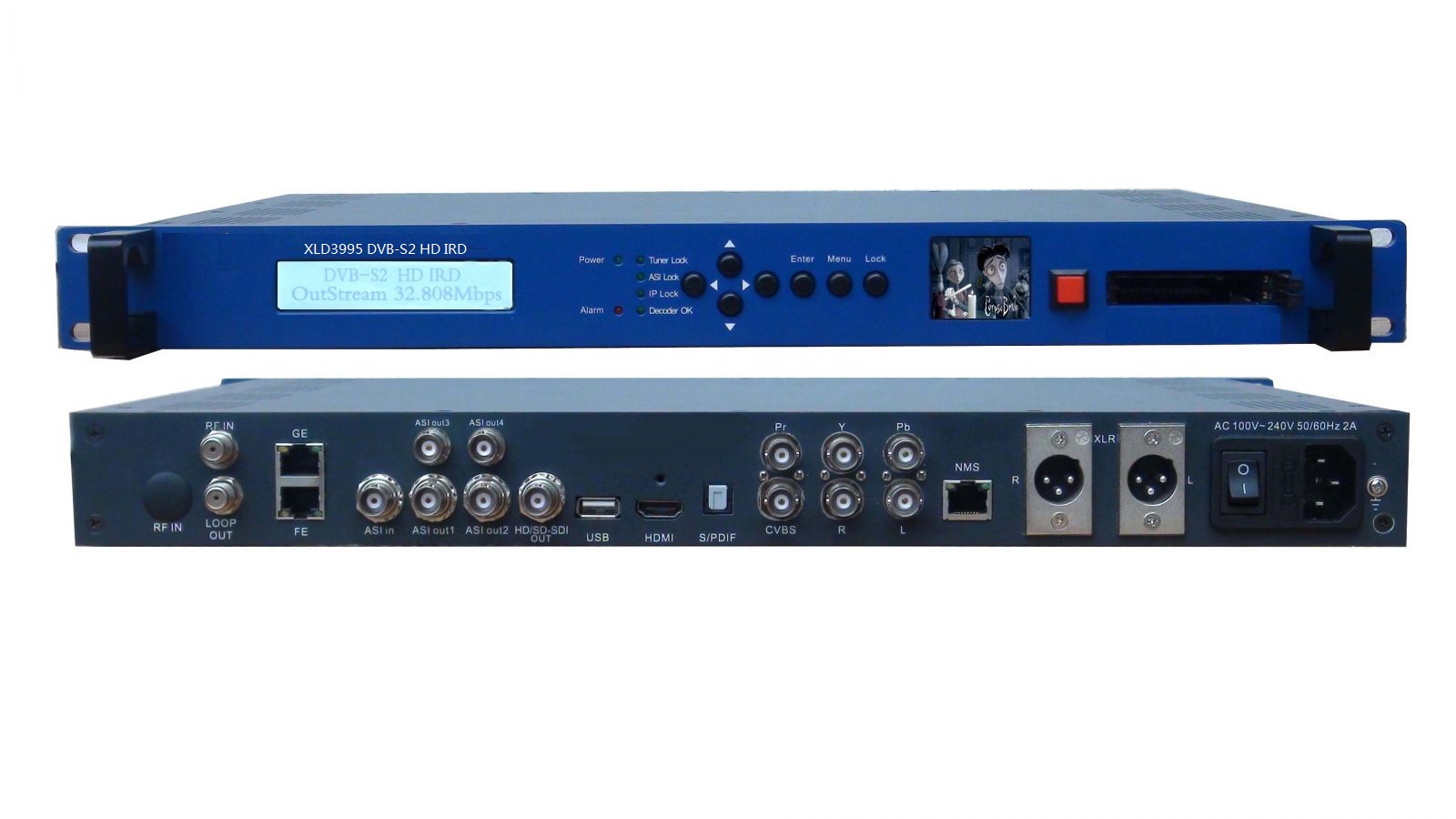

XLD397X/XLD399X HD IRD is Xielide’s new design IRD with LCD video monitor equipped on the front panel. It can receive signals from tuner (DVB-C, DVB-T/T2, DVB-S/S2, DMB-T, ISDB-T, and ATSC-T optional), ASI and IP sources. After multiplexing and de-encryption with CAM module, it gives content out through ASI, IP as well as various video/audio interfaces. Its video/audio outputs support professional HD/SD-SDI, YPbPr, HDMI, stereo balanced audio, stereo unbalanced audio and S/PDIF digital audio and CVBS, which can greatly satisfy the professional users’ needs. With the CAM/CI slot, XLD397X/XLD399X can support one channel (Tuner, ASI or IP) de-scrambling and give transparent signal output. User can operate the device by using front panel LCD or NMS/SNMP software or Webpage-based NMS. Moreover, users can choose to have an optional ASI output which can pass through the encryption data source directly from tuner.
Features
-
Support DVB-C, DVB-T/T2, DVB-S/S2, DMB-T, ISDB-T, and ATSC-T RF Input optional
-
Support LCD display for decoding video
-
Support MPEG-2 & MPEG-4 video decoding
-
Support AC3 pass through (for SDI interface only)
-
Re-multiplexer embedded
-
Support Tuner, IP, ASI Input at the same time
-
Support IP, ASI, Decoding output at the same time
-
Support 8xSPTS/32xSPTS and1 IP MPTS output
-
Support CAM/CI card insert
-
Support BISS descrambling: Mode 1 and Mode E
-
Support CC (Closed Caption) – for SDI and CVBS interfaces
-
Support Front Panel and NMS/SNMP network management and Web management
Blocks Diagram:
Specificaions:
|
Input Interface |
Tuner |
1 Tuner (DVB-C/DVB-S/ DMB-T/DVB-T/ DVB-S2/ ISDB-T/ATSC-T / DVB-T2 optional) |
||||
|
ASI |
1 ASI IN (support 188/204 package format) |
|||||
|
IP |
1 IP (100M, RJ45 Port) UDP, RTP/RTSP |
|||||
|
Demodulating Section |
DVB-C |
Standard |
J.83A(DVB-C), J.83B, J.83C |
|||
|
Input Frequency |
30 MHz~1000 MHz |
|||||
|
Constellation |
16/32/64/128/256 QAM |
|||||
|
DVB-T/T2 |
Input Frequency |
30MHz ~999.999 MHz |
||||
|
Bandwidth |
6/7/8 M bandwidth |
|||||
|
DVB-S |
Input Frequency |
950-2150MHz |
||||
|
Symbol rate |
1-45Msps |
|||||
|
Signal Strength |
- 65- -25dBm |
|||||
|
Constellation |
1/2, 2/3, 3/4, 5/6, 7/8 QPSK |
|||||
|
DVB-S2 （Version 1） |
Input Frequency |
950-2150MHz |
||||
|
Symbol rate |
1~45 Msps |
|||||
|
Code rate |
1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 |
|||||
|
Constellation |
QPSK, 8PSK |
|||||
|
DVB-S2 （Version 2） For 3975 |
Input Frequency |
950-2150MHz |
||||
|
Symbol rate |
QPSK, 8PSK:1~45 Msps 16APSK: 1~35 Msps 32APSK: 1~28 Msps |
|||||
|
Code rate |
1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 |
|||||
|
Constellation |
QPSK, 8PSK, 16APSK, 32APSK |
|||||
|
Output |
ASI Output |
2 ASI output (after multiplexer) |
||||
|
2 ASI output (tuner input pass through) |
||||||
|
IP output |
Protocol: UDP, RTP/RTSP |
|||||
|
1 MPTS & 8 SPTS (100M) |
NDS397x only |
|||||
|
1 MPTS & 32 SPTS (1000M) |
NDS399x only |
|||||
|
Video Output |
1xCVBS(BNC): 576i@25fps, 480i@29.97fps |
|||||
|
1xYPbPr(BNC): 1080i@25, 29.97, 30fps; 720p@50, 59.94fps |
||||||
|
1xHD/SD-SDI(BNC): 1080i@25, 29.97, 30fps; 720p@50, 59.94fps; 576i@25fps; 480i@29.97fps |
||||||
|
1 x HDMI: 1080i@25, 29.97, 30fps; 720p@50, 59.94fps |
||||||
|
Audio Output |
Stereo unbalanced audio: BNC interface Stereo balanced audio: XLR interface Digital audio: SPDIF |
|||||
|
Video Decoding |
MPEG-2, MPEG-4 |
|||||
|
Audio Decoding |
MPEG1 layer 2, AC3, HE-AAC(v2), LC-AAC |
|||||
|
BISS De-scr |
Mode 1, Mode E |
|||||
|
NMS Port |
Ethernet Port |
10/100M |
||||
|
Protocols |
NMS: TCP/IP |
|||||
|
System |
Management: front panel (LCD + Keyboard); Network (NMS/SNMP); Web-based NMS Management |
|||||
|
English and Chinese interface conversion |
||||||
|
Ethernet port for CPU/FPGA upgrade USB port for decoder upgrade |
||||||
|
LCD Monitor for decoding video |
||||||
|
Miscellaneous |
Dimensions |
482mm*455mm*44.5mm ( L×W×H) |
||||
|
Approx weight |
3.2kg |
|||||
|
Power |
<20W(Max) |
|||||
|
Temperature |
0~45℃(Operating), -20~80℃(Storage) |
|||||
Order Information:
- XLD3991/ XLD3971 DVB-C HD IRD
- XLD3992/ XLD3972 DVB-S HD IRD
- XLD3994/ XLD3974 DVB-T HD IRD
- XLD3995/ XLD3975 DVB-S2 HD IRD
- XLD3996/ XLD3976 ISDB-T HD IRD
- XLD3997/ XLD3977 ATSC HD IRD
- XLD3978/ XLD3998 DVB-T2 HD IRD
