Product Overview

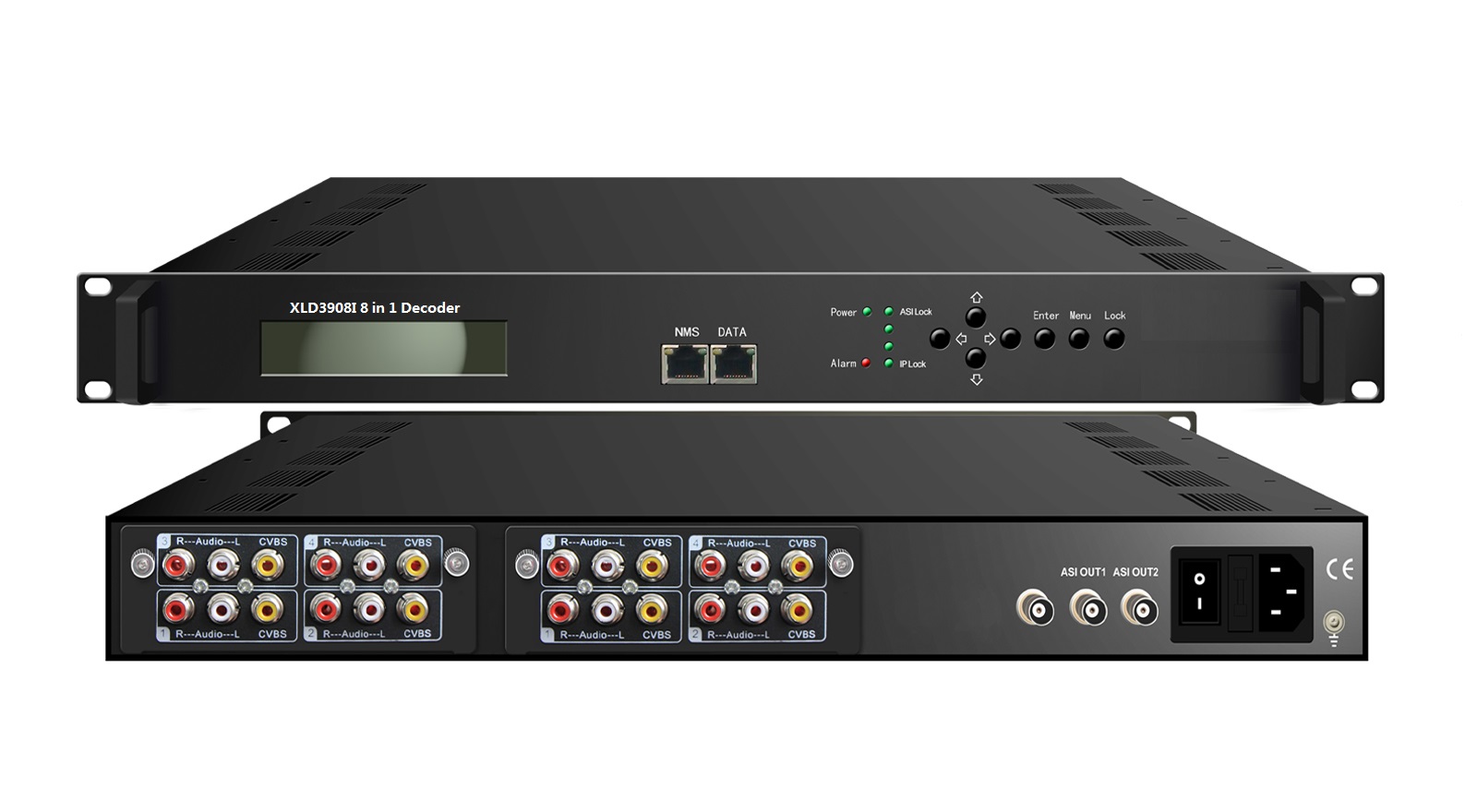

XLD3908I is a digital decoder designed by Xielide Digital Technology with proprietary intellectual property rights.
It is a 1-U case which supports digital TS input via both IP and ASI. After decoding process, it outputs as much as 8 channels of analog A/V signals. Its pluggable structure design greatly facilitates the change of decoder modules as needed.
To meet customers’ various requirements, NDS3908I is also equipped ASI output to transfer the TS to other equipment for more purposes.
Key Features
* MPEG-2/H.264/AVS+ Decoding format
* 4*IP and 1*ASI input
* 8*CVBS video/unbalanced stereo audio decoding out
* Real-time bit rate monitoring
* High reliability design, stable performance
* Easy manage with LCD and web-server remote control
Principle Chart
Specification
|
Input |
4xIP (MPTS/SPTS) (100Mbps Ethernet) (RJ45) |
||
|
IP Protocol |
UDP (Unicast/multicast) |
||
|
1* ASI (BNC) |
|||
|
Decode |
Video Format |
MPEG-2/H.264/AVS+ |
|
|
Interface |
8X CVBS（RCA） |
||
|
Video Resolution |
576i@25fps, 480i@29.97fps |
||
|
Audio Format |
MPEG-1 Layer 2 |
||
|
Interface |
8*Unbalanced stereo (RCA) |
||
|
General |
Operation |
LCD display/Control button; Web-server |
|
|
Language |
Chinese/English |
||
|
Dimension (LxWxH) |
44 mm×482 mm×410mm |
||
|
Environment |
0~45℃(Work)；-20~80℃(Storage) |
||
|
Power Supply |
220VAC±10%，50Hz |
||
|
Consumption |
<25W |
||
