Outline

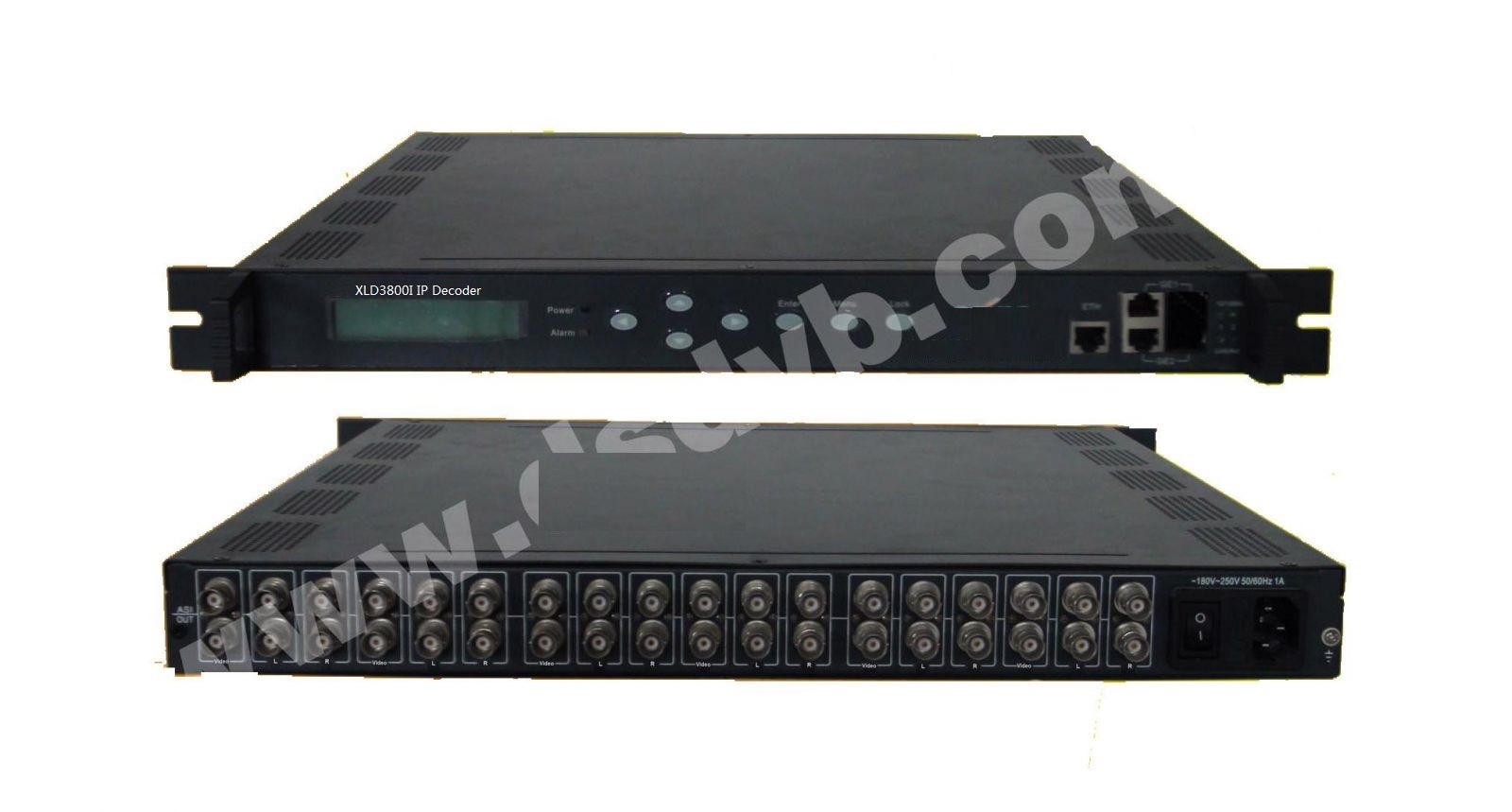

The Xielide XLD3800I MPEG-2 multi-channel IP decoder is a professional embedded digital image communication product Xielide independent intellectual property and research technology, also, it is an advanced decoder、decipher and interface converter with digital broadcast quality. This decoder can provide MPEG-2 decoding, senior TS dealing technology and newest IP dealing technology. Its main function is to transfer IP to TS and decoder MPEG-2, and then output the audio and video. It can decode 12 TS at maximum, and output 12 channels AV. The design is accord with its transport layer standard.
Features
- Decode 12 IP stream
- Supports12 different IP TS, unicast and multicast mode.
- Double link redundancy gigabit Ethernet port
- 12 A/V output
- Real time code stream monitoring
- LCD display, operate flexibly and easily
- High reliability design, running stable
- Support network management(NMS)
Specifications
|
Input interface |
IP |
UDP IP (including 12 TS transport stream) |
|
|
Output port |
12xCVBS(BNC) |
||
|
Input |
The maximum code stream is 1Gbps |
||
|
Support maximum 12 TS |
|||
|
Ethernet IP/UDP data |
|||
|
A/V output |
Video decoding |
MPEG 2 |
|
|
Video output |
CVBSx12(BNC) 576i@25fps,480i@29.97fps |
||
|
Audio decoding |
MPEG-1 layer 2 |
||
|
Audio ouput |
12stereo unbalance audio: BNC interface MPEG1, MPEG-2 layer 1 and 2 |
||
|
Sampling frequency |
32KHz、44.1KHz、48KHz |
||
|
General |
Dimensions(LxWxH) |
430mm×400mm×44mm |
|
|
Temperature range |
0~45℃(operation); -20~80℃(storage) |
||
|
Power |
220VAC±10%, 50Hz |
||
|
Consumption |
25W |
||
