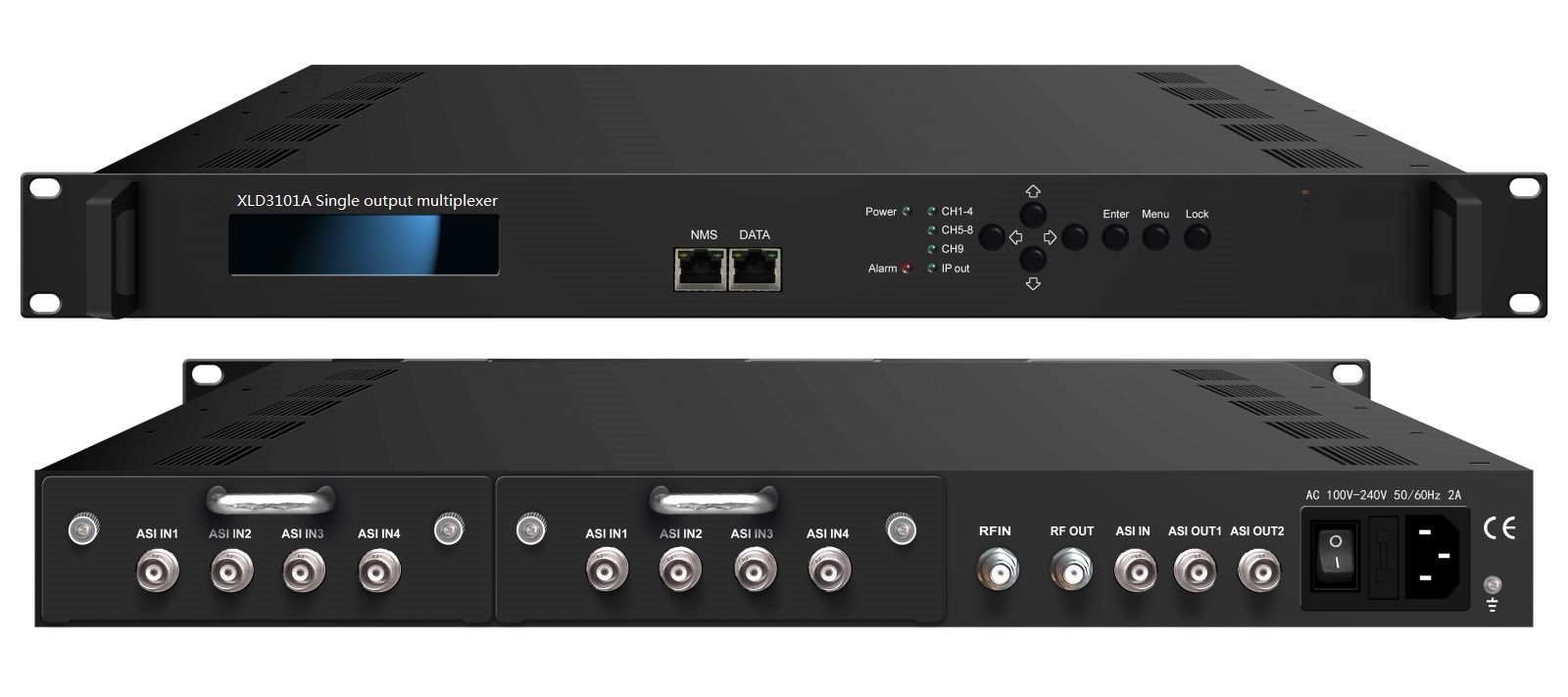

XLD3101A is an enhanced TS multiplexer for digital TV broadcasting head-end system with TS output through ASI and IP port. It can multiplex up to 9 channels ASI input to one MPTS and 8 SPTS. The multiplexer also can insert EPG (electronic program guide), CA (conditional access), data broadcasting into output TS. This multiplexer has the functions of supporting auto-generation of PSI/SI information, PID re-mapping, service filtering and PSI/SI editing. Furthermore, the NDS3101A multiplexer is provided with LCD display and network management. Therefore, user can easily configure the settings of the device.
Features
* Fully complying with ISO13818 and EN300468
* MPEG-2 TS re-multiplexing support
* 9 ASI input ports
* ASI and IP output,
* PCR correction automatically support
* Program sorting support
* SDT table reflection support
* Generating PSI/SI information
* Supporting PCR correction and PID re-reflection
* Extracting PSI/SI information from any route of SPTS/MTPS inputs
* Supporting the cascading connection between multiple equipments.
* Local and Remote network management support
Specifications
|
Input Interface |
ASI |
9 ASI input ports （Maximum 216Mbps/Route） |
|
Re-multiplexing |
MPEG-2 input TS stream re-multiplexing |
|
|
PID Remapping |
||
|
PCR Correction |
||
|
Automatically Generating PSI/SI Table |
||
|
Output Interface |
ASI |
1X2 ASI out, one as mirror Maximum code rate up to 150Mbps |
|
IP |
100M output MPTS & 8 SPTS output over UDP, PTP/RTSP Unicast & Multicast |
|
|
Miscellaneous |
Dimension |
44mm´482mm´360mm |
|
Environment |
0~45℃（Operation）；-20~80（Storage） |
|
|
Power |
220VAC±10%，50Hz，25W |
|
|
NMS |
10/100Mbps NMS Ethernet Port |
|
