Overview

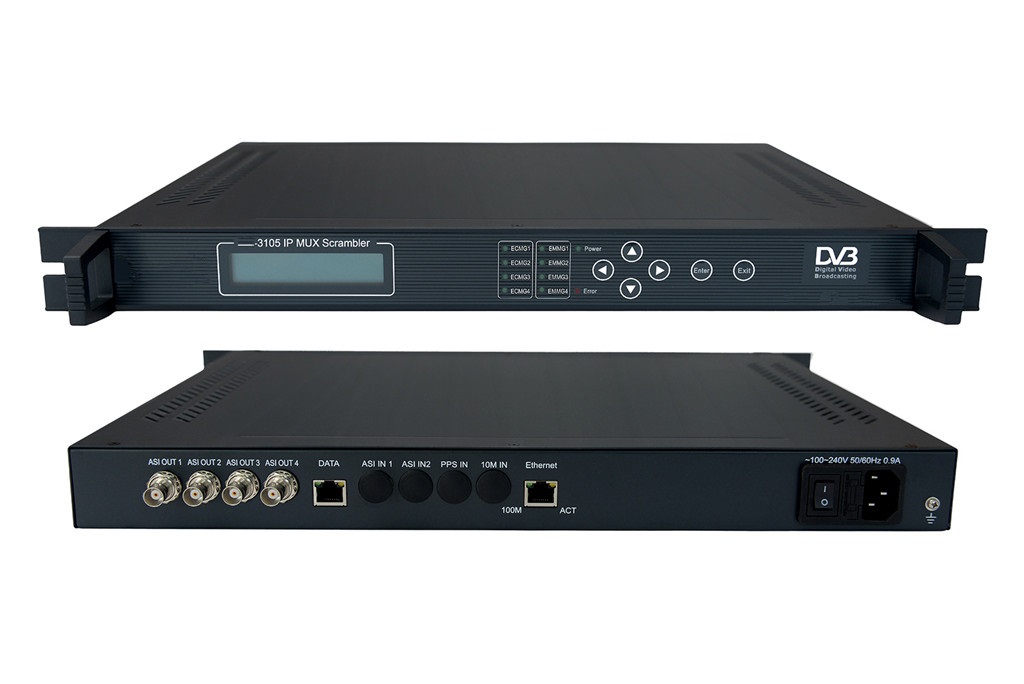

IP-to-ASI MUX-Scrambler is a cost effective and high-integrated IP multiplexer and scrambler, supporting 32×IP input and 4×ASI output. The input IP signal will be sent to signal processor after synchronized process, and the processor will be multiplexed and scrambled to output 4×ASI directly. It supports 4×CAS/SMS simulcrypt. It suits 1U rack and can be configured by front panel LCD and NMS (network management software). Its high-integrated and cost-effective design makes it widely used in varieties of digital broadcasting distribution systems.
Features
8M cache, anti-burst stream
PID filter and PID re-mapping
PSI/SI edit and NIT table inserts
Real time monitoring
PCR re-adjustment and correction
Package format supports 188/204
LCD/Keyboard control by front panel and network management by Ethernet
Technical Specifications
|
Input |
IP Port |
1000mbps, 32×multicast IP stream |
|
Output |
4×ASI |
DVB standard, BNC interface |
|
Multiplexer |
from the input 32×multicast IP stream |
|
|
Scrambler |
support 4×CAS/SMS; head-end implementation of DVB simulcrypt (ETSI TS 103 197 V1.4.1) |
|
|
Management |
network RJ-45 10/100M |
|
|
Keyboard + LCD |
||
|
General Features |
Size |
482mm×280mm×44mm |
|
Temperature Range |
0~45°C (Operation); -20~80°C (Storage) |
|
|
Power |
100-240VAC, 50Hz, 25W |
|
