Outline

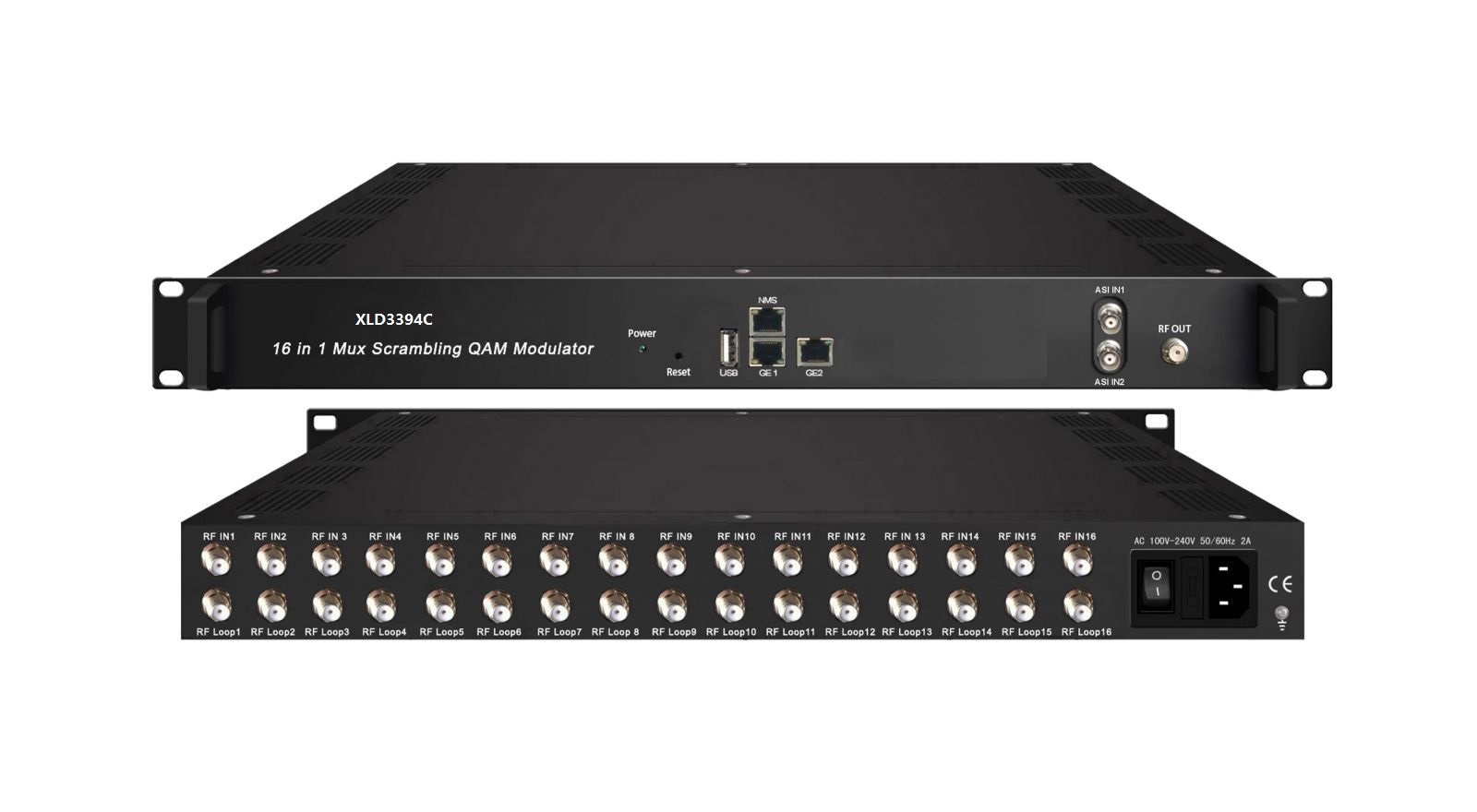

XLD3394C 16 in 1 Mux-scrambling QAM Modulator is a high performance and cost-effective QAM modulator. It supports 16 DVB-C (DVB-T/-(T)/-S/-S2, ATSC, ISDB-T optional) FTA tuner input, maximum 512 IP input through GE1 and TS input for re-mux through 2 ASI ports. After multiplexing, scrambling and QAM modulating, it gives 16 non-adjacent carriers output and 1 IP (MPTS) output through GE1.
It is also characterized with high integrated level, high performance and low cost. It supports dual power supply (optional). This is very adaptable to newly generation CATV broadcasting system.
Key Features
* 16 DVB-C (DVB-T/-(T)/-S/-S2, ATSC, ISDB-T Optional) FTA Tuner + 2 ASI input+512 IP input thru GE1 over UDP and RTP protocol
* 16 DVB-C RF output
* 1 IP (MPTS) output over UDP and RTP/RTSP, as mirror of one carrier
* Support 16 groups multiplexing+16 groups scrambling +16 groups QAM modulating
* Excellent RF output performance index, MER≥40db
* Support accurate PCR adjusting
* Support PSI/SI editing and inserting
* Support Web management, Updates via web
* Redundancy Power Supply (optional)
Working Principle
Specifications
|
Input |
16 DVB-C (DVB-T/-(T)/-S/-S2, ATSC, ISDB-T Optional) FTA Tuner |
|||
|
512 IP input through GE1 over UDP and RTP protocol |
||||
|
2 ASI input, BNC interface |
||||
|
Tuner Section |
DVB-C |
Standard |
J.83A(DVB-C), J.83B, J.83C |
|
|
Frequency In |
30 MHz~1000 MHz |
|||
|
Constellation |
16/32/64/128/256 QAM |
|||
|
DVB-T/(T) |
Frequency In |
30MHz ~999.999 MHz |
||
|
Bandwidth |
6/7/8 M bandwidth |
|||
|
DVB-S/S2 |
Input Frequency |
950-2150MHz |
||
|
Symbol rate |
QPSK 1~45Mbauds 8PSK 1~45Mbauds |
|||
|
Code rate |
1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 |
|||
|
Demodulation Mode |
QPSK, 8PSK |
|||
|
ISDB-T |
Input Frequency |
170~860MHz |
||
|
ATSC |
Input Frequency |
30MHz~1000MHz |
||
|
Bandwidth |
6M |
|||
|
Multiplexing |
Maximum PID Remapping |
256 output per channel |
||
|
Function |
PID remapping (automatically or manually) |
|||
|
Accurate PCR adjusting |
||||
|
Generate PSI/SI table automatically |
||||
|
Scrambling Parameters |
Max simulscrypt CA |
4 |
||
|
Scramble Standard |
ETR289, ETSI 101 197, ETSI 103 197 |
|||
|
Connection |
Local/remote connection |
|||
|
Modulation |
QAM Channel |
16 non-adjacent carriers output |
||
|
Standard |
EN300 429/ITU-T J.83A/B |
|||
|
MER |
≥40db |
|||
|
RF frequency |
50~960MHz, 1KHz step |
|||
|
RF output level |
-20~+10dbm(87~107 dbµV),0.1db step |
|||
|
Symbol Rate |
5.0Msps~7.0Msps, 1ksps stepping |
|||
|
Constellation |
16/32/64/128/256QAM |
|||
|
|
J.83A |
J.83B |
||
|
Constellation |
16/32/64/128/256QAM |
64/256 QAM |
||
|
Bandwidth |
8M |
6M |
||
|
Stream out |
16 RF output (F type interface) |
|||
|
1 IP (MPTS) output over UDP and RTP/RTSP (GE1 only), as mirror of one carrier |
||||
|
System |
Network management (WEB) |
|||
|
Chinese and English language |
||||
|
Ethernet software upgrade |
||||
|
General |
Dimension(W*D*H) |
482mm×300mm×44.5mm |
||
|
Temperature |
0~45℃(Operation) ; -20~80℃(Storage) |
|||
|
Power |
AC 100V±1050/60Hz; AC 220V±10%, 50/60HZ |
|||
