Product Outline

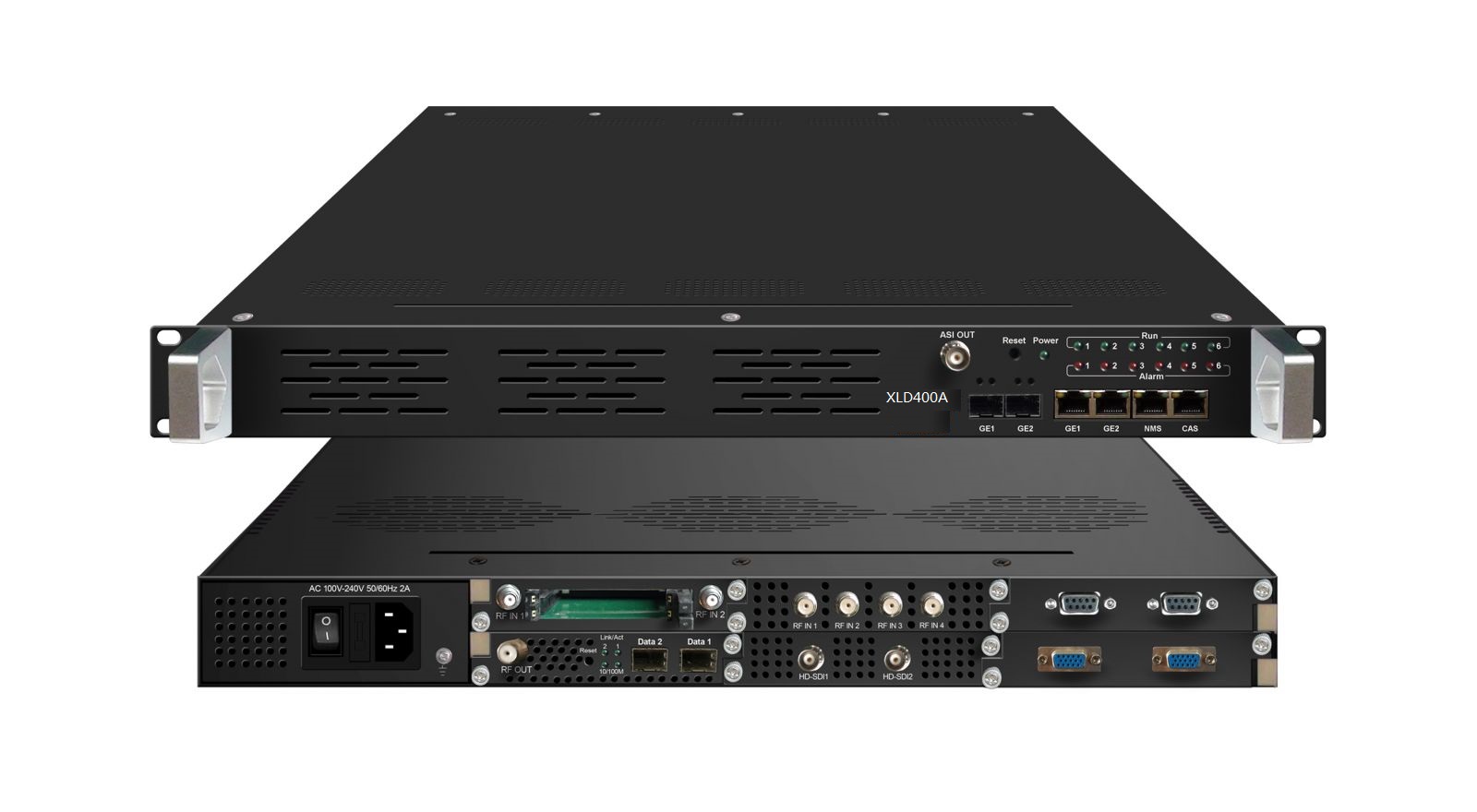

XLD400A DTV head-end processor is the new generation of intelligent headend processing equipment. This 1-U case comes with 6 independent module slots. Each module can be configured individually based on the applications including encoding, decoding, trans-coding, multiplexing, descrambling and modulating processing and the combination of all these functions. It supports multiple input and output interfaces and signal formats. With its powerful performance and low cost, DHP400A is especially adequate for the new generation CATV system.
Key Fetures
* Redundancy Power Supply (Optional)
* Two options for redundancy power supply:
Non-Hot Plugging (option 1)
Support Hot Plugging (option 2)
* Support flexible combination of different type of modules
* Support up to 6 modules
* Support 1 ASI output(As copy of One of the IP out from GE1)
* Support IP input and output from GE1 and GE2
* Support Web management, Update via web
Specifications
4 ASI/IP Multiplexing Module (DX504)
Module Specifications:
ASI inputs/outputs: 4 ASI bi-direction, BNC 75Ω
IP inputs/outputs: 2 Ethernet Port(100/1000M)
Stream connector input
Re-multiplexing: PID remapping, PCR correction, generate PSI/ SI table automatically
Stream In: maximum 4 ASI input, 256×2 IP input
Stream Out: maximum 4 ASI output, 4 IP output
4/8 CH EAS Multiplexing Module (DX504E/DX508E)
Module Specifications:
ASI input: 1 ASI input (SPTS), BNC 75Ω
IP input: 256 IP input thru 1 GE1 (100/1000M)
EAS Source: ASI or IP (the 256th IP) (ASI&IP should be SPTS, both can’t mux, source Bitrate≤10Mbps)
Re-multiplexing: PID remapping, PCR correction (only for IP), generate PSI/ SI table automatically
Stream Out: 4 IP output thru GE1, maximum 16 programs each channel--DX504E
Stream Out: 8 IP output thru GE1, maximum 8 programs each channel--DX508E
IP Adapter Module (DX514)
Module Specifications:
IP Ports: GE1/GE2 (100/1000M self- adaption)
IP Input: 10 IP input through GE1/GE2
IP Output: 10 IP output switch to other module
ASI Ports: 4 ASI bi-direction, BNC 75Ω
Select ASI port as input, IP output thru GE1/GE2 as mirror of ASI input
Select ASI port as output, ASI (1/2/3/4) output as mirror of IP in (IP 1/2/3/4)
Support PCR correction, IP De-jitter
Suggest match with DX902/DX912 module to descramble IP
IP Multiplexing Module (DX506)
Module Specifications:
IP input: 512 SPTS or MPTS input over UDP, RTP, Unicast and Multicast thru GE1 Ethernet Port (100/1000M)
Re-multiplexing: PID remapping, PCR correction, generate PSI/ SI table automatically
IP Out: 512 SPTS output over UDP, RTP, Unicast and Multicast through GE2 Ethernet Port (100/1000M)
4 CVBS Encoding Module(DX214/214A)
Module Specifications:
Input: 4 CVBS video, 4 Stereo Audio (DB9 to RCA)
Output: 1MPTS and 4 SPTS output over UDP/RTP, unicast and multicast, SFP/RJ45
Video Encoding:
Video format: MPEG-2 (4:2:0)
Image format: PAL, NTSC SD signal
Input resolution: 720×480_60i, 544×480_60i, 352×480_60i, 352×240_60i,
320×240_60i, 176×240_60i, 176×120_60i, 720×576_50i,
704×576_50i, 640×576_50i, 352×288_50i, 320×288_50i,
176×288_50i, 176×144_50i
GOP structure: IP, IBP, IBBP, IBBBP
Video bit rate: 0.5Mbps~8Mbps per channel
Support CC (closed caption)
Audio Encoding:
Audio format: MPEG-1 Layer 2, DD AC3 (2.0)
Sampling rate: 48KHz
Resolution: 24-bit
Audio bitrate:128/192/256/320/384kbps each channel
Support Logo, Caption, QR Code insertion (for DX214A only)
4 CVBS Encoding Module(DX214B)
Module Specifications:
Input: 4 CVBS video, 4 Stereo Audio (DB9 to RCA)
Video Encoding:
Video format: MPEG-2, MPEG4 AVC/H.264
Image format: PAL, NTSC SD signal
Resolution:
PAL:720*576/352*288/320*240/320*180/176*144/160*120/160*90@50Hz
NTSC: 720*480/352*288/320*240/320*180/176*144/160*120/160*90@59.94Hz
Rate Control: CBR/VBR
GOP structure: IBBPB
Video bitrate: 0.5~5Mbps
Audio Encoding:
Audio format: MPEG1 Audio Layer 2, LC-AAC, HE-AAC V2
Sampling rate: 48KHz
Resolution: 24-bit
Bit-rate: 48-384Kbps each channel
Support Logo, Caption, QR Code insertion (Language Supported: 中文, English, اردو, for more languages please consult us…)
8 CVBS Encoding Module(DX218S)
Module Specifications:
Input: 8 CVBS video, 8 Stereo Audio (DB15 to RCA)
Output: 1 MPTS and 8 SPTS output over UDP/RTP, unicast and multicast, SFP/RJ45
Video Encoding:
Video format: MPEG4 AVC/H.264
Image format: PAL, NTSC SD signal
Resolution: 720×576i, 720×480i
Rate Control: CBR/VBR
GOP structure: IPP
Video bitrate: 1~7Mbps each channel
Audio Encoding:
Audio format: MPEG-1 Layer 2
Sampling rate: 48KHz
Resolution: 24-bit
Bit-rate: 64/128/192/224/256/320/384Kbps each channel
Support Logo, Caption, QR Code insertion (Language Supported: 中文, English, اردو, for more languages please consult us…)
Module Specifications:
Input: 4*HDMI
Output: 1*MPTS & 4*SPTS output over UDP/RTP, Unicast/Multicast, SFP/RJ45
Video Encoding:
Video format: MPEG-4 AVC/H.264
Input resolution:
1920×1080_60P, 1920×1080_50P, 1920×1080_60i, 1920×1080_50i,
1280×720_60P, 1280×720_50P, 720×576_50i, 720×480_60i
GOP structure: IBBP
Video bitrate: 0.8Mbps~19Mbps each channel
Rate Control: CBR/VBR
Audio Encoding:
Audio format: MPEG1 Layer II, (MPEG-2 AAC, MPEG-4 AAC Optional), AC3 passthrough
Sampling rate: 48KHz
Resolution: 24-bit
Audio bitrate: 64~320Kbps each channel
Audio Gain Control: 0-400%
4 HDMI Encoding Module(DX224S)
Module Specifications:
Input: 4*HDMI Output: 1*MPTS output over UDP/RTP, Unicast/Multicast, SFP/RJ45
Video Encoding:
Video format: MPEG-4 AVC/H.264
Input resolution: 1920×1080_60P, 1920×1080_60i, 1920×1080_50P, 1920×1080_50i,1280×720_60P, 1280×720_50P, 720×576_50i, 720×480_60i,
Output resolution: 1920×1080_30P, 1920×1080_25P, 1280×720_30P, 1280×720_25P, 720×576_25P,720×480_30P,
GOP structure: IP…P (P Frame adjustment, without B Frame)
Video Bit-rate: 1Mbps~13Mbps each channel
Rate Control: CBR/VBR
Audio Encoding:
Audio format: MPEG1 Layer II, support audio gain adjustment
Sampling rate: 48 KHz
Resolution: 24-bit
Audio Bit-rate: 64kbps,128Kbps,192kbps,224kbps,256kbps,320kbps,384kbps
Support Logo, Caption, QR Code insertion
4 HDMI/SDI Encoding Module (DX224V)
Module Specifications:
Input: 4×SDI/HDMI (1.4) input, HDCP 1.4
Output: 1 MPTS and maximum 4 SPTS output over UDP/RTP/RTSP
Video Encoding:
Video format: HEVC/H.265 & MPEG 4 AVC/H.264
Resolution:
HDMI: 3840×2160_30P, 3840×2160_29.97P;
(Encoding 2 CHs per module for H.265, and encoding 1 CH for H.264)
1920×1080_60P, 1920×1080_59.94P, 1920×1080_50P;
(Encoding 4 CHs per module for H.265, and encoding 2 CHs for H.264)
1280×720_60P, 1280×720_59.94P, 1280×720_50P
(Encoding 4 CHs per module for H.264 and H.265)
SDI: 1920×1080_60P, 1920×1080_59.94P, 1920×1080_50P;
(Encoding 4 CHs per module for H.265, and encoding 2 CHs for H.264)
1280×720_60P, 1280×720_59.94P, 1280×720_50P
(Encoding 4 CHs per module for H.264 and H.265)
Input: 1920×1080_60i, 1920×1080_59.94i, 1920×1080_50i (Only for SDI)
Output: 1920×1080_60P, 1920×1080_59.94P, 1920×1080_50P
(Encoding 4 CHs per module for H.265, and encoding 2 CHs for H.264)
Chroma: 4:2:0 Bit rate: 0.5Mbps~20Mbps (each channel)
Rate Control: CBR/VBR GOP structure: IBBP, IPPP
Audio Encoding:
Audio format: MPEG-1 Layer 2, LC-AAC, HE-AAC, HE-AAC V2
Sampling rate: 48KHz
Bit-rate (each channel):
48Kbps~384Kbps (MPEG-1 Layer 2 & LC-AAC)
24 Kbps~128 Kbps (HE-AAC)
18 Kbps~56 Kbps (HE-AAC V2)
Audio Gain: 0~255
Module Specifications:
ASI input/output: 2 ASI bi-direction, BNC 75Ω
IP input: 2 IP input
IP output: 1 MPTS output over UDP, Unicast/Multicast, SFP/RJ45
Decoding:
Video/Audio Out: 2 HD/SD SDI output
Video Format: MPEG-2, MPEG-4 AVC/H.264
Resolution: 480i,480p,576i,576p,720p@50/59.94/60,1080i@50/59.94/60
Chroma: 4:2:0
Audio Format: MPEG1 Layer2, LC-AAC, HE-AAC, AC3 (2.0/5.1), AC3 Passthrough,
Support Dual Audio Out
Support CC/Subtitle
Module Specifications:
Input: 2*HDMI, 2*BNC for CC (Closed Caption) input, 4 IP input
Output: 1*MPTS output over UDP, Unicast/Multicast, SFP/RJ45
Video Encoding:
Video format: MPEG2 & MPEG4 AVC/H.264
Input resolution:
1920*1080_60P, 1920*1080_50P, 1920*1080_60i, 1920*1080_50i, 1280*720_60p, 1280*720_50P, 720*480_60i, 720*576_50i
Output resolution:
1920*1080_60P, 1920*1080_50P,1920*1080_60i,1920*1080_50i,1440*1080_60i
1440*1080_50i, 1280*720_60p, 1280*720_50P, 720*576_50i, 720*576_50P, 720*576_30P,720*576_25P,720*480_60i,720*480_60P,720*480_30P, 720*480_25P, 320*240_60P, 320*240_50P, 320*240_30P, 320*240_25P, 320*180_60P, 320*180_50P, 320*180_30P, 320*180_25P,960*540_50I,704*576_50i,704*480_60i, 640*576_50i,640*480_60i, 544*576_50i,544*480_60i,
Rate control mode: CBR/VBR
Aspect ratio: 16:9, 4:3 Support CC (closed caption)
Video bitrate: 0.8~19Mbps for MPEG-2/H.264 encoding
Audio Encoding:
Audio format: MPEG1 Layer II, MPEG2-AAC, MPEG4-AAC,
Dolby Digital AC3 (2.0) encoding (Optional); AC3 (2.0/5.1) passthrough
Sampling rate: 48KHz Audio bitrate: 64Kbps-320kbps each channel
Video Tanscoding:
2*MPEG2 HD → 2*MPEG2/H.264 HD; 2*MPEG2 HD → 2*MPEG2/H.264 SD;
2* H.264 HD → 2*MPEG2/H.264 HD; 2* H.264 HD → 2*MPEG2/H.264 SD;
4 *MPEG2 SD → 4 *MPEG2/H.264 SD; 4* H.264 SD → 4 *MPEG2/H.264 SD
Audio Tanscoding:
MPEG-1 Layer 2, AC3 (Optional) and AAC any-to-any
Module Specifications:
Input: 2*HD-SDI, 2 IP input
Output: 1*MPTS output over UDP, Unicast/Multicast, SFP/RJ45
Video Encoding:
Video format: MPEG2 & MPEG4 AVC/H.264
Input resolution:
1920*1080_60P, 1920*1080_50P, 1920*1080_60i, 1920*1080_50i, 1280*720_60p, 1280*720_50P, 720*480_60i, 720*576_50i
Rate control mode: CBR/VBR
Aspect ratio: 16:9, 4:3
Video bitrate: 0.8~19Mbps
Support CC (closed caption)
Audio Encoding:
Audio format:
MPEG1 Layer II, MPEG2-AAC, MPEG4-AAC,
Dolby Digital AC3 (2.0) encoding (Optional), AC3 (2.0/5.1) passthrough
Sampling rate: 48KHz
Audio bitrate: 64Kbps-320kbps each channel
Video Tanscoding:
2*MPEG2 HD → 2*MPEG2/H.264 HD; 2*MPEG2 HD → 2*MPEG2/H.264 SD;
2* H.264 HD → 2*MPEG2/H.264 HD; 2* H.264 HD → 2*MPEG2/H.264 SD;
4 *MPEG2 SD → 4 *MPEG2/H.264 SD; 4* H.264 SD → 4 *MPEG2/H.264 SD
Audio Tanscoding:
MPEG-1 Layer 2, AC3 (Optional) and AAC any-to-any
Module Specifications:
Data input: Max 512 IP input over UDP/RTP, 2 GE Ports (RJ45/SFP) (DX316)
Max 1024 IP input over UDP/RTP, 2 GE Ports (RJ45/SFP) (DX332)
128 IP input through front panel GE2 port or internal IP output
Data output: 16 or 32 IP output over UDP/RTP/RTSP, unicast/multicast, 2 GE Ports (RJ45/SFP)
Trans Rate: Max 840Mbps/GE Port
RF output (F type): 16/32 channels of multiplexing, scrambling and modualtion.
Multiplexing:
Maximum PID Remapping: 180 output pids per channel for DX316. 256 output pids per channel for DX332.
Function: PID remapping (automatically or manually), Accurate PCR adjusting, generate PSI/SI table automatically
Scrambling:
Maximum simulcrypt CA: 4
Standard: ETR289, ETSI 101 197, ETSI 103 197
Connection: Local/remote connection
Modulation:
Standard: EN300 429/ITU-T J.83A/B (DVB-C)
MER: ≥40dB
RF frequency: 50~960MHz, 1KHz step
RF output level: -20~+10dBm (87~117 dBµV), 0.1dB step for all carriers
Symbol Rate: 5.0Msps~7.0Msps, 1ksps step
Constellation: 16/32/64/128/256QAM
DX316 Output: 16 non-adjacent carrier outputs within 192M bandwidth
DX332 Output: 32 non-adjacent carrier outputs within 384M bandwidth
Module Specifications:
Stream in: 2 Tuner input, F Type
Stream out: 1 MPTS output output over UDP, Unicast/Multicast, SFP/RJ45
DVB-CI: 2 independent common interface slots
Standard: DX902: DVB-S/S2; DX912: DVB-C
DVB-S Input Frequency: 950-2150MHz
Symbol Rate: QPSK 1~45Msps
Signal Strength: -65~ -25dBm
FEC Demodulation: 1/2, 2/3, 3/4, 5/6, 7/8
DVB-S2 Input Frequency: 950-2150MHz
Symbol rate: QPSK/8PSK 1~45Msps
16APSK 1~45 Msps 32APSK1~32 Msps
FEC Demodulation: 1/2, 2/3, 3/4,5/6,7/8, 4/5,5/6,8/9, 9/10
DVB-C Standard: J.83A(DVB-C), J.83B, J.83C
Input Frequency: 30-960MHz
Constellation: 16/32/64/128/256 QAM
Support Diseqc function (For DX902)
Multiplexing:
Maximum PID Remapping: 256 output pids
Function: PID remapping (automatically or manually), Accurate PCR adjusting, generate PSI/ SI table automatically
Descrambling:
CAM/CI Quantity: 2
BISS Mode: Mode 1, Mode E; up to 120Mbps (Optional as required)
Module Specifications:
Stream in: 4 Tuner input, F Type
Stream Out: 4* MPTS output over UDP/RTP, unicast/multicast, SFP/RJ45
Standard: DVB-S/S2;
DVB-S DVB-S2
Input Frequency: 950-2150MHz 950-2150MHz
Symbol Rate: QPSK 1~45 Msps QPSK/8PSK 1~45 Msps,
16APSK 1~45 Msps 32APSK1~32 Msps
(16APSK&32APSK are optional as required)
FEC Demodulation:1/2, 2/3,3/4,5/6,7/8 1/2, 2/3,3/4,5/6,7/8,4/5,5/6,8/9, 9/10
Signal Strength: -65 ~ -25dBm
Support Diseqc function
Module Specifications:
Stream in: 4 Tuner input, F Type
Stream out: 4 IP (SPTS/MPTS)output UDP/RTP, unicast/multicast, SFP/RJ45
Standard: DVB-C (J.83 A/C)/J.83B/ DVB-T/T2/ISDB-T switchable
Standard: DVB-C (J.83 A/C); J.83B
Input Frequency: 60MHz~890MHz
Symbol rate: 1000~9000Ksps
Constellation: 16/32/64/128/256 QAM; 64/256 QAM for J.83B
Standard: DVB-T/T2
Frequency In: 60MHz~890MHz
Bandwidth: 5/6/7/8M bandwidth
PLP Index: 0~255 (for DVB-T2)
Standard: ISDB-T
Input Frequency: 60-890MHz
Multiplexing:
Maximum PID Remapping: 256 output pids
Function: PID remapping (automatically/ manually), Accurate PCR adjust
Equipment Specifications:
Base Unit Parameters
Dimension(W×L×H): 482mm×410mm×44mm |
Environment: 0~45℃(work); -20~80℃(Storage) |
Power requirements AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz |
Parameters Comparison:
|
DHP400 |
DHP400A |
IP Data Transport |
One-way Transport: GE1/GE2 support output maximum 8MPTS & 512SPTS |
Bi-directional Transport: GE1/ GE2 support IP data input and output |
TS Processing Number |
Support 1 TS (MPTS/SPTS) input from each module, and maximum bitrate is 350Mbps |
Support maximum 512 TS (MPTS/SPTS) input from each module, and maximum bitrate is 350Mbps |
Multiplexing |
Support multiplexing function: It can mux TSs from different modules to one TS and output through one module or GE1/GE2 port |
Doesn’t support multiplexing function: It can combine TSs from different modules and output these TSs through one module or GE1/GE2 port |
Output Per Module |
1 MPTS after multiplexing |
1 or multiple MPTS/SPTS |
