Product Introduction

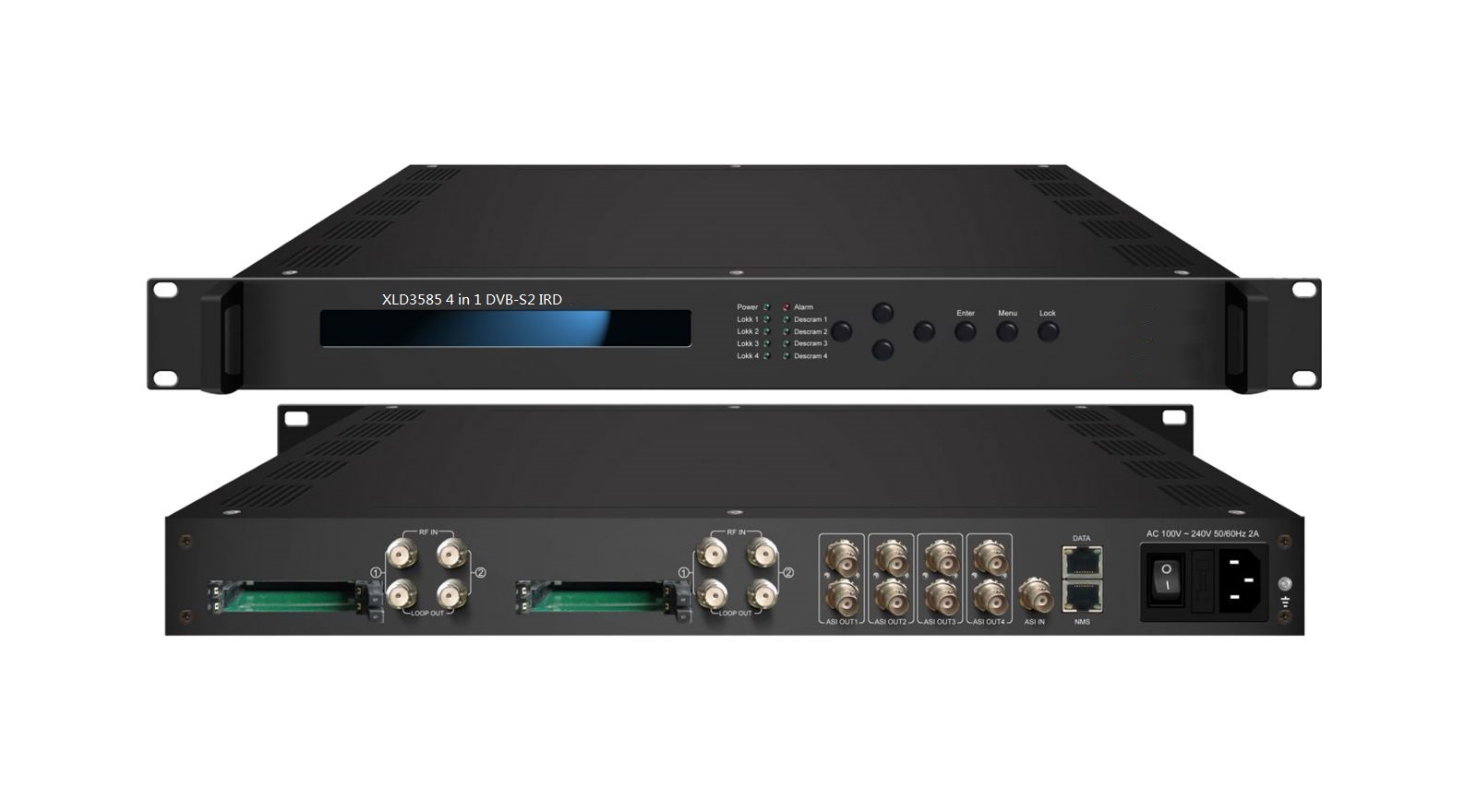

NDS358X IRD is Xielide’s new design which integrates demodulation (DVB-C, (T), S/S2 optional), de-scrambler and multiplexing in one case to convert RF signals into TS output.
It is a 1-U case which supports 4 tuner inputs, 1 ASI and IP. The 4 CAMs/CIs accompanied can descramble the programs input from encrypted RF, ASI and IP. The CAM requires NO unsightly external power cords, cables, or additional remote control device. BISS function is also embedded to descramble programs from any input.
To meet customers’ various requirements, NDS358X is also designed to de-mux programs from any input, and output TS over 48 SPTS & 4 MPTS UDP, RTP/RTSP.
Key Features
* 4 Tuner inputs (DVB-C, (T), S/S2 Optional)
* 1 ASI & 4 IP (UDP) input
* One CAM can decrypt multiple programs from Tuners/ASI/IP
* Support BISS descrambling(Up to 120 Mbps)
* IP (48 SPTS, 4 MPTS) over UDP and RTP/RTSP output;
* 4 groups of independent ASI out for tuner/IP passthrough (one-to-one)
* Support maximum 128 PID mapping per input
* Support Diseqc function
* LCD display, Remote control and Firmware, web NMS management
* Updates via web
* High quality and breakthrough price
Principle Chart
Technical Specifications:
Input
|
4x RF (DVB-C, (T), S/S2 optional), F type |
|
1×ASI input for de-mux, BNC interface |
|
4xIP input for de-mux (UDP) |
Tuner Section
|
DVB-C |
|
|
Standard |
J.83A(DVB-C), J.83B, J.83C |
|
Input Frequency |
30MHz~1000 MHz |
|
Constellation |
16/32/64/128/256 QAM |
|
DVB-(T) |
|
|
Input Frequency |
30MHz ~999.999 MHz |
|
Bandwidth |
6M, 7M, 8M |
DVB-S
|
Input Frequency |
950-2150MHz |
|
|
Symbol rate |
2-45Msps |
|
|
Signal Strength |
- 65- -25dBm |
|
|
Constellation |
1/2, 2/3, 3/4, 5/6, 7/8 QPSK |
|
|
DVB-S2(Version 1) |
||
|
Input Frequency |
950-2150MHz |
|
|
Symbol rate |
1~45 Msps; |
|
|
Code rate |
1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 |
|
|
Constellation |
QPSK, 8PSK |
|
|
DVB-S2(Version 2) |
|
|
|
Input Frequency |
950-2150MHz |
|
|
Symbol rate |
QPSK, 8PSK:1~45 Msps 16APSK: 1~35 Msps 32APSK: 1~28 Msps |
|
|
Code rate |
1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 |
|
|
Constellation |
QPSK, 8PSK, 16APSK, 32APSK |
|
|
Descrambling |
|
|
|
CAM/CI Quantity BISS Mode |
4 Mode 1, Mode E; up to 120Mbps |
|
Output
|
IP |
48*SPTS over UDP, RTP/RTSP. 1000M Base-T Ethernet interface (unicast/multicast) 4*MPTS over UDP, RTP/RTSP. 1000M Base-T Ethernet interface, for RF in passthrough (one-to-one) |
|
ASI |
4 groups BNC interface, for RF or IP in passthrough (one-to-one) |
System
|
Local interface |
LCD + control buttons |
|
Remote management |
Web NMS Management |
|
Language |
English |
General
|
Power supply |
AC 100V~240V |
|
Dimensions |
482*400*44.5mm |
|
Weight |
3 kgs |
|
Operation temperature |
0~45℃ |
System Connection Sample
