Product Overview

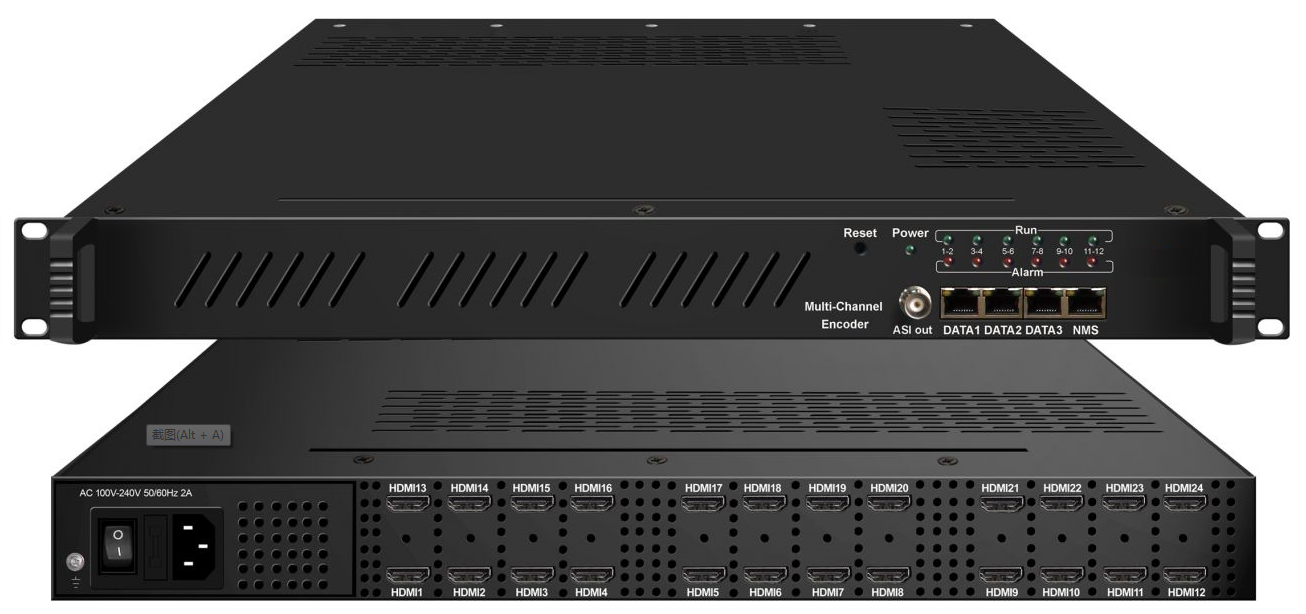

XLD3544KF Multi-Channel Encoder is the new broadcasting audio & video encoding and multiplexing device with powerful functionality. It is equipped with 24 HDMI audio & video input interfaces and 32 IP input through Data 1 port. It supports MPEG-4 AVC/H.264 video encoding and MPEG1 Layer II audio encoding (MPEG-2 AAC, MPEG-4 AAC Optional), AC3 pass through. NDS3544KF supports 1MPTS and 24 SPTS IP (DATA1 and DATA2 port) output over UDP, RTP/RTSP. Its high integration and cost-effective design make this device widely used in variety of digital distribution systems such as CATV digital head-end, satellite and terrestrial digital TV, etc.
Key features
* 24 HDMI inputs with MPEG-4 AVC/H.264 Video encoding
* 32 IP input(Data 1 port) over UDP and RTP
* Support MPEG1 Layer II; AC3 pass through ; MPEG-2 AAC,MPEG-4 AAC (Optional);
* Support 1MPTS and 24 SPTS IP (DATA1 and DATA2 port) output over UDP, RTP/RTSP
* Support HD (1080i/720p) to SD (576p/480p) downscale conversion
* Support ASI output as mirror of MPTS-Optional
* Support PID remapping/ accurate PCR adjusting/PSI/SI editing and inserting
* Control via web management, and easy updates via web
Principle Chart
Technical specification
|
Input |
24 HDMI inputs 32 IP input over UDP and RTP through DATA 1 port |
||
|
Video |
Resolution |
1920×1080_60P,1920×1080_50P,1920×1080_60i, 1920×1080_50i,1280×720_60P,1280×720_50P, 720×576_50i, 720×480_60i |
|
|
Resolution Downsacle |
1080i/720p to 576p/480p |
||
|
Encoding |
MPEG-4 AVC/H.264 |
||
|
Bit-rate |
0.8~19Mbps each channel |
||
|
Rate Control |
CBR/VBR |
||
|
GOP Structure |
IBBP |
||
|
Audio |
Encoding |
MPEG1 Layer II, AC3 pass through (MPEG-2 AAC, MPEG-4 AAC Optional) |
|
|
Sampling rate |
48KHz |
||
|
Audio Gain |
0-400% adjustable |
||
|
Bit-rate |
64~320Kbps each channel (each channel) |
||
|
Multiplexing |
Maximum PID Remapping |
180 input per channel |
|
|
Function |
PID remapping ( automatically or manually) |
||
|
Accurate PCR adjusting |
|||
|
Generate PSI/ SI table automatically |
|||
|
Stream output |
1 MPTS and 24 SPTS IP output over UDP and RTP/RTSP, 2*1000M Base-T Ethernet interface, Data 1 and Data 2 1 ASI output as mirror of MPTS-Optional |
||
|
System function |
Network management (WEB) |
||
|
Ethernet software upgrade |
|||
|
Miscellaneous |
Dimension (W×L×H) |
482mm×440mm×44mm |
|
|
Environment |
0~45℃(work)；-20~80℃（Storage） |
||
|
Power requirements |
AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz |
||
Technical Comparison
|
|
XLD3544K |
XLD3544KF |
XLDNDS3542L |
|
Chipset |
Vixs |
Fujitsu |
Hisilicon |
|
Video Channel |
2/4/6/8/10/12×HDMI optional |
4/8/12/16/20/24×HDMI optional |
4/8/12/16/20/24×HDMI optional |
|
Video Encode |
MPEG2 & MPEG4 AVC/H.264 |
MPEG-4 AVC/H.264 |
MPEG-4 AVC/H.264 |
|
CC Input |
12 CC input ports |
N/A |
N/A |
|
IP Input |
32 ×IP |
32× IP |
N/A |
|
Video Bit Rate |
0.8~19Mbps for H.264 encoding 1~19Mbps for MPEG-2 encoding |
0.8~19Mbps each channel |
1Mbps~13Mbps each channel (Bit rate is with a high fluctuation, suitable for cable system, not suitable for satellite uplink) |
|
GOP |
GOP B Frame: 0-3, GOP P Frame: 0-6 |
IBBP |
GOP Size=25 (without B Frame) |
|
Resolution |
Up to 1080p-60 (Resolution and frame rate downscale convertion) |
Up to 1080p-60 (1080i/720p to 576p/480p downscale conversion) |
Up to 1080P-30 (1080i/p-60/50 to 1080p-30/25 auto downscale convertion) |
|
Audio Encode |
MPEG1 Layer II, MPEG2-AAC, MPEG4-AAC, Dolby Digital AC3 (2.0) encoding (Optional), AC3 pass through |
MPEG1 Layer II, (MPEG-2 AAC, MPEG-4 AAC Optional) AC3 pass through |
MPEG-1 Layer II |
|
Audio Gain |
Yes |
Yes |
Yes |
|
OSD Function |
N/A |
N/A |
Yes |
|
ASI output |
Option as required |
Option as required |
Option as required |
|
IP output |
SPTS and 1MPTS |
SPTS and 1MPTS |
SPTS and 1MPTS(for 4/8/12 channel) SPTS or 1MPTS(for 16/20/24 channel) |
