Principle Chart of Per Module (the number of encoding channels depend on encoding format and resolution)

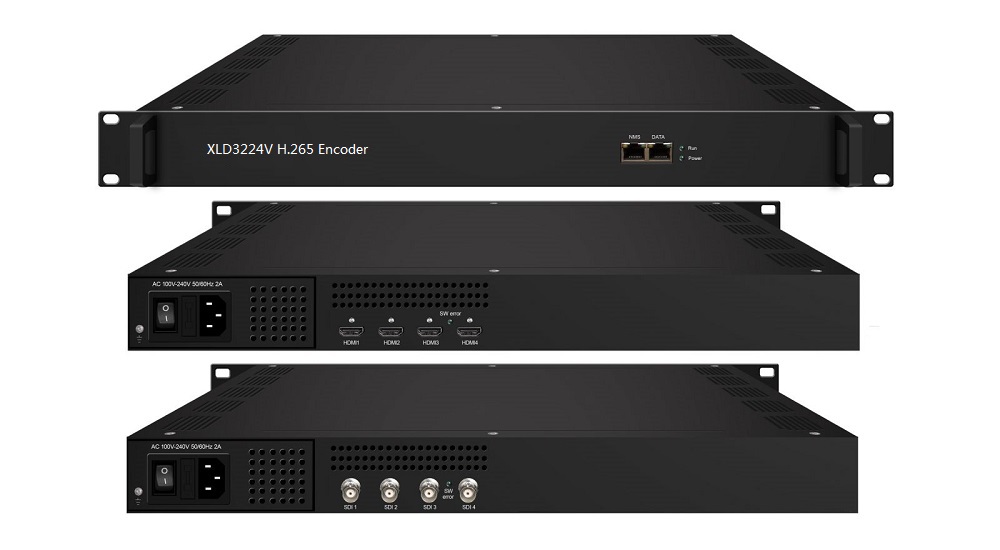

Technical specification
|
Input |
4/8/12×HDMI input (1.4), HDCP 1.4---OptionⅠ 4/8/12×SDI input---OptionⅡ |
|||
|
Video Encoding |
Encoding Format |
HEVC/ H.265 , MPEG 4 AVC/H.264 |
||
|
Resolution |
HDMI-VersionⅠ |
3840×2160_30P, 3840×2160_29.97P (Encoding 2 CHs per module for H.265, and encoding 1 CH for H.264 ) 1920×1080_60P,1920×1080_59.94P,1920×1080_50P, (Encoding 4 CHs per module for H.265, and encoding 2 CHs for H.264) 1280×720_60P, 1280×720_59.94P, 1280×720_50P (Encoding 4 CHs per module for H.264 and H.265) |
||
|
HDMI-VersionⅡ/SDI |
1920×1080_60P,1920×1080_59.94P,1920×1080_50P, (Encoding 4 CHs per module for H.265, and encoding 2 CHs for H.264) 1280×720_60P, 1280×720_59.94P, 1280×720_50P (Encoding 4 CHs per module for H.264 and H.265) |
|||
|
Input: 1920×1080_60i,1920×1080_59.94i,1920×1080_50i Output: 1920×1080_60P,1920×1080_59.94P,1920×1080_50P (Encoding 4 CHs per module for H.265, and encoding 2 CHs for H.264) |
||||
|
Chroma |
4:2:0 |
|||
|
Bitrate |
0.5Mbps~20Mbps (each channel) |
|||
|
Rate Control |
CBR/VBR |
|||
|
GOP Structure |
IBBP, IPPP |
|||
|
Advanced Pretreatment |
De-interlacing, Noise Reduction, Sharpening |
|||
|
Audio Encoding |
Encoding Format |
MPEG-1 Layer 2, LC-AAC, HE-AAC, HE-AAC V2 |
||
|
Sampling rate |
48KHz |
|||
|
Bit-rate (each channel) |
48Kbps~384Kbps (MPEG-1 Layer 2 & LC-AAC) 24 Kbps~128 Kbps (HE-AAC) 18 Kbps~56 Kbps (HE-AAC V2) |
|||
|
Audio Gain |
0~255 |
|||
|
Stream output |
1 MPTS and maximum 4 SPTS output over UDP/RTP/RTSP per module, 1000M/100M Base-T Ethernet interface (unicast/ multicast) IP null packet filter |
|||
|
System |
Web based management |
|||
|
Chinese-English control interface |
||||
|
Ethernet software upgrade |
||||
|
Miscellaneous |
Dimension (W× L× H) |
482mm×328mm×44mm |
||
|
Approx weight |
5kg |
|||
|
Temperature |
0~45℃(work), -20~80℃（Storage） |
|||
|
Power |
AC 100V-220V±10%, 50/60Hz |
|||
Xielide HEVC/H.265 encoder’s advantages
1. Providing smooth TS for modulators
XIELIDE HEVC/H.265 encoder adopts Fujitsu chip which offers stable bitrate with lower fluctuation compared with other encoding chips, so it provides smooth TS for modulators. It is widely used in variety of digital distribution systems such as CATV digital head-end, satellite and terrestrial digital TV, etc.
2. Encoding with highest compression format—B frame (IBBP)
What is B Frame?
There are 3 major picture types used in the different video algorithms, they are I, P and B.
They are different in the following characteristics:
I‑frames are the least compressible but don't require other video frames to decode.
P‑frames can use data from previous frames to decompress and are more compressible than I‑frames.
B‑frames can use both previous and forward frames for data reference to get the highest amount of data compression.
