Product Overview

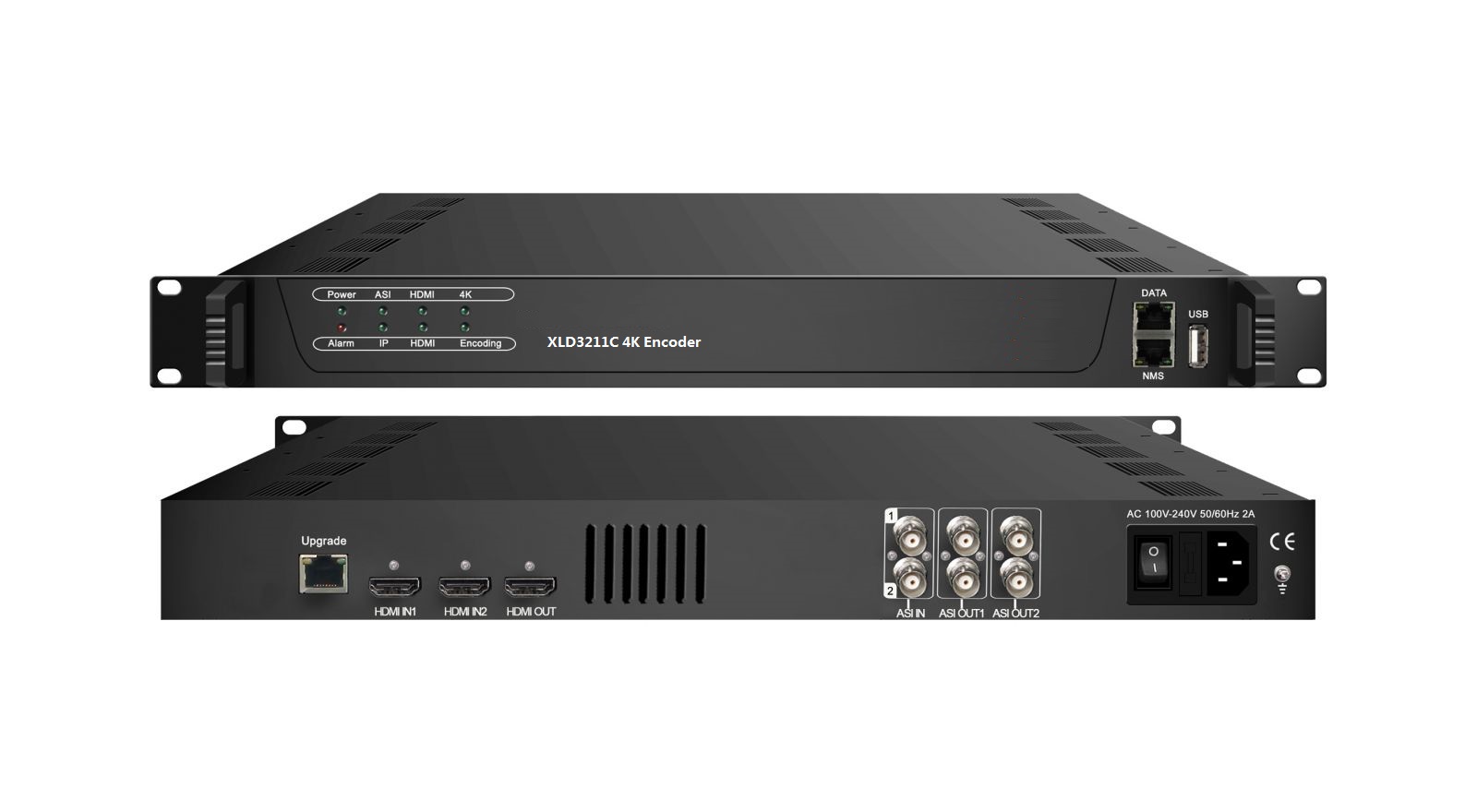

XLD3211C is a newest professional 4K Encoder designed by Xielide. It is equipped with two HDMI (2.0) channel UHD signal input (hot redundancy) supporting H.265/HEVC and H.264/AVC video encoding format and MPEG1 Layer 2, LC –AAC audio encoding and DD AC3 passthrough audio encoding. It can output 1 encoded TS through 4 ASI output ports and 4 MPTS output through GE output port.
Key Features
* Support 2 HDMI 2.0 input (hot redundancy) and 1 HDMI 2.0 (Loop out) output
(1080P and 4K convert to each other)
* Support H.265/HEVC and H.264/AVC video encoding
* Support Logo, Caption, QR code insertion
* Support CBR video bitrate mode
* Support MPEG1 Layer 2, LC –AAC audio encoding
* Support IP (1000M/100M) Output 1 MPTS over UDP and RTP; IP null packet filter
* Support 1 TS output through 4 ASI output ports
* Real-time output bit-rate monitoring
* Update device through web based NMS port
* Support LCD / keyboard operating(optional), and network management (web)
Specifications
|
Input |
1×HDMI input (2.0) with 2 HDMI port, HDCP 2.2/1.4 |
|||
|
2 ASI input, BNC interface |
||||
|
32 IP input over UDP and RTP protocol |
||||
|
Video Input |
Resolution |
Chroma |
||
|
3840×2160_60P,3840×2160_59.94P, 3840×2160_50P,3840×2160_30P, 3840×2160_29.96P,3840×2160_25P, 3840×2160_24P,1920×1080_60P, 1920×1080_59.94P,1920×1080_50P, 1920×1080_30P ,1920×1080_25P 1920×1080_24P, |
RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 (2160P_50/60Hz only) |
|||
|
Video Encoding |
Encoding |
H.265/HEVC, H.264/AVC |
||
|
Chroma |
4:2:2, 4:2:0 |
|||
|
Bit-rate |
1Mbps~23Mbps |
|||
|
Rate Control |
CBR |
|||
|
Audio Encoding |
Encoding |
MPEG-1 Layer 2, LC-AAC |
||
|
Sampling rate |
48KHz |
|||
|
Bit-rate |
64Kbps~256Kbps each channel |
|||
|
Multiplexing |
2 ASI input multiplexed with local 1 channel of TS |
|||
|
PID remapping (automatically or manually) |
||||
|
Accurate PCR adjusting |
||||
|
Generate PSI/SI table automatically |
||||
|
Stream output |
1*ASI output through 4 BNC interfaces |
|||
|
1 MPTS over UDP/RTP, 1000M/100M Base-T Ethernet interface (unicast/ multicast) |
||||
|
System function |
LCD/keyboard operating, web NMS supporting |
|||
|
Ethernet software & hardware upgrade |
||||
|
Miscellaneous |
Dimension (W× L× H) |
482mm×455mm×44mm |
||
|
Approx weight |
4kg |
|||
|
Temperature |
0~45℃(work), -20~80℃（Storage） |
|||
|
Power |
AC 100V-220V±10%, 50/60Hz |
|||
|
Consumption |
25W |
|||
Principle Chart
