Product Overview

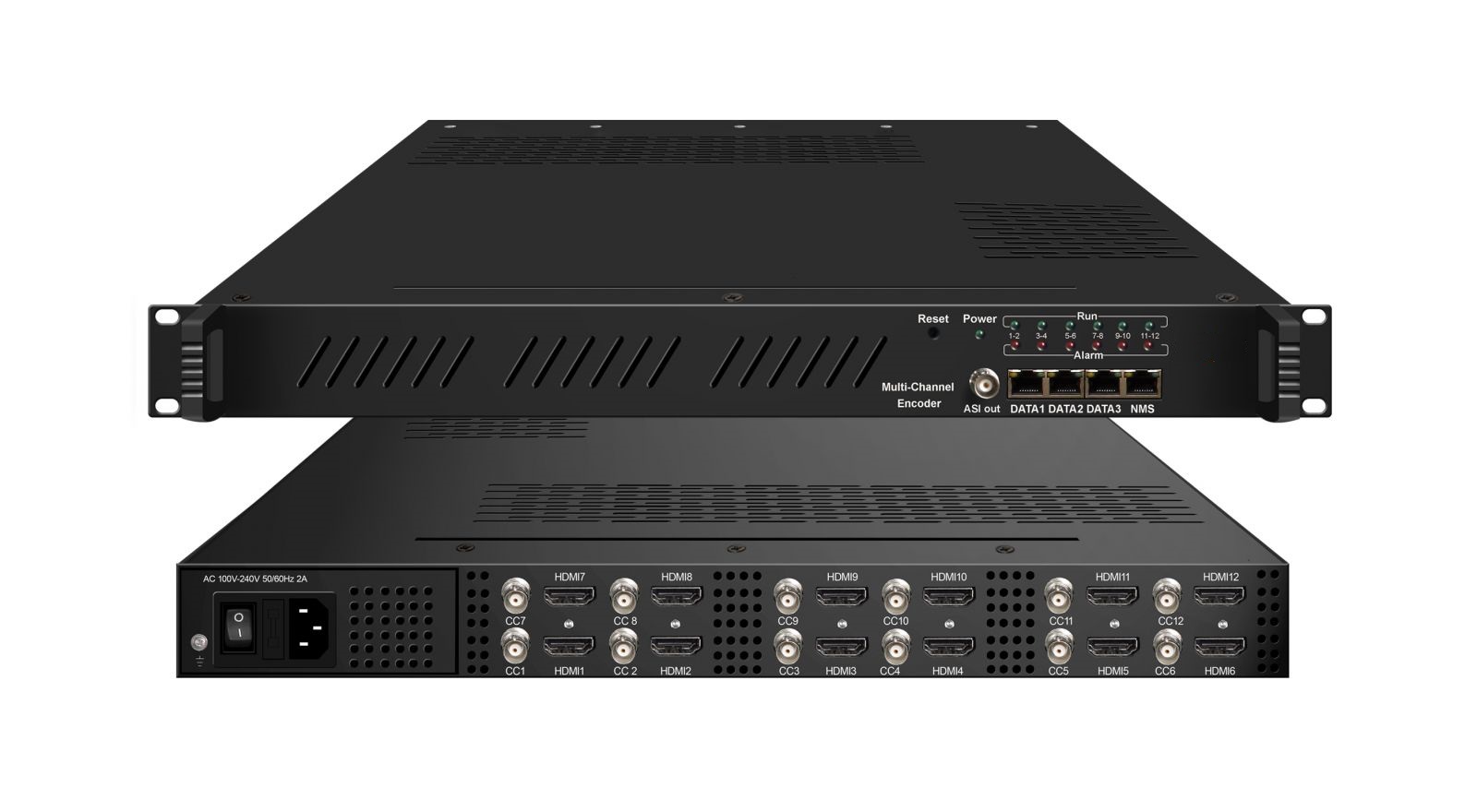

XLD3544K Multi-Channel Encoder is the new broadcasting audio & video encoding and multiplexing device with powerful functionality. It is equipped with 12 HDMI audio & video input interfaces, 12 CC input ports (Closed Caption) and 32 IP input over UDP and RTP through Data1.
It supports both MPEG-2 and MPEG-4 AVC/H.264 HD/SD video encoding and MPEG1 Layer II, MPEG2-AAC, MPEG4-AAC, Dolby Digital AC3 (2.0) audio encoding (Optional), and AC3 (2.0/5.1) pass through. Its high integration and cost-effective design make this device widely used in variety of digital distribution systems such as CATV digital head-end, satellite and terrestrial digital TV, etc.
Key features
* 12 HDMI inputs with MPEG2 & MPEG4 AVC/H.264 HD/SD Encoding
* Support 12 channel CC(Closed Caption) input
* MPEG1 Layer II, MPEG2-AAC, MPEG4-AAC, Dolby Digital AC3 (2.0) encoding (Optional), AC3 (2.0/5.1) passthrough
* Support 32 IP input(Data 1 port) over UDP and RTP
* Support 1 MPTS and 12 SPTS IP ( DATA 1 and DATA2) output over UDP, RTP/RTSP
* Support ASI output as mirror of MPTS-Optional
* Support PID remapping/ accurate PCR adjusting/PSI/SI editing and inserting
* Control via web management, and easy updates via web
Principle Chart
Technical specification
|
Input |
12 HDMI inputs 12 CC (closed caption) input, BNC interface 32 IP input over UDP and RTP through DATA 1 port |
|||
|
Video |
Resolution |
Input |
1920*1080_60p, 1920*1080_50p,1920*1080_60i, 1920*1080_50i, 1280*720_60p, 1280*720_50P, 720*480_60i, 720*576_50i |
|
|
Output |
1920*1080_60p,1920*1080_50p,1920*1080_60i, 1920*1080_50i,1440*1080_60i, 1440*1080_50i, 1280*720_60p,1280*720_50P, 720*576_50p, 720*576_50i, 720*576_30p, 720*576_25p, 720*480_60p, 720*480_60i,720*480_30p, 720*480_25p,320*240_60p,320*240_50p, 320*240_30p, 320*240_25p,320*180_60p, 320*180_50p, 320*180_30p, 320*180_25p, 960*540_50i, 704*576_50i,704*480_60i, 640*576_50i 640*480_60i, 544*576_50i,544*480_60i, |
|||
|
Encoding |
MPEG2 & MPEG4 AVC/H.264 |
|||
|
Bit-rate |
0.8~19Mbps for H.264 encoding 1~19Mbps for MPEG-2 encoding |
|||
|
Rate Control |
CBR/VBR |
|||
|
GOP Structure |
GOP B Frame: 0-3, GOP P Frame: 0-6 |
|||
|
Advanced Pretreatment |
De-interlacing, noise reduction |
|||
|
Audio |
Encoding |
MPEG1 Layer II, MPEG2-AAC, MPEG4-AAC, Dolby Digital AC3 (2.0) encoding (Optional), AC3 (2.0/5.1) passthrough |
||
|
Sampling rate |
48KHz |
|||
|
Resolution |
24-bit |
|||
|
Bit-rate |
64Kbps-320kbps each channel |
|||
|
Multiplexing |
Maximum PID Remapping |
180 input per channel |
||
|
Function |
PID remapping ( automatically or manually) |
|||
|
Accurate PCR adjusting |
||||
|
Generate PSI/ SI table automatically |
||||
|
Stream output |
1 MPTS and 12 SPTS IP output over UDP and RTP/RTSP, 2*1000M Base-T Ethernet interface, Data 1 and Data 2 1 ASI output as mirror of MPTS-Optional |
|||
|
System function |
Network management (WEB) |
|||
|
Ethernet software upgrade |
||||
|
Miscellaneous |
Dimension (W×L×H) |
482mm×440mm×44mm |
||
|
Environment |
0~45℃(work)；-20~80℃（Storage） |
|||
|
Power requirements |
AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz |
|||
Technical Comparison
|
|
NDS3544K |
NDS3544KF |
NDS3542L |
|
Chipset |
Vixs |
Fujitsu |
Hisilicon |
|
Video Channel |
2/4/6/8/10/12×HDMI optional |
4/8/12/16/20/24×HDMI optional |
4/8/12/16/20/24×HDMI optional |
|
Video Encode |
MPEG2 & MPEG4 AVC/H.264 |
MPEG-4 AVC/H.264 |
MPEG-4 AVC/H.264 |
|
CC Input |
12 CC input ports |
N/A |
N/A |
|
IP Input |
32 ×IP |
32× IP |
N/A |
|
Video Bit Rate |
0.8~19Mbps for H.264 encoding 1~19Mbps for MPEG-2 encoding |
0.8~19Mbps each channel |
1Mbps~13Mbps each channel (Bit rate is with a high fluctuation, suitable for cable system, not suitable for satellite uplink) |
|
GOP |
GOP B Frame: 0-3, GOP P Frame: 0-6 |
IBBP |
GOP Size=25 (without B Frame) |
|
Resolution |
Up to 1080p-60 (Resolution and frame rate downscale convertion) |
Up to 1080p-60 (1080i/720p to 576p/480p downscale conversion) |
Up to 1080P-30 (1080i/p-60/50 to 1080p-30/25 auto downscale convertion) |
|
Audio Encode |
MPEG1 Layer II, MPEG2-AAC, MPEG4-AAC, Dolby Digital AC3 (2.0) encoding (Optional), AC3 pass through |
MPEG1 Layer II, (MPEG-2 AAC, MPEG-4 AAC Optional) AC3 pass through |
MPEG-1 Layer II |
|
Audio Gain |
Yes |
Yes |
Yes |
|
OSD Function |
N/A |
N/A |
Yes |
|
ASI output |
Option as required |
Option as required |
Option as required |
|
IP output |
SPTS and 1MPTS |
SPTS and 1MPTS |
SPTS and 1MPTS(for 4/8/12 channel) SPTS or 1MPTS(for 16/20/24 channel) |
