Product Overview

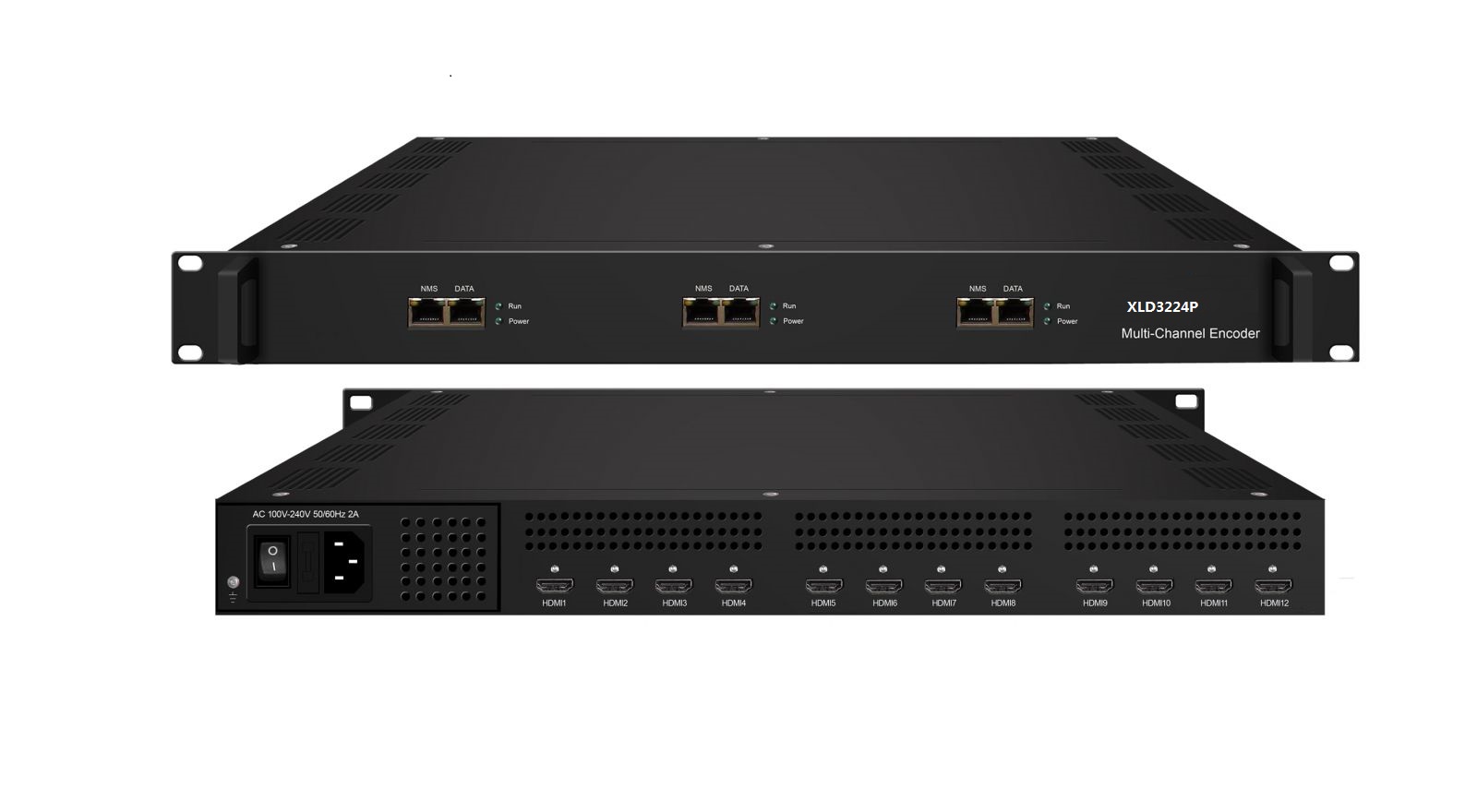

Xielide XLD3224P multi-channel encoder is our newest professional HD encoding and multiplexing device with powerful functionality. It is equipped with 4/8/12 HDMI channels input with MPEG-4 AVC/H.264 video encoding and MPEG1 Layer II audio encoding (MPEG-2 AAC, MPEG-4 AAC Optional), AC3 pass through. It can multiplex the 4/8/12 encoded TS to generate MPTS or SPTS output through DATA port. It adopts the slot structure with one device supporting maximum up to 3 DX224 modules. Each module can work standalone. In conclusion, its high integration and cost-effective design make this device widely used in variety of digital distribution systems such as CATV digital head-end, satellite and terrestrial digital TV, etc.
Key Features
* 4/8/12×HDMI video inputs with MPEG-4 AVC/H.264 Video encoding
* Support MPEG1 Layer II; AC3 passthrough; MPEG-2 AAC, MPEG-4 AAC (Optional);
support audio gain
* Support HD (1080i/720p_50/60) to SD (576p/480p_25/30) resolution downscale conversion
* Support IP (MPTS/SPTS) output over UDP and RTP protocol
* Support Null PKT Filter
* Real-time effective encoding output bit-rate monitoring
* Control via web management, and easy updates via web
* Modular design,1U chassis support up to 3 modules
* Lowest cost per channel, breakthrough price
Principle Chart (per daughter module)
Technical specification
Input |
4/8/12 HDMI Inputs |
||
Video |
Resolution |
1920×1080_60P,1920×1080_50P,1920×1080_60i, 1920×1080_50i,1280×720_60P,1280×720_50P, 720×576_50i, 720×480_60i |
|
Encoding |
MPEG-4 AVC/H.264 |
||
Bit-rate |
0.8~19Mbps each channel |
||
Rate Control |
CBR/VBR |
||
|
GOP Sstructure |
IBBP |
|
Audio |
Encoding |
MPEG1 Layer II, AC3 pass through (MPEG-2 AAC, MPEG-4 AAC Optional) |
|
Sampling rate |
48KHz |
||
Resolution |
24-bit |
||
Audio Gain |
0-400% adjustable |
||
Bit-rate |
64~320Kbps each channel |
||
Stream output |
IP (MPTS or SPTS) output over UDP and RTP, 1000 Base-T Ethernet interface (Multicast/Unicast) |
||
System function |
Network management (WEB) |
||
English language |
|||
Ethernet software upgrade |
|||
Miscellaneous |
Dimension(W×L×H) |
482mm×328mm×44mm |
|
Environment |
0~45℃(work);-20~80℃(Storage) |
||
Power requirements |
AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz |
Order Information(HDMI inputs(4/8/12)as per order)
|
With AAC Encoding |
Without AAC Encoding |
MPTS Output Version |
○ |
○ |
SPTS Output Version |
○ |
○ |
