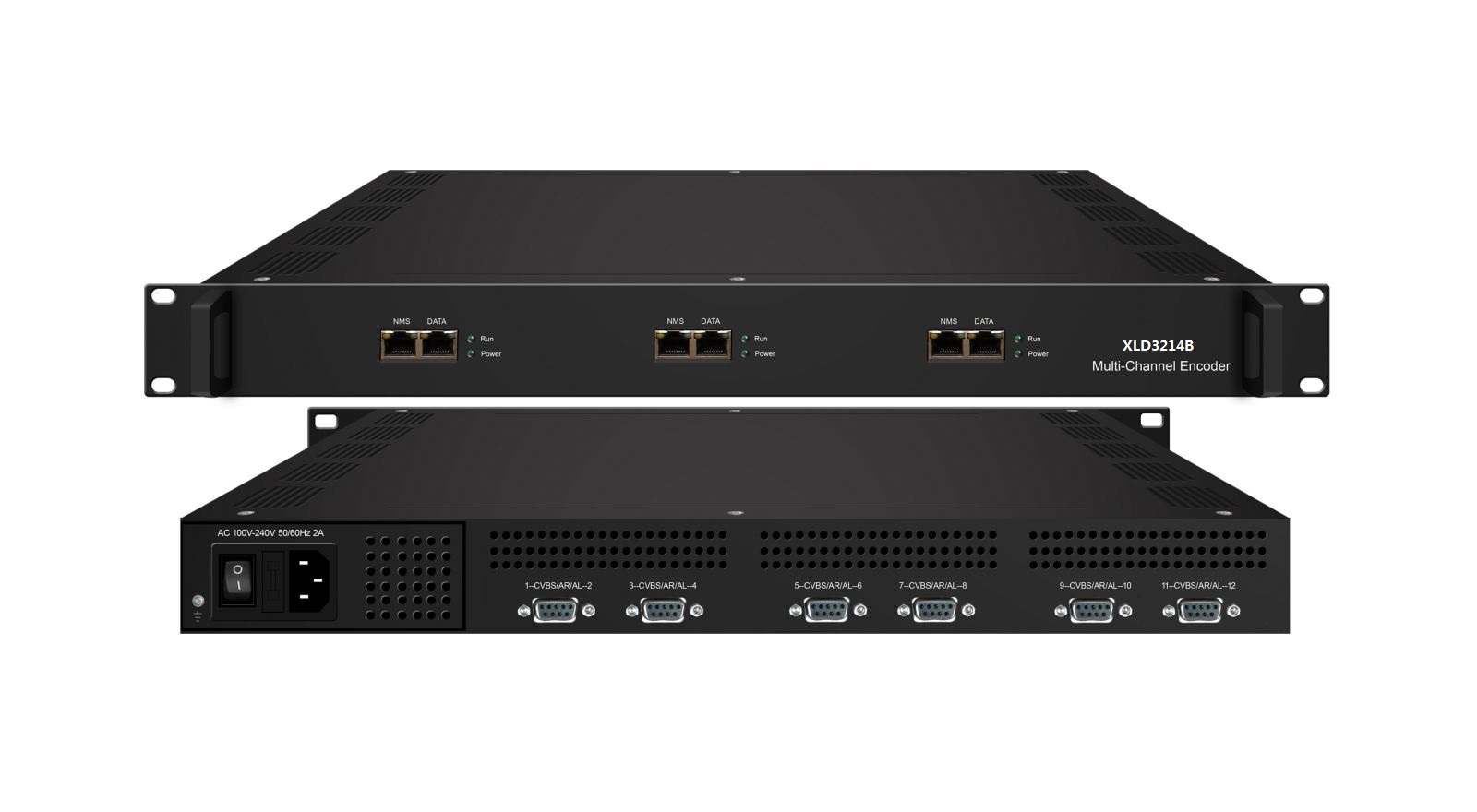

Product Overview
Xielide XLD3214B multi-channel encoder is our newest professional SD audio & video encoding and multiplexing device with powerful functionality. It is equipped with 4/8/12 CVBS channels input supporting MPEG-2, MPEG4 AVC/H.264 High Profile code format & main Profile code format. It can multiplex the 4/8/12 encoded TS to generate a MPTS output through GE output port. It adopts the slot structure with one device supporting maximum 3 NDS3214B modules. Each module can work standalone. In conclusion, its high integration and cost-effective design make this device widely used in variety of digital distribution systems such as CATV digital head-end, satellite and terrestrial digital TV, etc.
Key Features
* Modular design, 1U chassis support up to 3 modules
* 4/8/12×CVBS video inputs with MPEG-2 and MPEG4 AVC/H.264 Video encoding
* Supports PAL and NTSC SD video formats
* Support MPEG1 Audio Layer 2, LC-AAC, HE-AAC V2 and support audio gain adjustment
* Support IP output over UDP and RTP
* support Null PKT Filter
* Real-time effective encoding output bit-rate monitoring
* Support Logo, Caption, QR Code insertion
(Language Supported: 中文, English, اردو, for more languages please consult us…)
* Control via web management, and easy updates via web
Principle Chart (per daughter module)
Technical Specification
|
Input |
4/8/12 CVBS inputs , RCA interface |
|||
|
Video |
Resolution |
Input |
Output |
|
|
720*576 |
720*576/352*288/320*240/320*180/176*144 /160*120/160*90@50Hz |
|||
|
720*480 |
720*480/352*288/320*240/320*180/176*144 /160*120/160*90@60Hz |
|||
|
Encoding |
MPEG-2, MPEG4 AVC/H.264 |
|||
|
Bit-rate |
0.5~5Mbps |
|||
|
Rate Control |
CBR/VBR |
|||
|
GOP Structure |
IPPP, IBPBP, IBBPB, IBBBP |
|||
|
Aspect Ratio |
4:3, 16:9 |
|||
|
Audio |
Encoding |
MPEG1 Audio Layer 2, LC-AAC, HE-AAC |
||
|
Sampling rate |
48KHz |
|||
|
Resolution |
24-bit |
|||
|
Audio Gain |
-20~+12 adjustable |
|||
|
Bit-rate |
48Kb/s~384Kb/s (each channel) |
|||
|
Stream output |
IP (1*MPTS and 4*SPTS) output over UDP and RTP(unicast/multicast), 100M/1000M self-adaption |
|||
|
System function |
Network management (WEB) |
|||
|
Chinese and English language |
||||
|
Ethernet software upgrade |
||||
|
Miscellaneous |
Dimension(W×L×H) |
482mm×328mm×44mm |
||
|
Approx weight |
5kg |
|||
|
Environment |
0~45℃(work)；-20~80℃（Storage） |
|||
|
Power requirements |
AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz |
|||
Order Information
|
|
Version I |
VersionII |
VersionIII |
|
4 CVBS Input |
○ |
|
|
|
8 CVBS Input |
|
○ |
|
|
12 CVBS Input |
|
|
○ |
Technical Comparison
|
|
XLD3228A |
XLD3214B-4/8/12 |
|
Chipset |
Magnum |
Magnum |
|
Input interface |
8× CVBS, BNC |
4/8/12× CVBS Optional, RCA interface (Modular design with each module supporting 4 channels, one chassis supporting up to 3 modules) |
|
8×SD-SDI input with embedded audio |
||
|
Bitrate |
0.25~15Mbps for H.264 encoding 0.5~15Mbps for MPEG-2 encoding |
0.5~5Mbps for both H.264 and MPEG-2 encoding |
|
ASI In&Mux |
1 ASI IN |
N/A |
|
ASI Output |
2*ASI mirrored Output |
N/A |
|
IP Output |
|
|
|
OSD insertion |
N/A |
Support logo/caption/QR Code insertion |
|
Operation |
|
|
|
Control Mode |
One NMS port for all channels |
One NMS port for each module (4 channels) |
