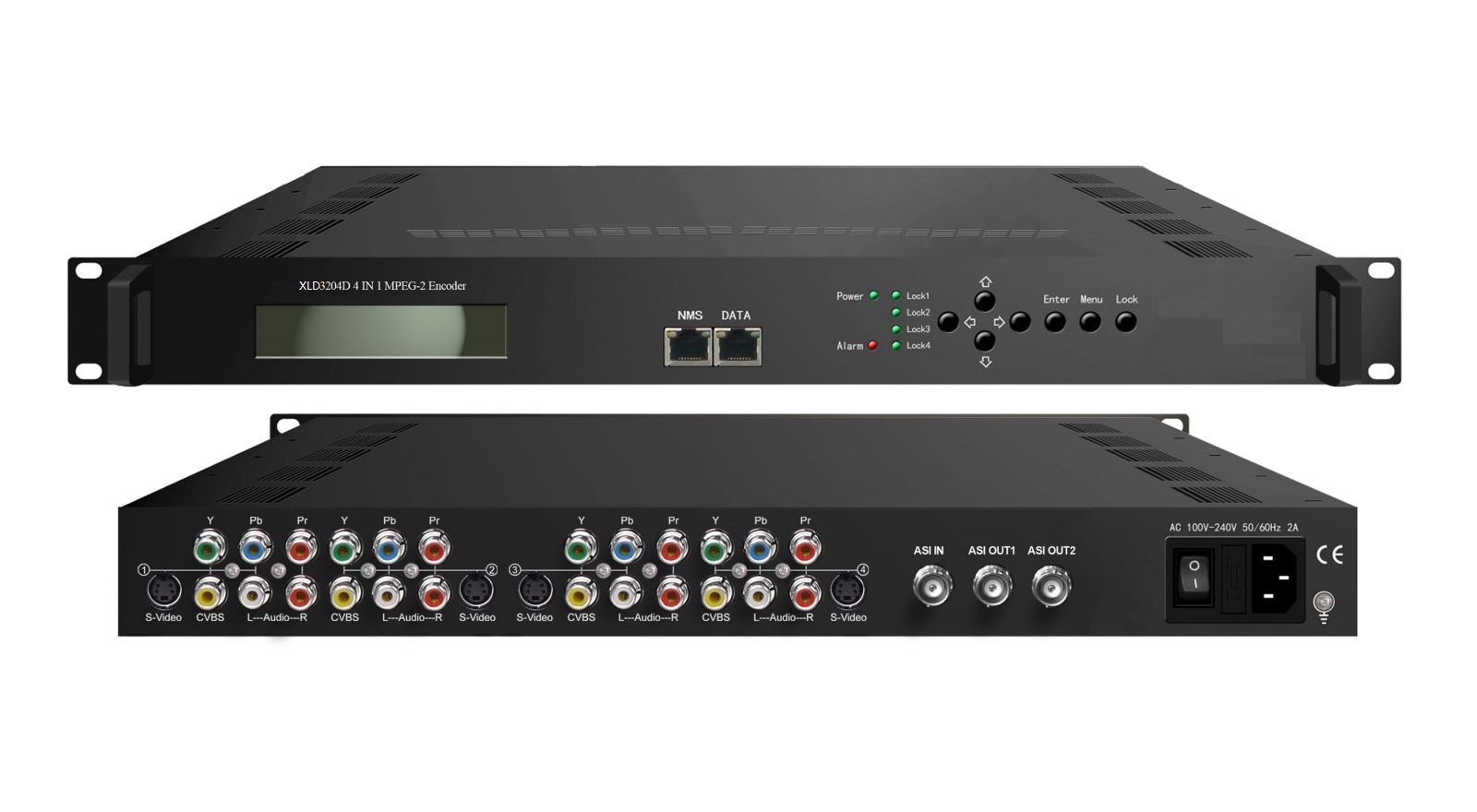

Product Overview
The XLD3204D 4 in 1 MPEG-2 Encoder is a professional SD audio & video encoding and multiplexing device. It has 4 channel CVBS video input interfaces, 4 pairs of unbalanced audio input interfaces, supporting MPEG-2 video encoding and MPEG 1 Layer 2 audio encoding. This device can simultaneously encode 4 channel SD audio & video; moreover, it has an ASI input and can multiplex the input TS with the 4 encoded SPTS to generate a MPTS output. In conclusion, its high integrated and cost effective design makes the device widely used in varieties of digital distribution systems such as cable TV digital head-end, satellite digital TV broadcasting etc.
Key Features
* 4* S-Video/YPbPr/CVBS inputs; 1*ASI input
* MPEG2 video encoding; MPEG1 Layer II audio encoding
* 1 ASI output; 1 IP output
* Supports CBR
* Support PCR accurate adjusting
* Support PID re-mapping and passthrough
* Support PSI/SI editing
* Supports PAL and NTSC SD video formats
* Real-time effective encoding output bit-rate monitoring
* Supports web NMS operation
* Keyboard and LCD operation
Principle Chart
Specifications
|
Input |
4xS-Video/YPbPr/CVBS (RCA) |
||
|
1×ASI input |
|||
|
Encoding |
Video |
Format |
MPEG-2 MP@ML (4:2:0) |
|
Interface |
S-Video/YPbPr/CVBS*4(RCA) |
||
|
Bitrate |
1-19.5Mbps |
||
|
Resolution |
720*480_60i, 720*576_50i |
||
|
Rate mode |
VBR/CBR |
||
|
Chroma |
4:2:0 |
||
|
Aspect |
16:9,4:3, 1:1, 2.21:1 |
||
|
Audio |
Format |
MPEG1 Layer II |
|
|
Interface |
4*Stereo or 8*mono (RCA) |
||
|
Sample rate |
48KHz |
||
|
Bitrate |
64kbps,96kbps,128kbps,192kbps,256kbps,320kbps |
||
|
Stream output |
1*ASI |
||
|
1 IP over UDP/RTP, 10/100Base-T Ethernet interface (unicast / multicast) |
|||
|
System |
Local interface |
LCD + control buttons |
|
|
Remote management |
Web NMS Management |
||
|
Language |
English |
||
|
General |
Dimension (W*D*H) |
482mm×300mm×44.5mm |
|
|
Weight |
3.5kg |
||
|
Temperature |
0~45℃(Operation) ; -20~80℃(Storage) |
||
|
Power |
AC 100V~240V |
||
|
Consumption |
25W |
||
