Product Overview

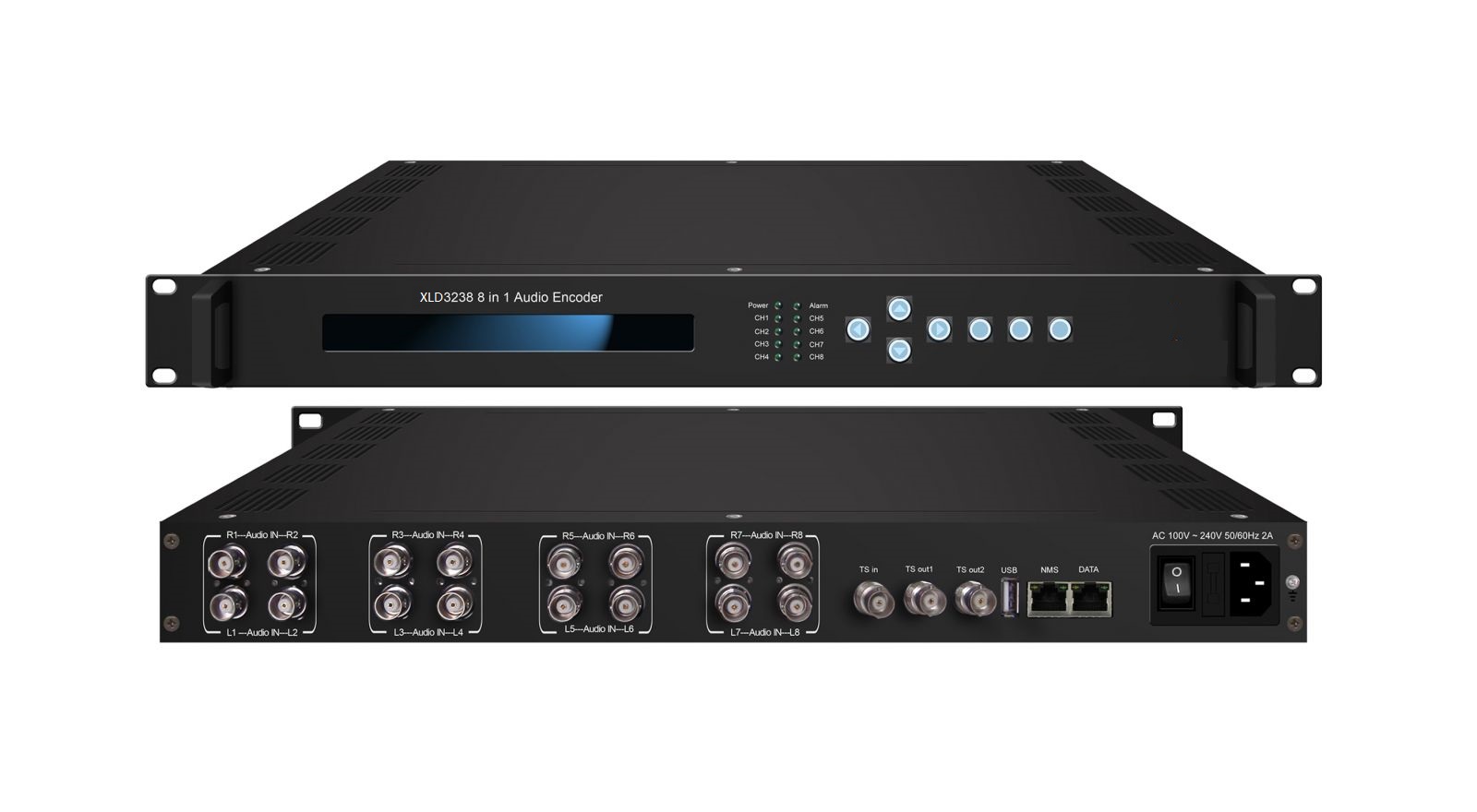

Xielide XLD3238 is a professional audio encoder with powerful functionality. It has 8 independent channels of unbalanced audio input supporting MPEG 1 Layer II compression. Furthermore, it supports audio gain control in a wide range. The encoded audio will finally output through both ASI and DATA ports for further transmission.
Key Features
* 8 pairs of unbalanced stereo / 16 mono audio inputs
* MPEG1 Layer 2 audio encoding
* Support audio gain control
* Support 2 ASI mirrored output
* Supports MPTS IP output over UDP
* LCD / keyboard and web-based NMS operation
* Update device through NMS port
Principle Chart
Specifications
|
Audio Encode |
Interface |
8 pairs of unbalanced stereo / 16 mono audio inputs, BNC interface |
|
Encoding Format |
MPEG1 Layer 2 |
|
|
Audio Gain |
-20 ~ +6dB |
|
|
Sampling Rate |
48KHz |
|
|
Bit-rate |
32/48/56/64/80/96/112/128/160/192/224/256/320/384Kb/s (each channel) |
|
|
Stream output |
2*ASI output, BNC interface |
|
|
MPTS over UDP, 1000M Base-T Ethernet interface (unicast/multicast) |
||
|
System |
LCD/keyboard operating, web-based NMS manage |
|
|
Language: Chinese |
||
|
Ethernet software & hardware upgrade |
||
|
Miscellaneous |
Dimension |
482mm×455mm×44mm (W× L× H) |
|
Approx weight |
4kg |
|
|
Temperature |
0~45℃ (work), -20~80℃（Storage） |
|
|
Power |
AC 100V-220V±10%, 50/60Hz |
|
|
Consumption |
25W |
|
