Outline

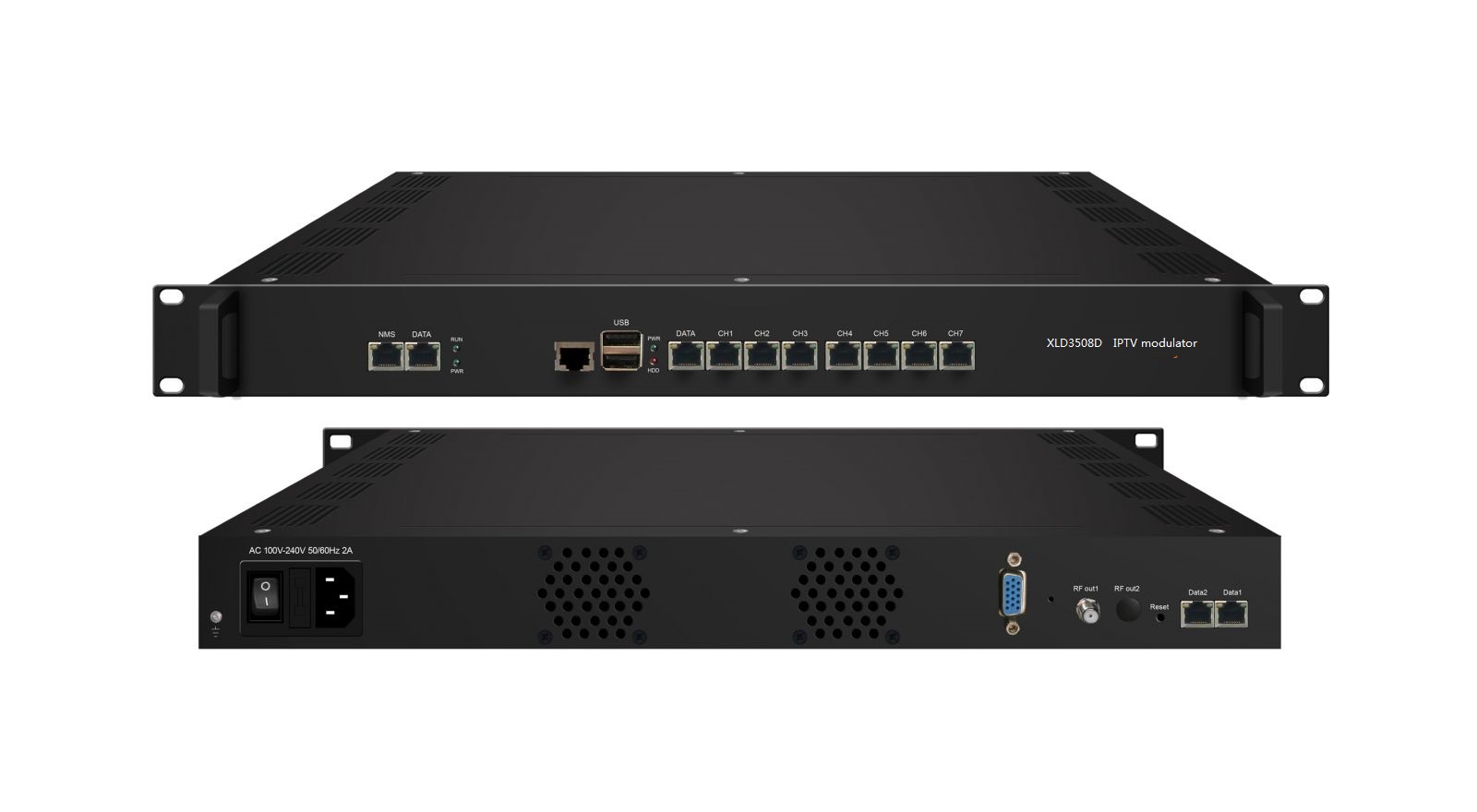

Xielide XLD3508D IPTV modulator is a high integration device which is combined with two independent modules. One is IPTV gateway module which is used for the protocol conversion scenarios and streaming media distribution scenarios and it can convert the network IP stream over HTTP, UDP, RTP, RTSP, HLS and TS file into HTTP, UDP, HLS and RTMP protocol. The other is modulator module which supports IP in and IP out and DVB-C/T/ISDBT/DTMB RF out, and it can receive gateway source directly. So XLD3508D achieves IP (HTTP, UDP, RTP, RTSP and HLS) in to RF out in one box.In conclusion, its high performance makes it widely used in CATV digital head-end, business application, IPTV/OTT system, etc. and it provides various solutions for operators to re-distribute programs.
Key Features
* 1 IPTV gateway module +1 IP modulator module, and they can work independently
* IP in (HTTP, UDP, RTP, RTSP and HLS) to RF out in one box
* Gateway Module:
8 Data ports:
First Data port: IP out over HTTP, UDP (SPTS), HLS and RTMP
Data CH1-7 ports: IP in over HTTP, UDP (SPTS), RTP (SPTS), RTSP and HLS
IP out over HTTP, HLS and RTMP (Unicast)
Transmitting IP to modulator module through Data port
Support adding scrolling caption, welcome words, boot picture and boot video (this function is only applicable to IP out application and the STB/Android TV must be installed Dexin IPTV APK)
Support downloading Dexin IPTV APK directly from this module
* Modulator Module:
IP input over UDP/RTP through Data/Data 1/2 port
IP output over UDP/RTP/RTSP through Data 1/2 port
Support 16 DVB-C/8 DVB-T/6 ISDBT/8 DTMB RF out
Receiving IP from gateway module directly through Data port
* Support IP anti- jitter function
* Control the 2 modules separately via web-based NMS management
* Support TS files uploading through Web management

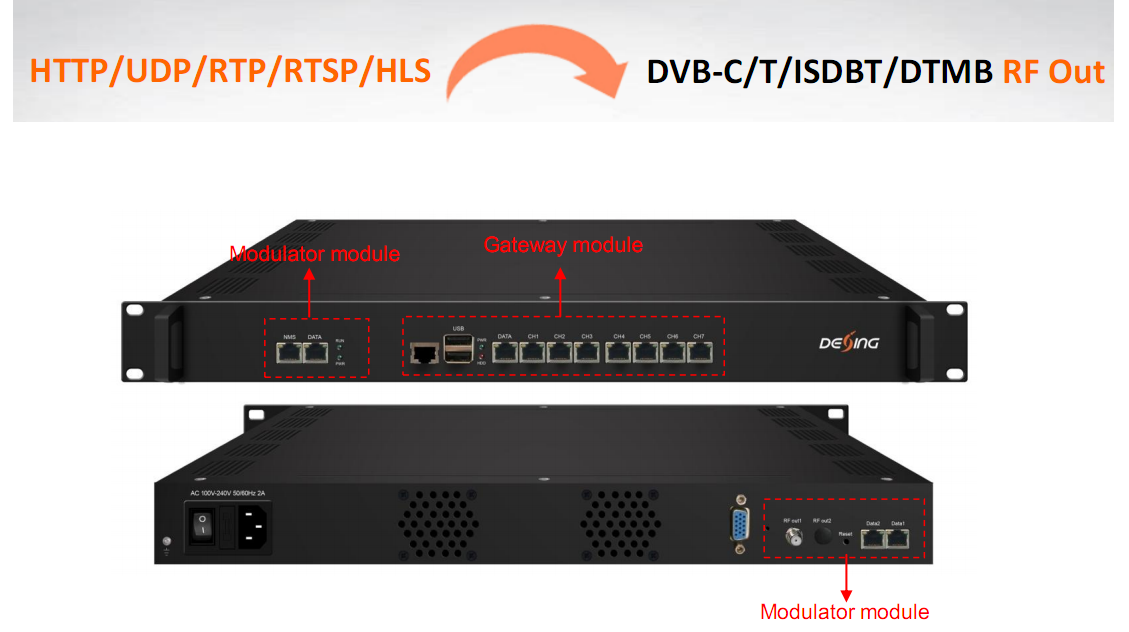

IP Protocol Conversion
Principle Chart
Specifications
IPTV gateway module
|
Input |
IP input thru CH 1-7(1000M) over HTTP, UDP(SPTS), RTP(SPTS), RTSP (over UDP, payload: mpeg TS) and HLS |
|
TS files uploading through Web management |
|
|
IP output |
IP out thru DATA port (1000M) over HTTP (Unicast), UDP(SPTS, Multicast) HLS and RTMP (Program source should be H.264 and AAC encoding) IP out thru CH 1-7(1000M) over HTTP/ HLS/RTMP (Unicast) |
|
System |
Memory: 4G |
|
Solid-State Disk(SSD): 16G |
|
|
Channel switching time with DEXIN’ STB: HTTP (1-3s), HLS (0.4-0.7s) |
|
|
Support adding scrolling caption, welcome words, boot picture and boot video (this function is only applicable to IP out application and the STB/Android TV must be installed Dexin IPTV APK) |
|
|
Support downloading Dexin IPTV APK directly from this module |
|
|
Play programs with APK downloaded android STB and TV, maximum 150 terminals |
|
|
Support about 80 HD/SD programs (Bitrate: 2Mbps) When HTTP/RTP/RTSP/HLS is converted into UDP (Multicast), the actual application shall prevail, and suggest maximum 80% CPU utilization |
|
|
web-based NMS management thru module’s DATA port |
Modulator module (Taking Dexin’s DX316/DX308T/DX306I/DX308M modulator module as examples)
|
Input |
DX316 (DVB-C) |
512 IP (MPTS/SPTS) input over UDP/RTP, 2 100/1000M Ethernet Port |
||||
|
DX308T (DVB-T) |
256 IP (MPTS/SPTS) input over UDP/RTP, 2 100/1000M Ethernet Port |
|||||
|
DX306I (ISDBT) |
192 IP (MPTS/SPTS) input over UDP/RTP, 2 100/1000M Ethernet Port |
|||||
|
DX308M (DTMB) |
256 IP (MPTS/SPTS) input over UDP/RTP, 2 100/1000M Ethernet Port |
|||||
|
Multiplexing |
|
DVB-C |
DVB-T/DTMB |
ISDBT |
||
|
Input Channel |
512 |
256 |
192 |
|||
|
Output Channel |
16 |
8 |
6 |
|||
|
Max PIDs |
180 per channel |
|||||
|
Functions |
PID remapping(auto/manually optional) |
|||||
|
PCR accurate adjusting |
||||||
|
PSI/SI table automatically generating |
||||||
|
Scrambling Parameters (for DVB-C/DTMB) |
Max simulscrypt CA |
4 |
||||
|
Scramble Standard |
ETR289, ETSI 101 197, ETSI 103 197 |
|||||
|
Connection |
Local/remote connection |
|||||
|
Modulation Parameters |
DVB-C |
|
J.83A |
J.83B |
||
|
Constellation |
16/32/64/128/256QAM |
64QAM/ 256QAM |
||||
|
Bandwidth |
8M |
6M |
||||
|
Standard |
EN300 429/ITU-T J.83A/B(DVB-C) |
|||||
|
Symbol rate |
5.0~7.0Msps, 1ksps stepping |
|||||
|
QAM channel |
16 non-adjacent carrier outputs within 192M bandwidth |
|||||
|
RF frequency |
50~960MHz, 1KHz step |
|||||
|
RF output level |
-20~+10dBm, 0.1dB step |
|||||
|
MER |
≥ 40dB |
|||||
|
FEC |
RS (204, 188) |
|||||
|
DVB-T |
Standard |
ETSI EN300 744 |
||||
|
Constellation |
QPSK/16QAM/64QAM |
|||||
|
Bandwidth |
6/7/8 MHz |
|||||
|
Trans mode |
2K/4K/8K |
|||||
|
FEC |
1/2, 2/3, 3/4, 5/6, 7/8 |
|||||
|
MER |
≥ 40dB |
|||||
|
RF frequency |
50~960MHz, 1kHz stepping |
|||||
|
RF output Level |
-20~+10dBm, 0.5dB stepping |
|||||
|
RF out channel |
8 non-adjacent carrier outputs within 192M bandwidth |
|||||
|
ISDBT |
Standard |
ARIB STD-B31 |
||||
|
Bandwidth |
6M |
|||||
|
Constellation |
QPSK, 16QAM, 64QAM |
|||||
|
Guard Interval |
1/32, 1/16, 1/8, 1/4 |
|||||
|
Transmission Mode |
2K, 4K, 8K |
|||||
|
Code rate |
1/2, 2/3, 3/4, 5/6, 7/8 |
|||||
|
MER |
≥ 40dB |
|||||
|
RF frequency |
50~960MHz, 1KHz step |
|||||
|
RF output level |
-20dBm~+10dBm, 0.1dB stepping |
|||||
|
RF out |
6 non-adjacent carrier outputs within 192M bandwidth |
|||||
|
DTMB |
Standard |
GB20600-2006 |
||||
|
Constellation |
4/16/32/64QAM |
|||||
|
MER |
≥40dB |
|||||
|
RF frequency |
50~960MHz, 1kHz step |
|||||
|
RF output level |
-20dBm~+10dBm, 0.1dB stepping |
|||||
|
RF out |
8 non-adjacent carrier outputs within 192M bandwidth |
|||||
|
TS output |
16 (DVB-C)/ 8(DVB-T/DTMB)/ 6(ISDBT) IP output over UDP/RTP/RTSP, unicast/multicast, 2*100/1000M Ethernet Ports (Data 1/2) |
|||||
|
System |
web-based NMS management thru module’s NMS port |
|||||
|
General |
Demission |
482mm×324mm×44mm (WxLxH) |
|
Temperature |
0~45℃(operation), -20~80℃(storage) |
|
|
Power Supply |
AC 100V±10%, 50/60Hz or AC 220V±10%, 50/60Hz |
