Outline

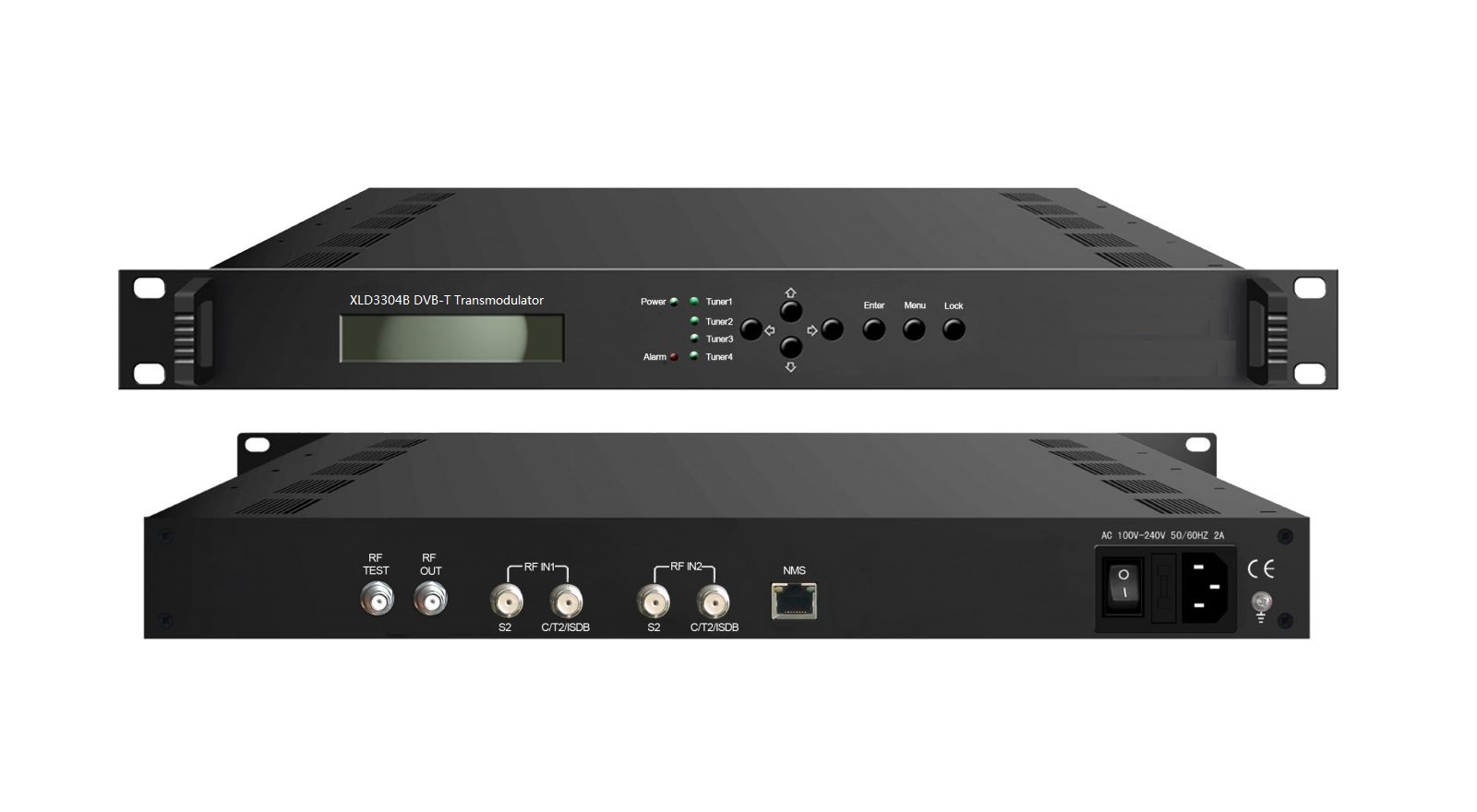

XLD3304B is a cost-effective DVB-T Transmodulator developed according to DVB-T (EN300744) standard. It supports 2 Tuner input selecting from 4 Tuner ports. After demodulating, re-multiplexing, then it gives 1 or 2 DVB-T RF out. BISS function is also embedded to descramble multiplexed programs. With the features of low cost and high performance, it provides various solutions for operators to re-distribute contents.
Key Features
* Demodulating + re-multiplexing +BISS descrambling +modulating in one box
* Support 2 Tuner input (2*DVB-S2 or 2*DVB-C/T/(T)/ISDB-T or 1*DVB-S2+1* DVB-C/T/(T)/ISDB-T)
* Support BISS descrambling (up to 60Mbps)
* Support 1 DVB-T RF out--- OptionⅠ
2 DVB-T RF out---OptionⅡ
* Support PID pass-through
* LCD / keyboard and web-based NMS operations and upgrade via web
Working Principle
Specifications
|
Input |
2 Tuner input (2*DVB-S2 or 2*DVB-C/T/(T)/ISDB-T or 1*DVB-S2+1* DVB-C/T/(T)/ISDB-T) |
|||||
|
Tuner Section |
DVB-C |
Frequency In |
60 MHz~890 MHz |
|||
|
Standard |
J.83A (DVB-C), J.83C |
J.83B |
||||
|
Constellation |
16/32/64/128/256 QAM |
64/256 QAM |
||||
|
DVB-T/(T) |
Frequency In |
60 MHz~890 MHz |
||||
|
Bandwidth |
5/6/7/8 M bandwidth |
|||||
|
DVB-S/S2 |
Input Frequency |
950-2150MHz |
||||
|
Symbol rate |
DVB-S: QPSK 2~45Mbauds; DVB-S2:QPSK1~45Mbauds, 8PSK 2~30Mbauds |
|||||
|
Code rate |
1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 |
|||||
|
Constellation |
QPSK, 8PSK |
|||||
|
ISDB-T |
Input Frequency |
60 MHz~890 MHz |
||||
|
Multiplexing |
Maximum PID Remapping |
128 per input channel |
||||
|
Function |
PCR accurate adjusting |
|||||
|
Generate PSI/SI table automatically |
||||||
|
PID Remapping |
||||||
|
BISS Descrambling |
Mode 1, Mode E (Up to 60Mbps) (descramble individual program) |
|||||
|
Modulation |
DVB-T |
Standard |
EN300744 |
|||
|
Bandwidth |
6M, 7M, 8M |
|||||
|
Constellation |
QPSK, 16QAM, 64QAM |
|||||
|
Guard Interval |
1/4, 1/8, 1/16, 1/32 |
|||||
|
FFT mode |
2K,4K, 8K |
|||||
|
MER |
≥42 dB |
|||||
|
Code Rate |
1/2, 2/3, 3/4, 5/6, 7/8 |
|||||
|
RF out |
F typed, 75Ω impedance |
|||||
|
1 RF out --- OptionⅠ 2 RF out --- OptionⅡ |
||||||
|
RF Range |
30~999.999MHz, 1KHz step |
|||||
|
Output Level |
-20~-5 dBm, 0.1db step |
|||||
|
Output Bitrate |
Max 31.668Mbps per channel |
|||||
|
System |
LCD/keyboard and web management |
|||||
|
Language: English |
||||||
|
upgrade via Web |
||||||
|
General |
Dimension (W×L×H) |
482mm×410mm×44mm |
||||
|
Approx weight |
4 kg |
|||||
|
Environment |
0~45℃(work)；-20~80℃（Storage） |
|||||
|
Power requirements |
100~240VAC, 50/60Hz |
|||||
