Outline

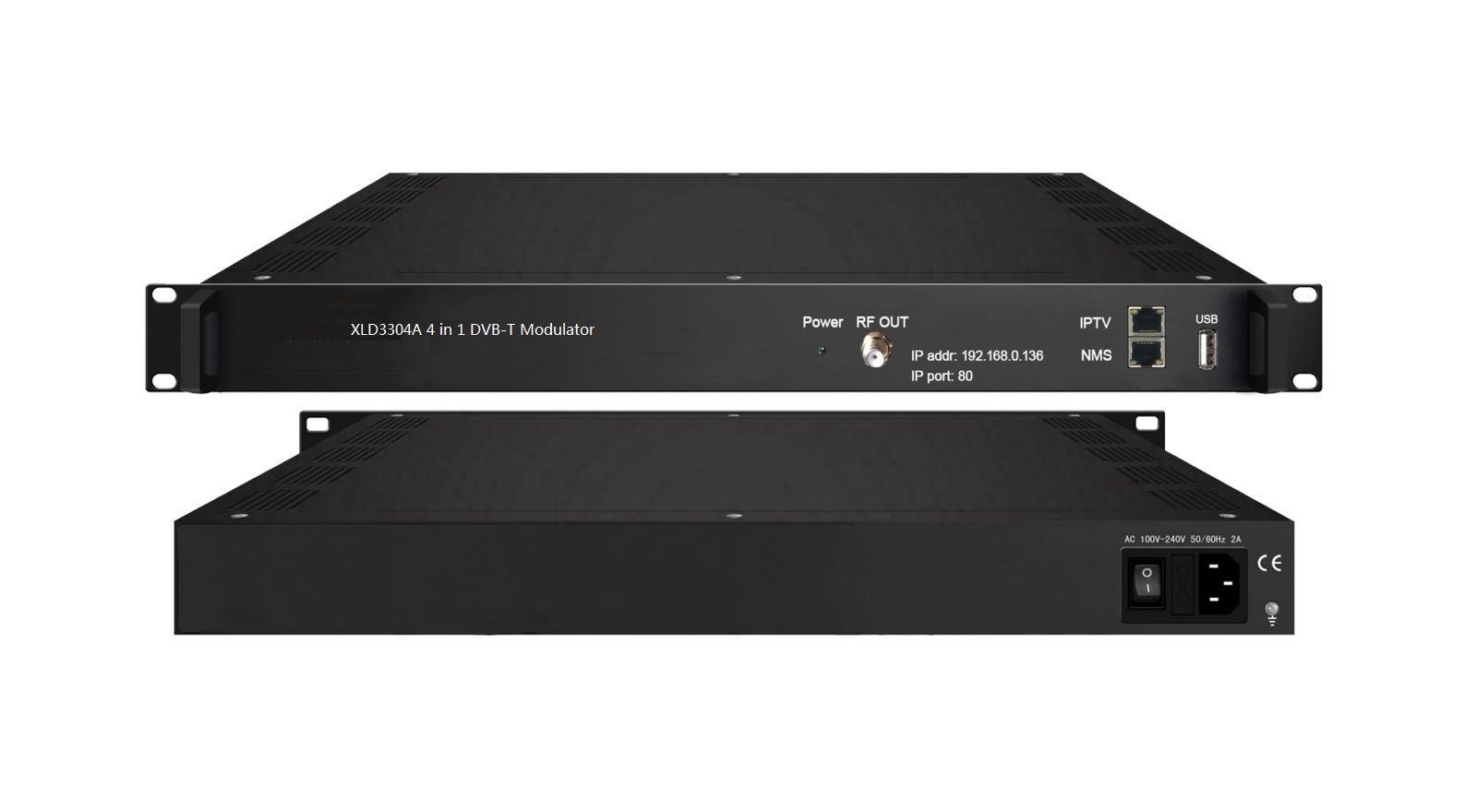

XLD3304A is a cost-effective DVB-T modulator developed according to DVB-T (EN300744) standard. It has 128 IP inputs. After multiplexing and modulating process, it gives 4 DVB-T non-adjacent carriers (50MHz~960MHz) output through the RF output interface. To meet customers’ various requirements, this device is also equipped with data port for 4 MPTS output over UDP and RTP. This is very adaptable to newly generation DTV broadcasting system.
Features
* Support maximum 128 IP input(MPTS/SPTS) over UDP and RTP protocol
* Support 4 groups multiplexing +4 groups DVB-T modulating
* 4*DVB-T non-adjacent carrier output
* 4 IP (MPTS) output over UDP and RTP protocol
* Integrated multiplexing and modulating functions
* Support accurate PCR adjusting/PID Remapping/ PSI/SI rebuilding and editing
* Web-based NMS management
Principle Chart
Specifications
|
Input |
128 IP(SPTS/MPTS) input over UDP and RTP, RJ45, 1000M/100M, Unicast/Multicast |
||
|
Multiplexing |
Maximum PID Remapping |
256 per input channel |
|
|
Function |
PID Remapping |
||
|
Accurate PCR adjusting |
|||
|
Generate PSI/SI table automatically |
|||
|
Modulation |
DVB-T |
Standard |
EN300744 |
|
FFT mode |
2K |
||
|
Bandwidth |
6M, 7M, 8M |
||
|
Constellation |
QPSK, 16QAM, 64QAM |
||
|
Guard Interval |
1/4, 1/8, 1/16, 1/32 |
||
|
FEC |
1/2, 2/3, 3/4, 5/6, 7/8 |
||
|
MER |
≥42 dB |
||
|
RF frequency |
50~960MHz, 1KHz step |
||
|
RF out |
1 RF port |
||
|
4*DVB-T non-adjacent carriers combined output , 40M total bandwidth limitation |
|||
|
RF output level |
-28~ -3 dBm, 0.1db step |
||
|
Stream Out |
4*MPTS over UDP and RTP out (RJ45, 1000M/100M Unicast/Multicast) |
||
|
System |
LCD/Keyboard operating and web-based NMS support |
||
|
Ethernet software upgrading |
|||
|
General |
Dimension (W*D*H) |
482mm×300mm×44.5mm |
|
|
Temperature |
0~45℃(Operation) ; -20~80℃(Storage) |
||
|
Power supply |
AC 100V±1050/60Hz; AC 220V±10%, 50/60HZ |
||
