General Description

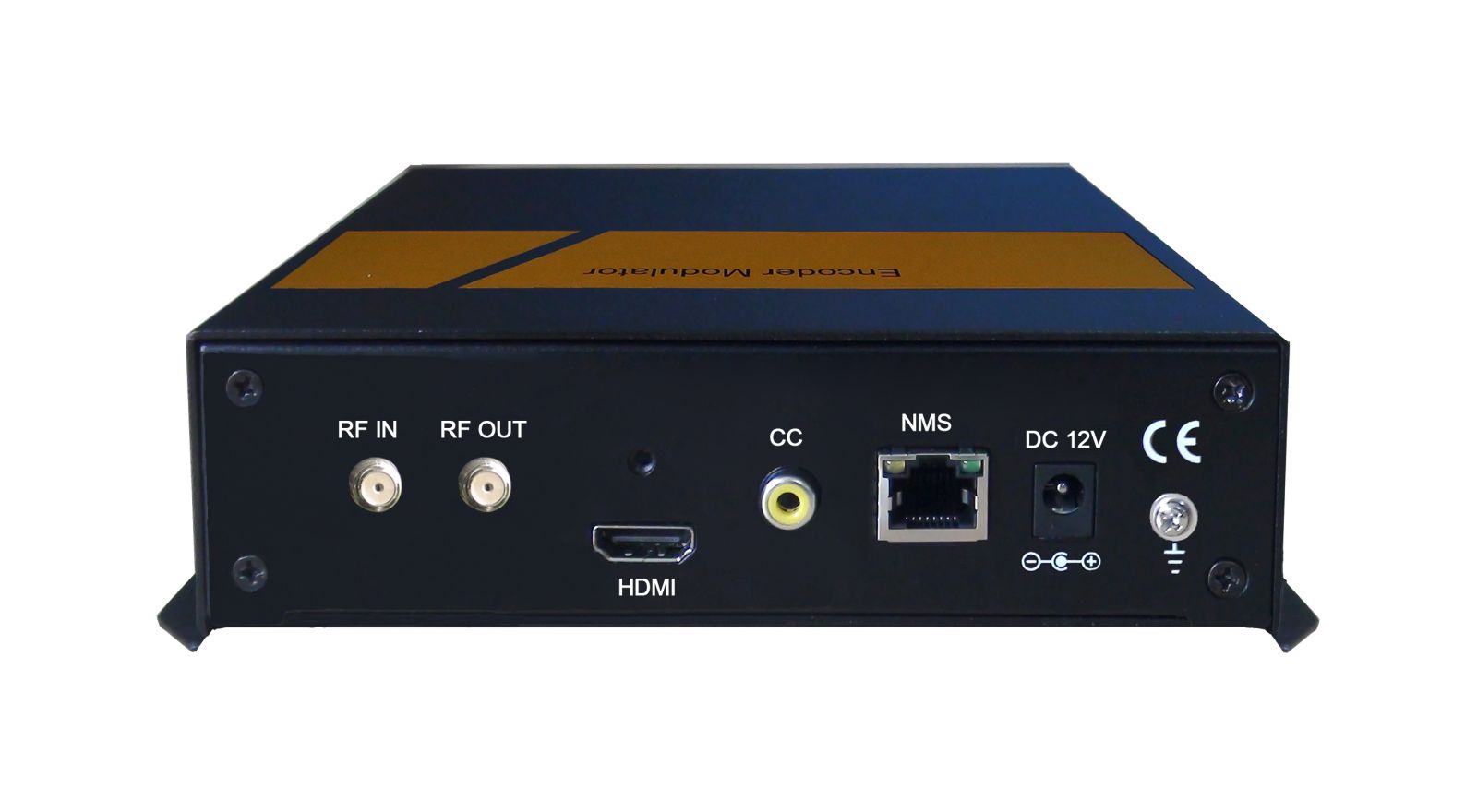

This new XLD3522C HD encoder modulator is designed based on consumer electronics which allows audio/video signal input in TV distributions with applications in home entertainment, surveillance control, hotel Digital Signage, shops etc.
It is an all-in-one device integrating MPEG2 encoding and modulating to convert audio/video signals into DVB-C/T/ATSC/ISDB-T RF out.
The signals source could be from STB, satellite receiver, closed-circuit television cameras and antenna etc. Its output signal is to be received by TVs or STBs etc.
System Connection
Technical Specifications
|
HDMI Encoding Section |
|||||||
|
Video |
Encoding |
MPEG2 |
|||||
|
Interface |
HDMI*1 |
||||||
|
Input |
Output |
||||||
|
480@30p |
|||||||
|
576@50i |
576@25p |
||||||
|
720@25/30p |
|||||||
|
1080@50i |
1080@25p |
||||||
|
1080@30p |
|||||||
|
1080@50p |
1080@25p |
||||||
|
1080@30p |
|||||||
|
Aspect Ratio |
16:9 |
||||||
|
Bit rate |
2.000~20.000 Mbps |
||||||
|
Audio |
Encoding |
MPEGI layer 2, AAC, AC3 |
|||||
|
Sample rate 48KHz |
|||||||
|
Bit rate |
MPEGI layer 2（128kbps） |
||||||
|
AAC（VBR） |
|||||||
|
AC3（128kbps） |
|||||||
|
DVB-C Modulator Section |
|||||||
|
Standard |
J.83A (DVB-C), J.83B |
||||||
|
MER |
≥35dB |
||||||
|
RF frequency |
100-1000MHz, 1KHz step |
||||||
|
RF output level |
-48~ -10dBm, 1dB step |
||||||
|
Symbol rate |
3.000~7.000Msps adjustable |
||||||
|
|
J.83A |
J.83B |
|||||
|
Constellation |
16/32/64/128/ 256 QAM |
64/ 256 QAM |
|||||
|
Bandwidth |
8M |
6M |
|||||
|
DVB-T Modulator Section |
|||||||
|
Standard |
DVB-T COFDM |
||||||
|
Bandwidth |
2M, 3M, 4M, 5M, 6M, 7M, 8M |
||||||
|
Constellation |
QPSK, 16QAM, 64QAM |
||||||
|
Code rate |
1/2, 2/3, 3/4, 5/6, 7/8 |
||||||
|
Guard Interval |
1/32, 1/16, 1/8, 1/4 |
||||||
|
Transmission Mode: |
2K, 8K |
||||||
|
MER |
≥35dB |
||||||
|
RF frequency |
100-1000MHz, 1KHz step |
||||||
|
RF output level |
-48~ -10dBm, 1dB step |
||||||
|
ISDB Modulator Section |
|||||||
|
Standard |
ARIB STD-B31 |
||||||
|
Constellation |
QPSK, 16QAM, 64QAM |
||||||
|
Guard Interval |
1/32, 1/16, 1/8, 1/4 |
||||||
|
Transmission Mode |
2K, 4K, 8K |
||||||
|
Code rate |
1/2, 2/3, 3/4, 5/6, 7/8 |
||||||
|
RF frequency |
100~1000MHz, 1KHz step |
||||||
|
RF output level |
-48~ -10dBm, 1dB step |
||||||
|
ATSC Modulator Section |
|||||||
|
Standard |
ATSC A/53 |
||||||
|
Constellation |
8 VSB |
||||||
|
MER |
≥35dB |
||||||
|
RF frequency |
100~1000MHz, 1KHz step |
||||||
|
RF output level |
-48~ -10dBm, 1dB step |
||||||
|
System |
|||||||
|
Management |
NMS |
||||||
|
Language |
English |
||||||
|
Upgrade |
ST Link utility |
||||||
|
General |
|||||||
|
Power supply |
DC 12V |
||||||
|
Dimensions |
180*110*39.5mm |
||||||
|
Weight |
< 1kg |
||||||
