Product Overview

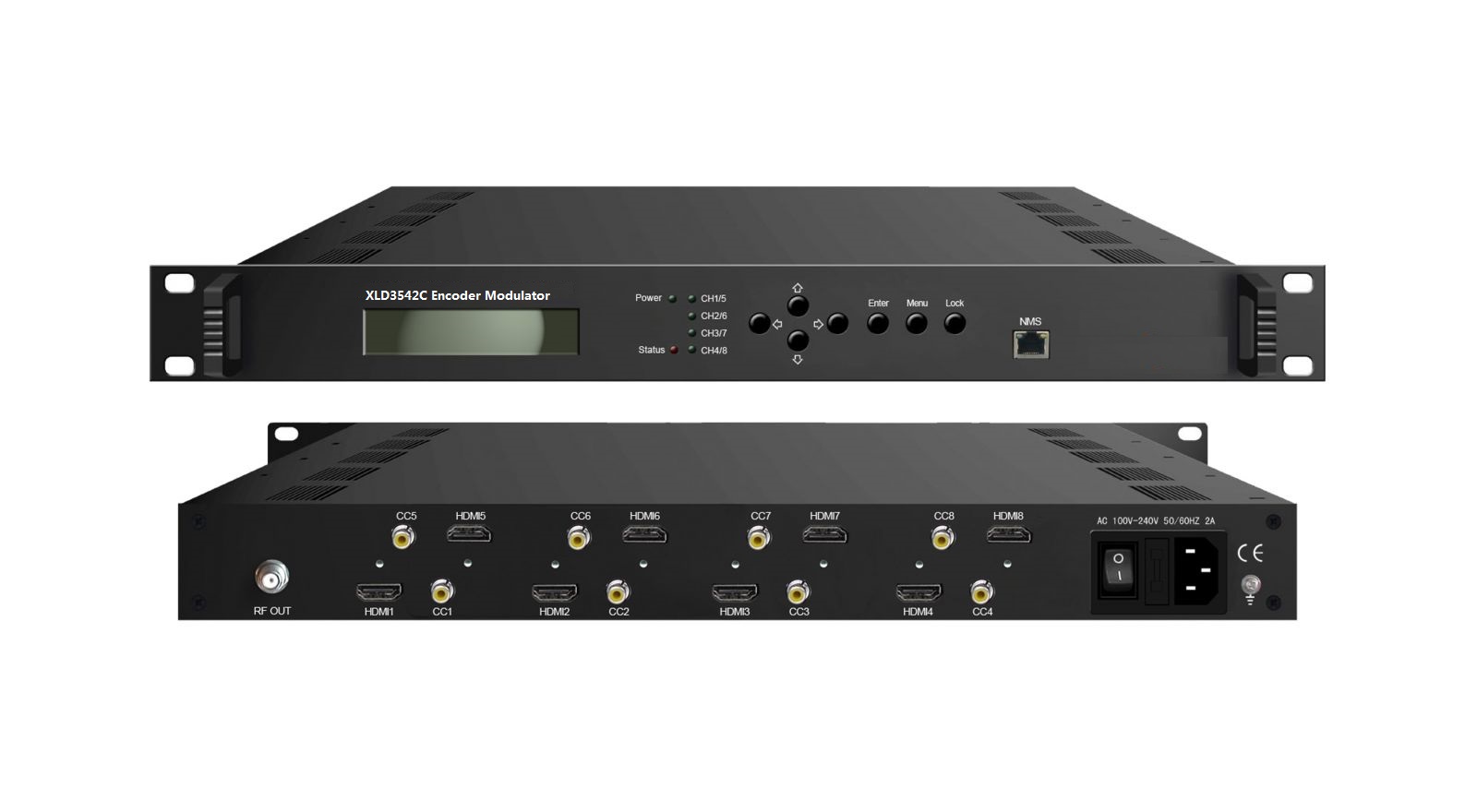

XLD3524C encoder modulator is Xielide’s all-in-one device integrating MPEG2 encoding and modulating to convert audio/video signals into DVB-C/T/ATSC/ISDB-T/DTMB RF out. It supports 1/4/8 HDMI inputs, and its pay-as-you-grow modular design and flexible configuration are making it extremely scalable, and very reliable with high performance. The signals source could be from STB, satellite receiver, closed-circuit television cameras and antenna etc. Its output signal is to be received by TVs or STBs etc.
Key Features
* Support 1/4/8 HDMI channels input
* Support MPEG2 video encoding
* Support 1080p/i,720p, 576i , 480i video resolution
* Support low latency(50~1000ms)
* Support MPEGI layer 2, MPEG-2 AAC, and DD AC3 audio encoding
* Support CC (Closed Caption), EIA 608
* Support LCN (Logical Cluster Number)
* DVB-C/T/ATSC/ISDB-T/DTMB RF out in one device, Modulation dynamic switching
* Each channel supports 1 DVB-C/T/ATSC/ISDB-T/DTMB output option
* Control via web-based NMS, and easy updates via web
Inner Principle Chart
Specifications
|
HDMI Encoding Section |
|||
|
Input |
Interface |
HDMI*1/4/8 |
|
|
Video |
Encoding |
MPEG2 |
|
|
Input |
Output |
||
|
480@30p |
|||
|
576@50i |
576@25p |
||
|
720@25/30p |
|||
|
1080@50i |
1080@25p |
||
|
1080@30p |
|||
|
1080@50p |
1080@25p |
||
|
1080@30p |
|||
|
Bit-rate |
2.000~20.000 Mbps |
||
|
GOP |
1~60 |
||
|
Rate Control |
VBR |
||
|
Aspect Ratio |
16 :9 |
||
|
Audio |
Encoding |
MPEGI layer 2,MPEG-2 AAC, AC3 |
|
|
Sample rate |
48KHz |
||
|
Bit rate |
MPEGI layer 2 (128kbps) |
||
|
MPEG-2 AAC (VBR) |
|||
|
AC3 (128kbps) |
|||
|
DVB-C Modulator Section |
|||
|
Standard |
J.83A (DVB-C), J.83B |
||
|
MER |
≥35dB |
||
|
RF frequency |
100-1000MHz, 1KHz step |
||
|
RF output level |
-48~ -10dBm, 1dB step |
||
|
Symbol rate |
3.000~7.000Msps adjustable |
||
|
|
J.83A |
J.83B |
|
|
Constellation |
16/32/64/128/256QAM |
64/ 256QAM |
|
|
Bandwidth |
8M |
6M |
|
|
DVB-T Modulator Section |
|||
|
Standard |
DVB-T COFDM |
||
|
Bandwidth |
2M, 3M, 4M, 5M, 6M, 7M, 8M |
||
|
Constellation |
QPSK, 16QAM, 64QAM |
||
|
Code rate |
1/2, 2/3, 3/4, 5/6, 7/8 |
||
|
Guard Interval |
1/32, 1/16, 1/8, 1/4 |
||
|
Transmission Mode |
2K, 8K |
||
|
MER |
≥35dB |
||
|
RF frequency |
100-1000MHz, 1KHz step |
||
|
RF output level |
-48~ -10dBm, 1dB step |
||
|
ISDB Modulator Section |
|||
|
Standard |
ARIB STD-B31 |
||
|
Constellation |
QPSK, 16QAM, 64QAM |
||
|
Guard Interval |
1/32, 1/16, 1/8, 1/4 |
||
|
Transmission Mode |
2K, 4K, 8K |
||
|
Code rate |
1/2, 2/3, 3/4, 5/6, 7/8 |
||
|
RF frequency |
100~1000MHz, 1KHz step |
||
|
RF output level |
-48~ -10dBm, 1dB step |
||
|
ATSC Modulator Section |
|||
|
Standard |
ATSC A/53 |
||
|
Constellation |
8 VSB |
||
|
RF output level |
-48~ -10dBm, 1dB step |
||
|
MER |
≥35dB |
||
|
RF frequency |
100~1000MHz, 1KHz step |
||
|
DTMB Modulator Section |
|||
|
RF frequency |
100-1000MHz, 1KHz step |
||
|
RF output level |
-48~ -10dBm, 1dB step |
||
|
Transmission Mode |
S-0.8-4QAM-595, S-0.8-16QAM-595, M-0.4-16QAM-945V, M-0.6-16QAM-945V, M-0.6-64QAM-420V, M-0.6-64QAM-945V, M-0.8-16QAM-420V, M-0.8-16QAM-945V, M-0.8-64QAM-420V, |
||
|
System |
|||
|
Management |
Web |
||
|
Language |
English |
||
|
Upgrade |
Web update |
||
|
General |
|||
|
Power supply |
AC 100V±10%, 50/60Hz or AC 220V±10%, 50/60Hz |
||
|
Dimensions |
482*328*44.5mm |
||
|
Temperature |
0~45℃(operation), -20~80℃(storage) |
||
Technical Comparison
|
|
NDS3542A |
NDS3542I |
NDS3524C |
|
Chipset |
Vixs |
Hisilicon |
VATek |
|
Stream Input |
1*ASI input for re-mux |
1 DVB-C tuner |
N/A |
|
IP Input |
N/A |
128*IP |
N/A |
|
Video Channel |
4* HDMI/SDI input optional |
4/8/12*HDMI input optional |
1/4/8*HDMI input optional |
|
Video Encode |
MPEG2 & MPEG4 AVC/H.264 |
MPEG-4 AVC/H.264 |
MPEG2 |
|
Video Bit Rate |
0.8~19Mbps for H.264 encoding 1~19Mbps for MPEG-2 encoding |
1Mbps~13Mbps each channel (Bit rate is with a high fluctuation, suitable for cable system, not suitable for satellite uplink) |
2~20Mbps each channel |
|
Resolution |
Up to 1920*1080@50P/60P (MPEG4 AVC/H.264) Up to 1920*1080@50I/60I (MPEG2 HD) |
Up to 1920*1080@50P/60P
|
Up to 1920*1080@50P/60P |
|
Audio Encode |
MPEG1 Layer 2, MPEG2-AAC, MPEG4-AAC, AC3 2.0 (Optional) |
MPEG-1 Layer 2 |
MPEGI layer 2, MPEG2-AAC, AC3 |
|
Audio Gain |
N/A |
Yes |
N/A |
|
OSD Function |
N/A |
Yes |
N/A |
|
CC Input |
CC (Closed Caption)for SDI interface (Optional), EIA608, EIA708 |
N/A |
CC (Closed Caption), EIA 608 |
|
Low Latency |
Yes |
N/A |
Yes |
|
ASI output |
Yes |
N/A |
N/A |
|
IP output |
4 SPTS or 1 MPTS output |
4 MPTS IP output |
N/A |
|
Modulating |
4*DVB-C/2* DVB-T/4*ATSC-T /1/2*ISDB-T RF out |
4*DVB-C/DVB-T RF out |
4/8*DVB-C/T/ATSC/ISDB-T RF out in one device, Modulation dynamic switching |
|
RF Frequency |
30~960MHz, 1KHz step |
50~960MHz, 1KHz step |
100-1000MHz, 1KHz step |
