Product Overview

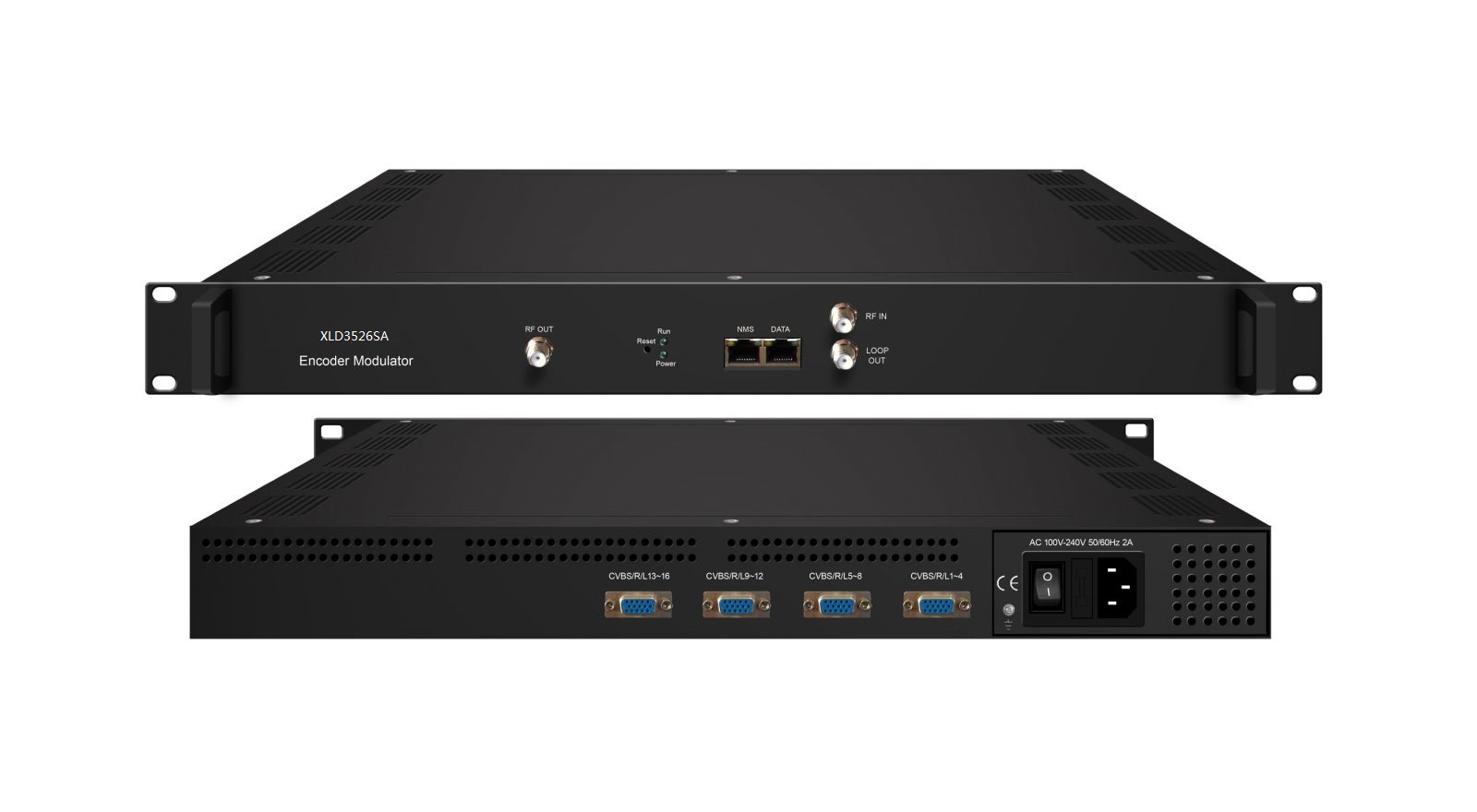

XLD3526SA is a high performance and cost-effective encoder modulator designed by Xielide. It has 16 CVBS input with MPEG4 AVC/H.264 Video encoding and 1 DVB-C tuner input and 8 non-adjacent carriers output with multiplexing, scrambling (DVB-C only) and DVB-C/T modulating included. It supports maximum 256 IP input and IP (8MPTS) output through Data port. XLD3526SA is also characterized with high integrated level, high performance and low cost. This is very adaptable to newly generation CATV broadcasting system.
Key Features
* 16 CVBS input with MPEG4 AVC/H.264 Video encoding
* 1DVB-C Tuner input for re-Mux
* 256 IP input over UDP and RTP
* Support MPEG1 Layer II Audio encoding and support audio gain adjustment
* Support PID remapping/ accurate PCR adjusting/PSI/SI editing and inserting
* Support 8*Mux-SCR-DVBC output/ 8*Mux-DVBT output
* Support 8*MPTS IP over UDP and RTP output
* Support Logo, Caption and QR Code insertion (Language Supported: 中文, English, العربية, ไทย,
, for more languages please consult us…)
* Support IP Null PKT filter
* Real-time effective encoding output bit-rate monitoring
* Control via web management, and easy updates via web
Principle Chart
DVB-C RF output
DVB-T RF output
Technical Specification
|
Input |
16 CVBS inputs , DB15-To-RCA interface 1 DVB-C Tuner input 256 IP (100/1000M)input over UDP and RTP protocol |
||||
|
Video |
Resolution |
720×576i (PAL-B, D, G, H, I), 720×480i (NTSC-M, J) |
|||
|
Encoding |
MPEG4 AVC/H.264(HP/MP/BP) |
||||
|
Bit-rate |
1Mbps~5Mbps each channel |
||||
|
Rate Control |
CBR/VBR |
||||
|
GOP Structure |
IPP(P frame is adjustable) |
||||
|
Audio |
Encoding |
MPEG-1 Layer 2 |
|||
|
Sampling rate |
48KHz |
||||
|
Resolution |
24-bit |
||||
|
Audio Gain |
0-255 adjustable |
||||
|
Bit-rate |
64/128/192/224/256/320/384Kbps each channel |
||||
|
Modulation |
DVB-C |
8* DVB-C non-adjacent carriers output (maximum bandwidth 192MHz) Standard: EN300 429/ITU-T J.83A/B MER: ≥40dB RF frequency: 50~960MHz, 1KHz step RF output level: -20~+3dBm (87~110 dBµV), 0.1dB step Symbol Rate: 5.0Msps~7.0Msps, 1ksps step |
|||
|
|
J.83A |
J.83B |
|||
|
Constellation |
16/32/64/128/256QAM |
64/256 QAM |
|||
|
Bandwidth |
8M |
6M |
|||
|
DVB-T |
Standard |
EN300744 |
|||
|
FFT mode |
2K, 4K, 8K |
||||
|
Bandwidth |
6M, 7M, 8M |
||||
|
Constellation |
QPSK, 16QAM, 64QAM |
||||
|
Guard Interval |
1/4, 1/8, 1/16, 1/32 |
||||
|
FEC |
1/2, 2/3, 3/4, 5/6, 7/8 |
||||
|
MER |
≥40dB |
||||
|
RF frequency |
50~960MHz, 1KHz step |
||||
|
RF out |
8*COFDM DVB-T non-adjacent carriers output (maximum bandwidth 192MHz) |
||||
|
RF output level |
-20~+3 dBm (87~110 dBµV), 0.1dB step |
||||
|
Scrambling Parameters |
Max simulscrypt CA |
4 |
|||
|
Scramble Standard |
ETR289, ETSI 101 197, ETSI 103 197 |
||||
|
Connection |
Local/remote connection |
||||
|
Stream output |
IP (8*MPTS) output over UDP and RTP, 100/1000 Base-T Ethernet interface (Multicast/unicast) |
||||
|
System function |
Network management (WEB) |
||||
|
Ethernet software upgrade |
|||||
|
Miscellaneous |
Dimension(W×L×H) |
482mm×328mm×44mm |
|||
|
Environment |
0~45℃(work)；-20~80℃（Storage） |
||||
|
Power requirements |
AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz |
||||
