Product Overview

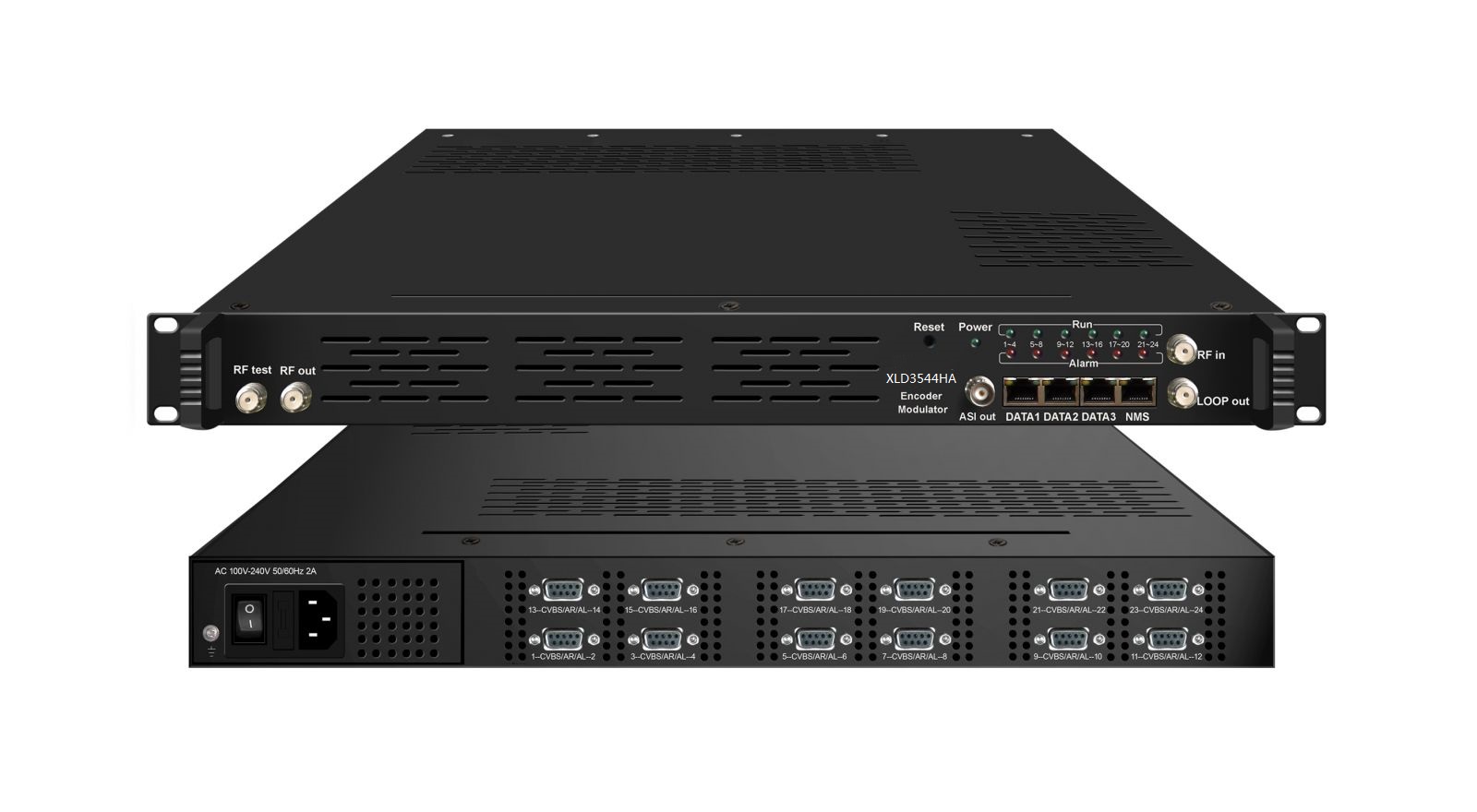

XLD3544HA SD encoder modulator is a professional high integration device which includes encoding, multiplexing, scrambling and modulation. It supports 24 CVBS inputs with MPEG-2 video encoding and MPEG-1 Layer 2, DD AC3 (2.0) audio encoding and one DVB-C (ATSC optional) tuner input and maximum 512 IP input through Data1 (GE) port. It also supports DVB-C RF out with 16 non-adjacent carries or DVB-T/ATSC RF out with 8 non-adjacent carriers or ISDB-T RF out with 6 non-adjacent carriers and supports 16/8/6 MPTS as mirror of 16/8/6 carriers through Data2 (GE) output port. This full function device makes it ideal for small CATV head end system, and it’s a smart choice for hotel TV system, entertainment system in sports bar, hospital, apartment…
Key Features
* 24 CVBS inputs with MPEG-2 Encoding
* 1DVB-C(ATSC optional) tuner input for re-mux
* Each carrier out channel process maximum 32 IP from DATA1 input port (UDP&RTP protocol)
* Support MPEG-1 Layer 2, DD AC3 (2.0) audio encoding
* Support CC (closed caption)
* Support 16 groups multiplexing/Scrambling/DVB-C modulating
* Support 8 groups multiplexing/DVB-T/ATSC modulating---Optional
* Support 6 groups multiplexing/ISDB-T modulating---Optional
* Support 16 MPTS IP (DATA2 port only) output over UDP, RTP/RTSP
* Support 8 MPTS IP (DATA2 port only) output over UDP, RTP/RTSP-- DVB-T/ATSC RF out
* Support 6 MPTS IP (DATA2 port only) output over UDP, RTP/RTSP-- ISDB-T RF out
* 1 ASI out as mirror of one of RF output carriers---Optional
* Support Logo, Caption, QR Code insertion
* Support PID remapping/ accurate PCR adjusting/PSI/SI editing and inserting
* Control via web management, and easy updates via web
* Lowest cost per channel, breakthrough price
Principle Chart
DVB-C Principle Chart
DVB-T Principle Chart
ISDB-T Principle Chart
Technical specification
|
Input |
24 CVBS inputs 1 DVB-C(ATSC optional) Tuner for re-mux, F type interface 512 IP input over UDP and RTP, DATA1, RJ45—DVB-C RF out 256 IP input over UDP and RTP, DATA1, RJ45—DVB-T/ATSC RF out 192 IP input over UDP and RTP, DATA1, RJ45—ISDB RF out |
||||
|
Video |
Resolution |
720×480_60i, 544×480_60i, 352×480_60i 352×240_60i,320×240_60i,176×240_60i, 176×120_60i |
|||
|
720×576_50i,704×576_50i,640×576_50i, 352×288_50i 320×288_50i, 176×288_50i, 176×144_50i |
|||||
|
Encoding |
MPEG-2 |
||||
|
Bit-rate |
0.5Mbps~8Mbps per channel |
||||
|
Rate Control |
CBR/VBR |
||||
|
GOP Structure |
IP, IBP, IBBP, IBBBP |
||||
|
Advanced Pretreatment |
De-interlacing, noise reduction |
||||
|
Audio |
Encoding |
MPEG-1 Layer 2, DD AC3 (2.0) |
|||
|
Sampling rate |
48KHz |
||||
|
Resolution |
24-bit |
||||
|
Bit-rate |
64Kbps,128Kbps,192kbps,256kbps,320kbps,384kbps each channel |
||||
|
Multiplexing |
Maximum PID Remapping |
180 input per channel |
|||
|
Function |
PID remapping ( automatically or manually) |
||||
|
Accurate PCR adjusting |
|||||
|
Generate PSI/ SI table automatically |
|||||
|
Scrambling |
Maximum simulcrypt CA |
4 |
|||
|
Standard |
ETR289, ETSI 101 197, ETSI 103 197 |
||||
|
Connection |
Local/remote connection |
||||
|
Modulation |
DVB-C
|
QAM Channel |
16 non-adjacent carriers output (maximum bandwidth |
||
|
Standard |
EN300 429/ITU-T J.83A/B |
||||
|
MER |
≥40db |
||||
|
RF frequency |
50~960MHz, 1KHz step |
||||
|
RF output level |
-20~+10dbm (87~107 dbµV), 0.1db step |
||||
|
Symbol Rate |
5.0Msps~7.0Msps, 1ksps stepping |
||||
|
|
J.83A |
J.83B |
|||
|
Constellation |
16/32/64/128/256QAM |
64/256 QAM |
|||
|
Bandwidth |
8M |
6M |
|||
|
DVB-T |
Standard |
EN300744 |
|||
|
FFT mode |
2K,4K, 8K |
||||
|
Bandwidth |
6M, 7M, 8M |
||||
|
Constellation |
QPSK, 16QAM, 64QAM |
||||
|
Guard Interval |
1/4, 1/8, 1/16, 1/32 |
||||
|
FEC |
1/2, 2/3, 3/4, 5/6, 7/8 |
||||
|
MER |
≥42 dB |
||||
|
RF frequency |
50~960MHz, 1KHz step |
||||
|
RF out |
8 non-adjacent carriers DVB-T out (maximum bandwidth 192MHz) |
||||
|
RF output level |
-20~ +10 dBm (77~97 dbµV), 0.1db step |
||||
|
ATSC |
Standard |
ATSC A/53 |
|||
|
Bandwidth |
6M |
||||
|
Constellation |
8VSB |
||||
|
FEC |
RS(208 188)+Trellis |
||||
|
MER |
≥40dB |
||||
|
ACL |
-55 dBc |
||||
|
RF frequency |
50~960MHz, 1KHz step |
||||
|
RF out |
8 non-adjacent carriers output (maximum bandwidth 192MHz) |
||||
|
RF output level |
-20~+10dbm (for all carriers), 0.5db stepping |
||||
|
ISDB-T |
Standard |
ARIB STD-B31 |
|||
|
Bandwidth |
6M |
||||
|
Constellation |
QPSK, 16QAM, 64QAM |
||||
|
Guard Interval |
1/32, 1/16, 1/8, 1/4 |
||||
|
Transmission Mode |
2K, 4K, 8K |
||||
|
Code rate |
1/2, 2/3, 3/4, 5/6, 7/8 |
||||
|
MER |
≥40dB |
||||
|
RF frequency |
50~960MHz, 1KHz step |
||||
|
RF out |
6 non-adjacent carriers output (maximum bandwidth 192MHz) |
||||
|
RF output level |
-20dBm~+10dBm, 0.1dB stepping |
||||
|
Stream output |
1 ASI output as mirror of one of RF output carriers-Optional 16 MPTS output over UDP and RTP/RTSP as mirror of 16 DVB-C carriers, 8 MPTS output over UDP and RTP/RTSP as mirror of 8 DVB-T/ATSC carriers(Optional) 6 MPTS output over UDP and RTP/RTSP as mirror of 6 ISDB-T carriers(Optional) 1*1000M Base-T Ethernet interface |
||||
|
System function |
Network management (WEB) |
||||
|
Chinese and English language |
|||||
|
Ethernet software upgrade |
|||||
|
Miscellaneous |
Dimension (W×L×H) |
482mm×440mm×44mm |
|||
|
Environment |
0~45℃(work)；-20~80℃（Storage） |
||||
|
Power requirements |
AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz |
||||
Ordering Information
|
|
IP input |
IP output |
RF carriers |
Scrambling |
|
DVB-C |
512 |
16 |
16 |
√ |
|
DVB-T |
256 |
8 |
8 |
× |
|
ATSC |
256 |
8 |
8 |
× |
|
ISDB-T |
192 |
6 |
6 |
× |
