Product Overview

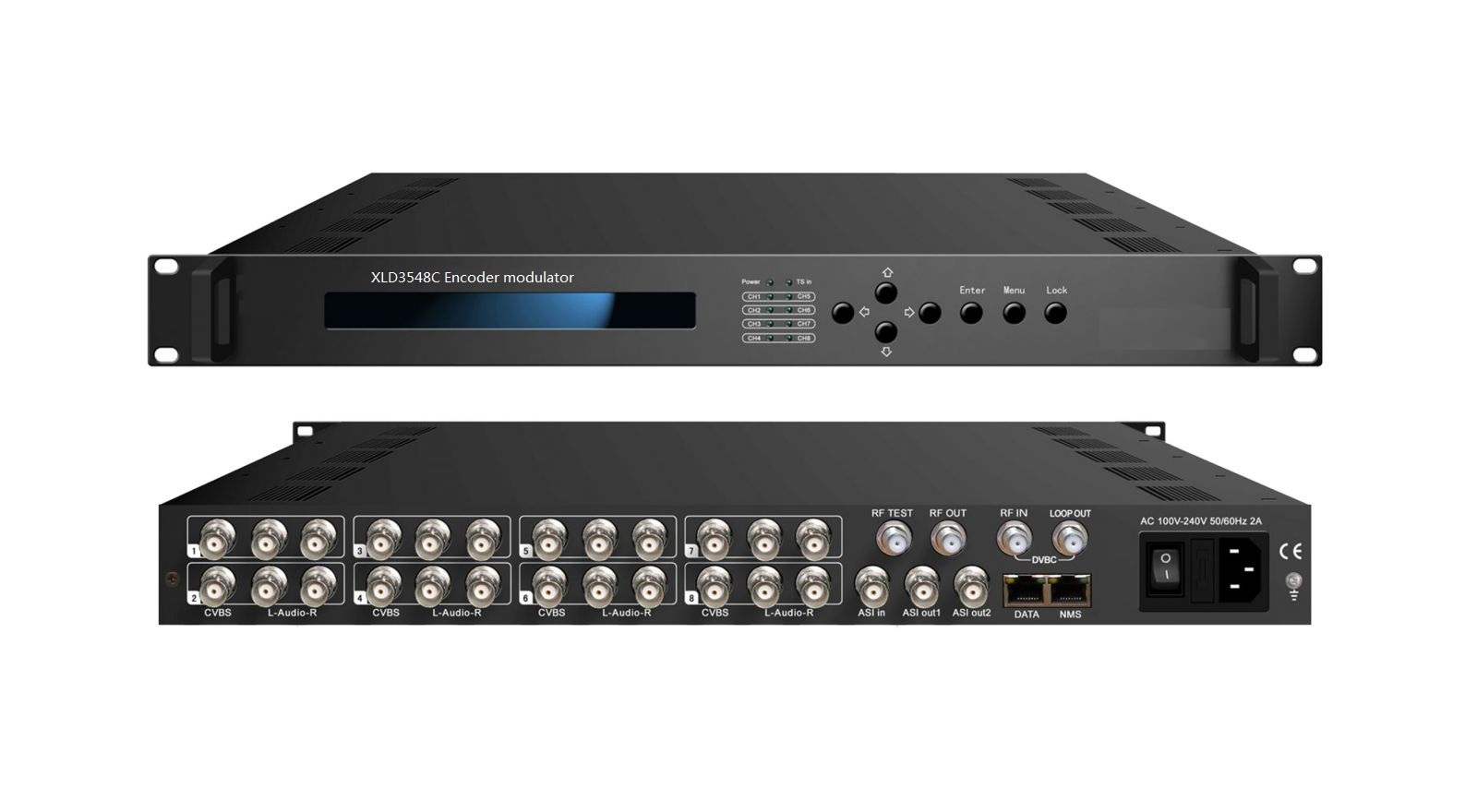

XLD3548C 8 in 1 Encoder/Modulator is an all-in-one device integrated encoding, demodulation, multiplexing and modulation functions in one standard 1U case. It can convert 8 CVBS signals and 1 ASI input (DVB-C Tuner input optional) to DVB-C RF out in the frequency range of 30~999MHz. It is also equipped with 2 ASI ports and IP port to output TS in MPTS & 8* SPTS.

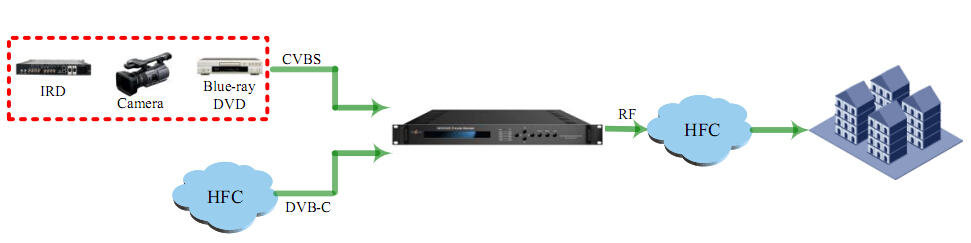

The signals source could be from satellite receivers, closed-circuit television cameras and etc. its output signal is to be received by DVB-C standard TVs or DVB-C STBs.
The device can be used in public place such as metro, market hall, theatre, hotels, resorts, etc for advertising. It also can be used for monitoring, training and educating in company, schools, campuses, hospital.
Key Features
* Support 8CVBS+1 ASI Input + DVB-C Tuner input (optional)
* H.264 and Mpeg2 video encoding
* MPEG1 Audio Layer 2, LC-AAC and HE-AAC (V2) audio encoding
* Support PSI/SI editing and inserting
* Support accurate PCR adjusting
* Support PID filtering, re-mapping
* Supports VBR/CBR video encoding
* Supports ultra low bit rate encoding
* Applicable for one Seg utilization
* 1*DVB-C RF output
* Supports MPTS & 8 SPTS IP over UDP output
* Supports IP null packet filter
* LCD / keyboard and web NMS operation
* Update device through web NMS port

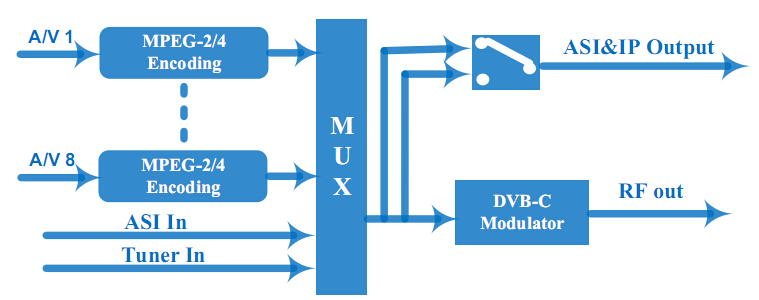

Principle Chart
Specifications
|
Input |
8 CVBS, BNC interface |
|||||
|
8 pairs of unbalanced stereo audio, BNC interface |
||||||
|
1 ASI input, BNC interface |
||||||
|
1 Tuner input (Optional) |
||||||
|
Video |
Resolution |
PAL:720*576/352*288/320*240/320*180/176*144/ 160*120/160*90@50Hz |
||||
|
NTSC: 720*480/352*288/320*240/320*180/176*144/ 160*120/160*90@59.94Hz |
||||||
|
Encoding |
MPEG-2 / H.264 |
|||||
|
Bit-rate |
0.25~6Mbps |
|||||
|
Rate Control |
CBR/VBR |
|||||
|
Advanced Pretreatment |
De-interlacing, Noise Reduction, Sharpening |
|||||
|
Audio |
Encoding |
MPEG1 Audio Layer 2, LC-AAC, HE-AAC V2 |
||||
|
Sampling rate |
48KHz |
|||||
|
Bit-rate |
48Kb/s~384Kb/s for MPEG1 Audio Layer 2 48Kb/s, 56Kb/s, 64Kb/s, 80Kb/s, 96Kb/s for HE/LC-AAC V2 |
|||||
|
Multiplexing |
1 ASI and tuner input multiplexed with local 8 channels of TS |
|||||
|
PID re-mapping |
||||||
|
PCR accurate adjusting |
||||||
|
Automatic generating PSI/SI table |
||||||
|
DVB-C Tuner Section (Optional) |
Standard |
J.83A, J.83B, J.83C |
||||
|
RF frequency |
30~1000MHz, 1KHz step |
|||||
|
J.83A |
Constellation |
16/32/64/128/256QAM |
||||
|
Symbol rate |
5.0 - 9.0 Msps |
|||||
|
J.83B |
Constellation |
64QAM |
256QAM |
|||
|
Symbol rate |
5.057Msps |
5.361Msps |
||||
|
J.83C |
Constellation |
64QAM, 256QAM |
||||
|
Symbol rate |
5.0 - 9.0 Msps |
|||||
|
Modulator Section
|
Standard |
J.83A, J.83B, J.83C |
||||
|
MER |
≥42dB |
|||||
|
RF frequency |
30~999MHz, 1KHz step |
|||||
|
RF output level |
-30.0~ 10.0 dbm (77~97 dbµV), 0.1db step |
|||||
|
Symbol rate |
5.0 - 9.0 Msps |
|||||
|
J.83A |
Constellation |
16/32/64/128/256QAM |
||||
|
Symbol rate |
5.0 - 9.0 Msps |
|||||
|
bandwidth |
8M |
|||||
|
J.83B |
Constellation |
64QAM |
256QAM |
|||
|
Symbol rate |
5.057Msps |
5.361Msps |
||||
|
bandwidth |
6M |
|||||
|
J.83C |
Constellation |
64QAM, 256QAM |
||||
|
Symbol rate |
5.0 - 9.0 Msps |
|||||
|
Bandwidth |
6M |
|||||
|
Stream output |
2*ASI output, BNC interface |
|||||
|
MPTS & 8 SPTS over UDP, 10/100Base-T Ethernet interface (UDP unicast / multicast) |
||||||
|
System function |
LCD/keyboard operating, web NMS supporting |
|||||
|
Ethernet software & hardware upgrade |
||||||
|
Miscellaneous |
Dimension (W× L× H) |
482mm×455mm×44mm |
||||
|
Approx weight |
4kg |
|||||
|
Temperature |
0~45℃(work), -20~80℃（Storage） |
|||||
|
Power |
AC 100V-220V±10%, 50/60Hz |
|||||
|
Consumption |
25W |
|||||
