High Lights
* HDMI/YPbPr/AV input for encoding
* MPEG2 and MPEG4 AVC/H264 HD/SD video encoding,
* MPEG1 Layer II, MPEG2-AAC, MPEG4-AAC audio encoding, DD AC3 (2.0) optional
* CC(Closed Caption) optional
* AC3 Passthrough

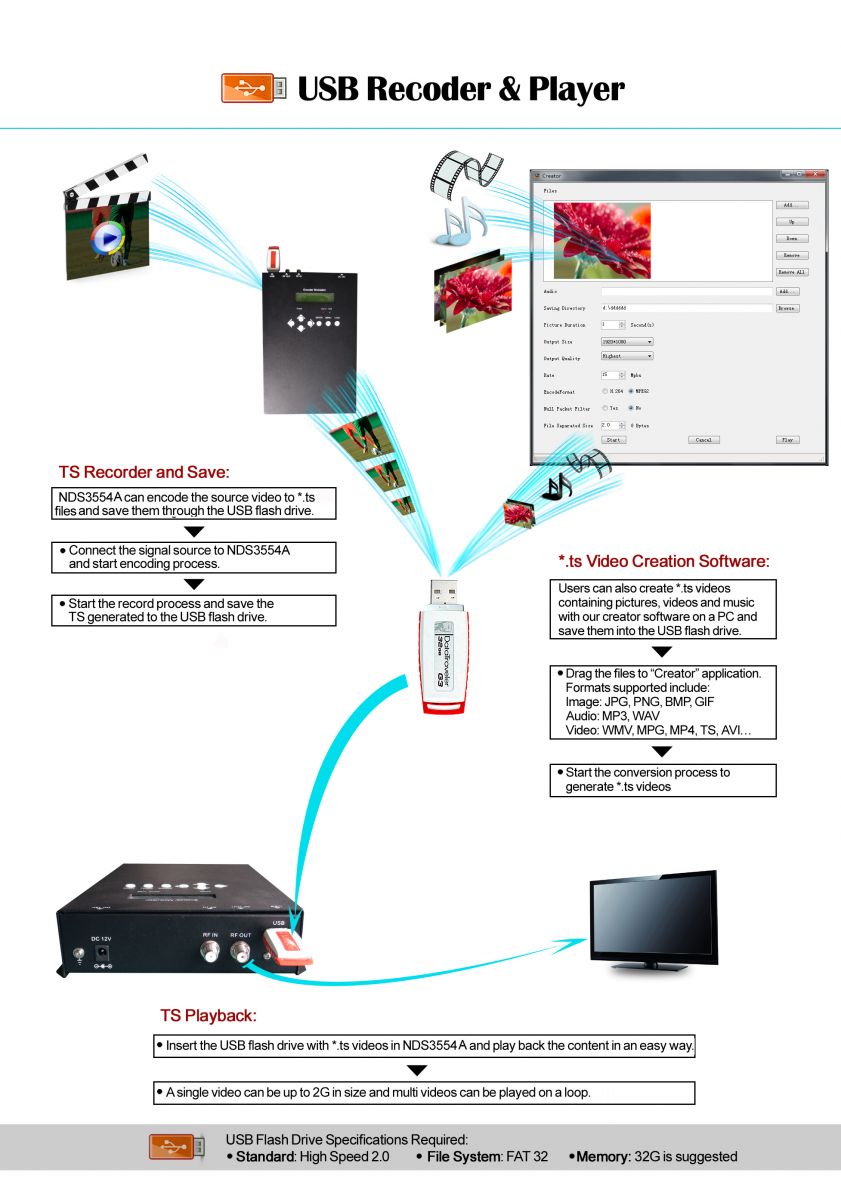

* Record encoded TS and playback TS files (*.ts) through USB port
* DVB-C, DVB-T RF output optional
* Transmission mode (FFT): 2K, 8K (applied in DVB-T modulation)

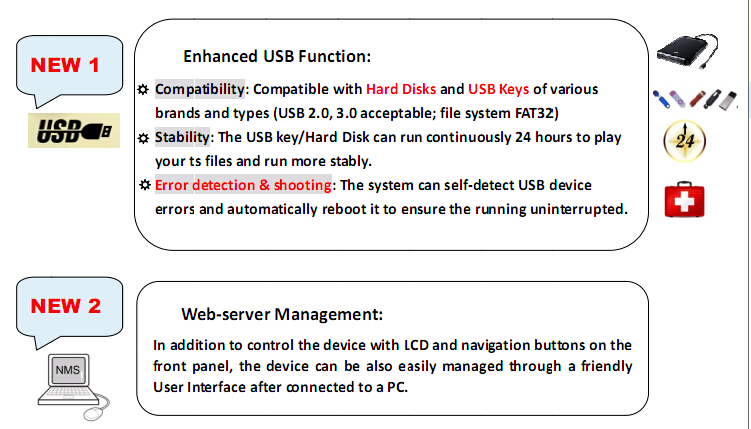

* Enhanced USB function: more stable and compatible with Hard Disks and USB Keys of various brand
* USB device error self-detection and removal, ensure USB device running uninterrupted
* Volume adjustable

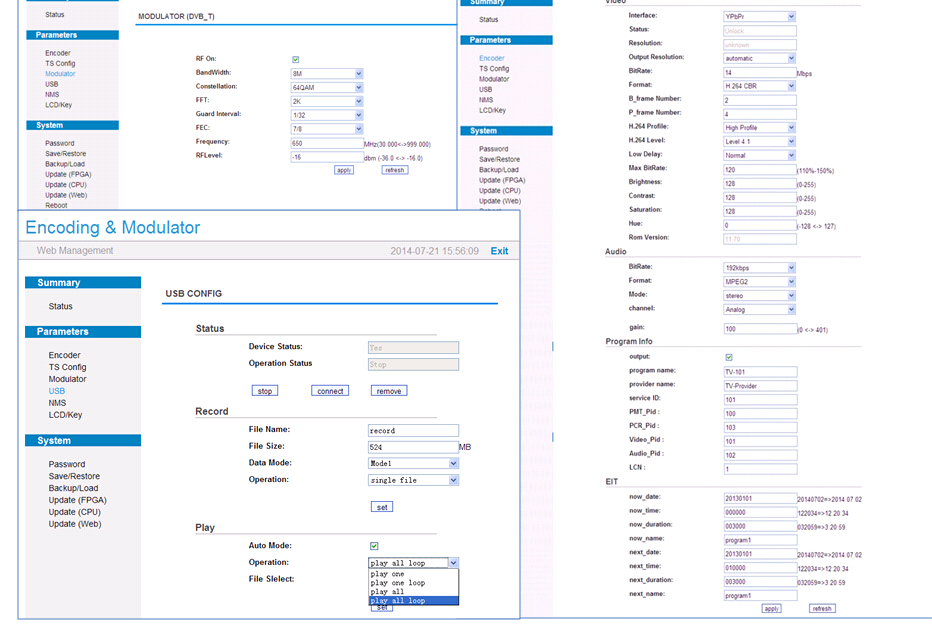

* Easy operation with LCD + control buttons, and Web-server management
Product Overview
NDS3554A encoder & modulator is DEXIN’s consumer electronics which allow audio/video signal input in TV distributions with applications in home entertainment, hotel Digital Signage, shops etc.

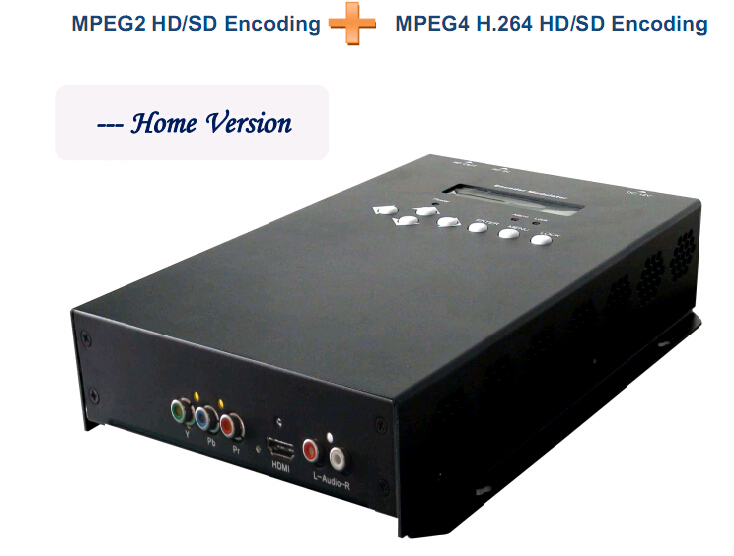

It is an all-in-one device integrating MPEG2 HD/SD and MPEG4 AVC H.264 HD/SD encoding and modulating to convert video/audio signals to digital RF out in the frequency range of 30~960MHz.
The signals source could be from satellite receivers, closed-circuit television cameras, Blue-ray players, and antenna etc. Its output signal is to be received by TVs or STBs etc.

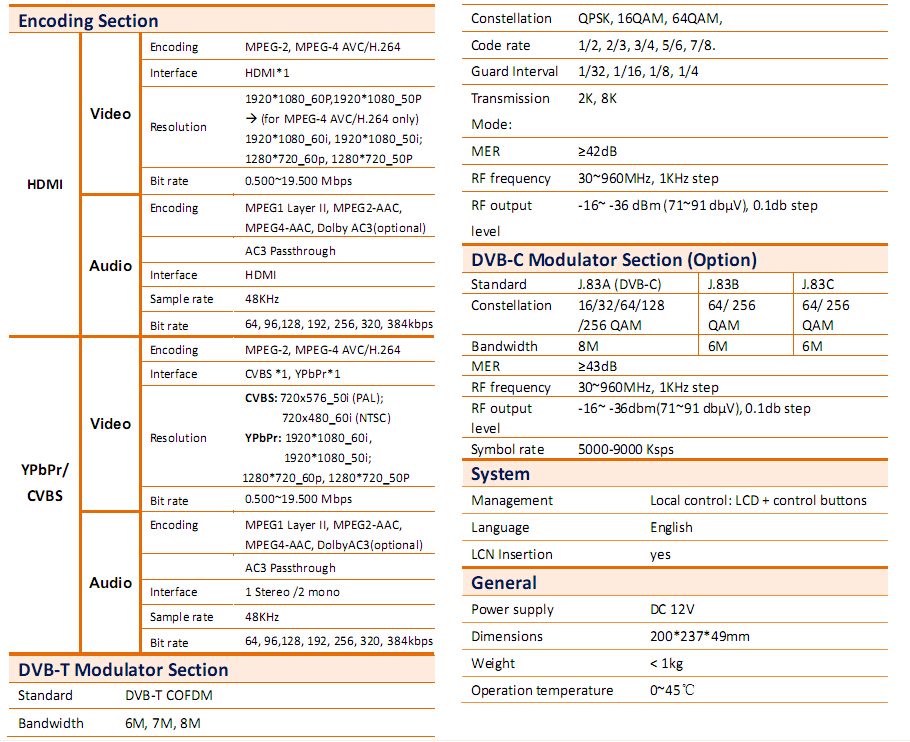

Technical Specifications

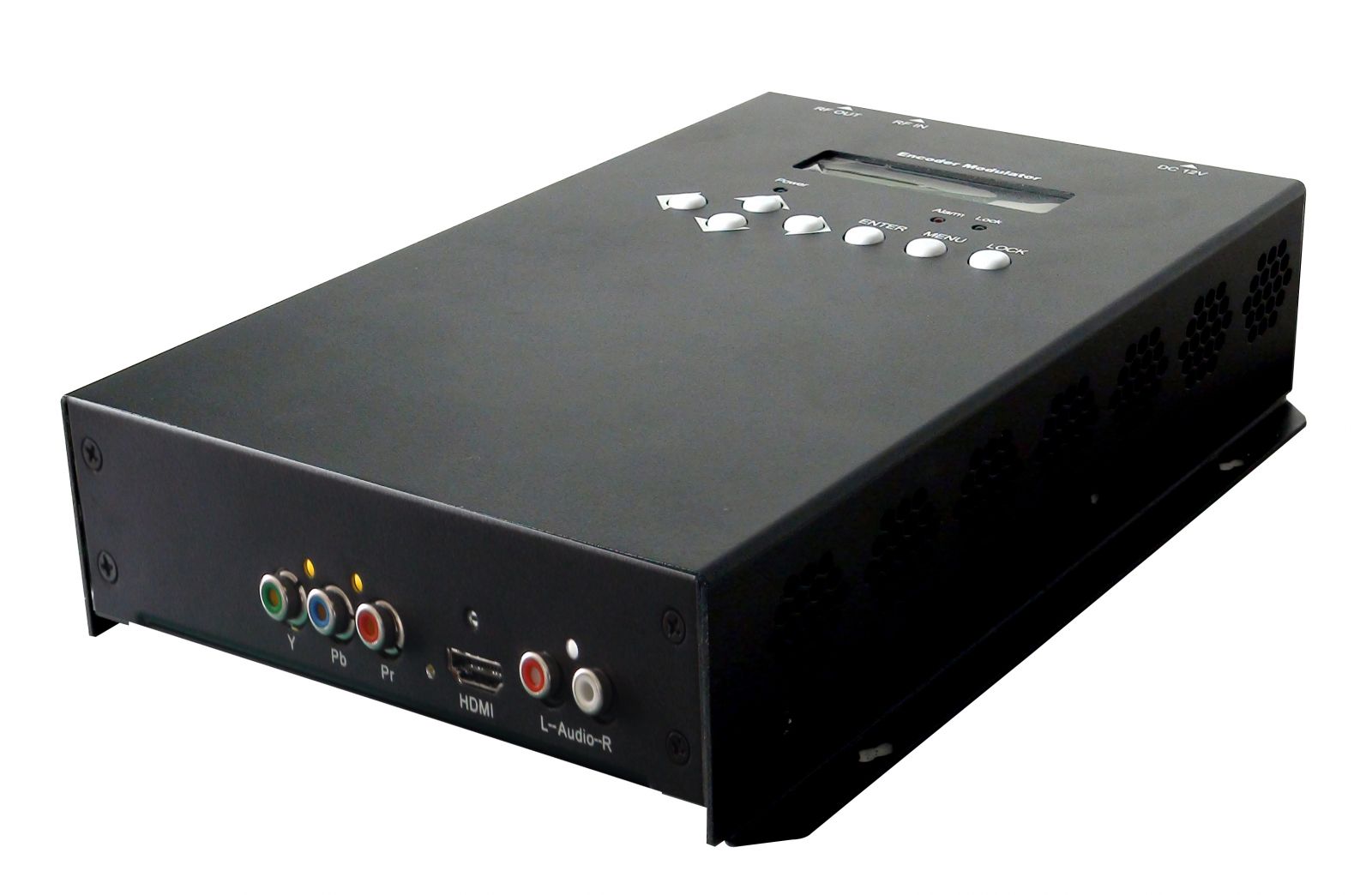

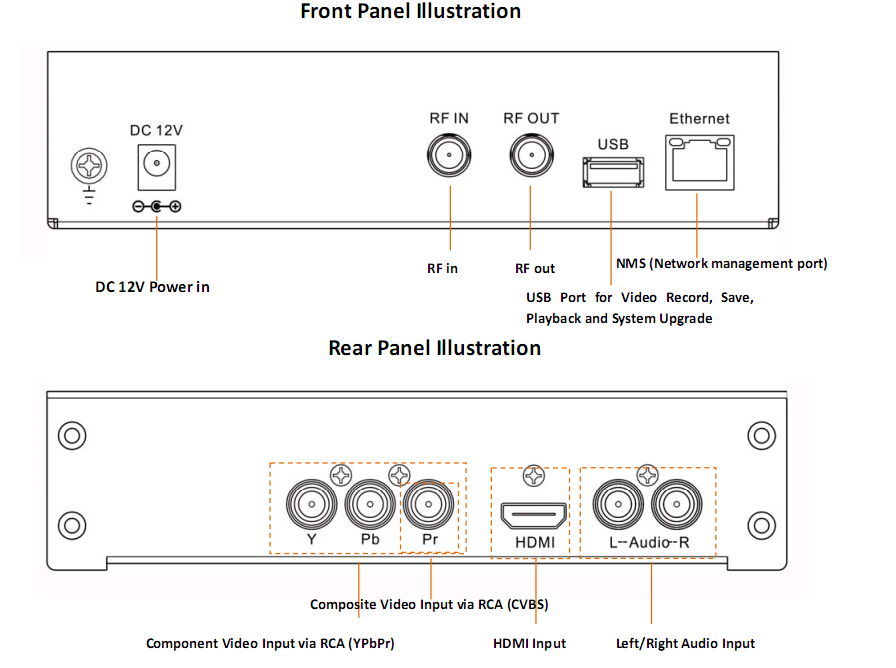

Appearance

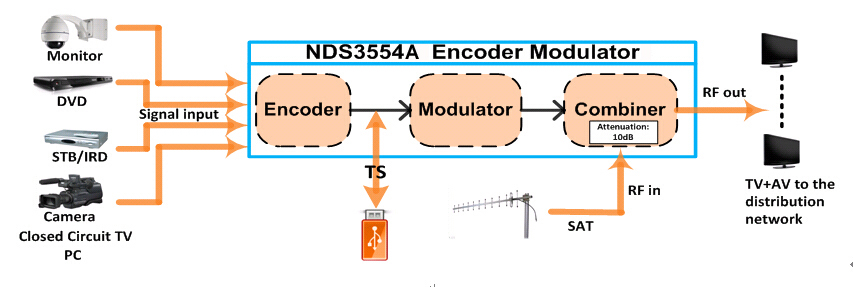

Typical Applications
