Product overview

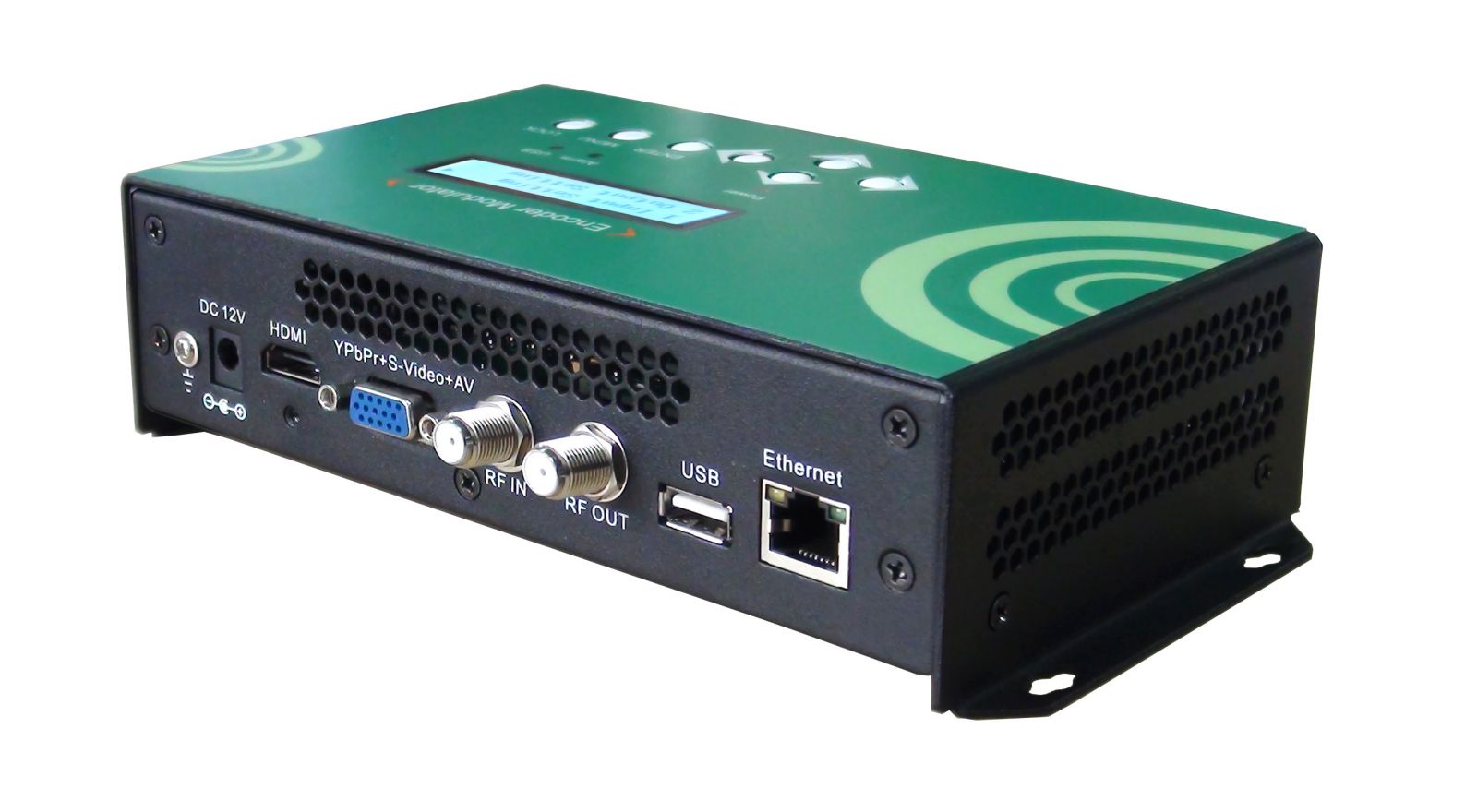

Product model：XLD3558 HD SD Encoder modulator with USB and weser
Product line：Encoder modulator

product details

General Description

XLD3558 series encoder & modulator is Xielide’s consumer electronics which allow audio/video signal input in TV distributions with applications in home entertainment, surveillance control, hotel Digital Signage, shops etc. It is an all-in-one device integrating MPEG-4 AVC/H.264 encoding and modulating to convert audio/video signals into DVB-C/DVB-T/ATSC/ISDBT RF out. The USB port is designed to record encoded video (TS) and save it in ts files in the USB Keys or Hard Disks, and then the ts files can be playback through the USB port. The ts files can be also generated on a computer with Xielide's TS Creator.exe program. The signals source could be from satellite receivers, closed-circuit television cameras, Blue-ray players, antenna and a USB key or Hard Disk etc. Its output signal is to be received by TV sets or STBs etc.

Key Features

*HDMI/YPbPr/S-Video/AV input for encoding

* MPEG4 AVC/H264 HD/SD video encoding,

* MPEG1 Layer II, MPEG2-AAC, MPEG4-AAC audio encoding optional

* Record encoded TS and playback TS files (*.ts) through USB port

* Transmission mode (FFT): 2K, 8K (applied in DVB-T modulation)

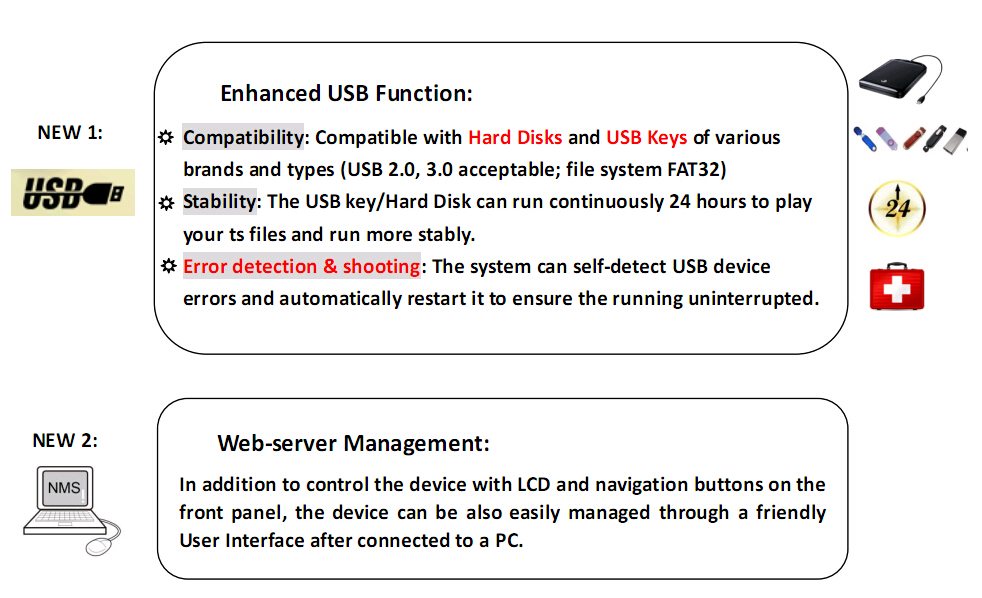

* Enhanced USB function: more stable and compatible with Hard Disks and USB Keys of various brand

* USB device error self-detection and removal, ensure USB device running uninterrupted

* DVB-C/T/ATSC/ISDBT RF in one device, DVB-C/T/ASTC/ISDBT modulation dynamic switching

* Easy operation with LCD + control buttons, and Web-server management

System Connection

TS Creator.exe Download link:

http://pan.baidu.com/s/1c0vOMY0

Download path: English→Tool→TS Creator xxx.rar

Technical Specifications

Typical Applications

Technical Compare

Main Features	XLD3558/XLD3556	Competing Products
Management	Local: LCD + control buttons Remote: web-server control	Local: LCD + control buttons
Record TS to USB memory	Yes	No
*.ts files play-mode supported	Both Multi/Single files loop Support HD&SD video play	Single file loop Support only SD video play
TS Creator.exe	HD video to HD video transform Null Packet Filter, effect bit rate up to 90% Support output video size, rate, and format control	HD video to SD video downscale No Null Packet Filter, effect bit rate only around 50%
Modulation dynamic switching	Yes	No
