General Description

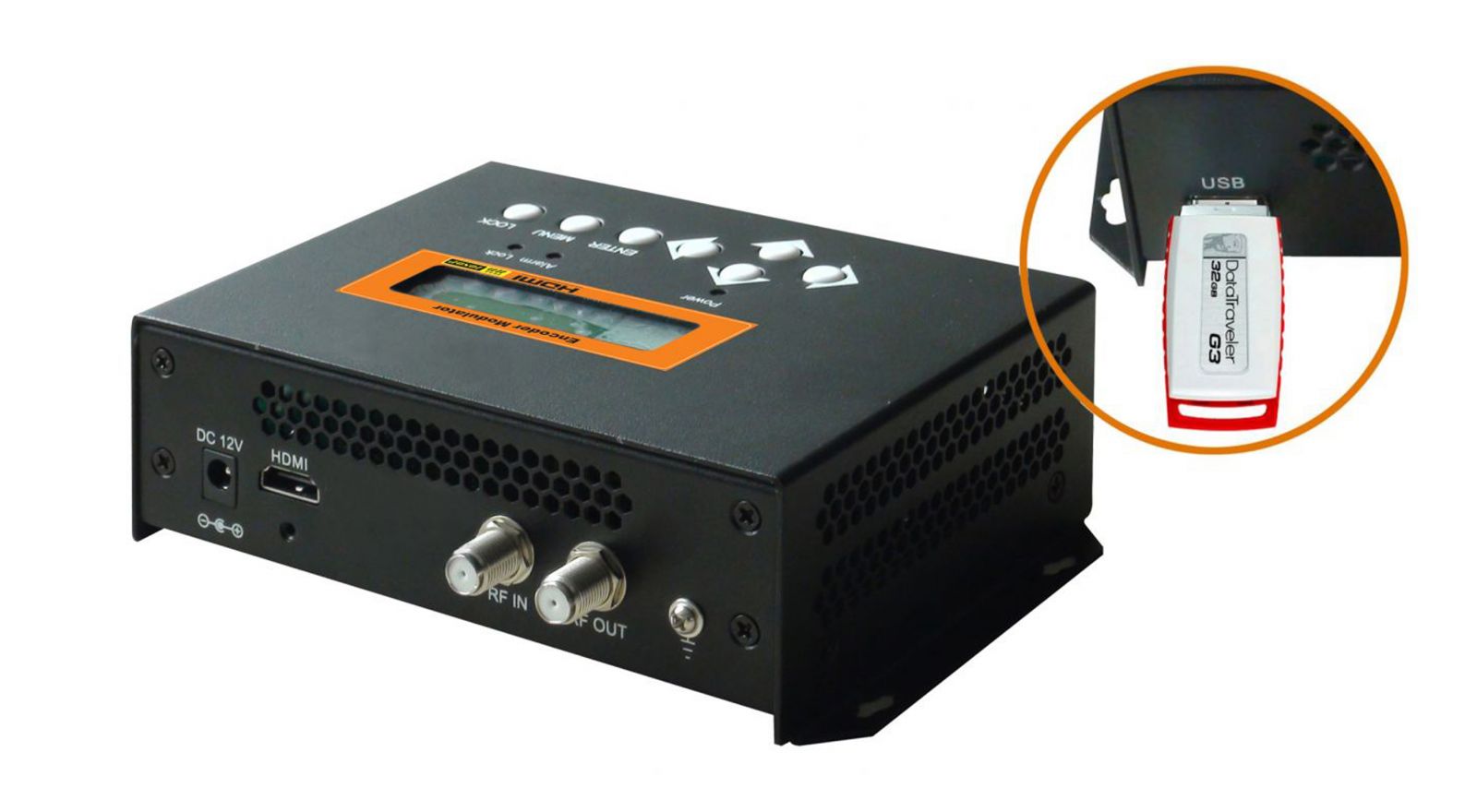

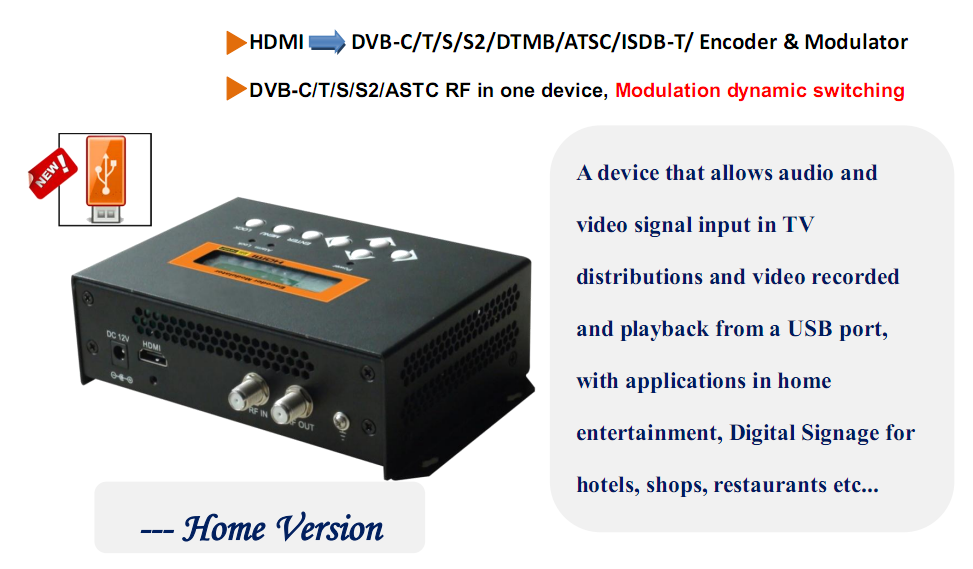

XLD3556 series encoder & modulator is Xielide’s consumer electronics which allow audio/video signal input in TV distributions and video recorded and playback from a USB port with applications in home entertainment, surveillance control, hotel Digital Signage, shops etc.

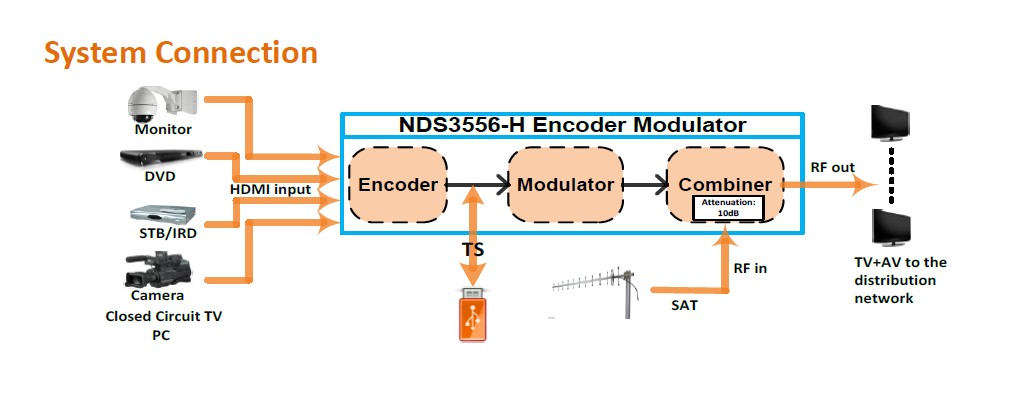

It is an all-in-one device integrating MPEG-4 AVC/H.264 encoding and modulating to convert audio/video signals into DVB-C/T/S/S2/DTMB/ATSC/ISDB-T RF out.
The signals source could be from satellite receivers, closed-circuit television cameras, Blue-ray players, and antenna etc. its output signal is to be received by a DVB-C/T/S/S2/DTMB/ATSC/ISDB-T standard TVs or STBs etc.

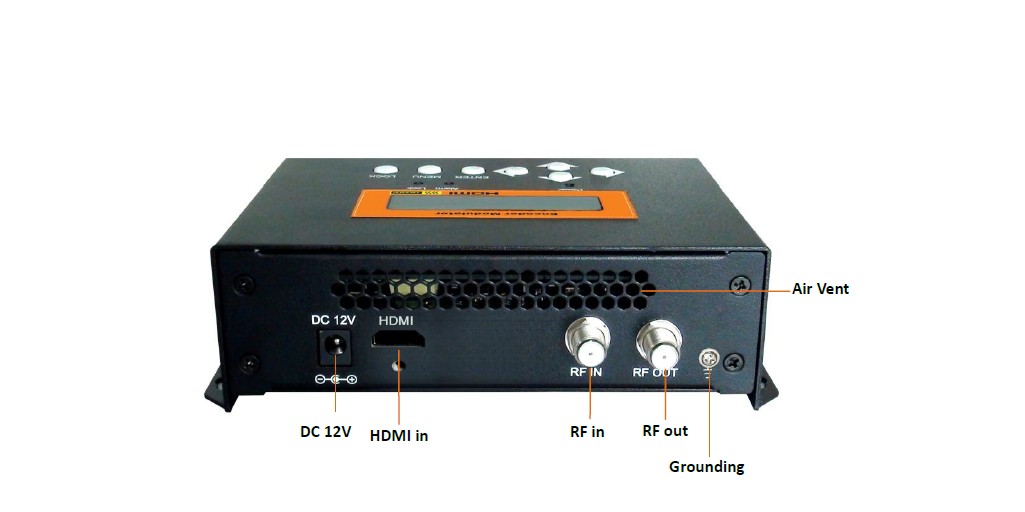

%20to%20DVB-C%20encoder%20modulator%20with%20USB/3EEECN_20131106102311.jpg)
%20to%20DVB-C%20encoder%20modulator%20with%20USB/3EEECN_20131106102355.jpg)
%20to%20DVB-C%20encoder%20modulator%20with%20USB/3EEECN_20131106102559.jpg)
%20to%20DVB-C%20encoder%20modulator%20with%20USB/3EEECN_20131106102704.jpg)
%20to%20DVB-C%20encoder%20modulator%20with%20USB/3EEECN_20131106102750.jpg)
%20to%20DVB-C%20encoder%20modulator%20with%20USB/3EEECN_20131106102830.jpg)
Technical Specifications
|
Encoding Section |
||||
|
HDMI |
||||
|
Video |
Encoding |
MPEG-4 AVC/H.264 |
||
|
Interface |
HDMI*1 |
|||
|
Resolution |
1920*1080_60P,1920*1080_50P; 1920*1080_60i, 1920*1080_50i; 1280*720_60p, 1280*720_50P 720*480_60i, 720*576_50i |
|||
|
Bit rate |
1.000~19.000 Mbps |
|||
|
Audio |
Encoding |
MPEG1 Layer II, MPEG2-AAC, MPEG4-AAC |
||
|
Sample rate |
48KHz |
|||
|
Bit rate |
64, 96,128, 192, 256, 320, 384kbps |
|||
|
Modulator Section |
||||
|
DVB-C |
||||
|
Standard |
J.83A (DVB-C), J.83B, J.83C |
|||
|
MER |
≥43dB |
|||
|
RF frequency |
30~960MHz, 1KHz step |
|||
|
RF output level |
-16~ -36 dBm (71~91dbµV), 0.1db step |
|||
|
Symbol rate |
5000-9000 Ksps |
|||
|
|
J.83A |
J.83B |
J.83C |
|
|
Constellation |
16/32/64/128/256QAM |
64/ 256 QAM |
64/ 256 QAM |
|
|
Bandwidth |
8M |
6M |
6M |
|
|
DVB-T |
||||
|
Standard |
DVB-T COFDM |
|||
|
Bandwidth |
6M, 7M, 8M |
|||
|
Constellation |
QPSK, 16QAM, 64QAM, |
|||
|
Code rate |
1/2, 2/3, 3/4, 5/6, 7/8. |
|||
|
Guard Interval |
1/32, 1/16, 1/8, 1/4 |
|||
|
Transmission Mode: |
2K |
|||
|
MER |
≥42dB |
|||
|
RF frequency |
30~960MHz, 1KHz step |
|||
|
RF output level |
-16~ -36 dBm (71~91 dbµV), 0.1db step |
|||
|
DVB-S/S2 |
||||
|
DVB-S QPSK: |
FEC 1/2,2/3,3/4,5/6,7/8 |
|||
| DVB-S2 QPSK: |
FEC 1/2,3/5,2/3,3/4,4/5,5/6,8/9,9/10 |
|||
| DVB-S2 8PSK: |
FEC 3/5,2/3,3/4,5/6,8/9,9/10 |
|||
|
Symbol rate: |
QPSK: 0.05-40.0Msps 8QPSK: 0.05-26.0Msps |
|||
|
RF output: |
950.00-1050.00 MHz, 1KHz step |
|||
|
RF output level |
-16~ -36 dBm (71~91dbµV), 0.1db step |
|||
|
Roll Off: |
0.35, 0.25, 0.2 |
|||
|
DTMB |
||||
|
Standard |
GB20600-2006 |
|||
|
FFT |
1,3780, 1+pilot |
|||
|
MER |
≥42dB |
|||
|
FEC |
0.4, 0.6, 0.8 |
|||
|
Frame Mode |
420, 595, 945, 420var, 945var |
|||
|
Interleaving |
240, 720 |
|||
|
RF frequency |
30~960MHz, 1KHz step |
|||
|
RF output level |
-16~ -36 dBm (71~91 dbµV), 0.1db step |
|||
|
Constellation |
4QAM-NR, 4QAM, 16QAM, 32QAM, 64QAM |
|||
|
ATSC |
||||
|
Standard |
ATSC A/53 |
|||
|
MER |
≥42dB |
|||
|
RF frequency |
30~960MHz, 1KHz step |
|||
|
RF output level |
-16~ -36 dBm (71~91 dbµV), 0.1db step |
|||
|
Constellation |
8VSB |
|||
|
ISDB-T |
||||
|
Standard |
ARIB STD-B31 |
|||
|
Bandwidth |
6M |
|||
|
Constellation |
DQPSK,QPSK, 16QAM, 64QAM |
|||
|
Guard Interval |
1/32, 1/16, 1/8, 1/4 |
|||
|
Transmission Mode |
2K, 4K, 8K |
|||
|
MER |
≥42dB |
|||
|
RF frequency |
30~960MHz, 1KHz step |
|||
|
RF output level |
-16~ -36 dBm (71~91 dbµV), 0.1db step |
|||
|
System |
||||
|
Management |

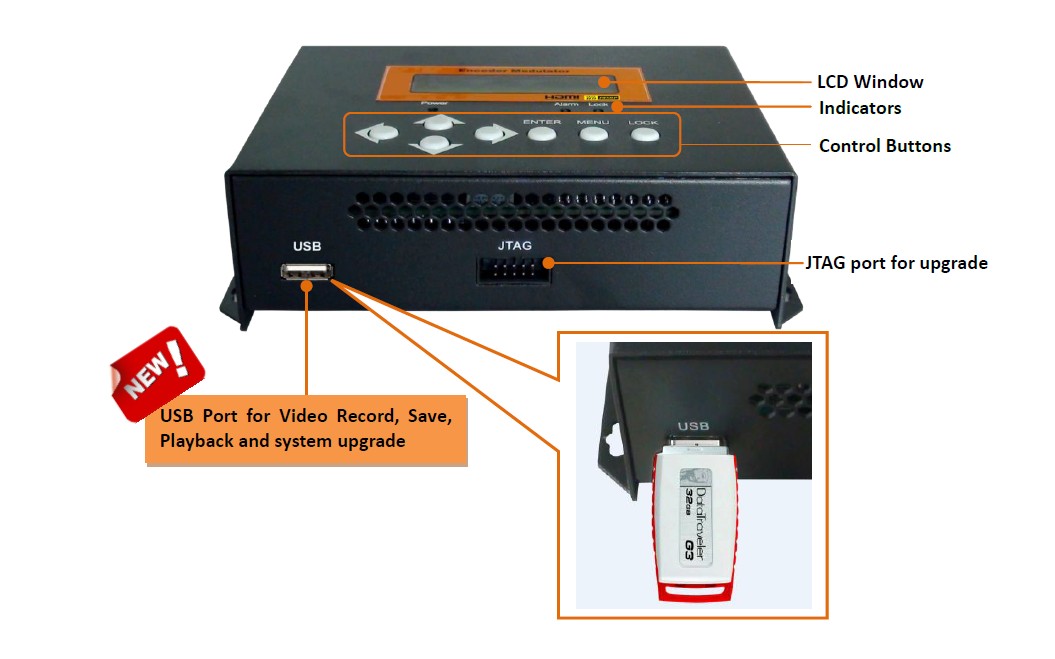

Local control: LCD + control buttons |
|||
|
Language |
English |
|||
|
LCN Insertion |
yes |
|||
|
Upgrade |
JTAG |
|||
|
General |
||||
|
Power supply |
DC 12V |
|||
|
Dimensions |
153*110*50mm |
|||
|
Weight |
< 1kg |
|||
|
Operation temperature |
0~45℃ |
|||
Technical Compare
|
Main Features |
DEXIN NDS3556 |
Competing Products |
|

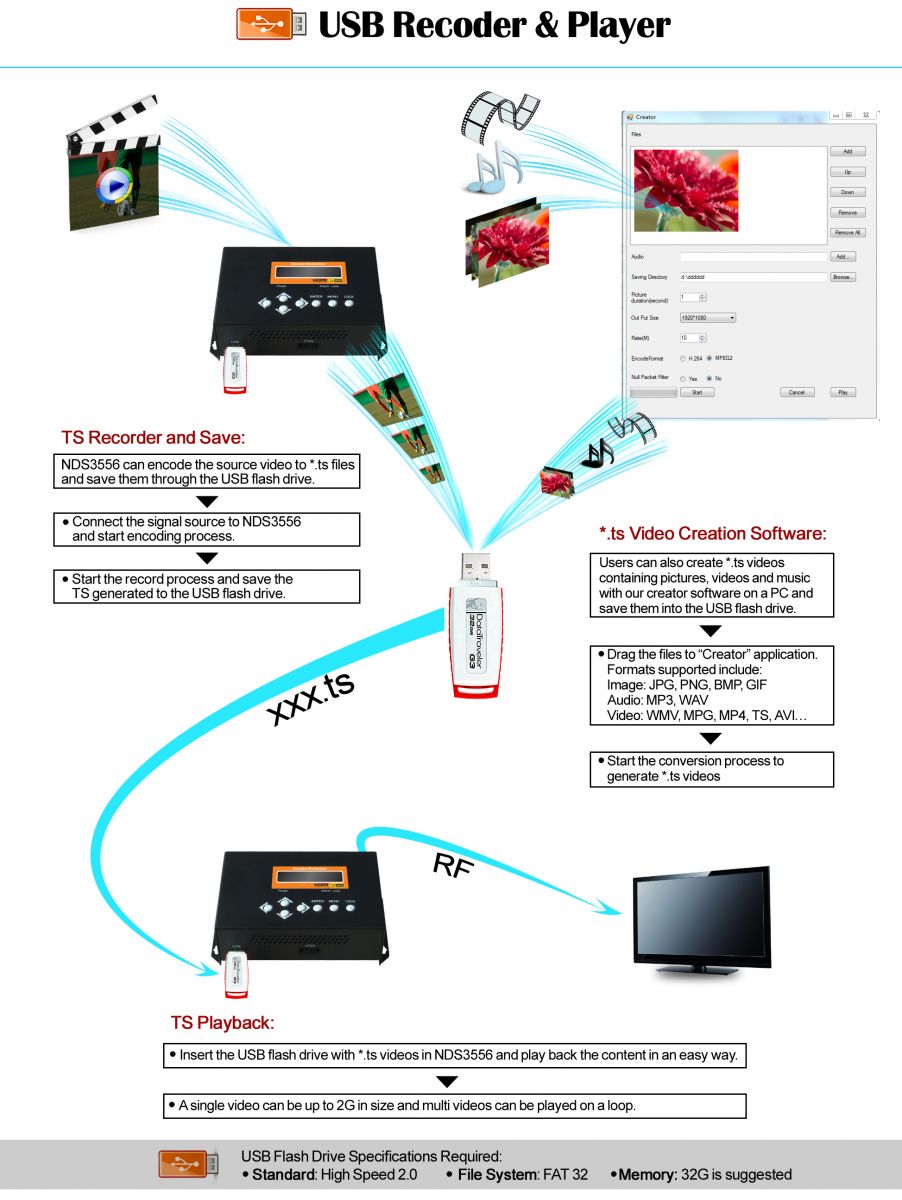

Record TS to USB memory |
Yes |
No |
|
*.ts files play-mode supported |
Both Multi/Single files loop Support HD&SD video play |
Single file loop Support only SD video play |
|
TS Creator.exe |
HD video to HD video transform Null Packet Filter, effect bit rate up to 90% Support output video size, rate, and format control |
HD video to SD video downscale No Null Packet Filter, effect bit rate only around 50% |
|
Single video length |
2-3 Hours HD/SD |
40 Minutes SD |
|
Modulation dynamic switching |
DVB-C/T/S/S2/ASTC modulation in one device |
No |
