Key Features
* MPEG2 HD/SD & MPEG4 AVC H.264 HD/SD video encoding
* MPEG4-AAC; MPEG2-AAC; MPEG1 Layer Ⅱaudio encoding
* 1* channel in (portable case); 2* channels in (19” rack case)
* 1*ASI in for re-mux; 1*RF in for RF mix
* ISDB-T RF out; ASI out; IP out
* LCN (Logical Channel Number) support
* Excellent modulation quality
* Modular design, pluggable encoding modules
*LCD display, Remote control and firmware
* Web NMS management; Updates via web
* Lowest cost per channel
Product Overview

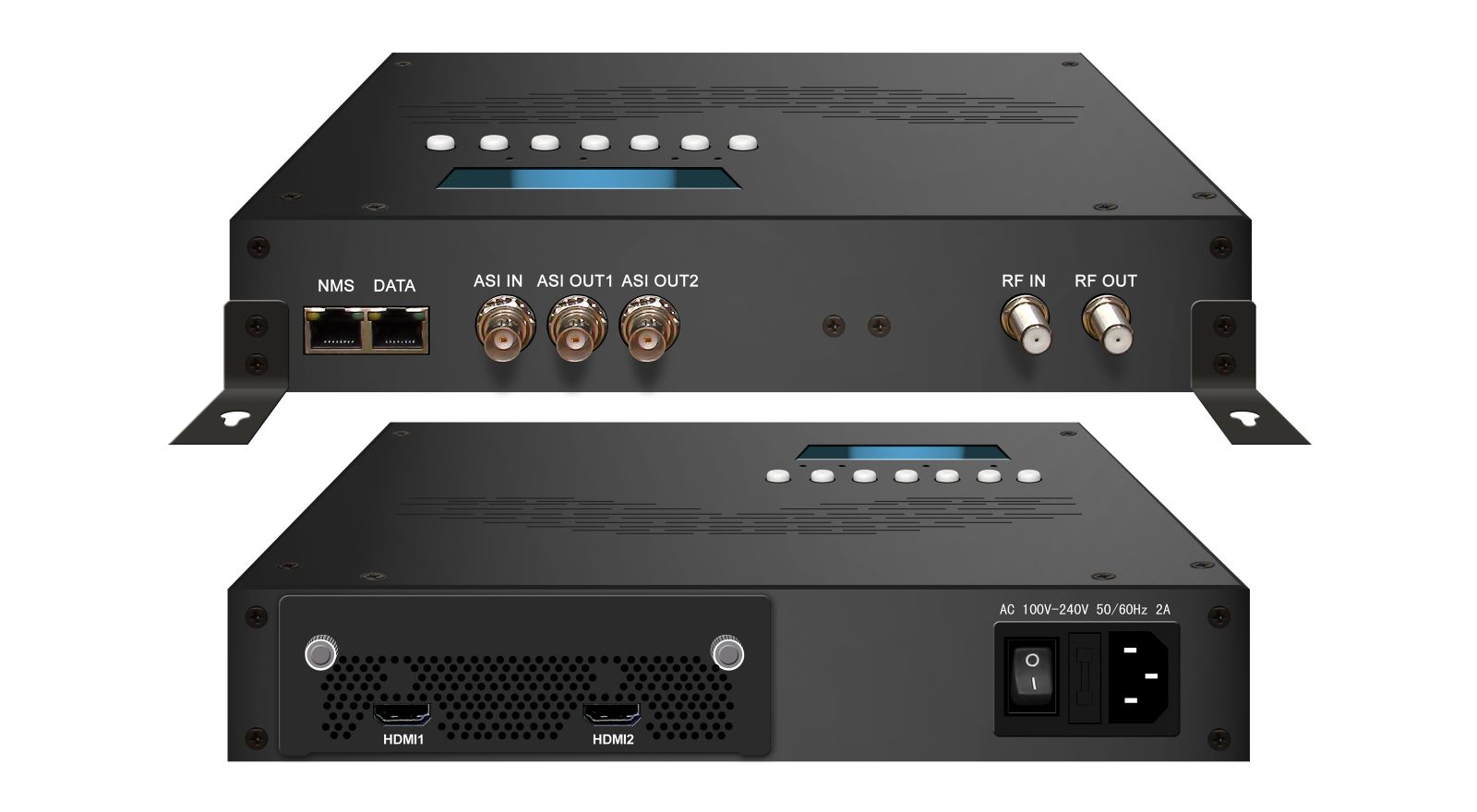

Xielide XLD3542 series products are Xielide’s all-in-one devices which integrate encoding and modulating to convert V/A signals to digital RF output.
It adopts inner drawer-type structural design which greatly facilitates the change of encoding modules (HDMI/SDI/YPbPr/CVBS…) as needed. To meet customers’ various requirements, XLD3542 is also equipped with 1 ASI input, and output with 2 ASI ports and 1 UDP IP port.
The signals source could be from satellite receivers, closed-circuit television cameras, Blue-ray players, and antenna etc. Its output signals are to be received by ISDB-T TVs, ISDB-T STBs and etc.
With its various inputs available, our XLD3542 series products are wildly used in public places such as metro, market hall, theatre, hotels, restaurants and etc for advertising, monitoring, training and educating. It’s a good choice to offer HD channels.
Principle Chart
/3EEECN_20130810090401.jpg)
Encoding Modules Available and Encoding Specifications
/3EEECN_20130810090412.jpg)
/3EEECN_20130813024135.jpg)
/3EEECN_20130810090441.jpg)
/3EEECN_20130810090854.jpg)

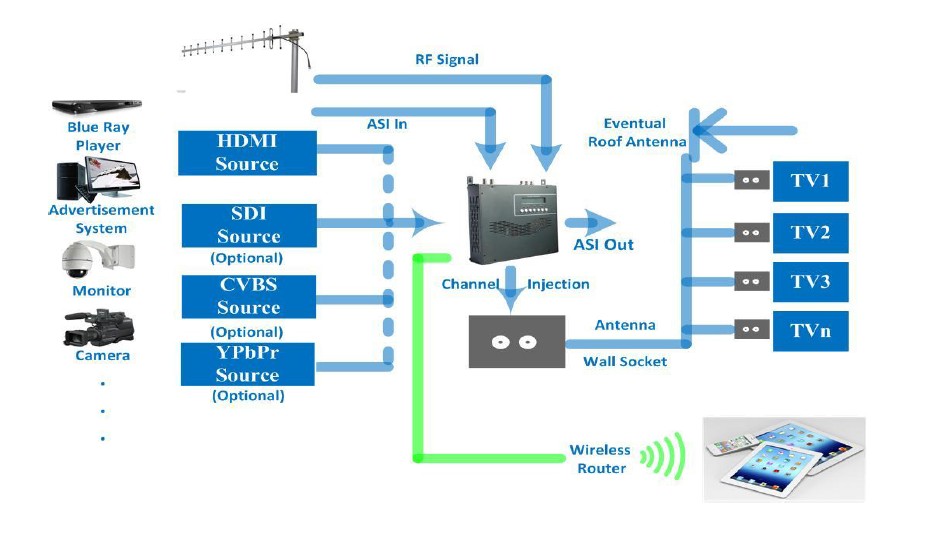

Applications
/3EEECN_20130810090453.jpg)
