Product Overview

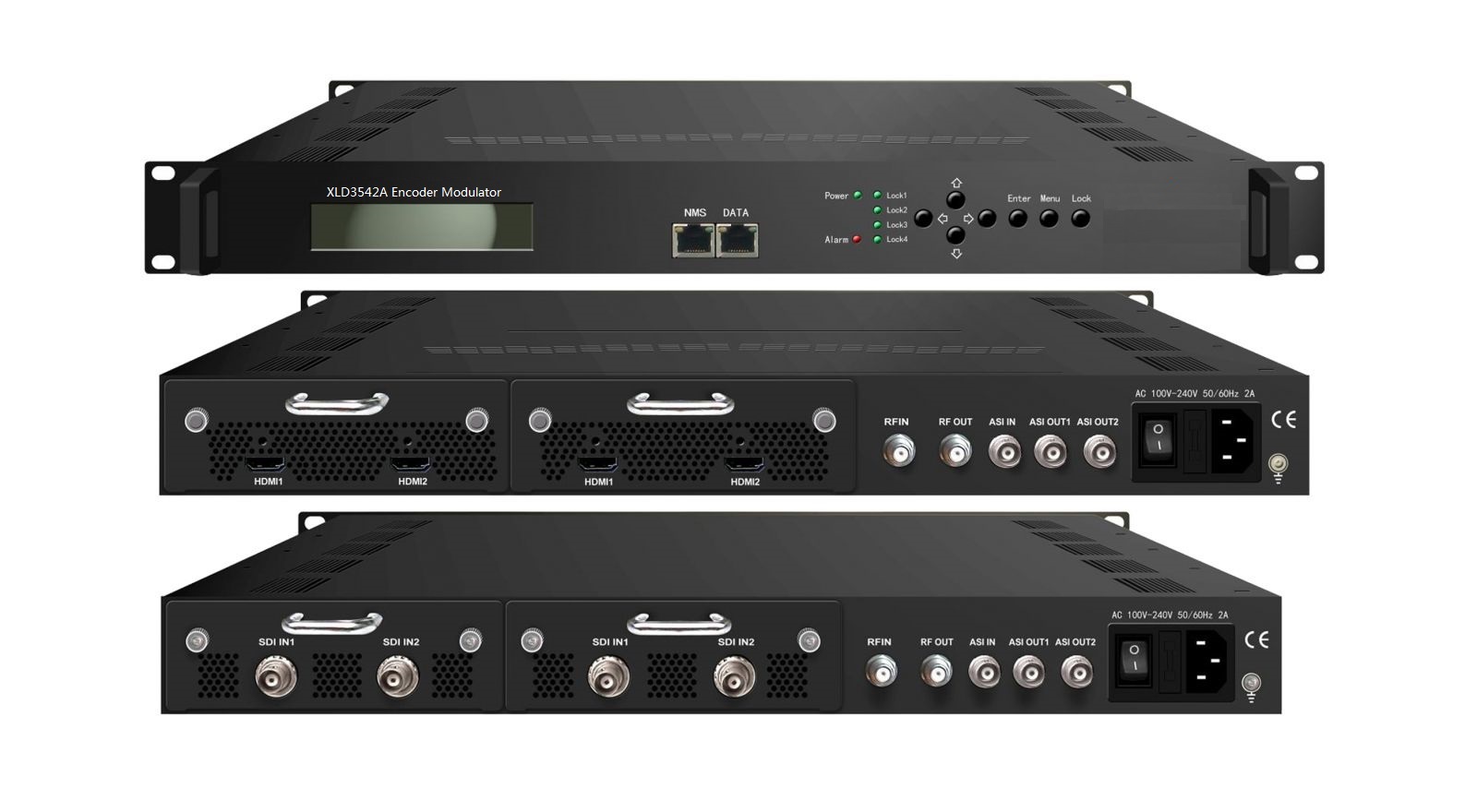

XLD3542A series products are Xielide’s new breakthrough all-in-one devices which integrate encoding (MPEG-2 HD, MPEG-4/AVC H.264) and modulating to convert V/A signals into DVB-C/DVB-T/ATSC-T/ISDB-T RF output. It has equipped with 4 HDMI channels input and 1 ASI input and output with 2 ASI ports and 1 IP (4*SPTS or 1 MPTS) over UDP, RTP/RTSP through data port.
It adopts inner drawer-type structural design which greatly facilitates the change of encoding modules (HDMI/SDI/…) as needed.
The signals source could be from satellite receivers, closed-circuit television cameras, Blue-ray players, and antenna etc. Its output signals are to be received by TVs or STBs and etc.
With its various inputs available, our NDS3542A series products are wildly used in public places such as metro, market hall, theatre, hotels, resorts, and etc for advertising, monitoring, training and educating in company, schools, campuses, hospital… It’s a good choice to offer HD channels and more.
Key Features
* MPEG2 & MPEG4 AVC/H.264 HD/SD encoding
* Huge video buffer (for SDI interface), free to switch video sources
* MPEG1 Layer II, MPEG2-AAC, MPEG4-AAC, AC3 2.0 (Optional) audio encoding
* Up to 1920*1080@50P/60P supported (MPEG4 AVC/H.264)
* Up to 1920*1080@50I/60I supported (MPEG2 HD)
* 4* HDMI/SDI input
* 1*ASI input for re-mux; 1*RF input for mix
* Support CC (closed caption ) for SDI interface (Optional)
* Simultaneously encoding each channel more than 10Mbps
* DVB-C/DVB-T/ATSC-T/ISDB-T RF out
* Support EAS control for DVB-C and ATSC---Optional
* Support 1 IP (4 * SPTS or 1 MPTS) output over UDP, RTP/RTSP protocol
* Extremely low delay
* LCN support (Logical Channel Number)
* Excellent modulation quality MER≥42dB
* RF Frequency range 30Mhz~960Mhz
* LCD display, Remote control and firmware
* Web NMS management; Updates via web
* Lowest cost per channel
Principle Chart
Specifications
|
Encoding Section Video |
|
|
|
Encoding |
MPEG2, MPEG4 AVC/H.264 |
|
|
Input |
HDMI*4 (or SDI*4) |
|
|
Resolution |
1920*1080_60P, 1920*1080_50P, (-for MPEG4 AVC/H.264 only) 1920*1080_60i, 1920*1080_50i,1280*720_60p, 1280*720_50P 720*480_60i, 720*576_50i |
|
|
Low delay |
Normal, mode 1 mode 2 |
|
Audio
|
encoding |
MPEG1 Layer II, MPEG2-AAC, MPEG4-AAC, AC3 2.0(Optional) |
|
Sample rate |
48KHz |
|
Bit rate |
64kbps, 96kbps,128kbps, 192kbps, 256kbps, 320kbps |
Modulator Section
DVB-C
|
Standard |
J.83A , J.83B, J.83C |
|
|
MER |
≥42dB |
|
|
RF frequency |
4 carriers combined output;30~960MHz, 1KHz step |
|
|
RF output level |
-30~ -10dbm(77~97 dbµV), 0.1db step |
|
|
Symbol rate |
5.000~9.000Msps adjustable |
|
|
J.83A |
|
|
|
Constellation |
16/32/64/128/256QAM |
|
|
bandwidth |
8M |
|
|
J.83B |
|
|
|
Constellation |
64QAM/ 256QAM |
|
|
bandwidth |
6M |
|
|
J.83C |
|
|
|
Constellation |
64QAM/ 256QAM |
|
|
bandwidth |
6M |
|
|
|
DVB-T |
|
|
|
Standard |
EN300744 |
|
|
Bandwidth |
6M, 7M, 8M |
|
|
Constellation |
QPSK, 16QAM, 64QAM, |
|
|
Code rate |
1/2, 2/3, 3/4, 5/6, 7/8. |
|
|
Guard Interval |
1/32, 1/16, 1/8, 1/4 |
|
|
Transmission Mode: |
2K, 8K |
|
|
MER |
≥42dB |
|
|
RF frequency |
2 carriers combined output; 30~960MHz, 1KHz step |
|
|
RF Out |
COFDM DVB-T out |
|
|
RF output level |
-30~ -10dbm (77~97 dbµV), 0.1db step |
|
|
ATSC |
|
|
|
Standard |
ATSC A/53 |
|
|
MER |
≥42dB |
|
|
RF frequency |
4 carriers combined output; 30~960MHz, 1KHz step |
|
|
RF output level |
-26~-10dbm (81~97dbµV), 0.1db step |
|
|
Constellation |
8VSB |
|
|
ISDB-T |
|
|
|
Standard |
ARIB STD-B31 |
|
|
Bandwidth |
6M |
|
|
Constellation |
DQPSK,QPSK, 16QAM, 64QAM |
|
|
Guard Interval |
1/32, 1/16, 1/8, 1/4 |
|
|
Transmission Mode |
2K, 4K, 8K |
|
|
MER |
≥42dB |
|
|
RF frequency |
1/2 carriers combined output; 30~960MHz, 1KHz step |
|
|
RF output level |
-30~ -10dbm (77~97 dbµV), 0.1db step |
System
|
Local interface |
LCD + control buttons |
|
Remote management |
Web NMS |
|
output |
ASI out (BNC type); |
|
|
1 IP (4*SPTS or 1 MPTS) out over UDP, RTP/RTSP (RJ45, 100M) |
|
NMS interface |
RJ45, 100M |
|
Language |
English |
General
|
Power supply |
AC 100V~240V |
|
Dimensions |
420*400*44mm |
|
Weight |
4.5 kgs |
|
Operation temperature |
0~45℃ |
Internal Test Report of Latency
The values cover the progress from Encoding → Decoding
|
Decoding Terminal |
Encoding Details |
Average Latency (ms) |
||||
|
Resolution |
Encoding Bit Rate |
Low Latency Mode |
Signal Source |
Encoding Type |
||
|
DVB-C HD STB |
1080i@50 |
14M |
MODE 1 |
HDMI |
mpeg2 |
170 |
|
H.264 |
347.5 |
|||||
|
SDI |
mpeg2 |
227.5 |
||||
|
H.264 |
367.5 |
|||||
|
MODE 2 |
HDMI |
mpeg2 |
222.5 |
|||
|
H.264 |
395 |
|||||
|
SDI |
mpeg2 |
240 |
||||
|
H.264 |
397.5 |
|||||
|
DVB-C HD STB |
720p@50 |
14M |
MODE 1 |
HDMI |
mpeg2 |
85.75 |
|
H.264 |
237.5 |
|||||
|
SDI |
mpeg2 |
127.5 |
||||
|
H.264 |
295 |
|||||
|
MODE 2 |
HDMI |
mpeg2 |
182.5 |
|||
|
H.264 |
277.5 |
|||||
|
SDI |
mpeg2 |
167.5 |
||||
|
H.264 |
325 |
|||||
|
DVB-C HD STB |
576i@50 |
14M |
MODE 1 |
HDMI |
mpeg2 |
310 |
|
H.264 |
600 |
|||||
|
SDI |
mpeg2 |
330 |
||||
|
H.264 |
620 |
|||||
|
MODE 2 |
HDMI |
mpeg2 |
270 |
|||
|
H.264 |
610 |
|||||
|
SDI |
mpeg2 |
280 |
||||
|
H.264 |
620 |
|||||
Technical Comparison
|
|
XLD3542A |
XLD3542I |
XLD3524C |
|
Chipset |
Vixs |
Hisilicon |
VATek |
|
Stream Input |
1*ASI input for re-mux |
1 DVB-C tuner |
N/A |
|
IP Input |
N/A |
128*IP |
N/A |
|
Video Channel |
4* HDMI/SDI input optional |
4/8/12*HDMI input optional |
4/8*HDMI input optional |
|
Video Encode |
MPEG2 & MPEG4 AVC/H.264 |
MPEG-4 AVC/H.264 |
MPEG2 |
|
Video Bit Rate |
0.8~19Mbps for H.264 encoding 1~19Mbps for MPEG-2 encoding |
1Mbps~13Mbps each channel (Bit rate is with a high fluctuation, suitable for cable system, not suitable for satellite uplink) |
2~20Mbps each channel |
|
Resolution |
Up to 1920*1080@50P/60P (MPEG4 AVC/H.264) Up to 1920*1080@50I/60I (MPEG2 HD) |
Up to 1920*1080@50P/60P
|
Up to 1920*1080@50P/60P |
|
Audio Encode |
MPEG1 Layer 2, MPEG2-AAC, MPEG4-AAC, AC3 2.0 (Optional) |
MPEG-1 Layer 2 |
MPEGI layer 2, MPEG2-AAC, AC3 |
|
Audio Gain |
N/A |
Yes |
N/A |
|
OSD Function |
N/A |
Yes |
N/A |
|
CC Input |
CC (Closed Caption)for SDI interface (Optional), EIA608, EIA708 |
N/A |
CC (Closed Caption), EIA 608 |
|
Low Latency |
Yes |
N/A |
Yes |
|
ASI output |
Yes |
N/A |
N/A |
|
IP output |
4 SPTS or 1 MPTS output |
4 MPTS IP output |
N/A |
|
Modulating |
4*DVB-C/2* DVB-T/4*ATSC-T /1/2*ISDB-T RF out |
4*DVB-C/DVB-T RF out |
4/8*DVB-C/T/ATSC/ISDB-T RF out in one device, Modulation dynamic switching |
|
RF Frequency |
30~960MHz, 1KHz step |
50~960MHz, 1KHz step |
100-1000MHz, 1KHz step |
