Product Introduction

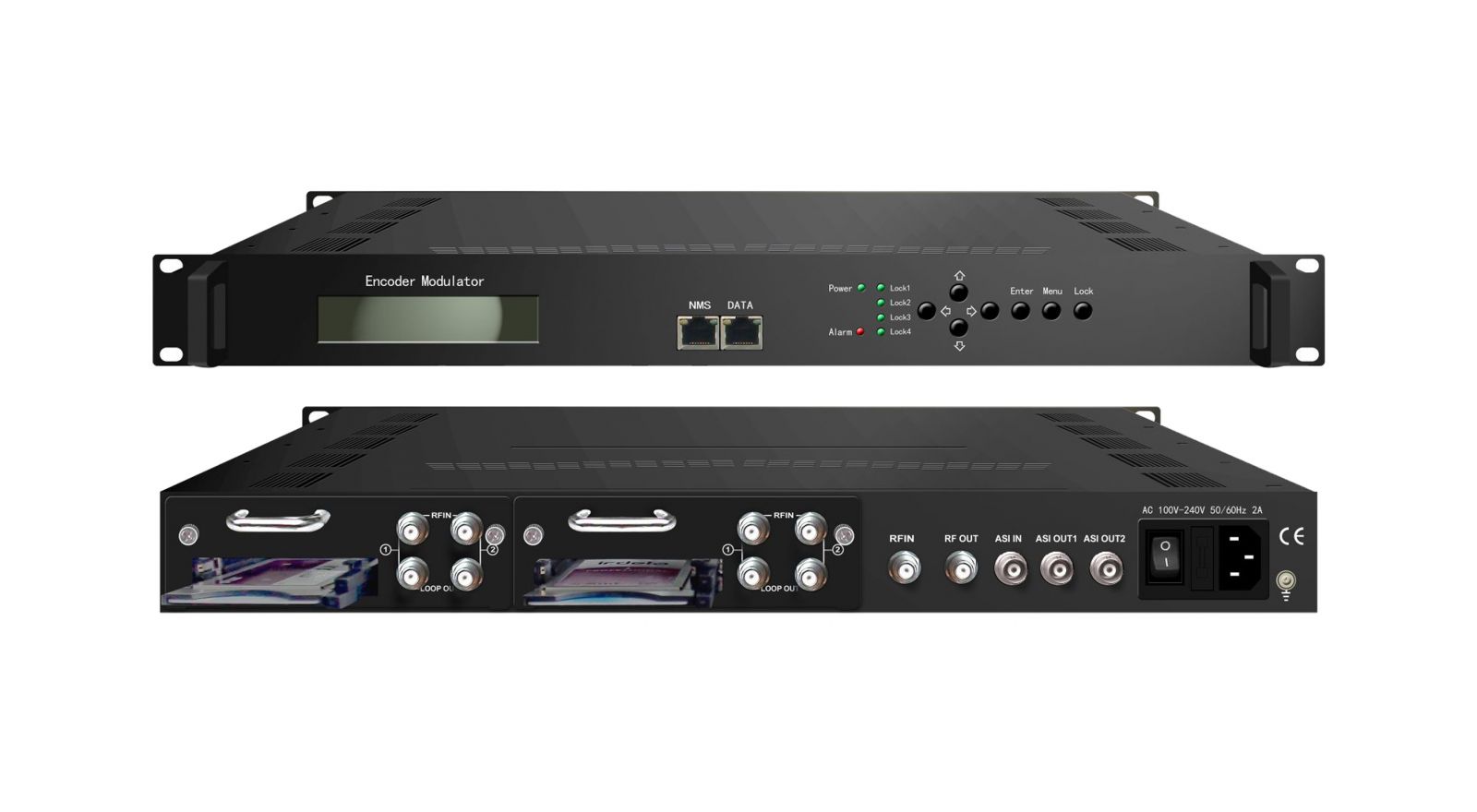

XLD3542 trans-modulator is Xielide’s all-in-one device which integrates demodulation, trans-mux and modulation (DVB-C, DVB-T, ISDB-T or ATSC optional) in one case to convert satellite signals into digital RF output. Its pluggable structure design greatly facilitates the change of modules (RF/HDMI/CVBS/SDI/YPbPr/…) as needed. The unit in this sheet is a 1-U case which supports 4 DVB-S/S2 RF inputs with 4 CAMs/CI accompanied to descramble the encrypted satellite signals. The CAM requires NO unsightly external power cords, cables, or additional remote control device.
To meet customers’ various requirements, NDS3542 is also equipped with 1 ASI input, and output with 2 ASI ports and 1 UDP IP port.
The output modulated signals are to be received by TVs, STB and etc with corresponding standard
Key features
* Demodulation + modulation + mixer modules in one box
* 2*2 QPSK S/S2 Tuner inputs
* 2*2 CAM with 2*2 CI-slot, one CAM can decrypt multiple programs
* ASI in/out with re-mux
* 1 IP (MPTS) output
* RF mixed in, RF mixed out (1*DVB-T /2*DVB-T/1*DVB-C/4*DVB-C Optional )
* LCN support (Logical Channel Number)
* Excellent modulation quality: MER≥42dB
* LCD display, Remote control and Firmware, web NMS management
* Updates via web
* Best quality and breakthrough price
1*Module = 2*RF/Loop out + 2*CAM + 2*Smartcard
Principle Chart
Technical Specifications
Input
|
4xDVB-S/S2 RF (HDMI/SDI/ YPbPr/CVBS /… optional) |
|
1×ASI input for re-mux, BNC interface |
|
1×RF input for combiner |
Tuner Section
QPSK-S
|
Input Frequency |
950-2150MHz |
|
|
Symbol rate |
2-45Msps |
|
|
Signal Strength |
- 65- -25dBm |
|
|
FEC Demodulation |
1/2, 2/3, 3/4, 5/6, 7/8 QPSK |
|
|
QPSK-S2 |
||
|
Input Frequency |
950-2150MHz |
|
|
Symbol rate |
2-45Msps |
|
|
Code rate |
1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 |
|
|
Input Impedance |
75Ω |
|
|
Demodulation Mode |
QPSK, 8PSK |
|
|
Frequency Stepping |
500 KHz |
|
DVB-T Modulator Section
|
Standard |
EN300744 |
|
FFT mode |
2K, 8K |
|
Bandwidth |
6M, 7M, 8M |
|
Constellation |
QPSK, 16QAM, 64QAM |
|
Guard Interval |
1/4, 1/8, 1/16, 1/32 |
|
FEC |
1/2, 2/3, 3/4, 5/6, 7/8 |
|
MER |
≥42dB |
|
RF frequency |
30~960MHz, 1KHz step |
|
RF out |
COFDM DVB-T out (1 or 2 carriers combined out optional) |
|
RF output level |
-30~ -10dbm (81~97 dbµV), 0.1db step |
DVB-C Modulator Section
|
Standard |
J.83A , J.83B, J.83C |
|
MER |
≥42dB |
|
RF frequency |
30~960MHz, 1KHz step; (1 or 4 carriers combined out optional) |
|
RF output level |
-30~ -10dbm(81~97 dbµV), 0.1db step |
|
Symbol rate |
5.000~9.000Msps adjustable |
|
J.83A |
|
|
Constellation |
16/32/64/128/256QAM |
|
bandwidth |
8M |
|
J.83B |
|
|
Constellation |
64QAM/ 256QAM |
|
bandwidth |
6M |
|
J.83C |
|
|
Constellation |
64QAM/ 256QAM |
|
bandwidth |
6M |
Stream Output
|
1*RF (1 or 2 carriers combined out) |
|
2×ASI outputs, BNC interface |
|
MPTS over UDP, 10/100Base-T Ethernet interface (UDP unicast / multicast) |
Interface
|
Local interface |
LCD + control buttons |
|
Remote management |
Web NMS Management |
|
Language |
English |
General
|
Power supply |
AC 100V~240V |
|
Dimensions |
482*300*44.5mm |
|
Weight |
4 kgs |
|
Operation temperature |
0~45℃ |
