Product Overview

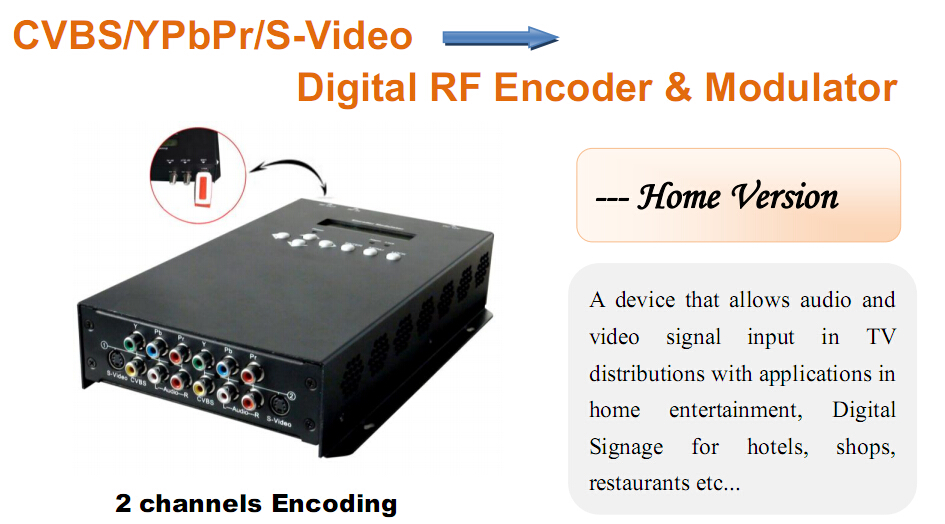

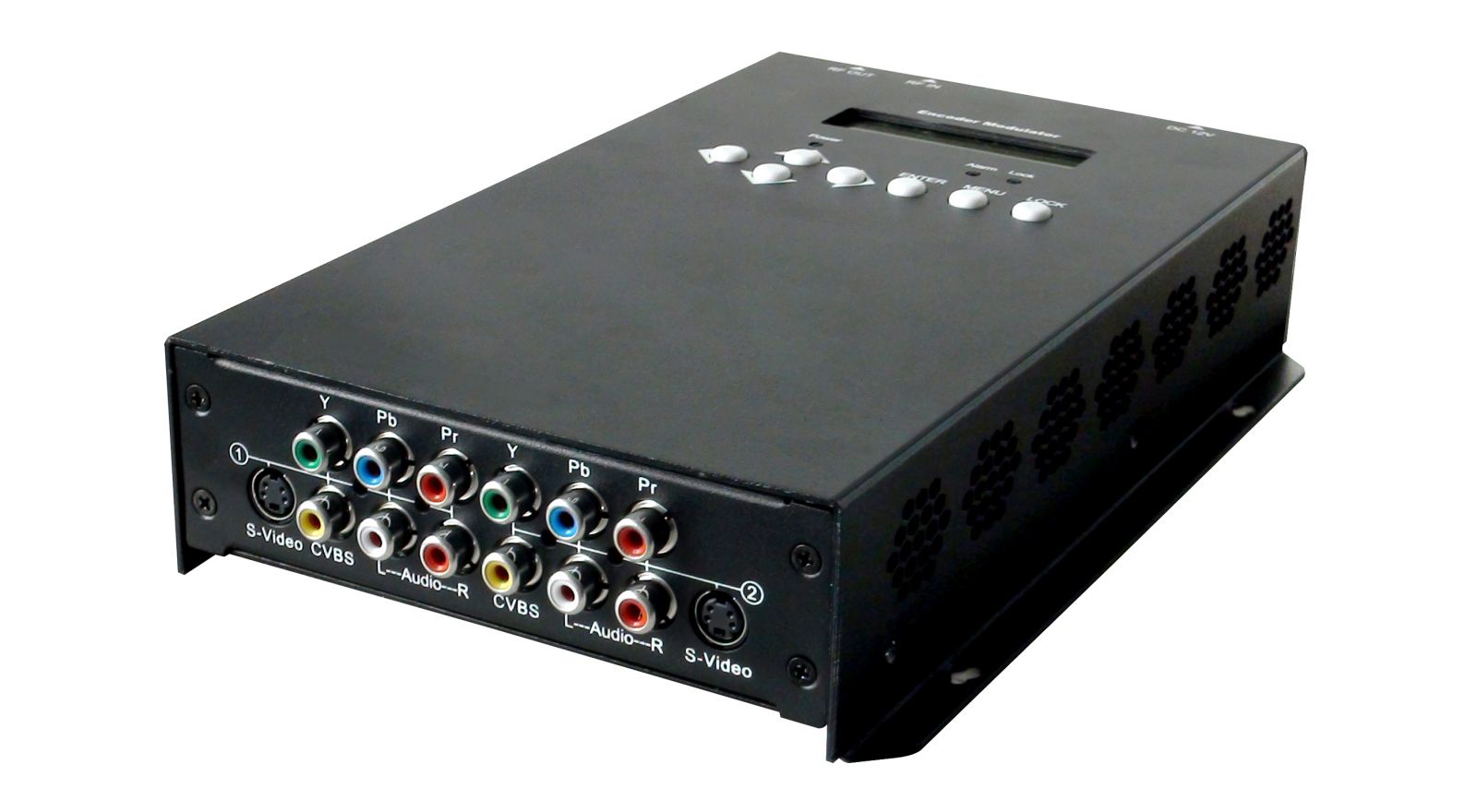

XLD3554 series encoder & modulator is Xielide’s consumer electronics which allow audio/video signal input in TV distributions with applications in home entertainment, hotel Digital Signage, shops etc.
It is an all-in-one device integrating MPEG2 encoding and DVB-T/C/DTMB/ATSC/ISDB-T modulating to convert video/audio signals to Digital RF out in the frequency range of 30~960MHz.
The signals source could be from satellite receivers, closed-circuit television cameras, Blue-ray players, and antenna etc. Its output signal is to be received by a DVB-T/C/DTMB/ATSC/ISDB-T standard TV or DVB-T/C/DTMB/ATSC/ISDB-T STB and etc.

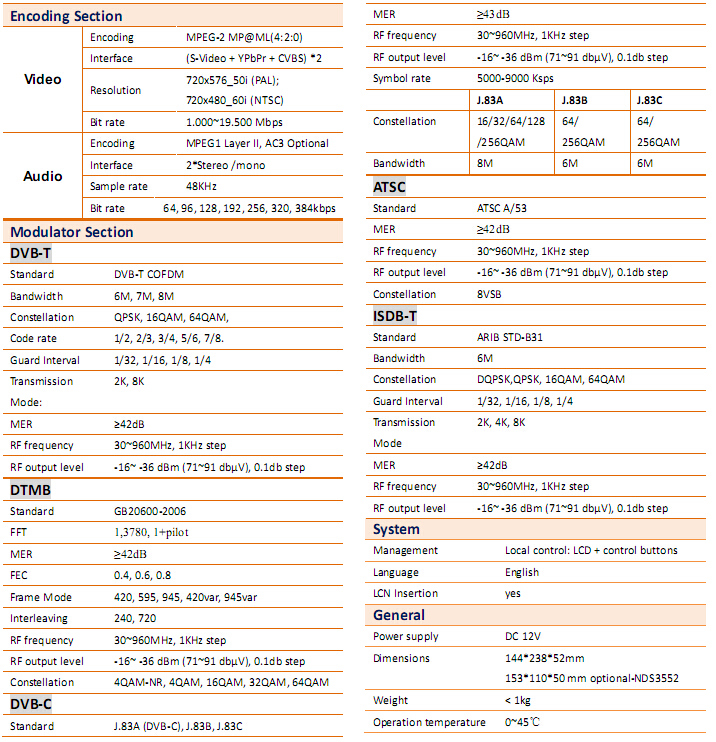

Technical Specifications

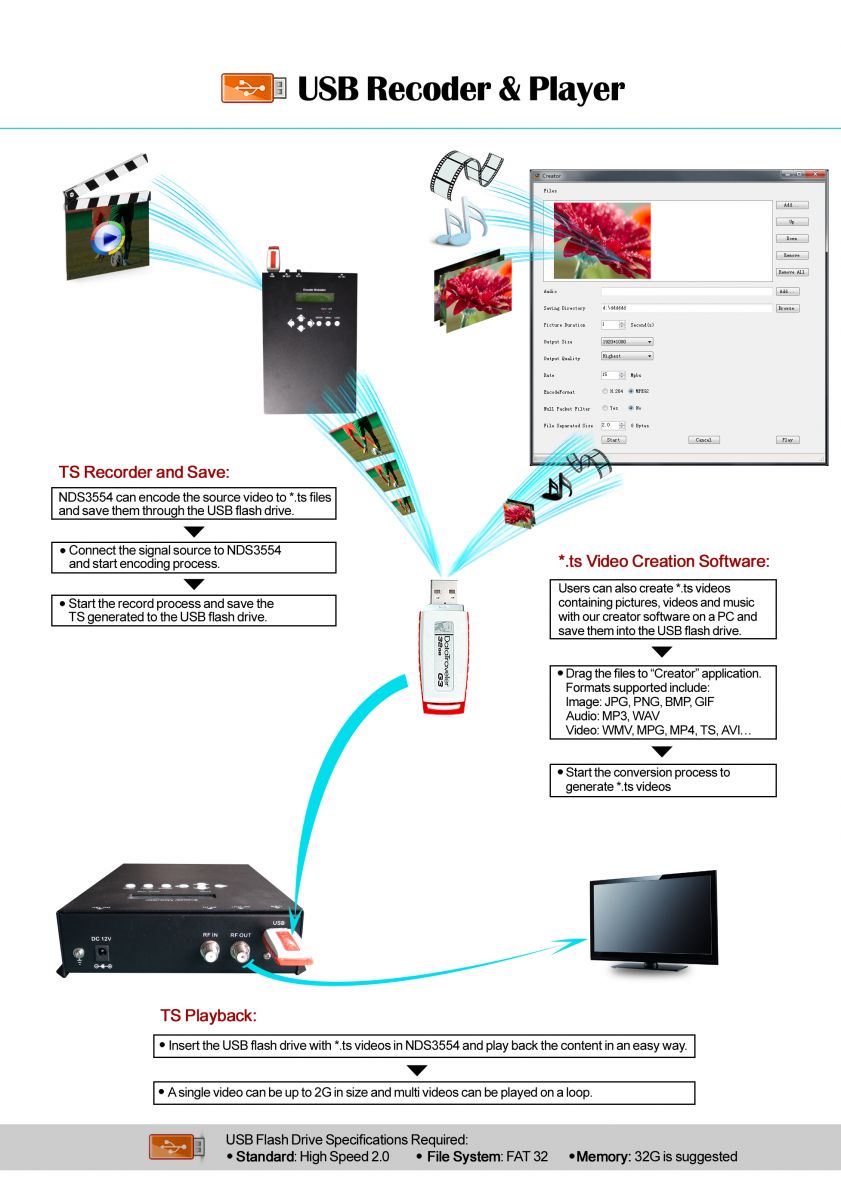

TS Creator.exe Download link:
http://pan.baidu.com/s/1c0vOMY0
Download path: English→Tool→TS Creator xxx.rar

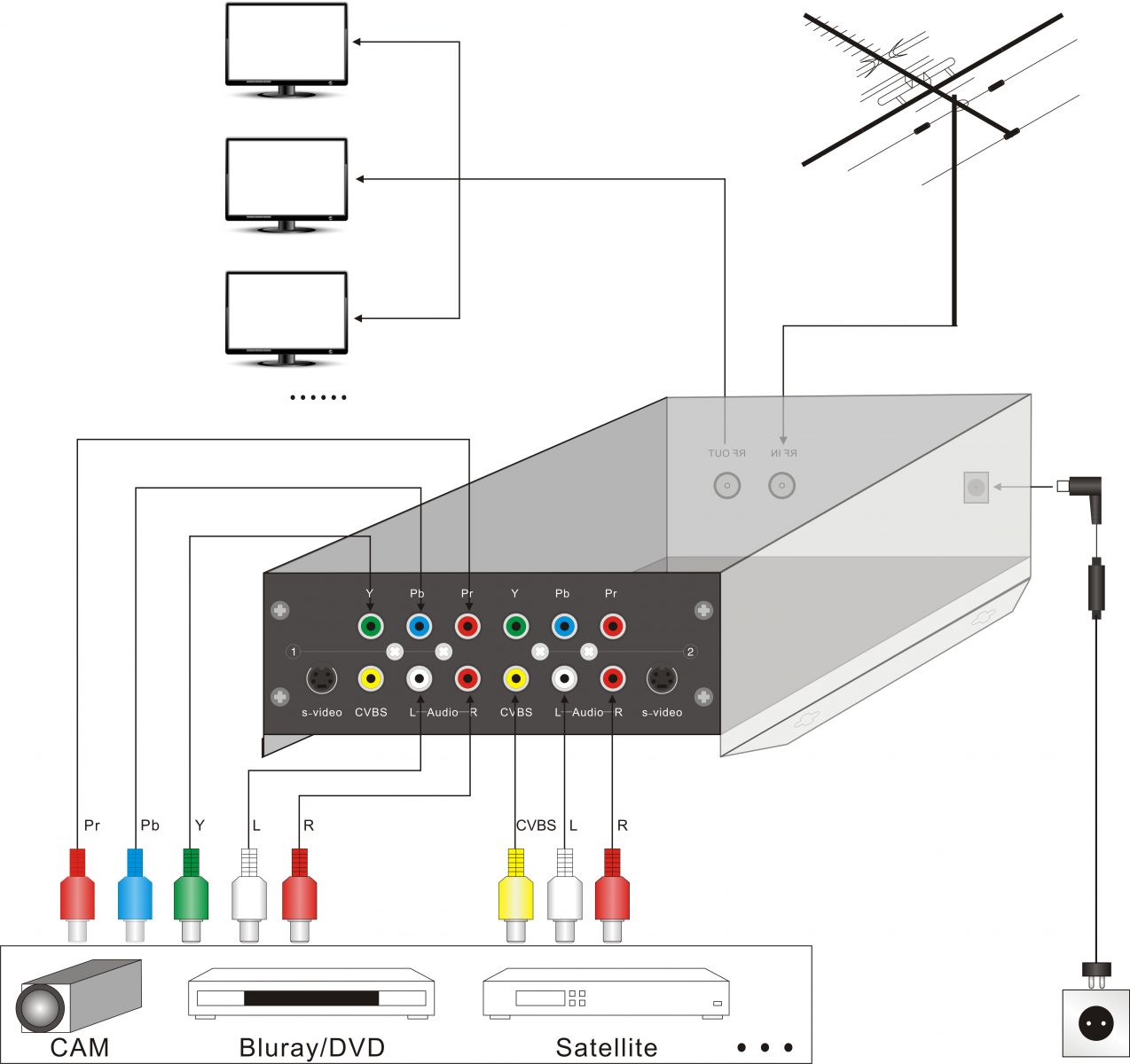

System Connections
