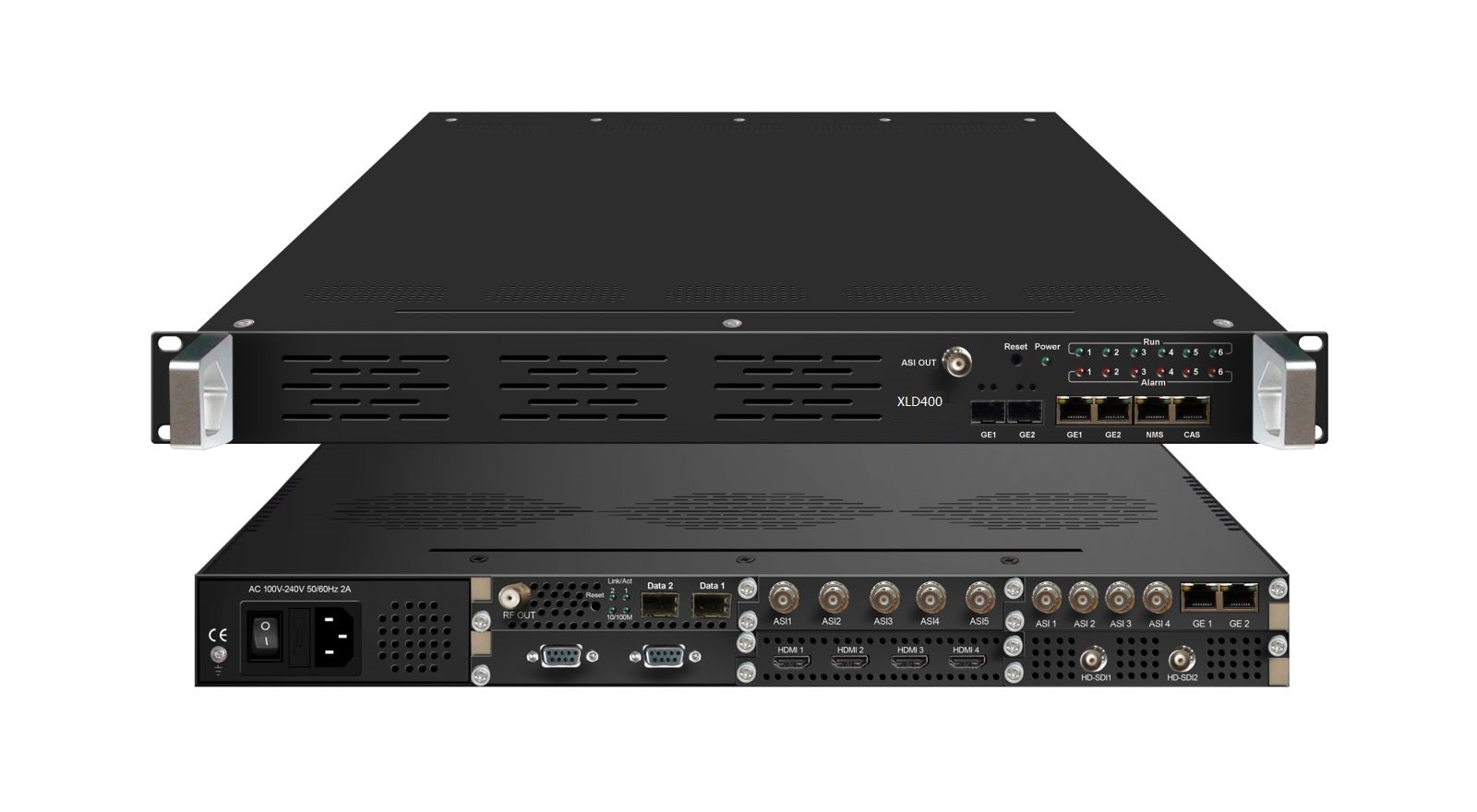

XLD400 DTV head-end processor is the new generation of intelligent headend processing equipment. This 1-U case comes with 6 independent module slots. Each module can be configured individually based on the applications including encoding, decoding, trans-coding, multiplexing, descrambling and modulating processing and the combination of all these functions. It supports multiple input and output interfaces and signal formats. With its powerful performance and low cost, DHP400 is especially adequate for the new generation CATV system.
* Support up to 6 modules
* Support 1 ASI output (Copy as MPTS2 through front panel GE2)
* Support 2 GE output, 512 SPTS (UDP, RTSP/RTP) output from GE1,
8 MPTS (UDP,RTP) output from GE2, Unicast/Multicast, RJ45/SFP interface
* Support Web management, Updates via web
* Redundancy Power Supply (Optional)
Two options for redundancy power supply:
Non-Hot Plugging (option 1)
Support Hot Plugging (option 2)
Module Specifications:
ASI inputs/outputs: 4 ASI bi-direction, BNC 75Ω
IP inputs/outputs: 2 Ethernet Port(100/1000M)
Stream connector input
Re-multiplexing: PID remapping, PCR correction, generate PSI/ SI table automatically
Stream In: maximum 4 ASI input, 256×2 IP input
Stream Out: maximum 4 ASI output, 4 IP output
4/8 CH EAS Multiplexing Module (DX504E/DX508E)
DX504E/DX508E Module Specifications:
ASI input: ASI1 input (SPTS), BNC 75Ω
IP input: 256 IP input thru 1 GE1 (100/1000M)
EAS Source: ASI1 or IP (the 256th IP) (ASI&IP should be SPTS, both can’t mux, source Bitrate≤10Mbps)
Re-multiplexing: PID remapping, PCR correction (only for IP), generate PSI/ SI table automatically
Stream Out: 4 IP output thru GE1, maximum 16 programs each channel--DX504E
Stream Out: 8 IP output thru GE1, maximum 8 programs each channel--DX508E
Module Specifications:
ASI inputs/outputs: 5 ASI bi-direction, BNC 75Ω
Stream connector input
Stream in: maximum 5 ASI input
Re-multiplexing: PID remapping, PCR correction, generate PSI/ SI table automatically
Stream out: maximum 5 ASI output
IP Multiplexing Module (DX506)
Module Specifications:
IP input: 512 SPTS or MPTS input over UDP, RTP, Unicast and Multicast thru GE1 Ethernet Port(100/1000M)
Re-multiplexing: PID remapping, PCR correction, generate PSI/ SI table automatically
Stream Out: 512 SPTS output over UDP, RTP, Unicast and Multicast thru GE2 Ethernet Port(100/1000M)

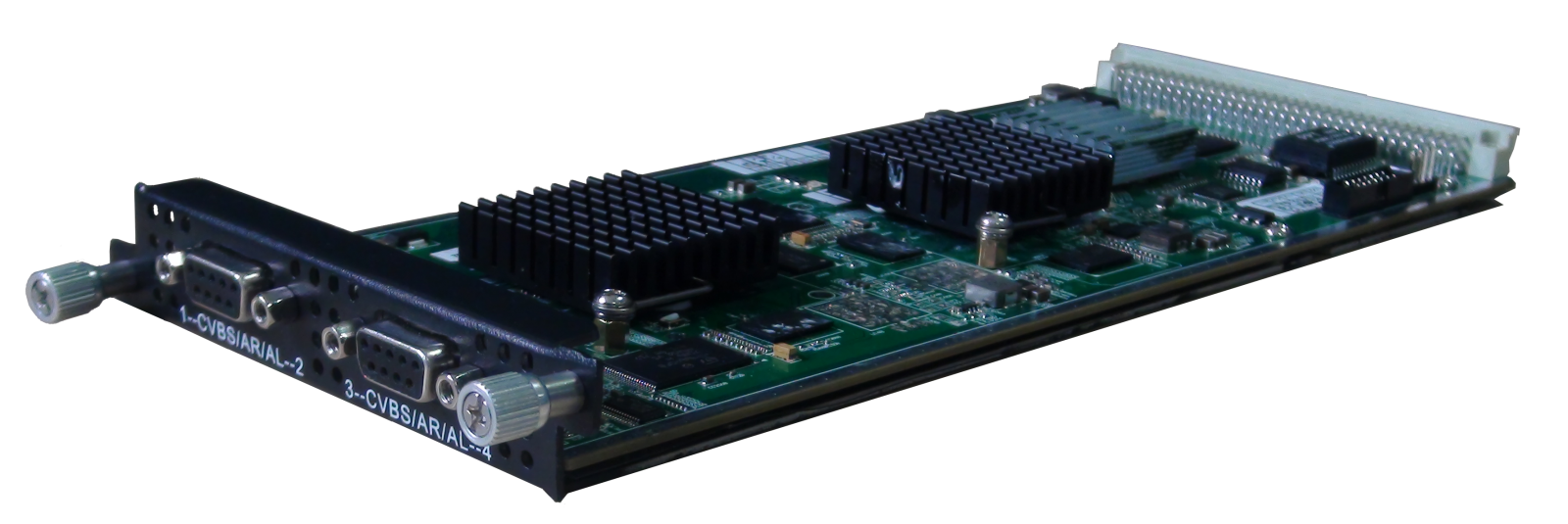

Module Specifications:
Input: 4 CVBS video, 4 Stereo Audio (DB9 to RCA)
Video Encoding:
Video format: MPEG-2 (4:2:0)
Image format: PAL, NTSC SD signal
Input resolution: 720×480_60i, 544×480_60i, 352×480_60i, 352×240_60i,
320×240_60i, 176×240_60i, 176×120_60i, 720×576_50i,
704×576_50i, 640×576_50i, 352×288_50i, 320×288_50i,
176×288_50i, 176×144_50i
GOP structure: IP, IBP, IBBP, IBBBP
Video bitrate: 0.5Mbps~8Mbps per channel
Support CC (closed caption)
Audio Encoding:
Audio format: MPEG-1 Layer 2, DD AC3 (2.0)
Sampling rate: 48KHz
Resolution: 24-bit
Audio bitrate:128/192/256/320/384kbps each channel
Support Logo, Caption, QR Code insertion (for DX214A only)
(Language Supported: 中文, English, اردو, for more languages please consult us…)
Module Specifications:
Input: 4 CVBS video, 4 Stereo Audio (DB9 to RCA)
Video Encoding:
Video format: MPEG-2, MPEG4 AVC/H.264
Image format: PAL, NTSC SD signal
Resolution:
PAL:720*576/352*288/320*240/320*180/176*144/160*120/160*90@50Hz
NTSC: 720*480/352*288/320*240/320*180/176*144/160*120/160*90@59.94Hz
Rate Control: CBR/VBR
GOP structure: IBBPB
Video bitrate: 0.5~5Mbps
Audio Encoding:
Audio format: MPEG1 Audio Layer 2, LC-AAC, HE-AAC V2
Sampling rate: 48KHz
Resolution: 24-bit
Bit-rate: 48-384Kbps each channel
Support Logo, Caption, QR Code insertion
(Language Supported: 中文, English, اردو, for more languages please consult us…)
8 CVBS Encoding Module(DX218S)
Module Specifications:
Input: 8 CVBS video, 8 Stereo Audio (DB15 to RCA)
Video Encoding:
Video format: MPEG4 AVC/H.264
Image format: PAL, NTSC SD signal
Resolution: 720×576i, 720×480i
Rate Control: CBR/VBR
GOP structure: IPP
Video bitrate: 1~7Mbps each channel
Audio Encoding:
Audio format: MPEG-1 Layer 2
Sampling rate: 48KHz
Resolution: 24-bit
Bit-rate: 64/128/192/224/256/320/384Kbps each channel
Support Logo, Caption, QR Code insertion
(Language Supported: 中文, English, اردو, for more languages please consult us…)
Module Specifications:
Input: 2*HDMI, 2*BNC for CC (Closed Caption) input and stream connector
Video Encoding:
Video format: MPEG2 & MPEG4 AVC/H.264
Input resolution:
1920*1080_60P, 1920*1080_50P, 1920*1080_60i, 1920*1080_50i, 1280*720_60p, 1280*720_50P, 720*480_60i, 720*576_50i
Rate control mode: CBR/VBR
Aspect ratio: 16:9, 4:3
Video bitrate: 0.8~19Mbps for MPEG-2 /H.264 encoding
Support CC (closed caption)
Audio Encoding:
Audio format: MPEG1 Layer II, MPEG2-AAC, MPEG4-AAC,
Dolby Digital AC3 (2.0) encoding (Optional); AC3 (2.0/5.1) passthrough
Sampling rate: 48KHz
Audio bitrate: 64Kbps-320kbps each channel
Video Tanscoding:
2*MPEG2 HD → 2*MPEG2/H.264 HD; 2*MPEG2 HD → 2*MPEG2/H.264 SD;
2* H.264 HD → 2*MPEG2/H.264 HD; 2* H.264 HD → 2*MPEG2/H.264 SD;
4 *MPEG2 SD → 4 *MPEG2/H.264 SD; 4* H.264 SD → 4 *MPEG2/H.264 SD
Audio Tanscoding:
MPEG-1 Layer 2, AC3 (Optional) and AAC any-to-any
Module Specifications:
Input: 2*HD-SDI and stream connector
Video Encoding:
Video format: MPEG2 & MPEG4 AVC/H.264
Input resolution:
1920*1080_60P, 1920*1080_50P, 1920*1080_60i, 1920*1080_50i, 1280*720_60p, 1280*720_50P, 720*480_60i, 720*576_50i
Rate control mode: CBR/VBR
Aspect ratio: 16:9, 4:3
Video bitrate: 0.8~19Mbps for MPEG-2 /H.264 encoding;
Support CC (closed caption)
Audio Encoding:
Audio format:
MPEG1 Layer II, MPEG2-AAC, MPEG4-AAC,
Dolby Digital AC3 (2.0) encoding (Optional), AC3 (2.0/5.1) passthrough
Sampling rate: 48KHz
Audio bitrate: 64Kbps-320kbps each channel
Video Tanscoding:
2*MPEG2 HD → 2*MPEG2/H.264 HD; 2*MPEG2 HD → 2*MPEG2/H.264 SD;
2* H.264 HD → 2*MPEG2/H.264 HD; 2* H.264 HD → 2*MPEG2/H.264 SD;
4 *MPEG2 SD → 4 *MPEG2/H.264 SD; 4* H.264 SD → 4 *MPEG2/H.264 SD
Audio Tanscoding:
MPEG-1 Layer 2, AC3 (Optional) and AAC any-to-any
Module Specifications:
Input: 4*HDMI
Video Encoding:
Video format: MPEG-4 AVC/H.264
Input resolution:
1920×1080_60P, 1920×1080_50P, 1920×1080_60i, 1920×1080_50i,
1280×720_60P, 1280×720_50P, 720×576_50i, 720×480_60i
GOP structure: IBBP
Video bitrate: 0.8Mbps~19Mbps each channel
Rate Control: CBR/VBR
Audio Encoding:
Audio format: MPEG1 Layer II, (MPEG-2 AAC, MPEG-4 AAC Optional), AC3 passthrough
Sampling rate: 48KHz
Resolution: 24-bit
Audio bitrate: 64Kbps~320Kbps each channel
Audio Gain Control: 0-400
4 HDMI Encoding Module(DX224S)
Module Specifications:
Input: 4*HDMI
Video Encoding:
Video format: MPEG-4 AVC/H.264
Input resolution: 1920×1080_60P, 1920×1080_60i, 1920×1080_50P, 1920×1080_50i,1280×720_60P, 1280×720_50P, 720×576_50i, 720×480_60i,
Output resolution: 1920×1080_30P, 1920×1080_25P, 1280×720_30P, 1280×720_25P, 720×576_25P,720×480_30P,
GOP structure: IP…P (P Frame adjustment, without B Frame)
Video Bit-rate: 1Mbps~13Mbps each channel
Rate Control: CBR/VBR
Audio Encoding:
Audio format: MPEG1 Layer II, support audio gain adjustment
Sampling rate: 48 KHz
Resolution: 24-bit
Audio Bit-rate: 64kbps,128Kbps,192kbps,224kbps,256kbps,320kbps,384kbps
Support Logo, Caption, QR Code insertion
(Language Supported: 中文, English, العربية, ไทย,
руская, اردو, for more languages please consult us…)
Module Specifications:
Input: 4×SDI/HDMI (1.4) input, HDCP 1.4
Output: 1 MPTS and maximum 4 SPTS output over UDP/RTP/RTSP
Video Encoding:
Video format: HEVC/H.265 & MPEG 4 AVC/H.264
Resolution:
HDMI-VersionⅠ:
3840×2160_30P, 3840×2160_29.97P;
(Encoding 2 CHs per module for H.265, and encoding 1 CH for H.264)
1920×1080_60P, 1920×1080_59.94P, 1920×1080_50P;
(Encoding 4 CHs per module for H.265, and encoding 2 CHs for H.264)
1280×720_60P, 1280×720_59.94P, 1280×720_50P
(Encoding 4 CHs per module for H.264 and H.265)
HDMI-VersionⅡ/SDI:
1920×1080_60P, 1920×1080_59.94P, 1920×1080_50P;
(Encoding 4 CHs per module for H.265, and encoding 2 CHs for H.264)
1280×720_60P, 1280×720_59.94P, 1280×720_50P
(Encoding 4 CHs per module for H.264 and H.265)
Input: 1920×1080_60i, 1920×1080_59.94i, 1920×1080_50i
Output: 1920×1080_60P, 1920×1080_59.94P, 1920×1080_50P
(Encoding 4 CHs per module for H.265, and encoding 2 CHs for H.264)
Chroma: 4:2:0 Bit rate: 0.5Mbps~20Mbps (each channel)
Rate Control: CBR/VBR GOP structure: IBBP, IPPP
Audio Encoding:
Audio format: MPEG-1 Layer 2, LC-AAC, HE-AAC, HE-AAC V2
Sampling rate: 48KHz
Bit-rate (each channel):
48Kbps~384Kbps (MPEG-1 Layer 2 & LC-AAC)
24 Kbps~128 Kbps (HE-AAC)
18 Kbps~56 Kbps (HE-AAC V2)
Audio Gain: 0~255
Module Specifications:
Input: Stream connector
Resolution: 480i, 576i, 720P@50, 720P@60, 1080i@50, 1080i@60, 1080P@50, 1080P@60
Video Tanscoding:
2*MPEG-2/ H.264/ AVS/AVS+ HD/SD → 2* H.264 HD/SD
Video Bit-rate: 1~19.5Mbps each channel
Rate Mode: CBR/VBR
GOP Struct: IBBP, IPPP, IBP
AudioTanscoding:
MPEG-1 Layer II, LC/HE-AAC, AC3, DRA→ MPEG-1 Layer II, LC/HE-AAC
Audio bitrate: 64/96/128/192/256/320/384Kbps
Audio Gain Control: 0-100
Module Specifications:
Data input: 512×2 IP input over UDP/RTP, 2 GE Ports (RJ45/SFP), Stream connector
Data output: 16 or 32 IP output over UDP/RTP/RTSP, unicast/multicast, 2 GE Ports (RJ45/SFP)
Trans Rate: Max 840Mbps/GE Port
RF output (F type): 16/32 channels of multiplexing, scrambling and modualtion.
Multiplexing:
Maximum PID Remapping: 180 output pids per channel for DX316, 256 output pids per channel for DX332
Function: PID remapping (automatically or manually), Accurate PCR adjusting, generate PSI/SI table automatically
Scrambling:
Maximum simulcrypt CA: 4
Standard: ETR289, ETSI 101 197, ETSI 103 197
Connection: Local/remote connection
Modulation:
Standard: EN300 429/ITU-T J.83A/B (DVB-C)
MER: ≥40dB
RF frequency: 50~960MHz, 1KHz step
RF output level: -20~+10dBm (87~117 dBµV), 0.1dB step for all carriers
Symbol Rate: 5.0Msps~7.0Msps, 1ksps stepping
Constellation: 16/32/64/128/256QAM
DX316 Output: 16 non-adjacent carrier outputs within 192M bandwidth
DX332 Output: 32 non-adjacent carrier outputs within 384M bandwidth
Data input: Stream connector
256 IP input over UDP/RTP, 2GE Ports (RJ45/SFP) —— DX308T
256 IP input over UDP/RTP, 2GE Ports (RJ45/SFP) —— DX308AT
Data output: 8 IP output over UDP/RTP/RTSP, unicast/multicast, 2 GE Ports (RJ45/SFP)
Trans Rate: Max 840Mbps/GE Port
RF Output (F type): 8 non-adjacent carrier outputs within 192M bandwidth
Multiplexing:
Channel Number: 8 multiplexing channels
Maximum PID Remapping: 180 output pids per channel
Function: PID remapping (automatically or manually), Accurate PCR adjusting, generate PSI/ SI table automatically
Modulation: DX308T (8*DVB-T)
Standard: ETSI EN300 744 MER: ≥40dB
RF Frequency: 50~960MHz, 1KHz step
Constellation: QPSK/16QAM/64QAM Bandwidth: 6/7/8 MHz
Trans mode: 2K/4K/8K FEC: 1/2, 2/3, 3/4, 5/6, 7/8
RF Output Level: -20~+10dBm (for all carriers), 0.5dB step
Modulation: DX308AT (8*ATSC)
Standard: ATSC A/53 MER: ≥40dB RF Frequency: 50~960MHz, 1KHz step
Constellation: 8VSB Bandwidth: 6MHz FEC: RS(208 188)+Trellis
RF Output Level: -20~+10dBm (for all carriers), 0.5dB step
Data input: 32×6 IP input over UDP/RTP, 2 GE Ports (RJ45/SFP) and stream connector
Data output: 6 IP output over UDP/RTP/RTSP, unicast/multicast, 2 GE Ports (RJ45/SFP)
Trans Rate: Max 840Mbps/GE Port
RF output (F type): 6 channels of multiplexing and modualtion.
Multiplexing:
Maximum PID Remapping: 180 output pids per channel
Function: PID remapping (automatically or manually), Accurate PCR adjusting, generate PSI/ SI table automatically
Modulation:
Standard: ARIB STD-B31
Bandwidth: 6M Constellation: QPSK, 16QAM, 64QAM
Guard Interval: 1/32, 1/16, 1/8, 1/4 Transmission Mode: 2K, 4K, 8K
Code rate: 1/2, 2/3, 3/4, 5/6, 7/8 MER: ≥40dB
RF frequency: 50~960MHz, 1KHz step
RF output level: -20dBm~+10dBm (87~117dBµV), 0.1dB stepping
Module Specifications:
Stream in: 2 Tuner input, F Type
DVB-CI: 2 Independent common interface slots
Standard: DX902: DVB-S/S2; DX912: DVB-C
Tuner Section:
DVB-S Input Frequency: 950-2150MHz
Symbol Rate: QPSK 1~45Msps
Signal Strength: -65~ -25dBm
FEC Demodulation: 1/2, 2/3, 3/4, 5/6, 7/8
DVB-S2 Input Frequency: 950-2150MHz
Symbol rate: QPSK/8PSK 1~45Msps
16APSK 1~45 Msps 32APSK1~32 Msps
FEC Demodulation: 1/2, 2/3, 3/4,5/6,7/8, 4/5,5/6,8/9, 9/10
DVB-C Standard: J.83A(DVB-C), J.83B, J.83C
Input Frequency: 30-960MHz
Constellation: 16/32/64/128/256 QAM
Support Diseqc function (For DX902)
Multiplexing:
Maximum PID Remapping: 256 output pids
Function: PID remapping (automatically or manually), Accurate PCR adjusting, generate PSI/ SI table automatically
Descrambling:
CAM/CI Quantity: 2
BISS Mode: Mode 1, Mode E; up to 120Mbps (Optional as required)
Module Specifications:
Stream in: 4 Tuner input, F Type
Stream out: 5 MPTS (4 MPTS out thru bypassing, 1 MPTS multiplexing) out over UDP/RTP, unicast/multicast
Standard: DVB-S/S2/S2X
Tuner Section
DVB-S Input Frequency: 950-2150MHz
Symbol Rate: QPSK 1~45 Msps
FEC Demodulation: 1/2, 2/3, 3/4, 5/6, 7/8
DVB-S2 Input Frequency: 950-2150MHz
Symbol rate: QPSK/8PSK/16APSK 1~45 Msps; 32APSK1~32 Msps
FEC Demodulation: QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10
16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
32APSK: 3/4, 4/5, 5/6, 8/9, 9/10
DVB-S2X Input Frequency: 950-2150MHz
Symbol rate: QPSK/8PSK/16APSK 1~45 Msps; 8APSK 1~40Msps; 32APSK 1~32 Msps
FEC Demodulation: QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 13/45, 9/20, 11/20
8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10, 23/36, 25/36, 13/18
8APSK: 5/9-L, 26/45-L
16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10,1/2-L, 8/15-L, 5/9-L, 26/45, 3/5, 3/5-L, 28/45, 23/36, 2/3-L, 25/36, 13/18, 7/9, 77/90
32APSK: 3/4, 4/5, 5/6, 8/9, 9/10, 2/3-L, 32/45, 11/15, 7/9
Signal Strength: -65 ~ -25dBm
Support Diseqc function
Multiplexing:
Maximum PID Remapping: output 256 pids
Function: PID remapping (automatically/ manually), Accurate PCR adjust
Module Specifications:
Stream in: 4 Tuner input, F Type
Standard: DX924: DVB-C(J.83 A/C)/J.83B/ DVB-T/T2/ISDB-T switchable
Standard: DVB-C(J.83 A/C); J.83B
Input Frequency: 60MHz~890MHz
Symbol rate: 1000~9000Ksps
Constellation: 16/32/64/128/256 QAM; 64/256 QAM for J.83B
Standard: DVB-T/T2
Frequency In: 60MHz~890MHz
Bandwidth: 5/6/7/8M bandwidth
PLP Index: 0~255(for DVB-T2)
Standard: ISDB-T
Input Frequency: 60-890MHz
Multiplexing:
Maximum PID Remapping: 256 output pids
Function: PID remapping (automatically/ manually), Accurate PCR adjust
Module Specifications:
ASI input/output: 2 ASI bi-direction, BNC 75Ω
Stream Connector input
Decoding:
Video/Audio Out: 2 HD/SD SDI output
Video Format: MPEG-2, MPEG-4 AVC/H.264
Resolution: 480i,480p,576i,576p,720p@50/59.94/60,1080i@50/59.94/60
Chroma: 4:2:0
Audio Format: MPEG1 Layer2, LC-AAC, HE-AAC, AC3 (2.0/5.1), AC3 Passthrough,
Support Dual Audio Out
Support CC/Subtitle
Parameters Comparison:
|
|
XLD400 |
XLD400A |
|
IP Data Transport |
One-way Transport: GE1/GE2 support output maximum 8MPTS & 512SPTS |
Bi-directional Transport: GE1/ GE2 support IP data input and output |
|
TS Processing Number |
Support 1 TS (MPTS/SPTS) input from each module, and maximum bitrate is 350Mbps |
Support maximum 512 TS (MPTS/SPTS) input from each module, and maximum bitrate is 350Mbps |
|
Multiplexing |
Support multiplexing function: It can mux TSs from different modules to one TS and output through one module or GE1/GE2 port |
Doesn’t support multiplexing function: It can combine TSs from different modules and output these TSs through one module or GE1/GE2 port |
|
Output Per Module |
1 MPTS after multiplexing |
1 or multiple MPTS/SPTS |
