Product Outline

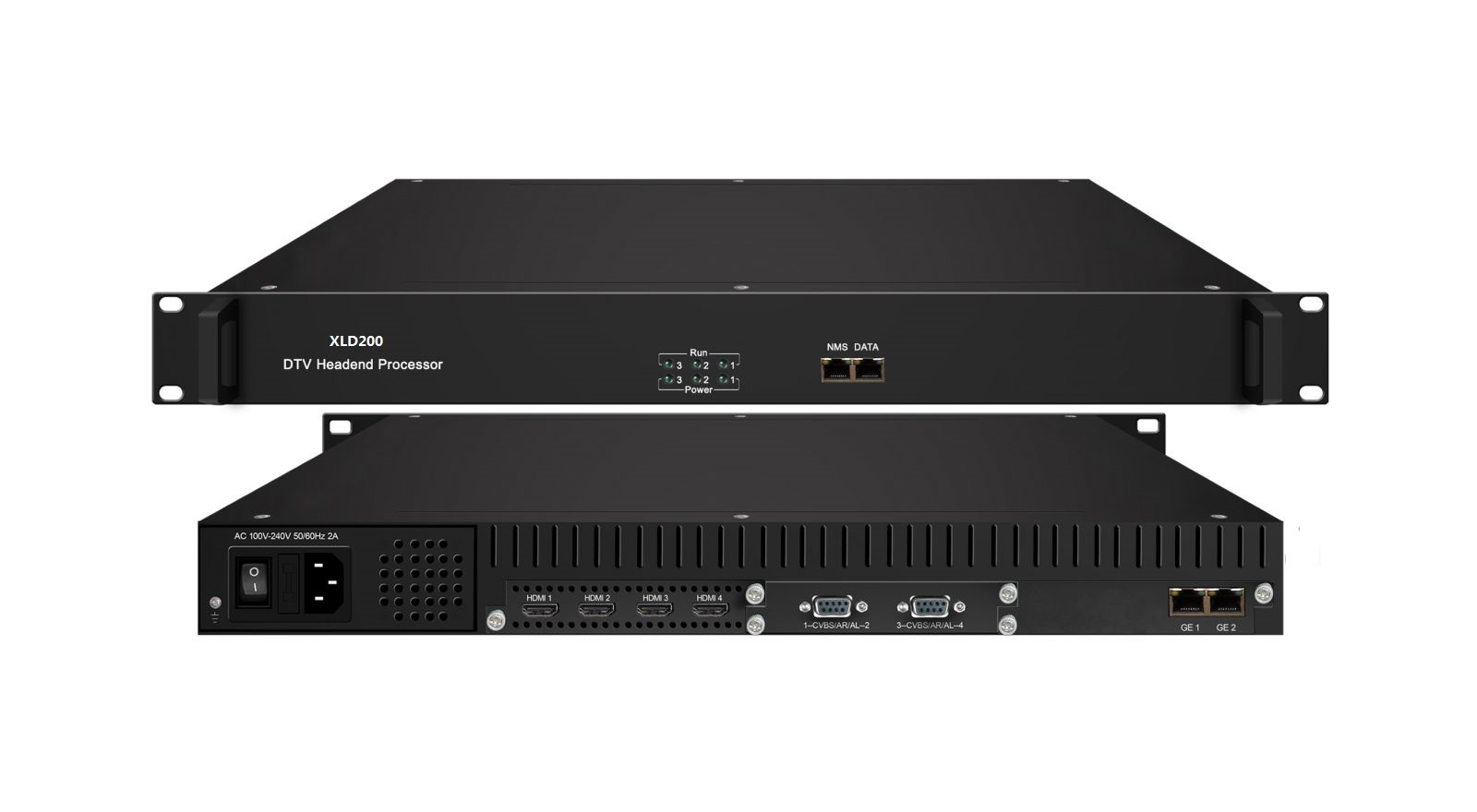

XLD200 DTV head-end processor is the newest generation of professional head-end processing equipment. This 1-U case comes with 3 independent module slots, and it can be combined with different modules as your head-end system according to your operation requirements. Each module can be configured individually based on the applications including encoding, decoding, trans-coding, multiplexing, descrambling and modulating processing. XLD200 head-end processor brings a whole new level of intelligence and high performance to the network at a cost effective price.



Key Features

 *  Modularized plug-in design, 1U chassis and 3 slots

 *  Support flexible combination of any different type of modules

 *  Maximum 800M data processing

 *  Support 1 GE bi-direction(Data port), RJ45 interface

 *  Support Web management, Update via web



Principle Chart



Module Specifications:

4 ASI/IP Multiplexing Module(DX504)



Module Specifications:

ASI inputs/outputs: 4 ASI bi-direction, BNC 75Ω

IP inputs/outputs: 2 100/1000M Ethernet Port

Re-multiplexing: PID remapping, PCR correction, generate PSI/ SI table automatically

Stream In: maximum 4 ASI input, 256×2 IP input, 1IP input from data port

Stream Out: maximum 4 ASI output, 4 IP output, 1 MPTS output over UDP, RTP through data port



5 ASI Multiplexing Module(DX505)





     Module Specifications:

ASI inputs/outputs: 5 ASI bi-direction, BNC 75Ω

IP input: 1 IP input from data port

Stream in: maximum 5 ASI input

Re-multiplexing: PID remapping, PCR correction, generate PSI/ SI table automatically

Stream out: maximum 5 ASI output, and 1 MPTS output over UDP through data port



IP Multiplexing Module(DX506)



Module Specifications:

IP input: 512 SPTS or MPTS input over UDP, RTP, Unicast and Multicast thru GE1 Ethernet Port (100/1000M)

Re-multiplexing: PID remapping, PCR correction, generate PSI/ SI table automatically

Stream Out: 512 SPTS output over UDP, RTP, Unicast and Multicast through GE2 Ethernet Port (100/1000M)



8 CH EAS Multiplexing Module(DX508E)



Module Specifications:

ASI input: 1 ASI input (SPTS), BNC 75Ω

IP input: 256 IP input thru 1 GE1 (100/1000M)

EAS Source: ASI or IP (the 256th IP) (ASI&IP should be SPTS, both can’t mux, source Bitrate≤10Mbps)

Re-multiplexing: PID remapping, PCR correction (only for IP), generate PSI/ SI table automatically

Stream Out: 8 IP output thru GE1, maximum 8 programs each channel



4 CVBS Encoding Module(DX214/DX214A)



Module Specifications:

Input: 4 CVBS video, 4 Stereo Audio (DB9 to RCA)

Output: 1MPTS and 4 SPTS output over UDP/RTP, unicast and multicast

Video Encoding:

Video format: MPEG-2 (4:2:0)

Image format: PAL, NTSC SD signal

Input resolution: 720×480_60i, 544×480_60i, 352×480_60i, 352×240_60i,

320×240_60i, 176×240_60i, 176×120_60i, 720×576_50i,

704×576_50i, 640×576_50i, 352×288_50i, 320×288_50i,

176×288_50i, 176×144_50i

GOP structure: IP, IBP, IBBP, IBBBP

Video bit rate: 0.5Mbps~8Mbps per channel

Support CC (closed caption)

Audio Encoding:

Audio format: MPEG-1 Layer 2, DD AC3 (2.0)

Sampling rate: 48KHz

Resolution: 24-bit

Audio bitrate:128/192/256/320/384kbps each channel

Support Logo, Caption, QR Code insertion (for DX214A only)



4 CVBS Encoding Module(DX214B)



Module Specifications:

Input: 4 CVBS video, 4 Stereo Audio (DB9 to RCA)

Output: 1MPTS and 4 SPTS output over UDP/RTP, unicast and multicast

Video Encoding:

Video format: MPEG-2, MPEG4 AVC/H.264

Image format: PAL, NTSC SD signal

Resolution:

PAL:720*576/352*288/320*240/320*180/176*144/160*120/160*90@50Hz

NTSC: 720*480/352*288/320*240/320*180/176*144/160*120/160*90@59.94Hz

Rate Control: CBR/VBR

GOP structure: IBBPB

Video bitrate:  0.5~5Mbps

Audio Encoding:

Audio format: MPEG1 Audio Layer 2, LC-AAC, HE-AAC V2

Sampling rate: 48KHz

Resolution: 24-bit

Bit-rate: 48-384Kbps each channel

Support Logo, Caption, QR Code insertion



4 HDMI Encoding Module(DX224)

Module Specifications:

Input: 4*HDMI

Output: 1*MPTS & 4*SPTS output over UDP/RTP, Unicast/Multicast

Video Encoding:

Video format: MPEG-4 AVC/H.264

Input resolution:

1920×1080_60P, 1920×1080_50P, 1920×1080_60i, 1920×1080_50i,

1280×720_60P, 1280×720_50P, 720×576_50i, 720×480_60i

GOP structure: IBBP

Video bitrate: 0.8Mbps~19Mbps each channel

Rate Control: CBR/VBR

Audio Encoding:

Audio format: MPEG1 Layer II, (MPEG-2 AAC, MPEG-4 AAC Optional), AC3 passthrough

Sampling rate: 48KHz

Resolution: 24-bit

Audio bitrate: 64~320Kbps each channel

Audio Gain Control: 0-400%



4 HDMI Encoding Module (DX224S)

Module Specifications:

Input: 4*HDMI

Output: 1*MPTS output over UDP/RTP, Unicast/Multicast

Video Encoding:

Video format: MPEG-4 AVC/H.264

Input resolution: 1920×1080_60P, 1920×1080_60i, 1920×1080_50P, 1920×1080_50i,1280×720_60P, 1280×720_50P, 720×576_50i, 720×480_60i,

Output resolution: 1920×1080_30P, 1920×1080_25P, 1280×720_30P, 1280×720_25P, 720×576_25P,720×480_30P,

GOP structure: IP…P (P Frame adjustment, without B Frame)

Video Bit-rate: 1Mbps~13Mbps each channel

Rate Control: CBR/VBR

Audio Encoding:

Audio format: MPEG1 Layer II, support audio gain adjustment

Sampling rate: 48 KHz

Resolution: 24-bit

Audio Bit-rate: 64kbps,128Kbps,192kbps,224kbps,256kbps,320kbps,384kbps

Support Logo, Caption, QR Code insertion



4 HDMI/SDI Encoding Module(DX224V)



Module Specifications:

Input: 4×SDI/HDMI (1.4) input, HDCP 1.4

Output: 1 MPTS and maximum 4 SPTS output over UDP/RTP/RTSP

Video Encoding:

Video format: HEVC/H.265 & MPEG 4 AVC/H.264

Resolution:

HDMI-VersionⅠ:

3840×2160_30P, 3840×2160_29.97P;

(Encoding 2 CHs per module for H.265, and encoding 1 CH for H.264)

1920×1080_60P, 1920×1080_59.94P, 1920×1080_50P;

(Encoding 4 CHs per module for H.265, and encoding 2 CHs for H.264)

1280×720_60P, 1280×720_59.94P, 1280×720_50P

(Encoding 4 CHs per module for H.264 and H.265)

HDMI-VersionⅡ/SDI:

1920×1080_60P, 1920×1080_59.94P, 1920×1080_50P;

(Encoding 4 CHs per module for H.265, and encoding 2 CHs for H.264)

1280×720_60P, 1280×720_59.94P, 1280×720_50P

(Encoding 4 CHs per module for H.264 and H.265)

Input: 1920×1080_60i, 1920×1080_59.94i, 1920×1080_50i

Output: 1920×1080_60P, 1920×1080_59.94P, 1920×1080_50P

(Encoding 4 CHs per module for H.265, and encoding 2 CHs for H.264)

Chroma: 4:2:0              Bit rate: 0.5Mbps~20Mbps (each channel)

Rate Control: CBR/VBR      GOP structure: IBBP, IPPP

Audio Encoding:

Audio format: MPEG-1 Layer 2, LC-AAC, HE-AAC, HE-AAC V2

Sampling rate: 48KHz

Bit-rate (each channel):

48Kbps~384Kbps (MPEG-1 Layer 2 & LC-AAC)

24 Kbps~128 Kbps (HE-AAC)

18 Kbps~56 Kbps (HE-AAC V2)

Audio Gain: 0~255



8 CVBS Encoding Module(DX218S)



Module Specifications:

Input: 8 CVBS video, 8 Stereo Audio (DB15 to RCA)

Output: 1 MPTS and 8 SPTS output over UDP/RTP, unicast and multicast,

Video Encoding:

Video format: MPEG4 AVC/H.264

Image format: PAL, NTSC SD signal

Resolution: 720×576i, 720×480i

Rate Control: CBR/VBR

GOP structure: IPP

Video bitrate: 1~7Mbps each channel

Audio Encoding:

Audio format: MPEG-1 Layer 2

Sampling rate: 48KHz

Resolution: 24-bit

Bit-rate: 64/128/192/224/256/320/384Kbps each channel

Support Logo, Caption, QR Code insertion  (Language Supported: 中文, English, اردو, for more languages please consult us…)



2 HDMI Encoding/Transcoding Module (DX202A)



Module Specifications:

Input: 2*HDMI, 2*BNC for CC (Closed Caption) input

Output: 1*MPTS output over UDP, Unicast/Multicast

Video Encoding:

Video format: MPEG2 & MPEG4 AVC/H.264

Input resolution:

1920*1080_60P, 1920*1080_50P, 1920*1080_60i, 1920*1080_50i, 1280*720_60p, 1280*720_50P, 720*480_60i, 720*576_50i

Rate control mode: CBR/VBR

Aspect ratio: 16:9, 4:3

Video bitrate: 0.8~19Mbps for H.264 encoding

                    1~19.5Mbps for MPEG-2 encoding

Support CC (closed caption)

Audio Encoding:

Audio format: MPEG1 Layer II, MPEG2-AAC, MPEG4-AAC,

Dolby Digital AC3 (2.0) encoding (Optional); AC3 (2.0/5.1) passthrough

Sampling rate: 48KHz

Audio bitrate: 64Kbps-320kbps each channel

Video Tanscoding:

2*MPEG2 HD → 2*MPEG2/H.264 HD; 2*MPEG2 HD → 2*MPEG2/H.264 SD;

2* H.264 HD → 2*MPEG2/H.264 HD; 2* H.264 HD → 2*MPEG2/H.264 SD;

4 *MPEG2 SD → 4 *MPEG2/H.264 SD; 4* H.264 SD → 4 *MPEG2/H.264 SD

Audio Tanscoding:

MPEG-1 Layer 2, AC3 (Optional) and AAC any-to-any



2 SDI Encoding/Transcoding Module (DX202A-D)



Module Specifications:

Input: 2*HD-SDI

Output: 1*MPTS output over UDP, Unicast/Multicast

Video Encoding:

Video format: MPEG2 & MPEG4 AVC/H.264

Input resolution:

1920*1080_60P, 1920*1080_50P, 1920*1080_60i, 1920*1080_50i, 1280*720_60p, 1280*720_50P, 720*480_60i, 720*576_50i

Rate control mode: CBR/VBR

Aspect ratio: 16:9, 4:3

Video bitrate: 0.8~19Mbps for H.264 encoding;

                    1~19.5Mbps for MPEG-2 encoding

Support CC (closed caption)

Audio Encoding:

Audio format:

MPEG1 Layer II, MPEG2-AAC, MPEG4-AAC,

Dolby Digital AC3 (2.0) encoding (Optional), AC3 (2.0/5.1) passthrough

Sampling rate: 48KHz

Audio bitrate: 64Kbps-320kbps each channel

Video Tanscoding:

2*MPEG2 HD → 2*MPEG2/H.264 HD; 2*MPEG2 HD → 2*MPEG2/H.264 SD;

2* H.264 HD → 2*MPEG2/H.264 HD; 2* H.264 HD → 2*MPEG2/H.264 SD;

4 *MPEG2 SD → 4 *MPEG2/H.264 SD; 4* H.264 SD → 4 *MPEG2/H.264 SD

Audio Tanscoding:

MPEG-1 Layer 2, AC3 (Optional) and AAC any-to-any



2 HD-SDI Decoding Module(DX702)



Module Specifications:

ASI input/output: 2 ASI bi-direction, BNC 75Ω

IP input: 2 IP input from data port

IP output: 1 MPTS output over UDP, Unicast/Multicast

Decoding:

Video/Audio Out: 2 HD/SD SDI output

Video Format: MPEG-2, MPEG-4 AVC/H.264

Resolution: 480i,480p,576i,576p,720p@50/59.94/60,1080i@50/59.94/60

Chroma: 4:2:0

Audio Format: MPEG1 Layer2, LC-AAC, HE-AAC, AC3 (2.0/5.1), AC3 Passthrough,

Support Dual Audio Out

Support CC/Subtitle





4 HDMI Decoding Module(DX714)

Module Specifications:

Input: 4 IP (MPTS/SPTS) input from data port over UDP&RTP, Unicast/Multicast

Output: 4 HDMI output

Decoding:

Video/Audio Out: 4 HDMI output with 1 channel stereo audio embedded in each port

Video Format: MPEG-2, MPEG-4 AVC/H.264, HEVC/H.265, AVS, AVS+

Audio Format: MPEG 1 Layer 2, LC-AAC, HE-AAC, AC3 (2.0)

Resolution: 480i, 480p, 576i, 576p,1280×720_50p, 1280×720_60p, 1920×1080_50i, 1920×1080_50p 1920×1080_60i, 1920×1080_60p

Support manually upscale/downscale resolution



16/32 QAM Modulating Module (DX316/DX332)



Module Specifications:

Data input: 128 IP input from front panel Data port

                     Max 512 IP input over UDP/RTP, 2 GE Ports (RJ45/SFP) ---DX316

                     Max 1024 IP input over UDP/RTP, 2 GE Ports (RJ45/SFP) ---DX332

Data output: 16/32 IP output over UDP/RTP/RTSP, unicast/multicast, 2 GE Ports (RJ45/SFP)

Trans Rate: Max 840Mbps/GE Port

RF output (F type): 16/32 channels of multiplexing, scrambling and modulating

Multiplexing:

Maximum PID Remapping: 180 output pids per channel ---DX316

                                          256 output pids per channel ---DX332

Function: PID remapping (automatically or manually), Accurate PCR adjusting, generate PSI/SI table automatically

Scrambling:

Maximum simulcrypt CA: 4

Standard: ETR289, ETSI 101 197, ETSI 103 197

Connection: Local/remote connection

Modulation:

Standard: EN300 429/ITU-T J.83A/B (DVB-C)

MER: ≥40db

RF frequency: 50~960MHz, 1KHz step

RF output level: -20~+10dbm (87~117 dbµV), 0.1db step for all carriers

Symbol Rate: 5.0Msps~7.0Msps, 1ksps stepping

Constellation: 16/32/64/128/256QAM

RF Output: 16 non-adjacent carrier outputs within 192M bandwidth---DX316

                  32 non-adjacent carrier outputs within 384M bandwidth---DX332



8 DVB-T/ATSC Modulating Module(DX308T/DX308AT)



Module Specifications:

Data input: 128 IP input from front panel Data port

                    256 IP input over UDP/RTP, 2GE Ports (RJ45/SFP) —— DX308T

                    256 IP input over UDP/RTP, 2GE Ports (RJ45/SFP) —— DX308AT

Data output: 8 IP output over UDP/RTP/RTSP, unicast/multicast, 2 GE Ports (RJ45/SFP)

Trans Rate: Max 840Mbps/GE Port

RF Output (F type): 8 non-adjacent carrier outputs within 192M bandwidth

Multiplexing:

Channel Number: 8 multiplexing channels

Maximum PID Remapping: 180 input per channel

Function: PID remapping (automatically or manually), Accurate PCR adjusting, generate PSI/ SI table automatically

Modulation: DX308T (8*DVB-T)

Standard: ETSI EN300 744      MER: ≥40db

RF Frequency: 50~960MHz, 1KHz step

Constellation: QPSK/16QAM/64QAM Bandwidth: 6/7/8 MHz

Trans mode: 2K/4K/8K    FEC: 1/2, 2/3, 3/4, 5/6, 7/8

RF Output Level: -20~+10dbm (for all carriers), 0.5db stepping

Modulation: DX308AT (8*ATSC)

Standard: ATSC A/53  MER: ≥40db   RF Frequency: 50~960MHz, 1KHz step

Constellation: 8VSB   Bandwidth: 6MHz   FEC: RS(208 188)+Trellis

RF Output Level: -20~+10dbm (for all carriers), 0.5db stepping



6 ISDB-Tb Modulating Module (DX306I)



Module Specifications:

Data input: 128 IP input from front panel Data port

                     192 IP input over UDP/RTP, 2 GE Ports (RJ45/SFP)

Data output: 6 IP output over UDP/RTP/RTSP, unicast/multicast, 2 GE Ports (RJ45/SFP)

Trans Rate: Max 840Mbps/GE Port

RF output (F type): 6 channels of multiplexing and modualtion.

Multiplexing:

Input Channel: 192

Maximum PID Remapping: 180 input per channel

Function: PID remapping (automatically or manually), Accurate PCR adjusting, generate PSI/ SI table automatically

Modulation:

Standard: ARIB STD-B31

Bandwidth: 6M                                  Constellation: QPSK, 16QAM, 64QAM

Guard Interval: 1/32, 1/16, 1/8, 1/4      Transmission Mode: 2K, 4K, 8K

Code rate: 1/2, 2/3, 3/4, 5/6, 7/8         MER: ≥40dB

RF frequency: 50~960MHz, 1KHz step

RF output level: -20dBm~+10dBm (87~117dbµV), 0.1dB stepping



2 Tuner Descrambling Module (DX902/DX912)



Module Specifications:

Stream in: 2 Tuner input, F Type, 1 IP input from data port

Stream out: 1 MPTS output over UDP, Unicast/Multicast

DVB-CI: 2 independent common interface slots

Standard: DX902: DVB-S/S2; DX912: DVB-C

DVB-S                   Input Frequency: 950-2150MHz

                             Symbol Rate: QPSK 1~45Msps

                             Signal Strength: -65~ -25dBm

                             FEC Demodulation: 1/2, 2/3, 3/4, 5/6, 7/8

DVB-S2                  Input Frequency: 950-2150MHz

                             Symbol rate: QPSK/8PSK 1~45Msps

                             16APSK 1~45 Msps 32APSK1~32 Msps

FEC Demodulation: 1/2, 2/3, 3/4,5/6,7/8, 4/5,5/6,8/9, 9/10

DVB-C                   Standard: J.83A(DVB-C), J.83B, J.83C

                             Input Frequency: 30-960MHz

                             Constellation: 16/32/64/128/256 QAM

Support Diseqc function (For DX902)

Multiplexing:

Maximum PID Remapping: 256 output pids

Function: PID remapping (automatically or manually), Accurate PCR adjusting, generate PSI/ SI table automatically

Descrambling:

CAM/CI Quantity: 2

BISS Mode: Mode 1, Mode E; up to 120Mbps (Optional as required)



4 FTA Tuner Module(DX904)



Module Specifications:

Stream in: 4 Tuner input, F Type

Stream Out: 1* MPTS output over UDP/RTP, unicast/multicast

Standard:  DVB-S/S2;

                             DVB-S                        DVB-S2

Input Frequency: 950-2150MHz               950-2150MHz

Symbol Rate:  QPSK 1~45 Msps           QPSK/8PSK 1~45 Msps

                                                           16APSK 1~45 Msps

                                                           32APSK1~32 Msps

                                                           (16APSK&32APSK are optional as required)

FEC Demodulation:1/2, 2/3,3/4,5/6,7/8   1/2, 2/3,3/4,5/6,7/8,4/5,5/6,8/9, 9/10

Signal Strength: -65 ~ -25dBm

Support Diseqc function (For DX904)



4 FTA Tuner Module (DX904A)

Module Specifications:

Stream in: 4 Tuner input, F Type

Stream Out: 4* MPTS output over UDP/RTP, unicast/multicast

Standard: DX904A: DVB-S/S2;   DX914A: DVB-C;   DX944A: DVB-(T)

                              DVB-S                    DVB-S2

Input Frequency: 950-2150MHz            950-2150MHz

Symbol Rate:  QPSK 1~45 Msps         QPSK/8PSK 1~45 Msps,

                                                         16APSK 1~45 Msps,

                                                         32APSK1~32 Msps

                                              (16APSK&32APSK are optional as required)

FEC Demodulation:1/2, 2/3,3/4,5/6,7/8    1/2, 2/3,3/4,5/6,7/8,4/5,5/6,8/9, 9/10

Signal Strength: -65 ~ -25dBm

Support Diseqc function (For DX904)

DVB-C        Standard: J.83A (DVB-C), J.83B, J.83C

                  Input Frequency: 30-1000MHz

                 Constellation: 16/32/64/128/256 QAM

DVB-(T):  Standard: DVB-(T)

                 Input Frequency: 30 MHz~1000 MHz

                 Bandwidth: 6M, 7M, 8M



4 FTA Tuner Module (DX924)



Module Specifications:

Stream in: 4 Tuner input, F Type

Stream Out: 5 MPTS output over UDP/RTP, unicast/multicast

Standard: DVB-C (J.83 A/C)/J.83B/ DVB-T/T2/ISDB-T switchable



Standard: DVB-C (J.83 A/C); J.83B

Input Frequency: 60MHz~890MHz

Symbol rate: 1000~9000Ksps

Constellation: 16/32/64/128/256 QAM; 64/256 QAM for J.83B

Standard: DVB-T/T2

Frequency In: 60MHz~890MHz

Bandwidth: 5/6/7/8M bandwidth

PLP Index: 0~255 (for DVB-T2)

Standard: ISDB-T

Input Frequency: 60-890MHz

Multiplexing:

Maximum PID Remapping: 256 output pids

Function: PID remapping (automatically/ manually), Accurate PCR adjust



Equipment Specifications:

Base Unit Parameters

Dimension(W×L×H): 440mm×324mm×44mm

Approx weight: 6kg

Environment: 0~45℃(work); -20~80℃ (Storage)

Power requirements  AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz
