Outline

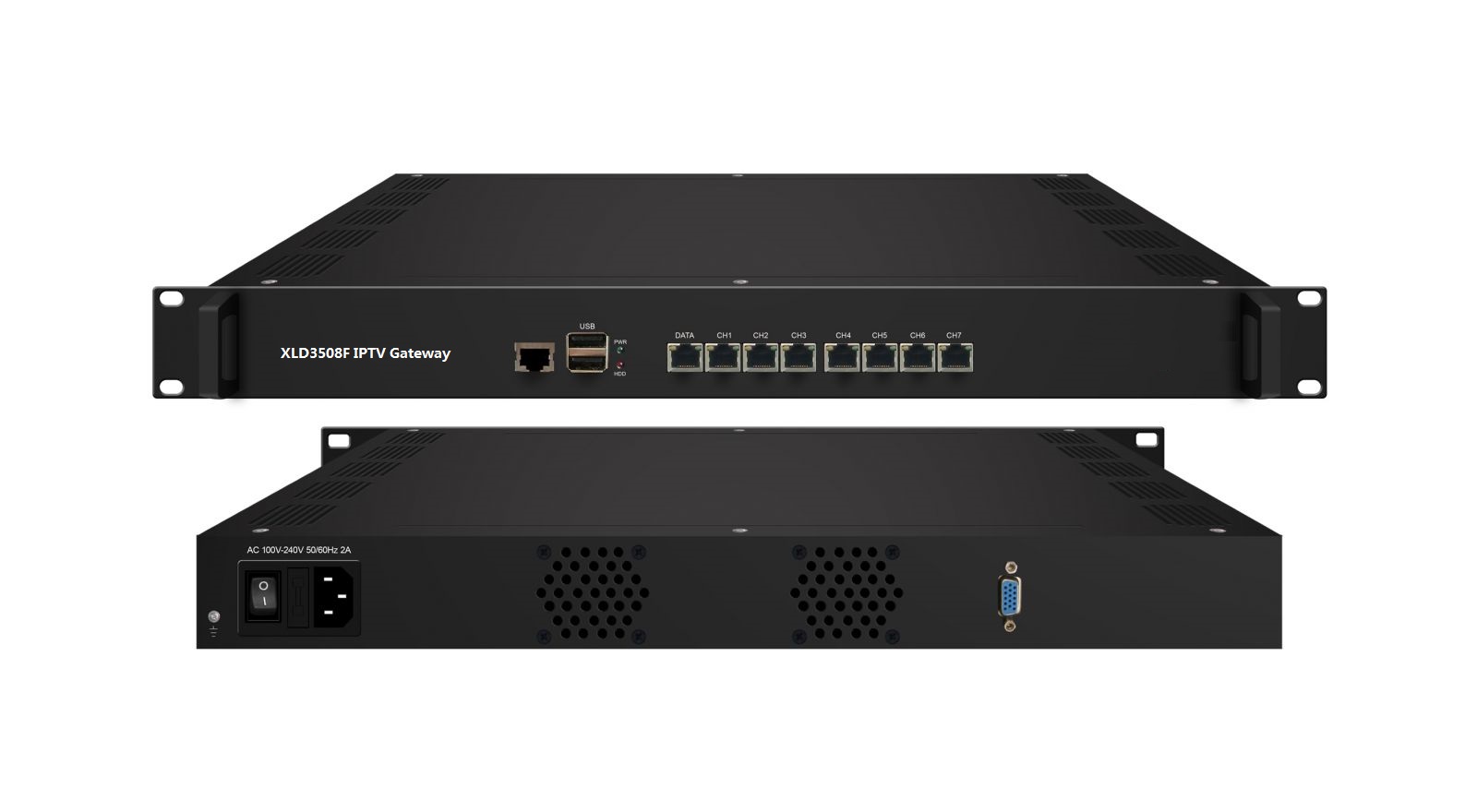

Xielide XLD3508F IPTV Gateway is a device which is used for the protocol conversion scenarios and streaming media distribution scenarios. It can convert the broadcast network IP stream over HTTP, UDP, RTP, RTSP and HLS and TS file into HTTP, UDP, HLS and RTMP protocol. The system can achieve the integration by receiving a variety of commercial streaming media services. Also, the system can provide streaming media services directly.
Main Features
* 8 Data ports:
First Data port: IP out over HTTP, UDP (SPTS), HLS and RTMP
Data CH1-7 ports: IP in over HTTP, UDP (SPTS), RTP (SPTS), RTSP and HLS
IP out over HTTP, HLS and RTMP (Unicast)
* Support TS files uploading through Web management
* Support IP anti- jitter function
* Support adding scrolling caption, welcome words, boot image and boot video (this function is only applicable to IP out application and the STB/Android TV must be installed Dexin IPTV APK)
* Support downloading Dexin IPTV APK directly from this device
* Support about 80 HD/SD programs (Bitrate:2Mbps) When HTTP/RTP/RTSP/HLS is converted into UDP (Multicast),the actual application shall prevail, and suggest maximum 80% CPU utilization
* Support program playing with APK downloaded android STB and TV, maximum 150 terminals
* Control via web-based NMS management through DATA port
IP Protocol Conversion
General Principle Chart
Specifications
|
Input |
IP input thru CH 1-7(1000M) over HTTP, UDP(SPTS), RTP(SPTS), RTSP (over UDP, payload: mpeg TS) and HLS |
|
|
TS files uploading through Web management |
||
|
IP output |
IP out thru Data port (1000M) over HTTP (Unicast), UDP(SPTS, Multicast) HLS and RTMP (Program source should be H.264 and AAC encoding) IP out thru CH 1-7(1000M) over HTTP/ HLS/RTMP (Unicast) |
|
|
System |
Memory: 4G |
|
|
Solid-State Disk(SSD): 16G |
||
|
Channel switching time with DEXIN’ STB: HTTP (1-3s), HLS (0.4-0.7s) |
||
|
Support adding scrolling caption, welcome words, boot image and boot video (this function is only applicable to IP out application and the STB/Android TV must be installed Dexin IPTV APK) |
||
|
Play programs with APK downloaded android STB and TV, maximum 150 terminals |
||
|
Support about 80 HD/SD programs (Bitrate: 2Mbps) When HTTP/RTP/RTSP/HLS is converted into UDP (Multicast), the actual application shall prevail, and suggest maximum 80% CPU utilization |
||
|
web-based NMS management thru DATA port |
||
|
General |
Demission |
482mm×324mm×44mm (WxLxH) |
|
Temperature |
0~45℃(operation), -20~80℃(storage) |
|
|
Power Supply |
AC 100V±10%, 50/60Hz or AC 220V±10%, 50/60Hz |
|
Application:
Maximum 200 Terminals solution
Head-end devices:
|
Data Source |
Function |
Mark |
|
XLD3508B Tuner to IP Gateway |
Receiving FTA Programs |
Input: 16 tuner, 2ASI Output: IP (16 MPTS or 512 SPTS) |
|
XLD3585 4 in 1 IRD |
Decrypting programs |
Input:4 RF, 1ASI, 4IP Output: IP (48 SPTS and 4 MPTS), 4ASI Support descramble programs through 4 CAMs/CIs |
|
XLD3224V HEVC/H.265 HD Encoder |
HDMI HD Programs |
Input: 4/8/12×HDMI Output: IP (1 MPTS and 4/8/12 SPTS) Support H.265/HEVC, H.264/AVC Encoding |
|
XLD3508F IPTV Gateway |
Converting protocol |
Input: 7 channels IP over UDP Output: 1channel IP over HTTP |
Receiving devices:
|
Data Source |
Function |
Mark |
|
XLD3508F IPTV Gateway |
As a receiver to receive programs from public Network |
Input IP protocol: HTTP Output IP protocol: UDP Support about 80 HD/SD programs (Bitrate: 2Mbps), suggest maximum 80% CPU utilization |
|
XLD3508F IPTV Gateway |
As a server |
Input IP protocol: UDP Output IP protocol: HTTP/HLS maximum 250 terminals |
Terminal devices:
|
Terminal Type |
Mark |
|
Android STB with APK |
Support HTTP&HLS protocol Support Dexin APK configuration |
|
Android TVs with APK |
Support HTTP&HLS protocol Support Dexin APK configuration Support self-start Dexin APK when TV is on |
Total device number:
|
Head-end device |
Device |
Number |
|
XLD3508B Tuner to IP Gateway |
1 |
|
|
XLD3585 4 in 1 IRD |
1 |
|
|
XLD3224V HEVC/H.265 HD Encoder |
1 |
|
|
XLD3508F IPTV Gateway |
1 |
|
|
Receiving device |
XLD3508F IPTV Gateway |
2 |
|
Terminal device |
Android STB with APK/ Android TVs with APK |
maximum 250 |
A small number of programs and terminals solution
Head-end devices:
|
Data Source |
Function |
Mark |
|
XLD3508B Tuner to IP Gateway |
Receiving FTA Programs |
Input: 16 tuner, 2ASI Output: IP (16 MPTS or 512 SPTS) |
|
XLD3585 4 in 1 IRD |
Decrypting programs |
Input:4 RF, 1ASI, 4IP Output: IP (48 SPTS and 4 MPTS), 4ASI Support descramble programs through 4 CAMs/CIs |
|
XLD3224V HEVC/H.265 HD Encoder |
HDMI HD Programs |
Input: 4/8/12×HDMI Output: IP (1 MPTS and 4/8/12 SPTS) Support H.265/HEVC, H.264/AVC Encoding |
|
XLD3508F IPTV Gateway |
Converting protocol |
Input: 7 channels IP over UDP Output: 1channel IP over HTTP |
Receiving devices:
|
Data Source |
Function |
Mark |
|||||||||||||||
|
XLD3508F IPTV Gateway |
As a receiver and a server, please view the following data for reference.
|
Input IP protocol: HTTP Output IP protocol: HTTP/HLS |
Terminal devices:
|
Terminal Type |
Mark |
|
Android STB with APK |
Support HTTP&HLS protocol Support Dexin APK configuration |
|
Android TVs with APK |
Support HTTP&HLS protocol Support Dexin APK configuration Support self-start Dexin APK when TV is on |
Total device number:
|
Head-end device |
Device |
Number |
|
XLD3508B Tuner to IP Gateway |
1 |
|
|
XLD3585 4 in 1 IRD |
1 |
|
|
XLD3224V HEVC/H.265 HD Encoder |
1 |
|
|
XLD3508F IPTV Gateway |
1 |
|
|
Receiving device |
XLD3508F IPTV Gateway |
1 |
|
Terminal device |
Android STB with APK/ Android TV with APK |
According to NDS3508F’s CPU utilization after receiving programs. |
The number of terminals according to the cloud server
Head-end devices:
|
Data Source |
Function |
Mark |
|
XLD3508B Tuner to IP Gateway |
Receiving FTA Programs |
Input: 16 tuner, 2ASI Output: IP(16 MPTS or 512 SPTS) |
|
XLD3585 4 in 1 IRD |
Decrypting programs |
Input:4 RF, 1ASI, 4IP Output: IP (48 SPTS and 4 MPTS), 4ASI Support descramble programs through 4 CAMs/CIs |
|
XLD3224V HEVC/H.265 HD Encoder |
HDMI HD Programs |
Input: 4/8/12×HDMI Output: IP (1 MPTS and 4/8/12 SPTS) Support H.265/HEVC, H.264/AVC Encoding |
|
XLD3508F IPTV Gateway |
Converting protocol |
Input: 7 channels IP over UDP Output: 1channel IP over HTTP and HLS |
Receiving devices:
|
Data Source |
Function |
Mark |
|
Cloud Server |
Receiving and store programs and as a server |
Input IP protocol: HTTP/HLS Output IP protocol: HTTP/HLS Support Dexin OTT software configuration |
Terminal devices:
|
Terminal Type |
Mark |
|
Android STB with APK |
Support HTTP&HLS protocol Support Dexin APK configuration |
|
Android TV with APK |
Support HTTP&HLS protocol Support Dexin APK configuration Support self-start Dexin APK when TV is on |
|
Mobile Phone or Tablet PC |
Installing Dexin OTT APP |
Total device number:
|
Head-end device |
Device |
Number |
|
XLD3508B Tuner to IP Gateway |
1 |
|
|
XLD3585 4 in 1 IRD |
1 |
|
|
XLD3224V HEVC/H.265 HD Encoder |
1 |
|
|
XLD3508F IPTV Gateway |
1 |
|
|
Receiving device |
Cloud Server |
1 |
|
Terminal device |
Android STB with APK/ Android TV with APK/ Mobile Phone or Tablet PC with Dexin OTT APP |
The number of terminals according to the cloud server |
Test data for reference:
|
Protocol conversion |
Programs |
Bitrate |
Terminals |
CPU utilization |
|
HTTP/RTP/RTSP/HLS to UDP |
80 |
2M |
--- |
55% |
|
HTTP to HTTP |
30 |
2M |
150 |
80% |
|
50 |
2M |
80 |
80% |
|
|
HTTP to HLS |
50 |
2M |
200 |
46% |
|
UDP to HLS |
50 |
2M |
200 |
50% |
|
80 |
2M |
150 |
72% |
|
|
UDP to HTTP |
50 |
2M |
120 |
50% |
