Outline

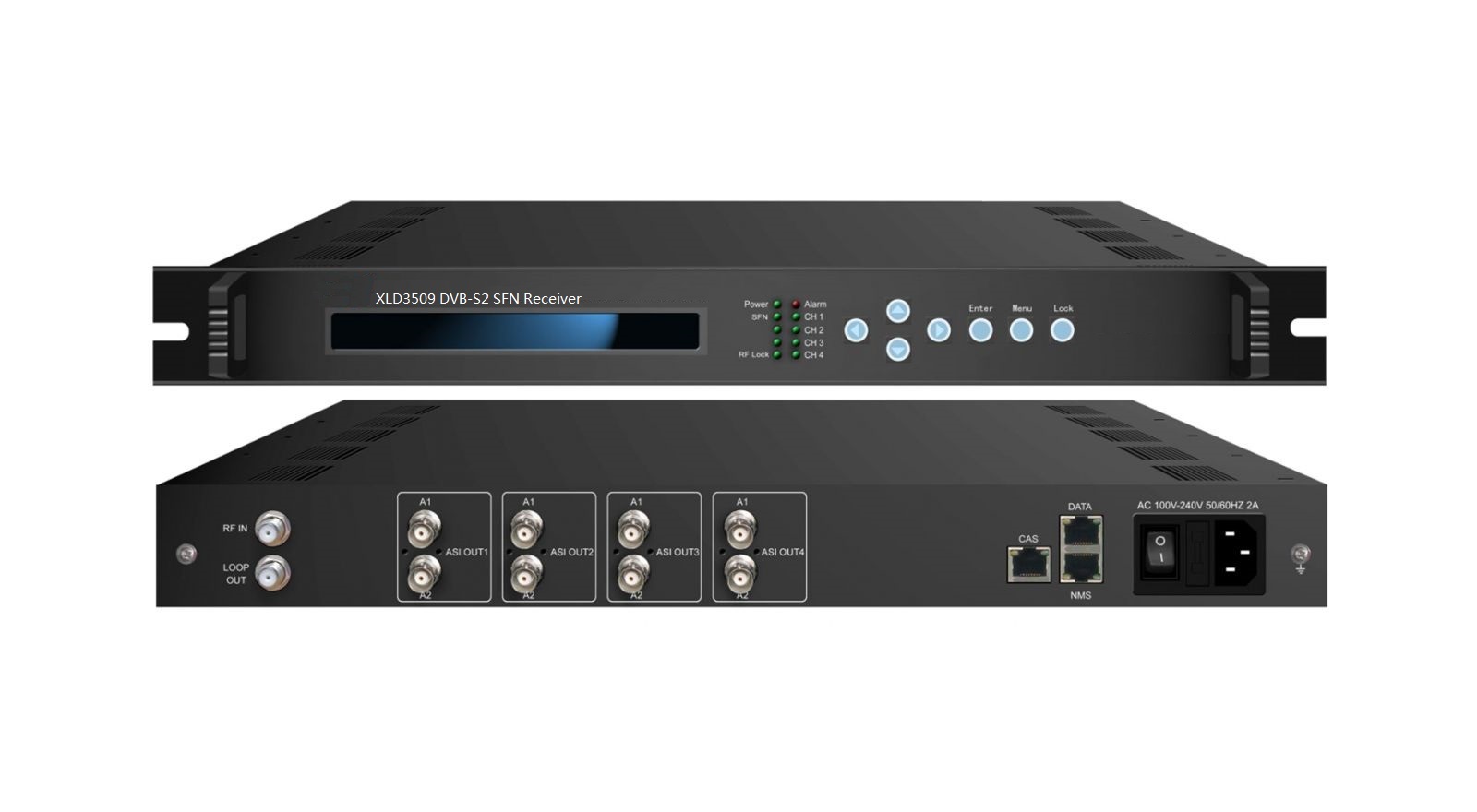

XLD3509 DVB-S2 SFN Receiver is our newly developed digital TV head-end equipment. It is designed to cooperate with DVB-S2 modulator and to receive DVB-S2 RF from directly from satellite.
It is integrated with tuner demodulation and de-multiplexing capacities, which can demodulate the signal from tuner into TS and then output through maximum 4 separate ASI ports.
Key Features
* 1 DVB-S2 RF input, up to 4 TS output through ASI
* Compliant to SFN TS requirements, support 188 and 204 TS packets
* Integrated with demodulation and de-multiplexing capacities
* Support LCD display and keyboard control
* Support NMS/SNMP management
Inner Principle
Specifications
SFN Transmission Scheme
