Product Introduction

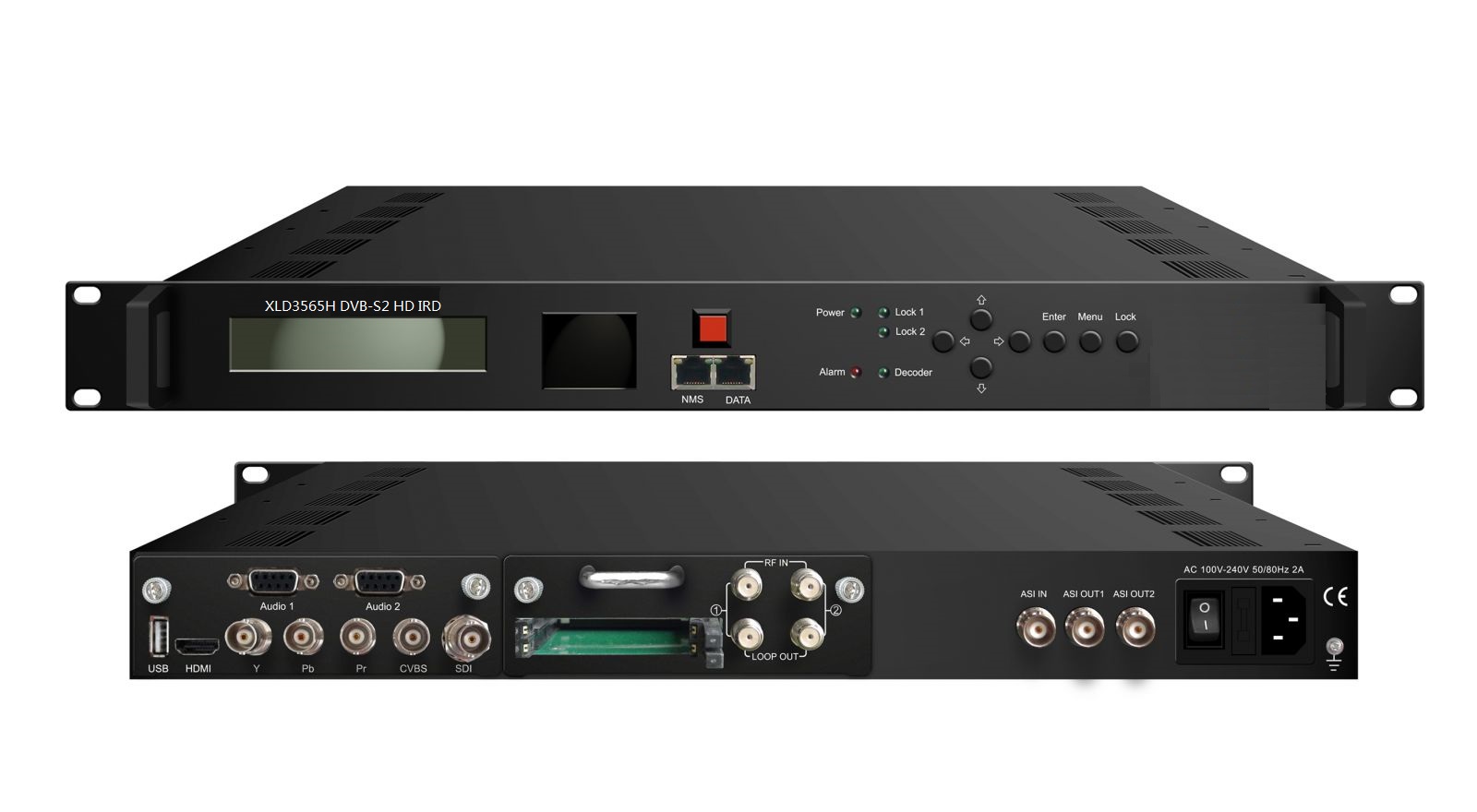

XLD356xH HD IRD is Xielide’s all-in-one device which integrates demodulation, de-scrambler, re-mux and decoding in one case to convert RF signals into audio/video (CVBS/YPbPr/HDMI/SDI) output.
It is a 1-U case which supports 2 tuner inputs to receive signal from satellite, cable or terrestrial devices. The two CAMs/CIs accompanied and BISS modules can descramble the programs input from encrypted RF, ASI and IP.
Its pluggable structure design greatly facilitates the change of modules (demodulator or decoder) as needed.
To meet customers’ various requirements, XLD356xH is also equipped with ASI and IP input for re-mux, and output with 2 ASI ports and IP port.
Key Features
* Demodulation + descrambler +re-mux+decoder modules in one box
* 2 DVB-C/T/S/S2 Tuner inputs
* 1 ASI & 1 IP (UDP) input for re-mux
* One CAM can decrypt multiple programs from Tuners/ASI/IP
* Support BISS descrambling (Up to 120Mbps)
* One channel video output with various interface option (MPEG2/H.264)
* Dual stereo audio output, or one Dolby Digital/Dolby Digital Plus (5.1) channel output
* Support Dolby Digital/Dolby Digital Plus Decoding and passthrough (for HDMI/SDI out)
* IP (1 MPTS & 8 SPTS) over UDP and RTP/RTSP output; ASI out
* Support CC, Subtitle and Teletext
* Support maximum 128 PID mapping per input
* Pluggable and changeable demodulator and decoder modules
* LCD display, Remote control and Firmware, web NMS management
* Update via USB or web
Principle Chart
Technical Specifications
|
Input |
|||||
|
2 x DVB-S/S2RF, F type |
|||||
|
1×ASI input for re-mux, BNC interface |
|||||
|
1xIP input for re-mux (UDP) |
|||||
|
Demodulating Section |
|||||
|
DVB-C |
|||||
|
Standard |
J.83A(DVB-C), J.83B, J.83C |
||||
|
Input Frequency |
30 MHz~1000 MHz |
||||
|
Constellation |
16/32/64/128/256 QAM |
||||
|
DVB-T/T2 |
|||||
|
Input Frequency |
30MHz ~999.999 MHz |
||||
|
Bandwidth |
6/7/8 M bandwidth |
||||
|
DVB-S |
|||||
|
Input Frequency |
950-2150MHz |
||||
|
Symbol rate |
2-45Msps |
||||
|
Signal Strength |
- 65- -25dBm |
||||
|
Constellation |
1/2, 2/3, 3/4, 5/6, 7/8 QPSK |
||||
|
DVB-S2 |
|||||
|
Input Frequency |
950-2150MHz |
||||
|
Symbol rate |
QPSK 1~45Mbauds; 8PSK 2~30Mbauds |
||||
|
Code rate |
1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 |
||||
|
Constellation |
QPSK, 8PSK |
||||
|
Descrambling |
|||||
|
CAM/CI Quantity |
2 |
||||
|
BISS Mode |
Mode 1, Mode E; up to 120Mbps |
||||
|
|
|
||||
|
Output |
|||||
|
IP Output |
1*MPTS & 8*SPTS over UDP, RTP/RTSP. 100Base-T Ethernet interface (unicast / multicast) |
||||
|
2×ASI |
BNC interface, mirrored out |
||||
|
Decode Output |
Video Interface: 1xCVBS/YPbPr/HDMI/SDI Resolution: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p Video Decode: MPEG-2; H.264 Audio Interface: 2 x Stereo/4xmono, HDMI, SDI Audio Decode: MPEG 1 Layer II, LC-AAC, HE-AAC, Dolby Digital/ Dolby Digital Plus Audio Output Mode: Left, Right, Stereo, 5.1 CH |
||||
|
System |
|||||
|
Local interface |
LCD + control buttons |
||||
|
Remote management |
Web-server Management |
||||
|
Language |
English |
||||
|
Upgrade |
USB, web management |
||||
|
General |
|||||
|
Power supply |
AC 100V~240V |
||||
|
Dimensions |
482*300*44.5mm |
||||
|
Weight |
3 kgs |
||||
|
Operation temperature |
0~45℃ |
||||
System Connection Sample
Technical Comparison
|
|
XLD356xH |
XLD397X |
|
Chipset |
ST7105 |
ST7101 |
|
Tuner Input Standard |
DVB-C/T/T2/S/S2 optional |
DVB-C/T/T2/S/S2/ISDB-T/ATSC-T optional |
|
Tuner Input |
2xTuner |
1xTuner |
|
IP Input |
1 IP (100M) UDP |
1 IP (100M) UDP, RTP/RTSP |
|
Audio Out Channel |
2xStereo or 1xDolby Digital (5.1) |
1xStereo or 1xDolby Digital (5.1) |
|
SPDIF Audio Out |
N/A |
Support |
|
AC3 Passthrough |
For HDMI and SDI interface |
For SDI interface |
|
ASI Out |
2xASI Mirrored out |
2xASI output (after multiplexer) and 2xASI output (tuner input pass through) |
|
Manage |
Web |
SNMP, Web |
Ordering Guide
XLD356xH, ‘x’ should be interpreted as different digits which indicate tuners of different standard.
* XLD3561H DVB-C HD IRD
* XLD3564H DVB-T/T2 HD IRD
* XLD3565H DVB-S/S2 HD IRD
