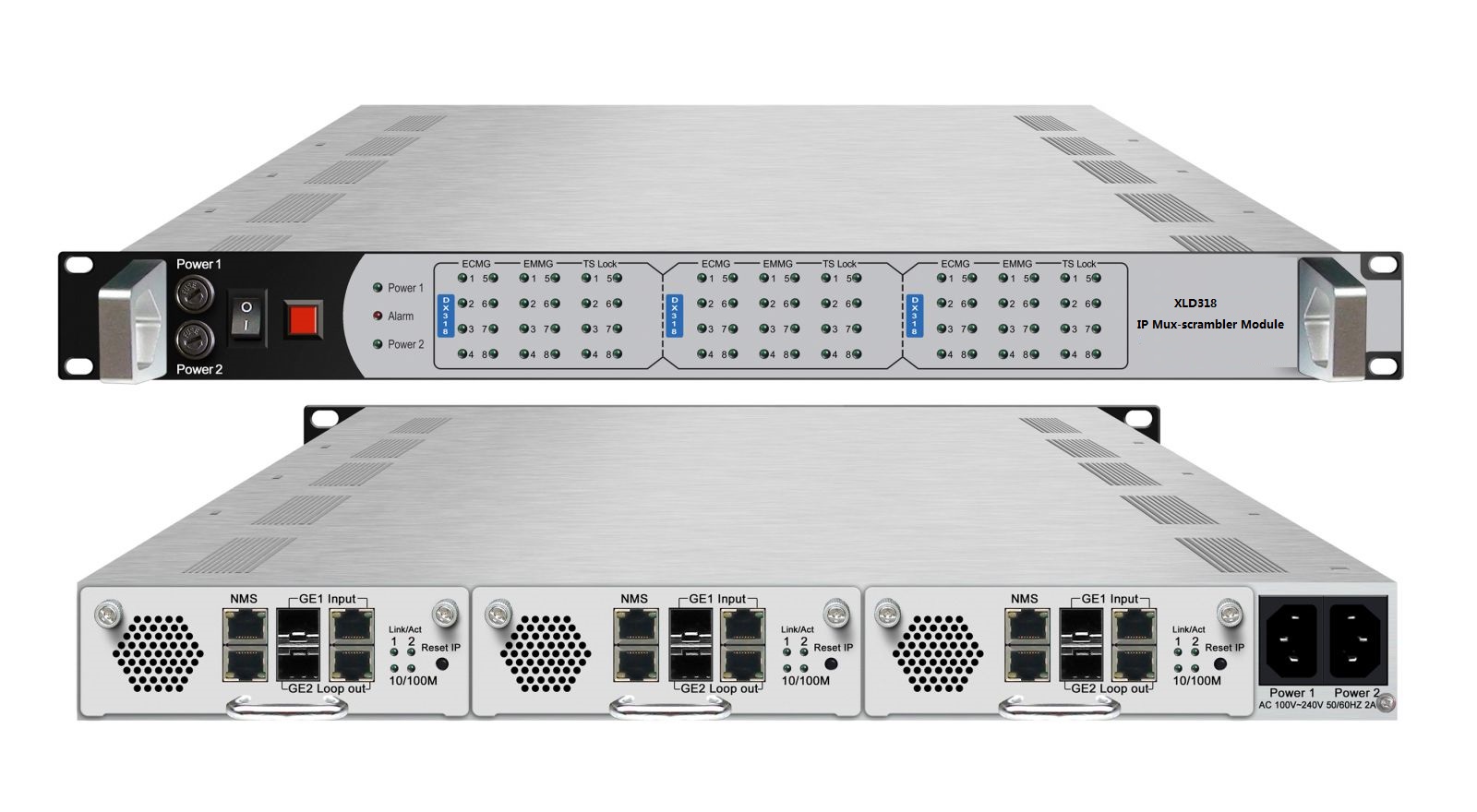

XLD318 IP Mux-Scrambler is the latest multiplexing and scrambling device with high integration and powerful function. The modular design of this device makes each of its Slave cards as one device when operating. Besides, each Slave card can receive the UDP format TS through GE port. Furthermore, it supports up to 256 different IP address, integrates 8 multiplexers and 8 scramblers, which can output UDP format TS through the GE port. Additionally, 1U chassis can support maximum 3 modules (24 channels multiplexing and scrambling), and 4U chassis can support maximum 12 modules (with 96 channels multiplexing and scrambling). In a conclusion, its high integration, high performance and low cost design makes this device widely used in the new generation of CATV broadcasting system.
Features
* Dual Power Supply
* Module design, 1U case can support maximum three modules
* Fully supports DVB general scrambling system description—the ETR289, and simulcrypt standards-- ETSI 101 197 and ETSI 103 197
* 1 GE port input support maximum 256 IP input and network de-jittering
* 1 GE port output, support UDP protocol, unicast, multi-cast and IGMP V2/V3
* The maximum bit-rate of single IP input is 108Mbps, and the total input bit-rate is 840Mbps
* Supports maximum 8 output and multiplexing channels per module
* Supports any input channel to any output channel multiplexing, and the maximum PID mapping of each channel is 180
* Supports PCR accurate adjustment
* Supports PSI/SI inserting and editing
* Supports 8 channel scrambling, and each scrambling channel can simultaneously support 4 simulcrypt CA
* Supports NMS operation
Specification
Input |
Interface |
1GE input, RJ45 interface or SFP |
Transport Protocol |
TS over UDP, Unicast and Multicast, IGMP V2/V3 |
|
Transmission Bit-rate |
Max 108Mbps of each channel Max 840Mbps of all channels |
|
Multiplexing |
Input channel |
256 channels |
Output channel |
8 |
|
Maximum PID |
180 per channel |
|
Function |
PID re-mapping (automatically or manually) |
|
PCR accurate adjusting |
||
Generate PSI/SI table automatically |
||
Scrambling parameters |
Maximum simulcrypt CA |
4 |
Standard |
ETR289, ETSI 101 197,ETSI 103 197 |
|
Connection mode |
Local/ remote connection |
|
IP output |
Interface |
1GE output , RJ45 interface or SFP |
Format |
TS over UDP |
|
Code rate |
1-108Mbps of each channel |
|
System |
Network management (NMS) |
|
General |
Dimension(WxLxH) |
630mm×440mm×44.5mm |
Weight |
9kg |
|
Temperature |
0~45℃(working ), -20~80℃(storage) |
|
Power supply |
AC 100V±10%, 50/60Hz; AC 220V±10%, 50/60Hz |
|
Power consumption |
15.4W |
Principle Chart
